Row Cell Editing in Jq Grid Using Jquery

In this article I will describe how to edit a particular row cell in a jq grid.


In this article I will describe how to edit a particular row cell in a jq grid.

Now to see how the jq grid is being used in ASP.Net application and how to bind the data in to the jq grid, please see this article:


Now I am going to provide the steps of how to edit the particular cell of a given row.

Step 1:

In Visual Studio 2010 first create a simple ASP.Net web project named "JQgridapplication".

Step 2:

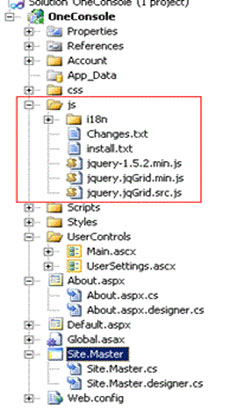

After that add the required JS file and folder for the JQ grid. The folder and file structure will look as shown in the following figure1 marked with red.


Figure 1:

Step 3:

Now go to the "about.aspx".


Now paste the following code there:

<asp:Content ID="HeaderContent" runat="server" ContentPlaceHolderID="HeadContent">
 <link href="../css/ui-darkness/jquery-ui-1.8.12.custom.css" rel="stylesheet" type="text/css" />
<link href="../css/ui.jqgrid.css" rel="stylesheet" type="text/css" />
<script src="../js/jquery-1.5.2.min.js" type="text/javascript"></script>
<script src="../js/i18n/grid.locale-en.js" type="text/javascript"></script>
<script src="../js/jquery.jqGrid.min.js" type="text/javascript"></script>
<script src="../Scripts/json2-min.js" type="text/javascript"></script>
<script src="../js/jquery.jqGrid.src.js" type="text/javascript"></script>
<script type="text/javascript">
    $(document).ready(function () {
        jQuery("#list1").jqGrid({
            datatype: "local",
            colNames: ['Inv No', 'Date', 'Client', 'Amount', 'Tax', 'Total', 'Notes'],
            colModel: [
                           { name: 'id', index: 'id', width: 60, sorttype: "int" },
                           { name: 'invdate', index: 'invdate', width: 90, sorttype: "date" },
                           { name: 'name', index: 'name', width: 100 },
                           { name: 'amount', index: 'amount', width: 80, align: "right", sorttype: "float" },
                           { name: 'tax', index: 'tax', width: 80, align: "right", sorttype: "float" },
                           { name: 'total', index: 'total', width: 80, align: "right", sorttype: "float" },
                           { name: 'note', index: 'note', width: 150, sortable: false }
                  ],
            multiselect: true,
            rowNum: 10,
            rowList: [5, 10, 20, 50, 100],
            pager: jQuery('#pager1'),
            sortorder: "desc",
            viewrecords: true,
            subGrid: true,
            subGridUrl: 'Default.aspx',
            subGridModel: [{ name: ['No', 'Item', 'Qty', 'Unit', 'Line Total'],
                width: [55, 200, 80, 80, 80]
            }
    ],
            caption: "Manipulating Array Data"
        });
        jQuery("#list1").jqGrid('navGrid', '#pager1', { del: false, add: false, edit: false }, {}, {}, {}, { multipleSearch: true });
        var mydata = [
                   { id: "1", invdate: "2007-10-01", name: "test", note: "note", amount: "200.00", tax: "10.00", total: "210.00" },
                   { id: "2", invdate: "2007-10-02", name: "test2", note: "note2", amount: "300.00", tax: "20.00", total: "320.00" },
                   { id: "3", invdate: "2007-09-01", name: "test3", note: "note3", amount: "400.00", tax: "30.00", total: "430.00" },
                   { id: "4", invdate: "2007-10-04", name: "test", note: "note", amount: "200.00", tax: "10.00", total: "210.00" },
                   { id: "5", invdate: "2007-10-05", name: "test2", note: "note2", amount: "300.00", tax: "20.00", total: "320.00" },
                   { id: "6", invdate: "2007-09-06", name: "test3", note: "note3", amount: "400.00", tax: "30.00", total: "430.00" },
                   { id: "7", invdate: "2007-10-04", name: "test", note: "note", amount: "200.00", tax: "10.00", total: "210.00" },
                   { id: "8", invdate: "2007-10-03", name: "test2", note: "note2", amount: "300.00", tax: "20.00", total: "320.00" },
                   { id: "9", invdate: "2007-09-01", name: "test3", note: "note3", amount: "400.00", tax: "30.00", total: "430.00" }
                   ];
        for (var i = 0; i <= mydata.length; i++)
            jQuery("#list1").jqGrid('addRowData', i + 1, mydata[i]);
        var lastsel2
        jQuery("#rowed5").jqGrid({
            datatype: "local",
            height: 250,
            colNames: ['ID Number', 'Name', 'Stock', 'Ship via', 'Notes'],
            colModel: [
                   { name: 'id', index: 'id', width: 90, sorttype: "int", editable: true },
                   { name: 'name', index: 'name', width: 150, editable: true, editoptions: { size: "20", maxlength: "30"} },
                    { name: 'stock', index: 'stock', width: 60, editable: true, edittype: "checkbox", editoptions: { value: "Yes:No"} },
                   { name: 'ship', index: 'ship', width: 90, editable: true, edittype: "select", editoptions: { value: "FE:FedEx;IN:InTime;TN:TNT;AR:ARAMEX"} },
                   { name: 'note', index: 'note', width: 200, sortable: false, editable: true, edittype: "textarea", editoptions: { rows: "2", cols: "10"} }
          ],
            multiselect: true,
            rowNum: 10,
            rowList: [5, 10, 20, 50, 100],
            pager: jQuery('#pager2'),
            sortorder: "asc",
            viewrecords: true,
            onSelectRow: function (id) {
                if (id && id !== lastsel2) {
                    jQuery('#rowed5').jqGrid('restoreRow', lastsel2);
                    jQuery('#rowed5').jqGrid('editRow', id, true);
                    lastsel2 = id;
                }
            },
            editurl: "server.php",
            caption: "Input Types"
        });
        jQuery("#rowed5").jqGrid('navGrid', '#pager2', { del: false, add: false, edit: false }, {}, {}, {}, { multipleSearch: true });
        var mydata2 = [
                   { id: "12345", name: "Desktop Computer", note: "note", stock: "Yes", ship: "FedEx" },
                   { id: "23456", name: "Laptop", note: "Long text ", stock: "Yes", ship: "InTime" },
                   { id: "34567", name: "LCD Monitor", note: "note3", stock: "Yes", ship: "TNT" },
                   { id: "45678", name: "Speakers", note: "note", stock: "No", ship: "ARAMEX" },
                   { id: "56789", name: "Laser Printer", note: "note2", stock: "Yes", ship: "FedEx" },
                   { id: "67890", name: "Play Station", note: "note3", stock: "No", ship: "FedEx" },
                   { id: "76543", name: "Mobile Telephone", note: "note", stock: "Yes", ship: "ARAMEX" },
                   { id: "87654", name: "Server", note: "note2", stock: "Yes", ship: "TNT" },
                   { id: "98765", name: "Matrix Printer", note: "note3", stock: "No", ship: "FedEx" }
                   ];
        for (var i = 0; i < mydata2.length; i++)
            jQuery("#rowed5").jqGrid('addRowData', mydata2[i].id, mydata2[i]);
    });
    //    });
</script>
</asp:Content>
<asp:Content ID="BodyContent" runat="server" ContentPlaceHolderID="MainContent">
    <h2>About</h2>
    <p></p>
    <table id="list1" ></table>
<div id="pager1" ></div>
<br /><br />
<table id="rowed5" ></table>
<div id="pager2" ></div>
</asp:Content>

Now run the application. Click the link "about". It will look like the following figure:


Now click the particular cell or row of a particular grid. It will look like the following figure.


Conclusion: So in this article you have seen how to click the particular cell or row in jq grid.
