Accordion In WPF

Accordion is a Control added to the WPF Toolkit in February 2010 release. In this article we will see how we can use the control.

Introduction

Accordion is a Control added to the WPF Toolkit in February 2010 release. In this article we will see how we can use the control. It was very easy to handle in Silverlight though; we will see how far it is easy in WPF.

If you do not have WPF Toolkit installed, visit to learn how to download and install WPF Toolkit.

Creating WPF Application Project

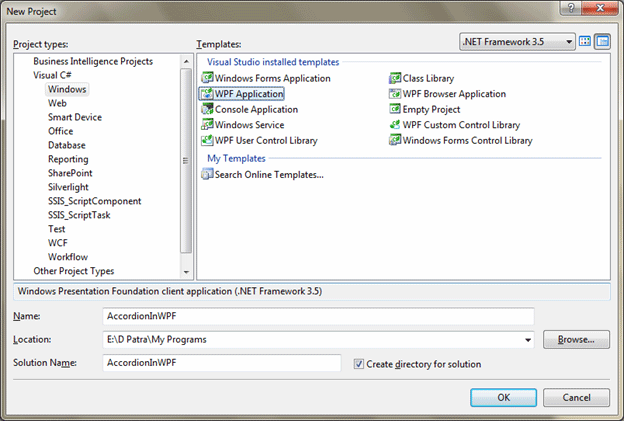

Fire up Visual Studio 2008 and Create a WPF Application and name the project as AccordionInWPF.


We can add an Accordion Control by referencing the following DLL in the Toolkit Folder.
Or, we can add it in Expression Blend.


After adding the Accordion, we need to add AccordionItem also. Add two of them.

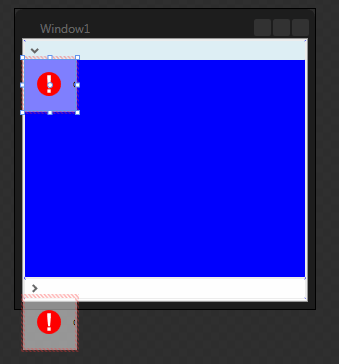

Expression Blend doesn't support designing.


So we would go back to Visual Studio, perhaps there we will be able to!


Yes, we can add content to the AccordionItem in Visual Studio.

I realized that after adding each control to the content we have to build the project the Expression Blend is able to reload the design.

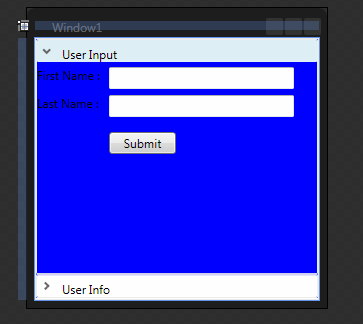

As you see above I have added several controls.

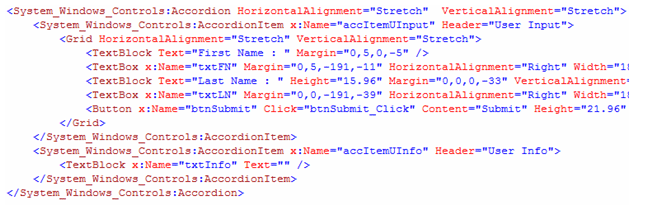

The following is the XAML reference.


In this sample we will see how we can select another accordion item by some event in other accordion item.

Here's the thing. We will take user input from AccordionItem "User Input" and on Submit Button click event we will display the "User Info" AccordionItem.

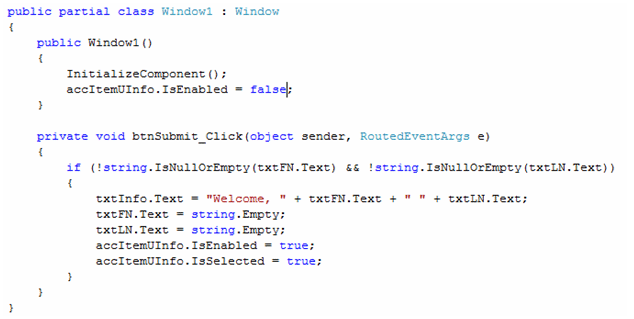

The following code is for your reference.

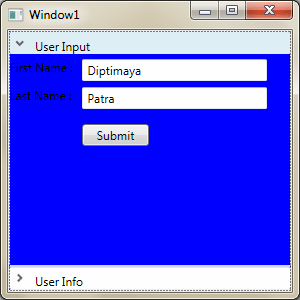

That's it. Run the application and give some input to the TextBoxes and Click on Submit button, you would see the User Info Accordion is selected.


I am not able to change the Background color from Blue to any other color. Let me have some tweak on that.

Hope this article helps.
