C# and Win32_PortConnector Class

In this article you will learn how to use Different available port connector in a computer system using C# and Win32_PortConnector Class.


Win32_PortConnector Class:

It represents physical connection port Like Parallel Port ECP/EPP, Serial Port XT/AT Compatible SCSI Port,MIDI Port, Joy Stick Port, Keyboard Port, Mouse Port.

See the structure of Win32_PortConnector Class

class Win32_PortConnector : CIM_PhysicalConnector
{
string Caption;
string ConnectorPinout;
uint16 ConnectorType[];
string CreationClassName;
string Description;
string ExternalReferenceDesignator;
datetime InstallDate;
string InternalReferenceDesignator;
string Manufacturer;
string Model;
string Name;
string OtherIdentifyingInfo;
string PartNumber;
uint16 PortType;
boolean PoweredOn;
string SerialNumber;
string SKU;
string Status;
string Tag;
string Version;
};

You can understand property easily by its name.

Example: Serial Number represents the serial number of particular.

Here we basically explain the type of Port using property PortType.

And it returns the value of type uint16.

So the return value and its meaning is given in following table:

Values Meaning
0 None
1 Parallel Port XT/AT Compatible
2 Parallel Port PS/2
3 Parallel Port ECP
4 Parallel Port EPP
5 Parallel Port ECP/EPP
6 Serial Port XT/AT Compatible
7 Serial Port 16450 Compatible
8 Serial Port 16550 Compatible
9 Serial Port 16550A Compatible
10 SCSI Port
11 MIDI Port
12 Joy Stick Port
13 Keyboard Port
14 Mouse Port
15 SSA SCSI
16 USB
17 FireWire (IEEE P1394)
18 PCMCIA Type II
19 PCMCIA Type II
20 PCMCIA Type III
21 CardBus
22 Access Bus Port
23 SCSI II
24 SCSI Wide
25 PC-98
26 PC-98-Hireso
27 PC-H98
28 Video Port
29 Audio Port
30 Modem Port
31 Network Port
32 8251 Compatible
33 8251 FIFO Compatible

Here is your code:

       private void button1_Click(object sender, EventArgs e)
        {
            Dictionary<UInt16, string> dict = new Dictionary<ushort, string>();
            dict.Add(0,"None");
            dict.Add(1,"Parallel Port XT/AT Compatible");
            dict.Add(2,"Parallel Port PS/2");
            dict.Add(3,"Parallel Port ECP");
            dict.Add(4,"Parallel Port EPP");
            dict.Add(5,"Parallel Port ECP/EPP");
            dict.Add(6,"Serial Port XT/AT Compatible");
            dict.Add(7,"Serial Port 16450 Compatible");
            dict.Add(8,"Serial Port 16550 Compatible");
            dict.Add(9,"Serial Port 16550A Compatible");
            dict.Add(10,"SCSI Port");
            dict.Add(11,"MIDI Port");
            dict.Add(12,"Joy Stick Port");
            dict.Add(13,"Keyboard Port");
            dict.Add(14,"Mouse Port");
            dict.Add(15,"SSA SCSI ");
            dict.Add(16,"USB");
            dict.Add(17,"FireWire (IEEE P1394)");
            dict.Add(18,"PCMCIA Type II");
            dict.Add(19,"PCMCIA Type II");
            dict.Add(20,"PCMCIA Type III");
            dict.Add(21,"CardBus");
            dict.Add(22,"Access Bus Port");
            dict.Add(23,"SCSI II");
            dict.Add(24,"SCSI Wide");
            dict.Add(25,"PC-98");
            dict.Add(26,"PC-98-Hireso");
            dict.Add(27,"PC-H98");
            dict.Add(28,"Video Port");
            dict.Add(29,"Audio Port");
            dict.Add(30,"Modem Port");
            dict.Add(31,"Network Port");
            dict.Add(32,"8251 Compatible");
            dict.Add(33,"8251 FIFO Compatible");

            var mos = new ManagementObjectSearcher();
            mos.Query = new ObjectQuery("SELECT * FROM Win32_PortConnector");
            foreach (ManagementObject mo in mos.Get())
            {

                    listBox1.Items.Add(dict[Convert.ToUInt16(mo["PortType"])]);

            }

        }

Dictionary is used to give meaning to the result with some messages.

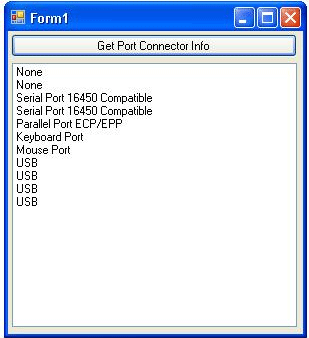

The output will be as:


From above you can easily find the available ports. You can see that there is 4 usb ports, 1 for keyboard, 1 for mouse and etc.

Hope you understand it.
