Creating Business Data Connectivity Service using Visual Studio 2010

You will learn in this article how to Create Business Data Connectivity Service using Visual Studio 2010.


New Create Database name BCSForSharePoint2010

  • Create a new table name: Customer with the following columns:

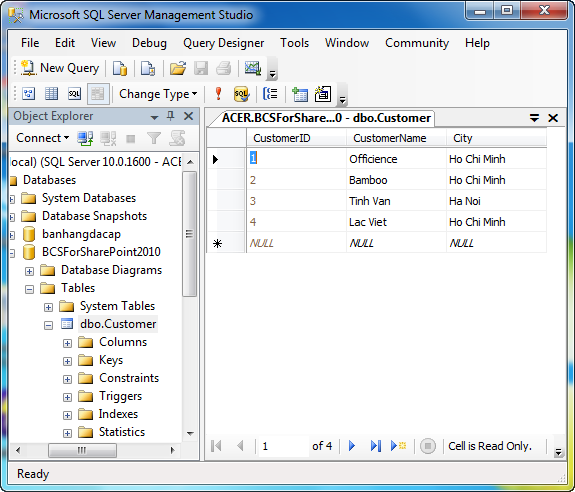

  • Enter new customer data


Open Visual Studio 2010 to create a new BCS

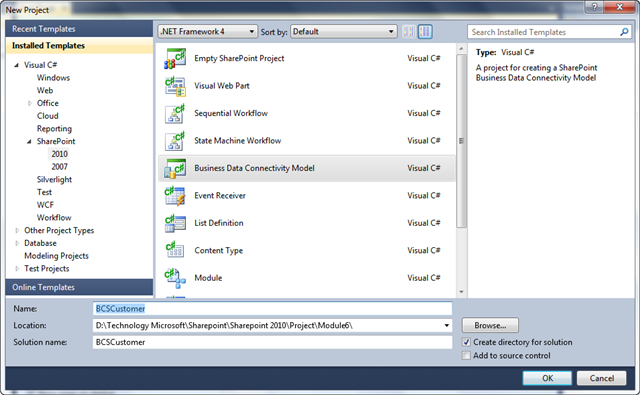

  • File | New Project | SharePoint | 2010 | Select Data Connectivity Business Model and name BCSCustomer

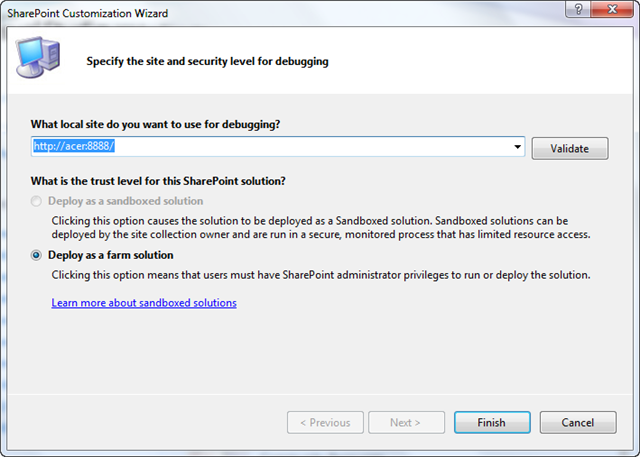

  • Select Site and click Finish to Dubugging

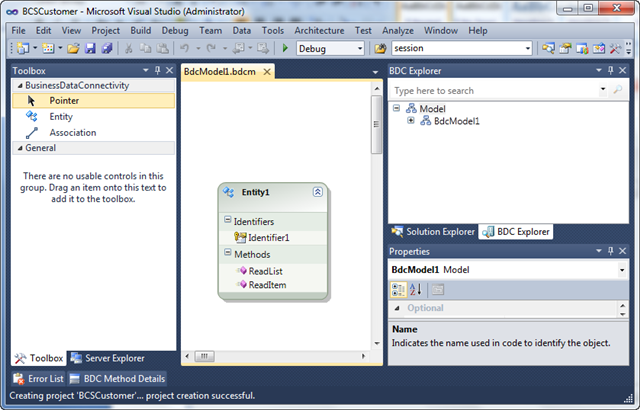

Interface creates the following new


  • Rename the Class Entity1 CustomerEntity


  • Rename the primary key of CustomerID from Identifier1


  • In the Properties window of the CustomerID, Name Type: select System.Int32


BDC Explorer window

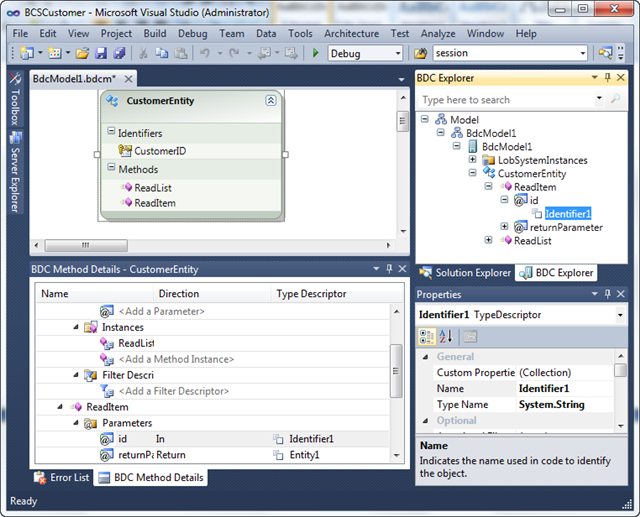

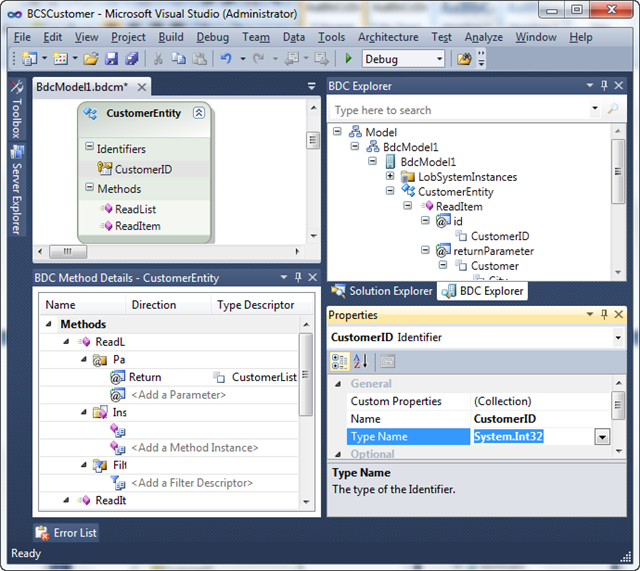

  • Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadItem | Expand id and choose Identifier


    -Rename the primary key of CustomerID from Identifier1

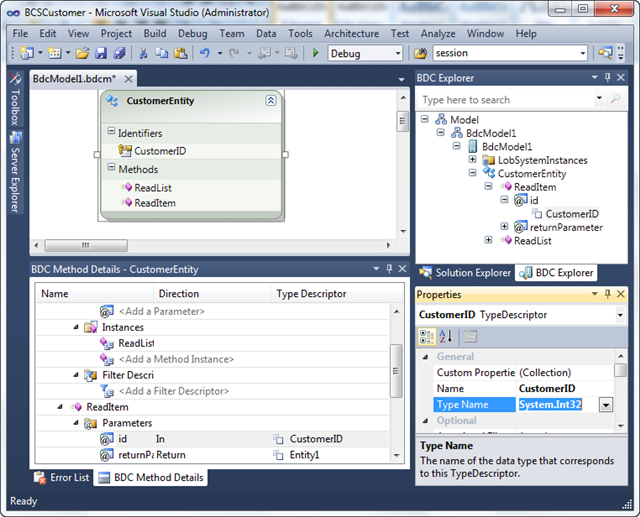

    -In the Properties window of the CustomerID, Name Type: select System.Int32

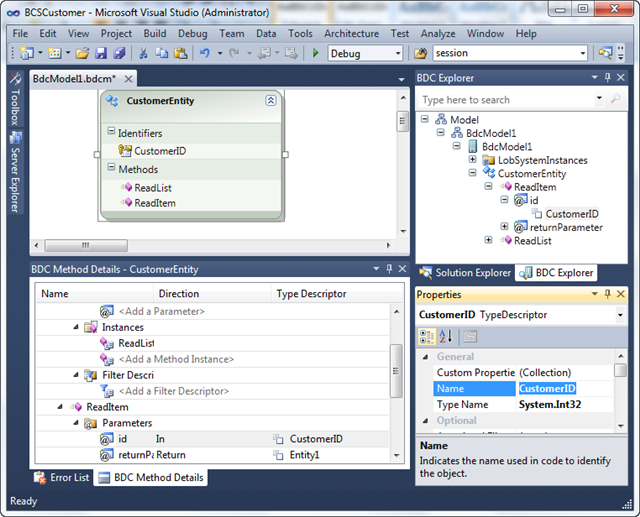

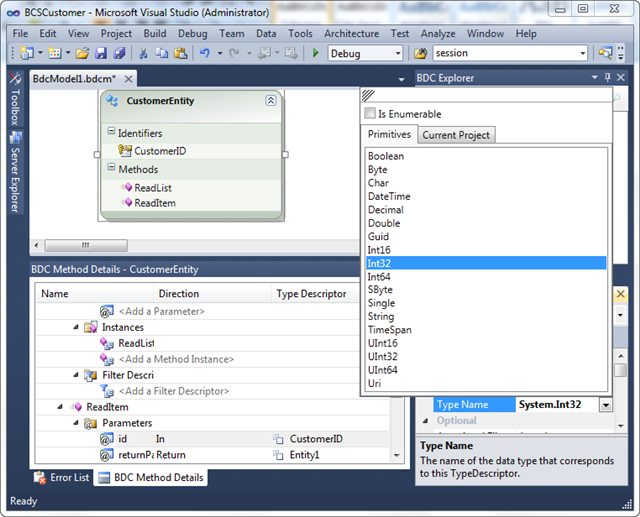

    Module6_video04_BCS_VS2010_10 (1).png

    -Selected the following image

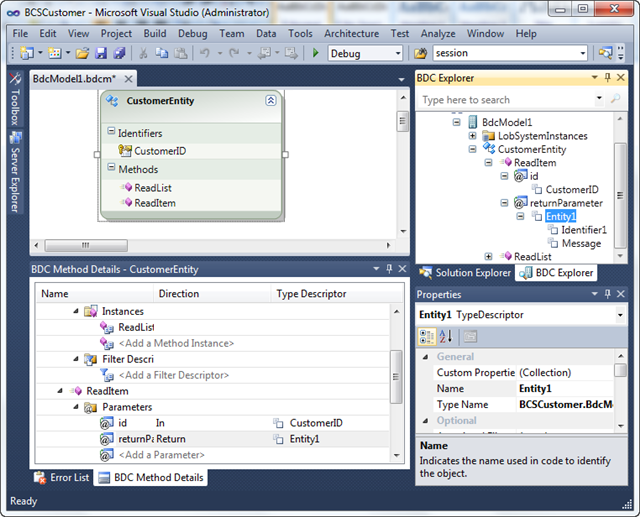

  • Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadItem | Expand returnParameter and select Entity1


    -Change from the Customer Entity1


    -In the customer select the CustomerID and choose Identifier1 Name Type: select System.Int32

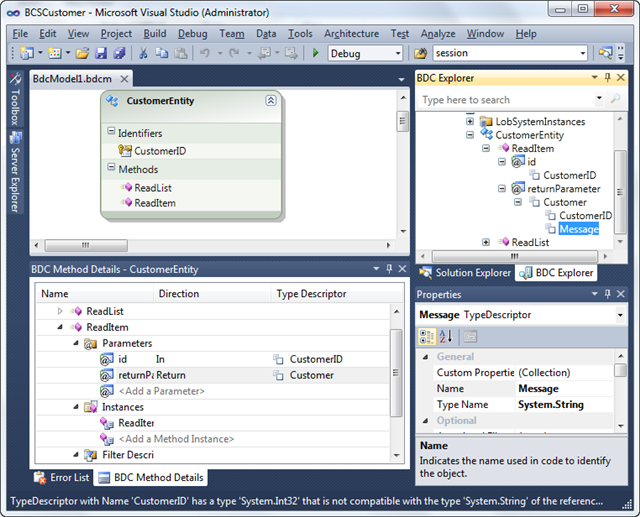

    -Select Message

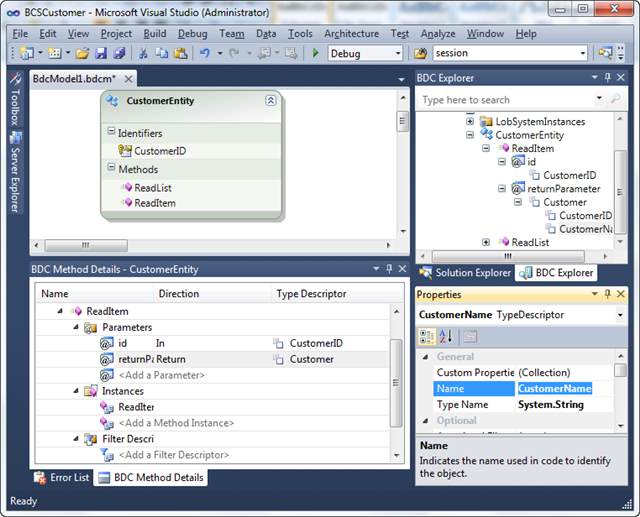

    -Renamed CustomerName, Type Name: System.String

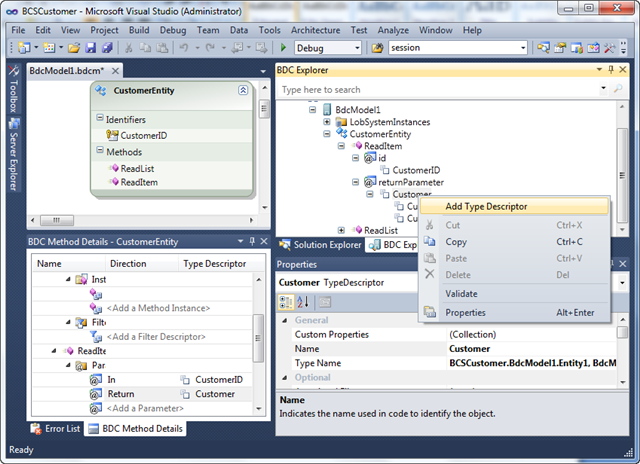

    -Click to Customer | Add Type Descriptor


    -Named the City, the Type Name: System.String

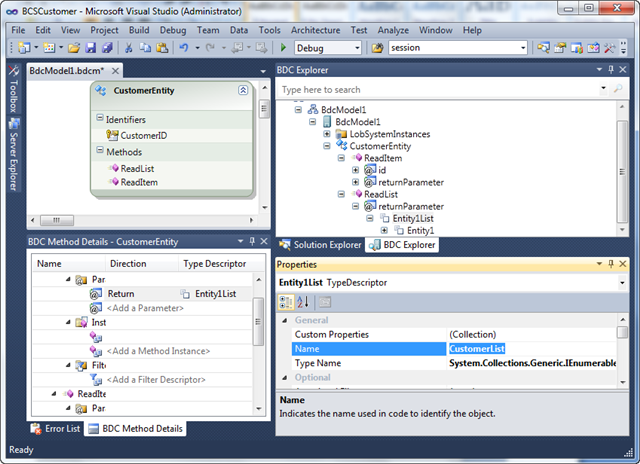

    -Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadList | Expand returnParameter and select  Entity1List


    -CustomerList changed

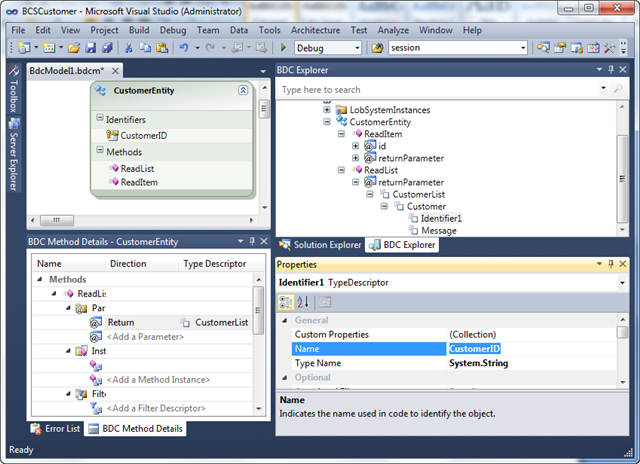

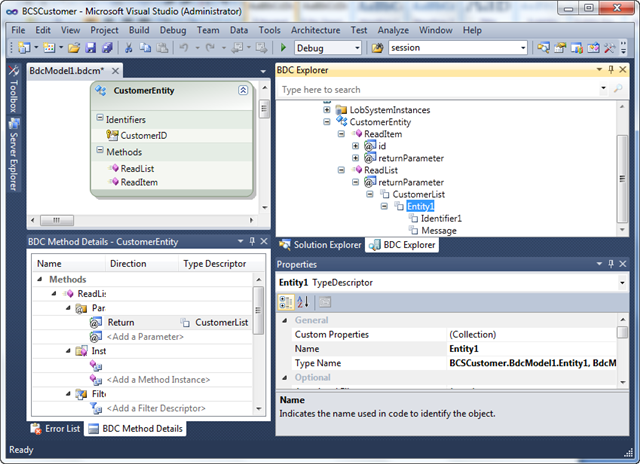

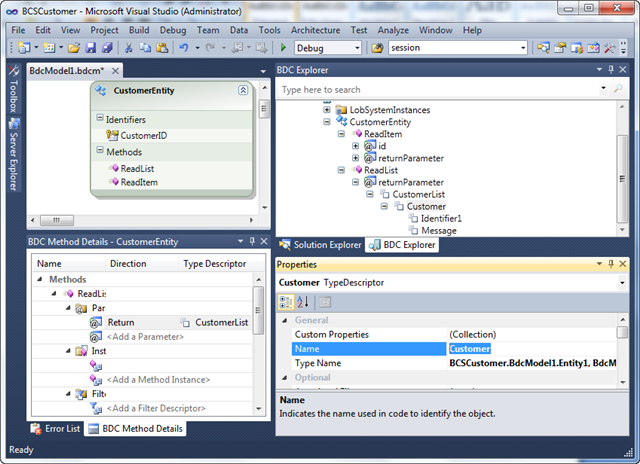

    -Expand Model | Expand BdcModel1 | Expand CustomerEntity | Expand ReadList | Expand returnParameter | Expand  CustomerList | Choose Entity1


    -Customer changed

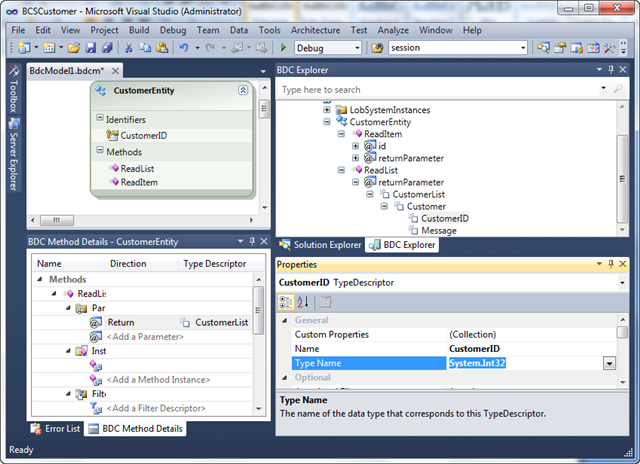

    -Expand Customer | Change Identifier1 the CustomerID


    -In the Properties window of the CustomerID, Name Type: select System.Int32


    -Select Message and renamed CustomerName, Type Name: System.String

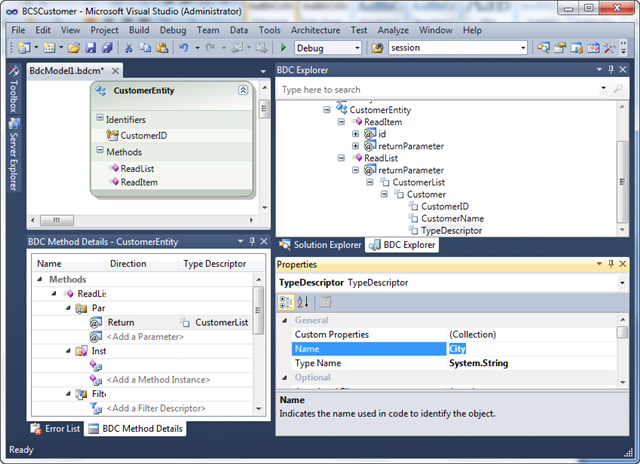

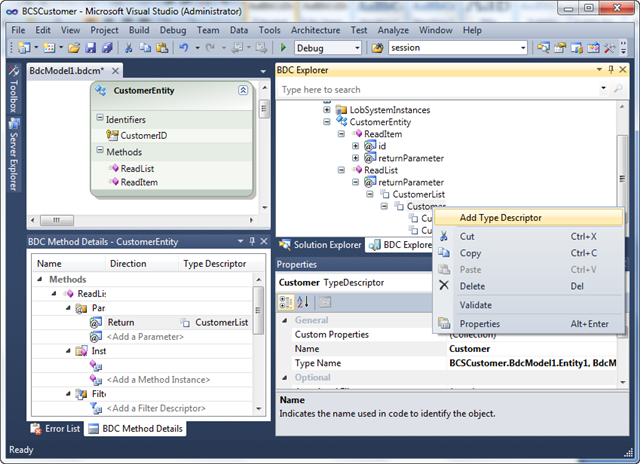

    -Click to Customer | Add Type Descriptor


    -Named the City, the Type Name: System.String

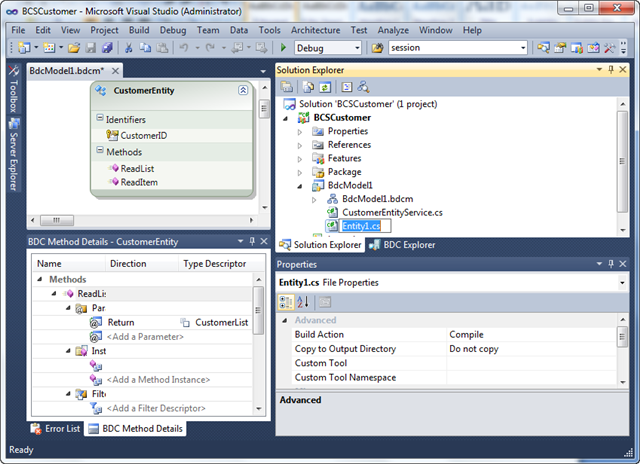

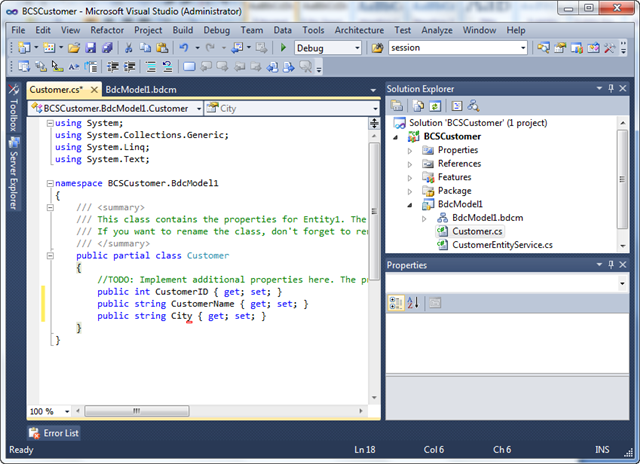

Solution Explorer window | Select Class Entity1


  • Renamed Customer


  • Declare the following code


    public partial class Customer
        {

    / / TODO: Implement Additional properties here.

    / / The Message property is just a sample how a property could look like.
            public int CustomerID
    {get; set;}
            public string CustomerName
    {get; set;}
            public string City
    {get; set;}
        }

Method Details window BDC - CustomerEntity | collap ReadItem method, ReadList

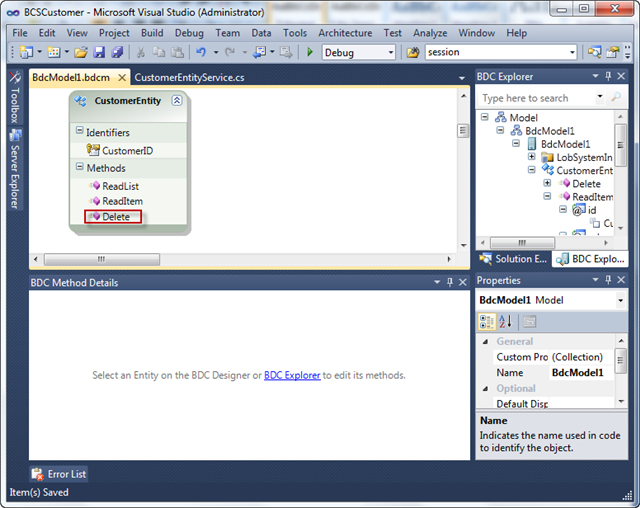

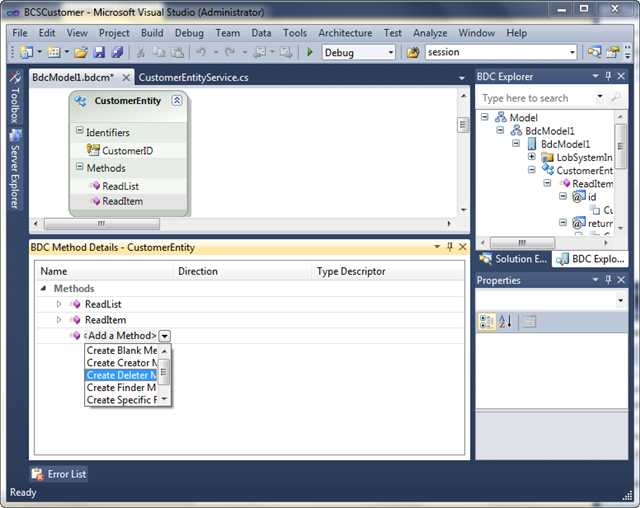

  • Click the Add method in the combobox and select the Create Delete Method Member


  • Interface as follows


  • Double click on the file and found ReadItem method appears CustomerEntityService.cs

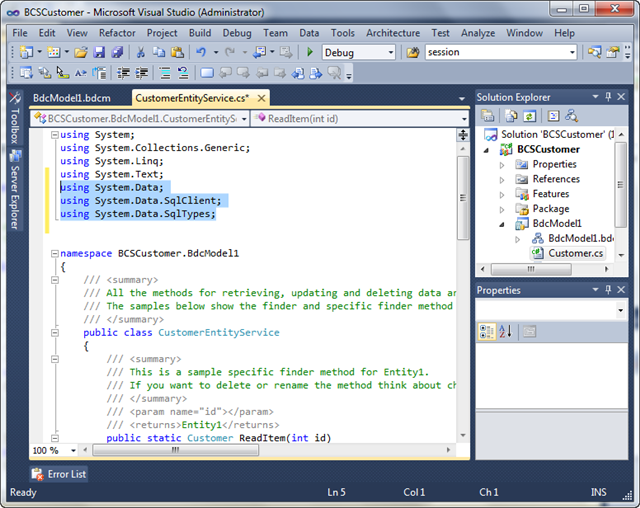

  • Using the following declaration code


    using System.Data;
    using System.Data.SqlClient;
    using System.Data.SqlTypes;

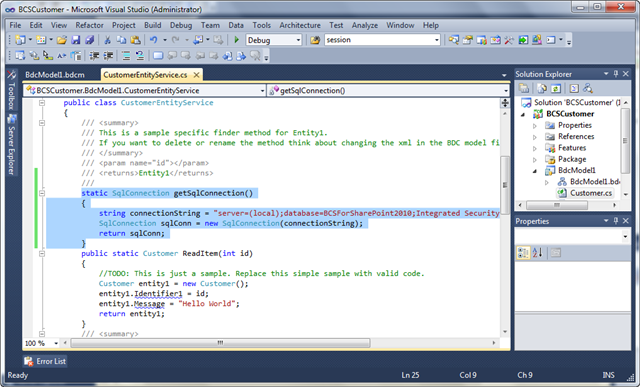

  • Declare the SqlConnection method returns the name GetSqlConnection


    GetSqlConnection static SqlConnection ()
            {
                string ConnectionString =
    "server = (local) database = BCSForSharePoint2010; Integrated Security = true";
                SqlConn SqlConnection = new SqlConnection (ConnectionString);
                sqlConn
    return;
            }

  • In the alternative method ReadItem error code with the following code:


    public static ReadItem Customer (int id)
            {

                Customer customer = new Customer ();

                SqlConn = GetSqlConnection SqlConnection ();

                sqlConn.Open ();

                SqlCommand SqlCommand = new SqlCommand ();

                sqlCommand.CommandText = "select CustomerID, CustomerName, City"

                    + "From Customer"

                    + "WHERE CustomerID =" + id.ToString ();

                sqlCommand.Connection = sqlConn;

                SqlDataReader SqlDataReader = sqlCommand.ExecuteReader (CommandBehavior. CloseConnection);

                if (sqlDataReader.Read ())

                {

                    customer.CustomerID = int. Parse (SqlDataReader [0]. ToString ());

                    customer.CustomerName = SqlDataReader [1]. ToString ();

                    Customer.City = SqlDataReader [2]. ToString ();

                }

                else
                {
                    customer.CustomerID = -1;
                    customer.CustomerName =
    "Customer Not Found";
                    Customer.City =
    "";
                }
                sqlConn.Dispose ();
                return customer;
            }

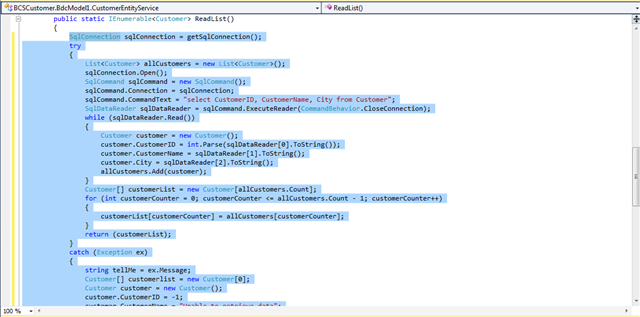

  • In the method declaration code ReadList


    / / / <summary>
            / / / This is a sample method for Entity1 finder.
            / / / If You Want to delete or rename the method to think about changing the xml file in the BDC model as well.
            / / / </ Summary>
            / / / <returns> IEnumerable of Entities </ returns>
            public static IEnumerable <Customer> ReadList ()
            {

                SqlConnection SqlConnection = GetSqlConnection ();

                try

                {

                    List <Customer> allCustomers = new List <Customer> ();

                    sqlConnection.Open ();

                    SqlCommand SqlCommand = new SqlCommand ();

                    sqlCommand.Connection = SqlConnection;

                    sqlCommand.CommandText = "select CustomerID, CustomerName, City from Customer";

                    SqlDataReader SqlDataReader = sqlCommand.ExecuteReader (CommandBehavior. CloseConnection);

                    while (sqlDataReader.Read ())

                    {

                        Customer customer = new Customer ();

                         customer.CustomerID = int. Parse (SqlDataReader [0]. ToString ());

                        customer.CustomerName = SqlDataReader [1]. ToString ();

                        Customer.City = SqlDataReader [2]. ToString ();

                        allCustomers.Add (customer);

                     }

                    Customer [] = new Customer customerList [allCustomers.Count];

                    for (int customerCounter = 0; customerCounter <= allCustomers.Count - 1; customerCounter + +)

                    {

                        customerList [customerCounter] = allCustomers [customerCounter];
                    }
                    return (customerList);
                }
                catch (Exception ex)
                {
                    Tellme String = ex.Message;
                    Customer [] customerlist = new Customer [0];
                    Customer customer = new Customer ();
                    customer.CustomerID = -1;
                    customer.CustomerName = "Unable to retrieve data";

    Customer.City = "";

                    customerlist [0] = customer;
                    return (customerlist);
                }
                finally
                {
                    sqlConnection.Dispose ();
                }
            }

  • In the Delete method declaration code


    public static void Delete (int CustomerID)
            {
                SqlConnection SqlConnection = GetSqlConnection ();
                sqlConnection.Open ();
                SqlCommand SqlCommand = new SqlCommand ();
                sqlCommand.Connection = SqlConnection;
                sqlCommand.CommandText = "delete customer WHERE CustomerID =" + customerID.ToString ();

    sqlCommand.ExecuteNonQuery ();
                sqlConnection.Dispose ();
            }

After completion code hi build and Deploy project

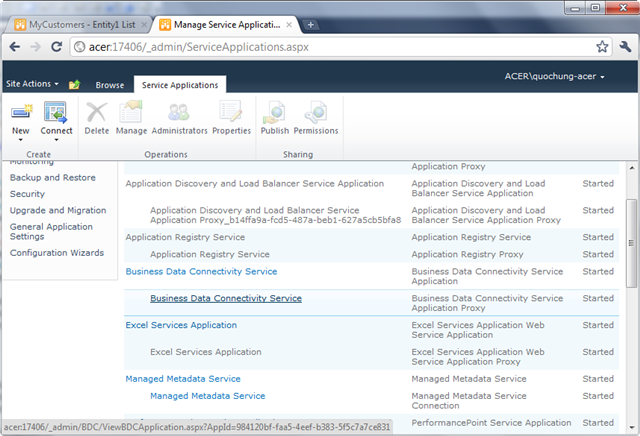

Open Central Administration | Application Management | Manage service selected applications


You choose to Business Data Connectivity Service

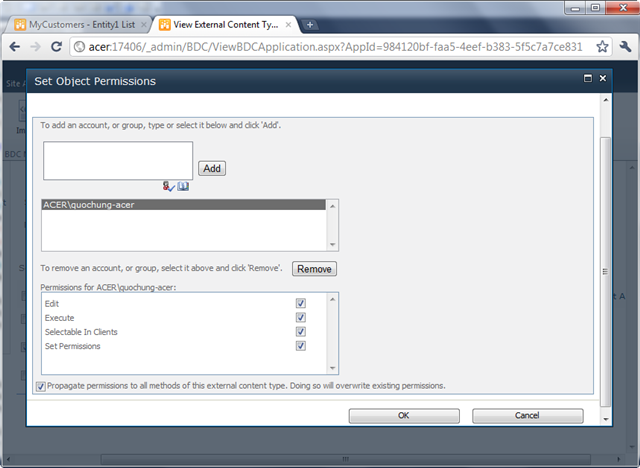

You check CustomerEntity BCSCustomer.BdcModel1 with namespace and select Icon Set Object Permissions


Add your user rights for that user and select

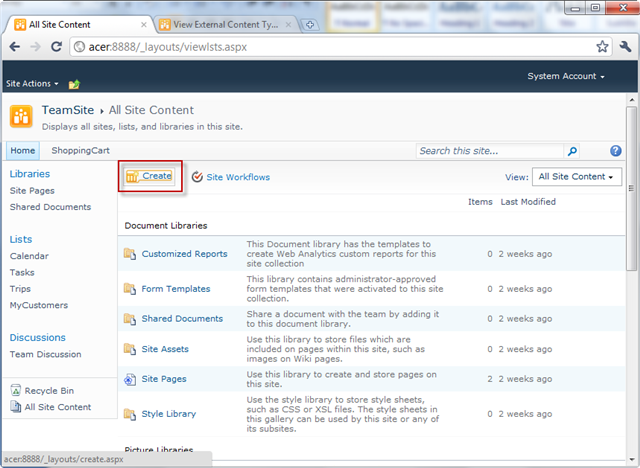

Open the site with the port as was at first Debungging ( http://acer:8888 ) and select All Site Content


Choose Create


Data at the category | select External List | select Create

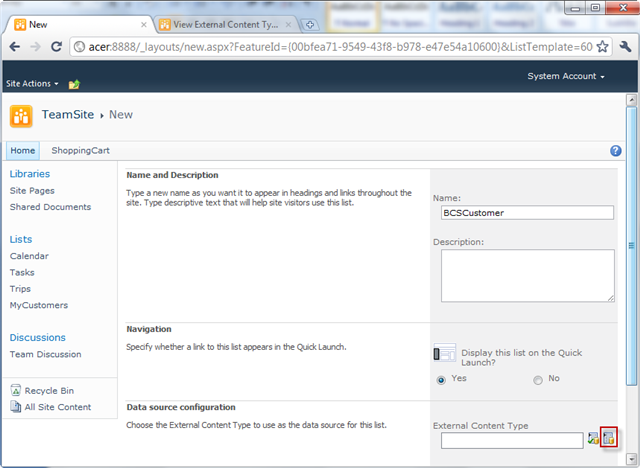

BCSCustomer named below and select the icon to add External Content Type


Choose BdcModel1 with External Content Type and select OK BCSCustomer.BdcModel1.CustomerEntity


Choose Create


Thus BCSCustomer List has been shown to Method ReadList

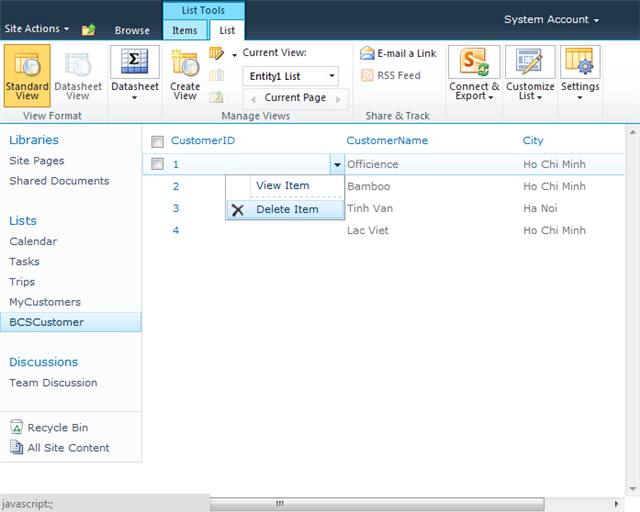

Item can Delete | Click on a Combobox Item | Add Delete


OK


Item removed

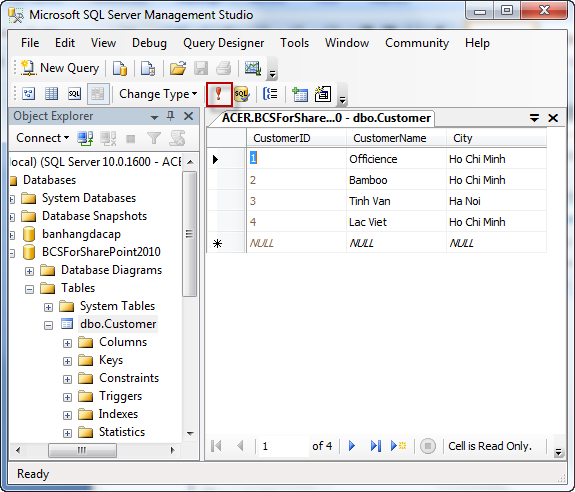

Back to SQL Server to see the old data as follows and select Execute SQL Icon


Result Row Item deleted


So we finished creating the VS 2010 BCS method ReadItem, ReadList, Delete, and other similar methods
