How to Use IEffectFog Interface in XNA

In this mini-article I will be talking about how to use IEffectFog interface.


HTML clipboard

Fog Effect is the built-in effect that can be used with BasicEffect.Implementing this interface I will show you how to do it.

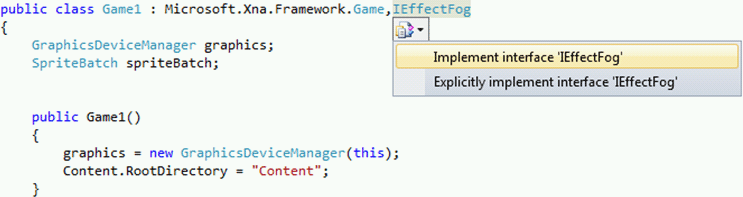

You can implement it writing IEffectFog near Game.And this implementation will add some functions.

#region IEffectFog Members

        public Vector3 FogColor
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public bool FogEnabled
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public float FogEnd
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public float FogStart
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        #endregion


We have used Fog Effect in our previously article. Let's go over from it!

Here's our full code:

using System;
using System.Collections.Generic;
using System.Linq;
using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Audio;
using Microsoft.Xna.Framework.Content;
using Microsoft.Xna.Framework.GamerServices;
using Microsoft.Xna.Framework.Graphics;
using Microsoft.Xna.Framework.Input;
using Microsoft.Xna.Framework.Media;
using System.IO;
using System.Diagnostics;

namespace WindowsGame9
{

public class Game1 : Microsoft.Xna.Framework.Game,IEffectFog
    {
        GraphicsDeviceManager graphics;
        SpriteBatch spriteBatch;

        float aspectRatio;
        Vector3 modelPosition2 = new Vector3(200.0f, 0.0f, 100.0f);
        Vector3 cameraPosition2 = new Vector3(0.0f, 0.0f, 100.0f);

        public Game1()
        {
            graphics = new GraphicsDeviceManager(this);
            Content.RootDirectory = "Content";
        }

        protected override void Initialize()
        {
            base.Initialize();
        }

        protected override void LoadContent()
        {
            spriteBatch = new SpriteBatch(GraphicsDevice);
            aspectRatio = graphics.GraphicsDevice.Viewport.Width / graphics.GraphicsDevice.Viewport.Height;
        }

        protected override void UnloadContent()
        {

        }

        protected override void Update(GameTime gameTime)
        {
            base.Update(gameTime);
            KeyboardState newstate = Keyboard.GetState();
            if (newstate.IsKeyDown(Keys.W))
            {
                modelPosition2 += new Vector3(0.0f, 0.0f, 1.0f);
            }
            else if (newstate.IsKeyDown(Keys.S))
            {
                modelPosition2 -= new Vector3(0.0f, 0.0f, 1.0f);
            }
            else if (newstate.IsKeyDown(Keys.A))
            {
                modelPosition2 -= new Vector3(1.0f, 0.0f, 0.0f);
            }
            else if (newstate.IsKeyDown(Keys.D))
            {
                modelPosition2 += new Vector3(1.0f, 0.0f, 0.0f);
            }
            else if (newstate.IsKeyDown(Keys.Escape))
            {
                this.Exit();
            }
        }

        protected override void Draw(GameTime gameTime)
        {
            GraphicsDevice.Clear(Color.CornflowerBlue);
            load_model(Content.Load<Model>("modeller\\araba1"), modelPosition2 += new Vector3(0.0f, 0.0f, 0.0f), aspectRatio);
            base.Draw(gameTime);
        }

        public void load_model(Model model_path, Vector3 camera_position, float aspect)
        {
            Matrix[] transforms = new Matrix[model_path.Bones.Count];
            model_path.CopyAbsoluteBoneTransformsTo(transforms);
            foreach (ModelMesh mesh in model_path.Meshes)
            {
                foreach (BasicEffect effect in mesh.Effects)
                {
                    effect.EnableDefaultLighting();
                    effect.FogEnabled = true;
                    effect.FogStart = 200.0f;
                    effect.FogEnd = 250.0f;
                    effect.FogColor = new Vector3(255.0f, 255.0f, 255.0f);

                    effect.View = Matrix.CreateLookAt(camera_position, Vector3.Zero, Vector3.Up);
                    effect.Projection = Matrix.CreatePerspectiveFieldOfView(MathHelper.ToRadians(45.0f), aspect, 1.0f, 1000.0f);
                }
                mesh.Draw();
            }
        }

        #region IEffectFog Members

        public Vector3 FogColor
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public bool FogEnabled
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public float FogEnd
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        public float FogStart
        {
            get
            {
                throw new NotImplementedException();
            }
            set
            {
                throw new NotImplementedException();
            }
        }

        #endregion
    }
}

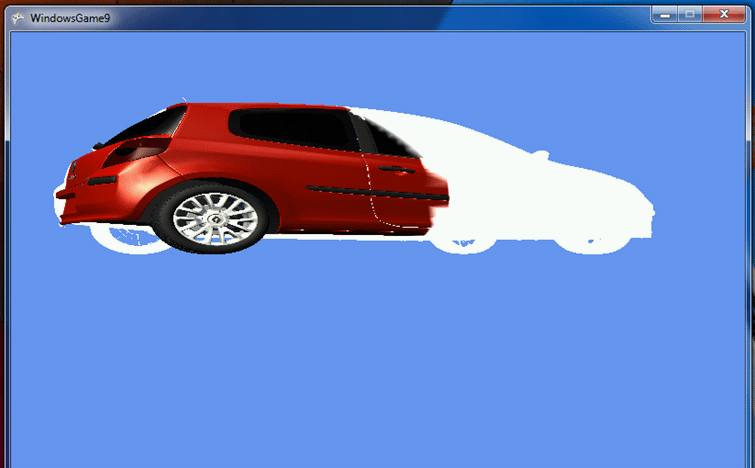

When we run it (I added a car with some textures on it) we will see a car with fog effect.


Let's make some changes in our Interface!

Add this variable in your code:

Vector3 fogclr = new Vector3(0.0f, 0.0f, 0.0f);

This vector3 defines a color(Black) which we will be using to change the color of Fog.

Then Update your "FogColor" Property as seen below:

public Vector3 FogColor
{
   get
   {
     return fogclr;
   }
   set
   {
     fogclr = value;
   }
}

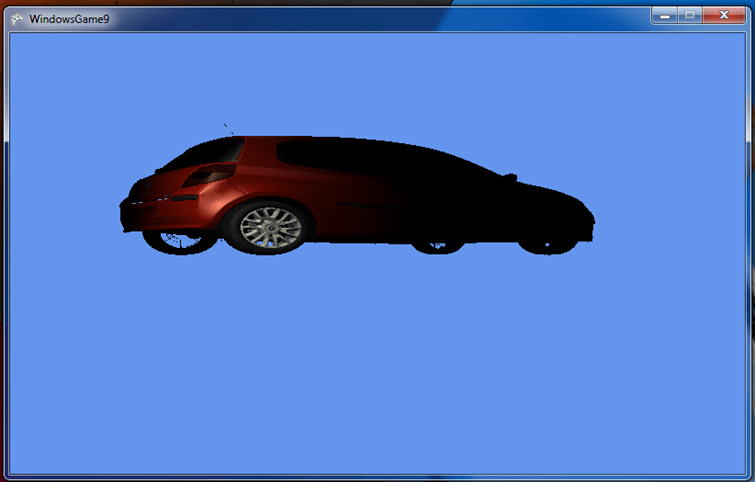

Run it and see what happens!


Fog Color is Black!

Allright here is another sample;

Set FogEnabled,FogStart,FogEnd:

Create 3 variables...

float fogend = 250.0f;
float fogstart = 200.0f;
bool fogenabled = true;

Update your loadmodel function:

public bool FogEnabled
        {
            get
            {
                return fogenabled;
            }
            set
            {
                fogenabled = value;
            }
        }

        public float FogEnd
        {
            get
            {
                return fogend;
            }
            set
            {
                fogend = value;
            }
        }

        public float FogStart
        {
            get
            {
                return fogstart;
            }
            set
            {
                fogstart = value;
            }
        }

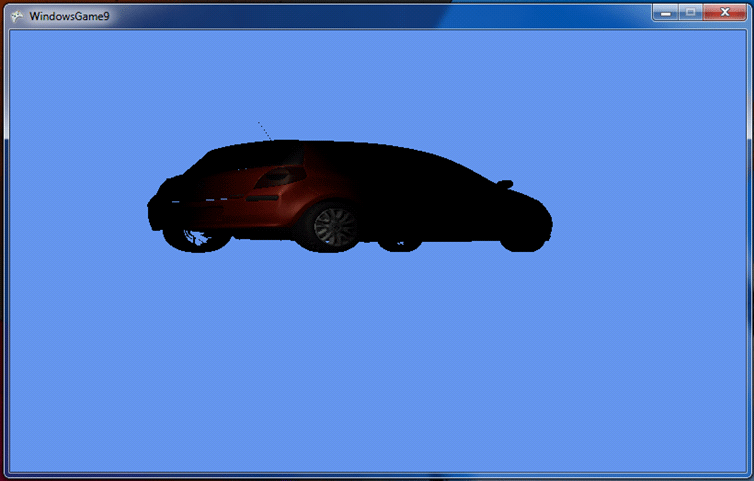

See what happens:


Same thing as you make it without using interfaces?

Using interfaces you can seperate some codes that will not mix Game object.With that way you will only write codes on your interface and its functions.
