Drawing Transparent Graphics Objects in GDI+

In this article I will explain about Drawing Transparent Graphics Objects in GDI+.


This article has been excerpted from book "Graphics Programming with GDI+".

Sometimes we need to draw objects on top of images- and these objects may need to be transparent. As we discussed earlier, color in GDI+ has four components: alpha, red, green, and blue. The value of each component varies from 0 to 255. The alpha component represents the transparency in GDI+ color. Zero represents a fully transparent color; 255, a fully opaque color.

An application must create transparent pens and brushed to draw transparent graphics objects. An application can use the Color.FromArgb method to specify the ratio of all four components in a color. For example, the following code snipped creates a fully opaque green pen and brush.

            Pen solidPen = new Pen(Color.FromArgb(255, 0, 255, 0), 10);

            SolidBrush SolidColorBrush =new SolidBrush(Color.FromArgb(255, 0, 255, 0));

The following code snippet creates semitransparent colors and brushes.

            Pen transPen = new Pen(Color.FromArgb(128, 0, 255, 0), 10);

            SolidBrush semiTransBrush = new SolidBrush(Color.FromArgb(60, 0, 255, 0));

Listing 7.24 views an image and draws lines and a rectangle with different transparencies.

LISTING 7.24: Drawing transparent graphics objects

        private void Form1_Paint(object sender, PaintEventArgs e)
        {
            Graphics g = e.Graphics;

            //Create an image from a file
            Image curImage = Image.FromFile ("C:/Documents and Settings/Manu/Desktop/16864z.Bmp");

            //Draw image
            g.DrawImage(curImage, 0, 0, curImage.Width, curImage.Height);

            //Create pens with different opacity
            Pen opqPen = new Pen(Color.FromArgb(255, 0, 255, 0), 10);
            Pen TransPen = new Pen(Color.FromArgb(128, 0, 255, 0), 10);
            Pen totTransPen = new Pen(Color.FromArgb(40, 0, 255, 0), 10);

            //Draw Graphics object using transparent pens
            g.DrawLine(opqPen, 10, 10, 200, 10);
            g.DrawLine(TransPen, 10, 30, 200, 30);
            g.DrawLine(totTransPen, 10, 50, 200, 50);

            SolidBrush semiTransBrush = new SolidBrush(Color.FromArgb(60, 0, 255, 0));
            g.FillRectangle(semiTransBrush, 20, 100, 200, 100);
        }

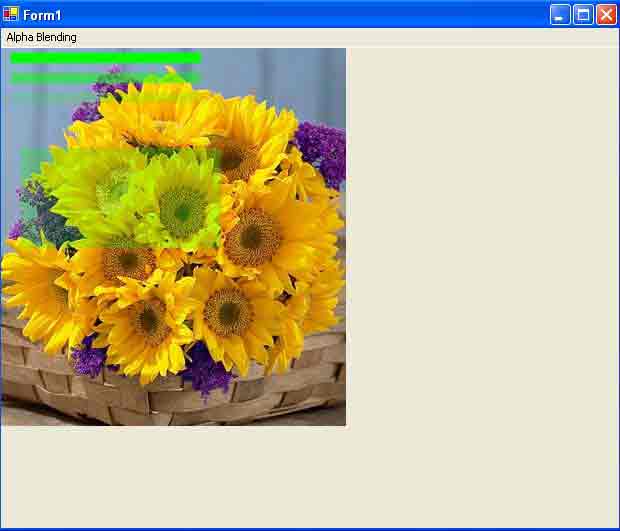

Figure 7.39 shows the output from Listing 7.24.

Figure 7.39.jpg

FIGURE 7.39: Drawing transparent graphics objects

Conclusion

Hope the article would have helped you in understanding Drawing Transparent Graphics Objects in GDI+. Read other articles on GDI+ on the website.
