Font in .NET in context of GDI classes

In this article I will explain about Font in .NET in context of GDI classes



This article has been excerpted from book "Graphics Programming with GDI+".

Typography Namespace

In the .NET framework library, two namespaces define the font-related functionality: System.Drawing and System.Drawing.Text .The System.Drawing namespace contains general typography functionality, and System.Drawing.Text contains advanced typography functionality. Before using any of the typography-related classes in your application, you must include the appropriate namespace. We will discuss advanced typography in section 5.6.

The font class provides functionality for fonts, including methods and properties to define functionalities such as font style, size, name, and conversions. Before we discuss the Font class, we will introduce the FontStyle enumeration and the FontFamily class, which we will use to create Font objects.

The FontStyle Enumeration

The FontStyle enumeration defines the common style of a font. The member of FontStyle are described in Table 5.4

The FontFamily Class

The FontFamily class provides methods and properties to work with font families. Table 5.5 describes the properties of the FontFamily class.

TABLE 5.4 FontStyle members

Member

Description

Bold

Bold text

Italic

Italic text

Regular

Normal text

Strikeout

Text with a line through the middle

Underline

Underlined text

TABLE 5.5: FontFamily Properties

Property

Description

Families

Returns an array of all the font families associated with the current graphics context.

GenericMonospace

Returns a monospace font family

GenericSansSerif

Returns a sans serif font family

GenericSerif

Returns a serif font family

Name

Returns the name of a font family


Table 5.6 describes the methods of the FontFamily class.

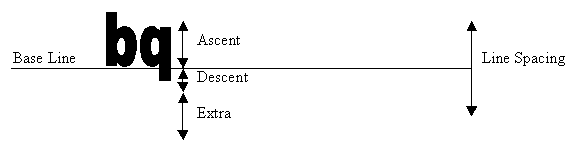

Table 5.6 introduces some new terms, including base line, ascent, and descent. Let's see what they mean. Figure 5.10 shows a typical font in windows. As you can see, although the letters b and q are the same size, their starting points and ending points (top and bottom locations) are different. The total height of a font-including ascent, descent, and extra space-is called the line spacing. Ascent is the height above the base line, and decent is the height below the base line. As figure 5.10 shows, two characters may have different positions along the base line. For some fonts, the extra value is 0, but others it is not.

For some fonts, line spacing is some of the ascent and descent. Listing 5.6 create a new fonts uses get the values of line spacing, ascent, and descent and, calculates the extra space by subtracting ascent and descent from the line space. The following list identifies the get methods of a FontFamily object:

  • GetCellAscent returns the cell ascent, in font design units.
  • GetCellDescent returns the cell descent, in font design units.
  • GetCelEmHeight returns the em height, in font design units.
  • GetLineSpacing returns the line spacing for font family

Figure 5.10.gif

Figure 5.10: Font metrics

In addition to these get methods, the Font object class provides GetHeight, which returns the height of a Font object.

As Listing 5.6, shows, we use GetLineSpacing, GetLineAscent, GetLineDescent, and GetEmHeight to get line spacing, ascent, descent and font height, respectively, and than we display the output in massage box.

TABLE 5.6 FontFamily methods

Method

Description

GetCellAscent

Returns the cell ascent, in font design units of a font family.

GetCellDescent

Returns the cell descent, in font design units of a font family.

GetEmHeight

Returns the height, in font design units of the em square for the specified style.

GetFamilies

Returns an array that contains all font families available for a graphics object. This method takes an argument of Graphics type.

GetLineSpacing

Returns the amount of space between two consecutive lines of text for a font family.

GetName

Return the name, in the specified language, of a font family.

IsStyleAvialable

Before applying a style to a font, you may want to know whether the font family in question supports that style. This method returns true if a font style is available. For example, the following code snippet checks whether or not the Arial font family supports italics:

FontFamily ff =new FontFamily ('Arial");

if (ff.IsStyleAvailable(FontStyle.Italic))            //do something


LISTING 5.6 Getting line spacing, ascending, descending and fontheight

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace WindowsFormsApplication1
{
     public partial class Form1 : Form
    {
        public Form1()


        {
             InitializeComponent();
        }

        private void Form1_Paint(object sender, PaintEventArgs e)
        {
             //Create a Graphocs object
            Graphics g = this.CreateGraphics();

             //Create a font object
            Font fnt = new Font("Verdana", 10);

             //Get height
            float lnSpace = fnt.GetHeight(g);

             //Get line spacing
            int cellSpace = fnt.FontFamily.GetLineSpacing(fnt.Style);

             //get cell ascent
            int cellAscent = fnt.FontFamily.GetCellAscent(fnt.Style);

             //Get cell descent
            int cellDescent = fnt.FontFamily.GetCellDescent(fnt.Style);

             //Get font height
            int emHeight = fnt.FontFamily.GetEmHeight(fnt.Style);

             //Get free space
            float free = cellSpace - (cellAscent + cellDescent);

             //Display values
            string str = " Cell Height :" + lnSpace.ToString() + ", Line Spacing: " + cellSpace.ToString() + " Ascent : " +
             cellAscent.ToString() + " Decent :" +
             cellDescent.ToString() + ",Free:" + free.ToString() +
            " EM Height:" + emHeight.ToString();
            MessageBox.Show(str.ToString());

             //Dispose of objects
            fnt.Dispose();
            g.Dispose();
        }
    }
}

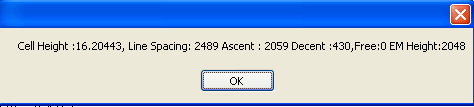

Figure 5.11 shows the output from Listing 5.6 we get cell height, line spacing, ascent, descent, free (extra) space, and em height.

The GraphicsUnit Enumeration

You can define the unit of measure of a font when you construct a Font object. The Font class constructor takes an argument of type GraphicsUnit enumeration, which specifies the unit of measure of a font. The default unit of measure for fonts is the point (1/72 inch) .you can get the current unit of a font by using the unit property of the font class .The following code snippet returns the current unit of the font:

            Font fnt = new Font(" Verdana", 10);
            MessageBox.Show(fnt.Unit.ToString());

The members of the GraphicsUnit enumeration are described in Table 5.7


FIGURE 5.11 Getting line spacing, ascent, descent free (extra) space, and height of a font

TABLE 5.7 GraphicsUnit members

Member

Unit of Measure

Display

1/75 inch

Document

1/300 inch

Inch

1 inch

Millimeter

1 Millimeter

Pixel

 1 pixel

Point

 1/72 inch

World

The world unit


Conclusion

Hope the article would have helped you in understanding Font in .NET in context of GDI classes. Read other articles on GDI+ on the website.
