A Simple Primer to Microsoft Expression Blend


Microsoft Expression Blend is a design tool that allows you to create fantastic user interfaces for such Windows based applications and Web applications. You can use Expression Blend with .NET Framework 3.0, 3.5, and 4.0 applications.

This article will focus on the use of Expression Blend for Silverlight.

What Blend can do for you

One of the prime advantages of Expression Blend is its ability to separate code from design. Using Blend, designers can work independently on one set of deliverables for a project while developers can work on another. But this doesn't mean that Blend is just for designers alone. Developers can equally take advantage of the features that Blend has to offer.

Expression Blend allows you to design your application visually, by creating or drawing shapes, paths, and controls on an artboard, and then modifying their appearance and behavior by configuring their properties.

Working with Blend

You can create a new Silverlight project by clicking File->New in Expression Blend. The New Project dialog box shows various project types.

Primer in Expression Blend

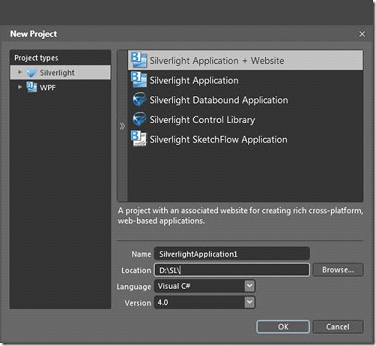

Figure 1 -  New Project Dialog Box

The various project types are described as follows:

  • Silverlight Application + Website: Creates a project with an associated website that you can publish to a web server.
  • Silverlight Application: Creates a project that creates an application that can be run in the Silverlight runtime viewer, inside or outside a browser window. It includes an HTML test page named Default.html that will load your application in a browser window.
  • Silverlight Databound Application: Creates a project that uses data and command bindings to support loose coupling between a View and a ViewModel.
  • Silverlight Control Library: Creates a project for creating custom controls which you can reuse in other Silverlight projects.
  • Silverlight SketchFlow Application: Creates a project for prototyping cross-platform, web-based applications. SketchFlow is available only in Expression Studio Ultimate.

The Blend IDE

By default, the Design view shows the Projects window pane open on the right. In the center, you see the white artboard or the drawing area. This is where you will be drawing controls and placing items.

On the left, you will see the Toolbox containing the controls and objects that you can use for drawing. Let us look at all these elements in detail.

The Projects window

This window shows the default files created for a Silverlight project in Blend.

The Toolbox

The Toolbox contains various objects and controls that can help you create a fantastic user interface for Silverlight applications.

The Selection tools are used to select objects and paths.

The Magnify or Zoom tool is used to provide different views of the artboard and objects.

The Pan tool is used to position the artboard in the workspace area.

The Brush tools are used to configure the color and other visual settings of objects such as controls and paths.

The Object tools include a number of controls and shapes that you can create or use in Blend applications.

The Asset tool opens the Asset Library, a collection of various controls and shapes.

   simple Primer in Expression Blend

Figure 2- Toolbox Pane

Working with Controls

The Toolbox pane provides options to create various kinds of controls. When you scroll down the Toolbox and click the small triangle next to the TextBlock, you will see additional controls popping up as shown in Figure 2.

Expression Blend

Figure 3 -  Controls

The property headings commonly seen for most controls are:

  • Brushes
  • Appearance
  • Layout
  • Common Properties
  • Transform

Brushes

These properties include the standard set of brushes available for most controls: No Brush, Solid Brush, Gradient Brush and Tile Brush. These are represented by the square icons that you see in Figure 4. (highlighted here in red just so that you may easily identify them).

Expression studio

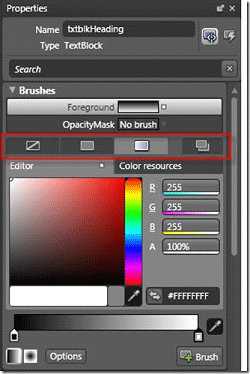

Figure 4 -  Brushes

By changing these properties, you can manipulate the appearance of a control with respect to its foreground and/or background. For example, a TextBlock control does not have a Background property but has only a Foreground property that you can change as per your requirements.

Appearance

Properties in this category include Opacity and Visibility. Opacity is set to 100% by default. Visibility is set to Visible by default.

Layout

This property group represents the physical layout and positioning of the control.

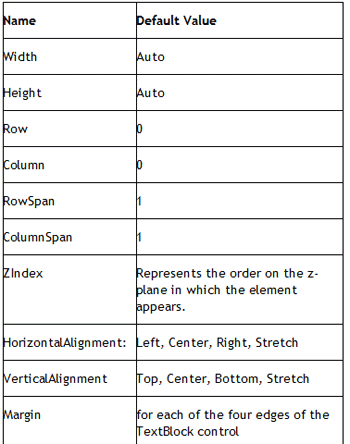

The default values for this group are listed in the table:

 Expression Blend

Common Properties

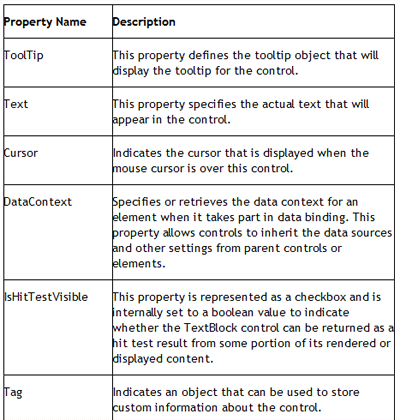

This property group represents the common set of properties that are present for most controls. These are listed in the table:

Microsoft Expression Blend

Text

This property group is further divided into three sub categories:

Font: This property comprises of font family, font size, font style, embedding, static and dynamic subsets that allow you to specify how to embed the characters in this element.

Paragraph:

  • LineHeight
  • Paragraph spacing before
  • Paragraph spacing after

Text alignment: By default, this is Left but can be changed to Center or Right.

  • Line Indent
  • Left Indent
  • Right Indent
  • First Line Indent

The next property group is Transform, which controls the transformation of the control. Following are some types of transforms:

  • RenderTransform
  • RotateTransform
  • SkewTransform

Conclusion: This article just briefly introduced you to Expression Blend. Stay tuned for further articles on Blend.
