Sharepoint WebPart using ASP.NET web user control

This is small article to provide the information that how you can connect to database from Sharepoint WebPart using ASP.NET web user control.


This is small article to provide the information that how you can connect to database from Sharepoint WebPart using ASP.NET web user control.

1. Create a Sharepoint Webpart project as below


2. In Solution Explorer, double-click the AssemblyInfo file

Add the following line to the top of the file

using System.Security;

Add the following line to the bottom of the file

[assembly: AllowPartiallyTrustedCallers]

3. Add a new ASP.NET web application to the solution

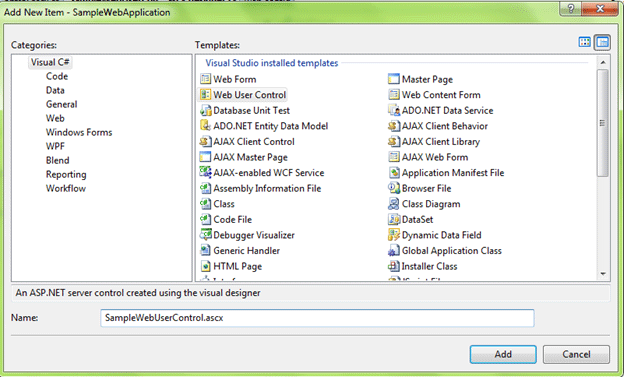

4. Add new web user control

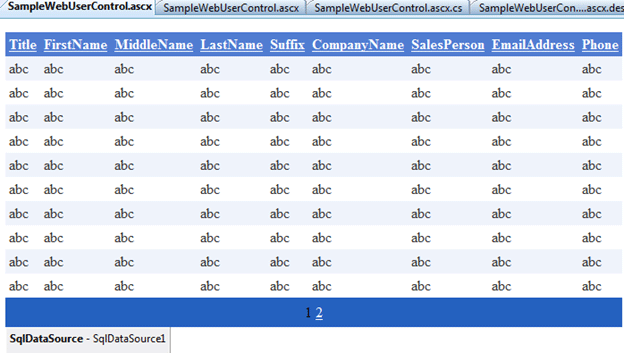

5. Add a GridView to the usercontrol and configure it to retrieve the records from Customer table of Adventureworks database


6. Delete the CodeBehind attribute in the SampleWebUserControl.ascx file
7. Right-click the MyWebPart project, point to Add, and then click New Folder. Name the folder Templates.
8. Right-click the Templates folder, point to Add, and then click New Folder. Name the folder ControlTemplates.
9. Right-click the ControlTemplates folder, point to Add, and then click New Folder. Name the folder WebPart1.

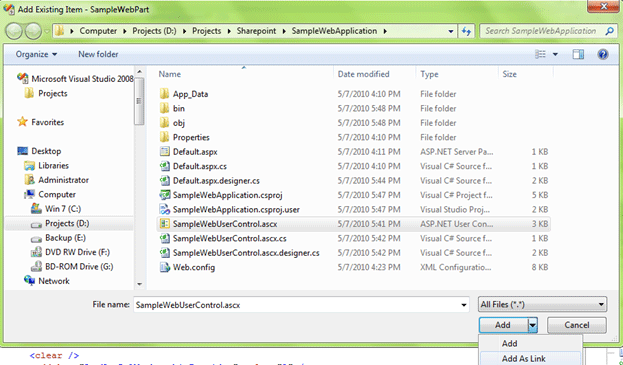

10. Right-click the SampleWebPart folder, point to Add, and then click Existing Item. Browse to the SampleWebUserControl.ascx file, and then click Add as Link in the drop-down box.

11. In the SampleWebApplication project, open the SampleWebUserControl.ascx file. Replace the existing value of the Inherits attribute with SampleWebPart.SampleWebUserControl, SampleWebPart, Version=1.0.0.0, Culture=neutral, PublicKeyToken=9f4da00116c38ec5. This allows the code behind to be compiled into the SampleWebApplication.dll.

<%@ Control Language="C#" AutoEventWireup="true" Inherits="SampleWebPart.SampleWebUserControl, SampleWebPart,
Version=1.0.0.0, Culture=neutral, PublicKeyToken=9f4da00116c38ec5"
%>

12. Update the Webpart1.cs with following

public class WebPart1 : System.Web.UI.WebControls.WebParts.WebPart
    {
        Control SampleWebUserControl; String err;
        public WebPart1()
        {
            this.ExportMode = WebPartExportMode.All;
        }

        protected override void Render(HtmlTextWriter writer)
        {
            try
            {
                SampleWebUserControl.RenderControl(writer);
            }
            catch (Exception e)
            {
                writer.Write(e.Message + " : " + err);
            }
        }

        protected override void CreateChildControls()
        {
            base.CreateChildControls();
            try
            {
                this.Controls.Clear();
                SampleWebUserControl = this.Page.LoadControl("~/_controltemplates/WebPart1/SampleWebUserControl.ascx");
            }
            catch (Exception e)
            {
                err = e.Message;
            }
        }
    }

13. Add connection string for your sql server in sharepoint web.config mine at (C:\inetpub\wwwroot\wss\VirtualDirectories\80\web.config)

<connectionStrings>
    <
add name="AdventureWorksConnectionString" connectionString="Data Source=.;Initial Catalog=AdventureWorks;Persist Security Info=True;User ID=sa;Password=wintellect"
        providerName="System.Data.SqlClient" />
  </connectionStrings>

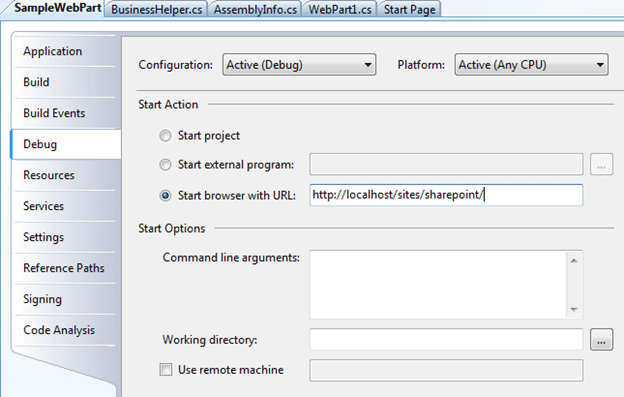

14. Set the Start browser url to a Sharepoint website


15. Deploy the webpart project


16. Open the sharepoint site and click the Site Actions - > Site Settings

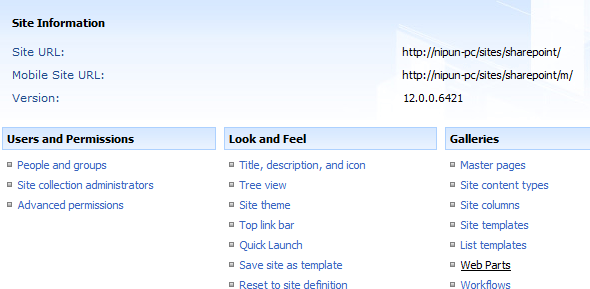

17. Select Galleries -> Web Parts

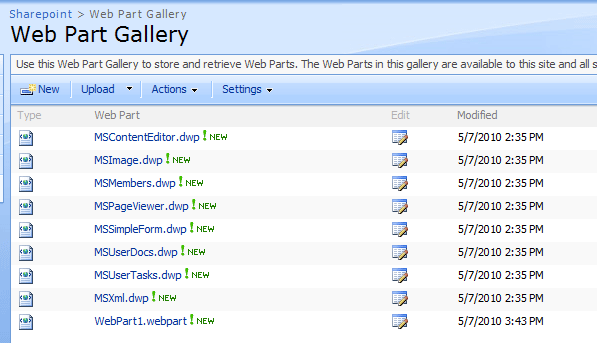

18. You now see a new entry in Web Part gallery (WebPart1.webpart)

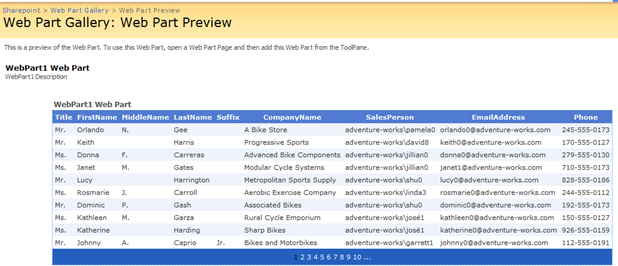

19. Click on the newly added webpart to see the preview

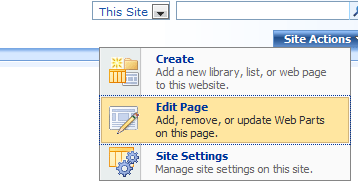

20. Now lets edit a page and add your newly added web part to it. Click on the Site Actions-> Edit Page

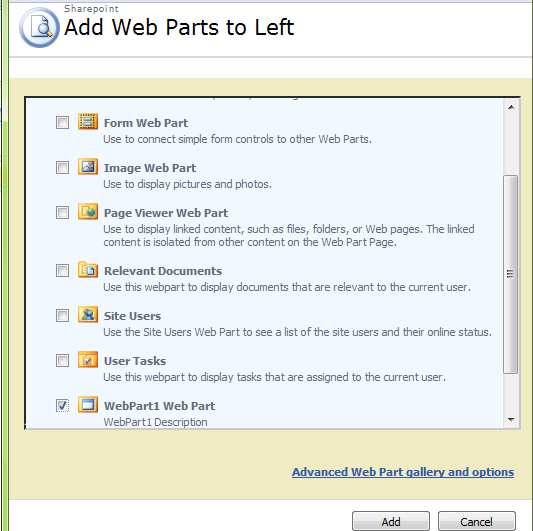

21. Click on the Add a Web Part and select Webpart1.webpart from the list

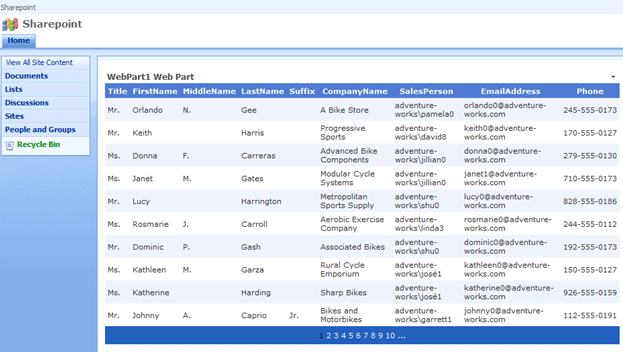

22. And "Exit edit mode" and you get a final screen that will show the Customer records from Adventure works database in your sharepoint website using webpart that host a Web User Control.
