Self Hosted WCF REST Service or Hosting WCF REST Service in Console Application

Posted by dj Articles | WCF with C# June 01, 2010
n this article, I will show you How to create a REST based service, How to host a REST,based service in Console application and How to consume a REST Service at client.
  • 0
  • 0
  • 28393

Objective

In this article, I will show you

  1. How to create a REST based service?
  2. How to host a REST based service in Console application?
  3. How to consume a REST Service at client?
Follow the steps as below,

Step1

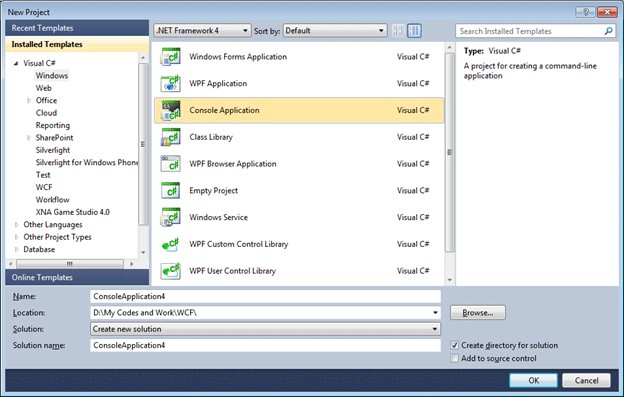

Create a New project. Select Console application as project type.


Step 2

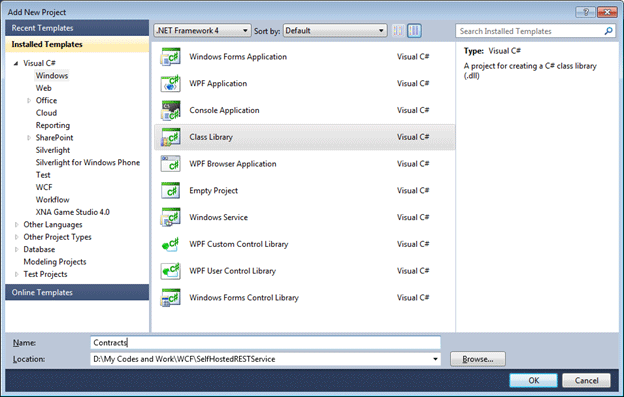

Add a new project to same solution. Choose the project type as class library.


Step 3

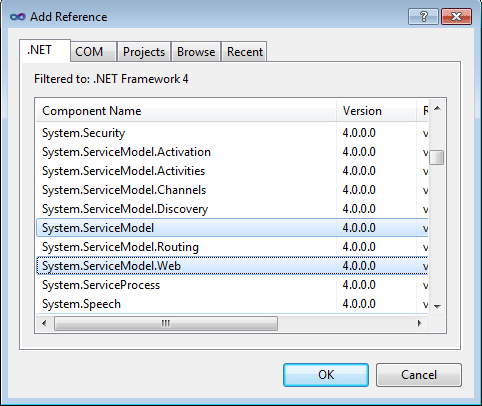

Add below references in both projects console and service library

System.ServiceModel;
System.ServiceModel.Description;
System.ServiceModel.Web;


If you are not able to get System.ServiceModel.Webdll by default , when you are adding as Add Reference in your console application project and class library project , then follow the below steps
  1. Right click on your console application project or class library project
  2. Select properties from context menu

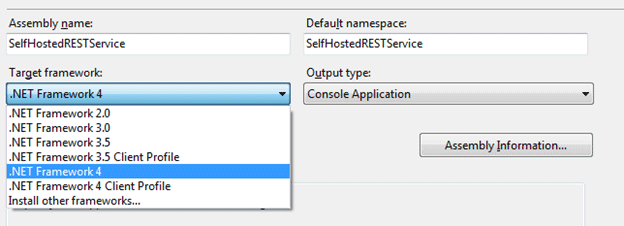

  3. From Application tab, if you see by default .NET Framework 4 Client profile is selected. Change that to .NET Framework 4.0. So your target framework should be .NET Framework 4.0.


Now you should able to see all the dll when you add service reference in project.

Step 4

In this step, I will create contract of service
  1. Open the Contract (Class Library project).
  2. Delete Class1.

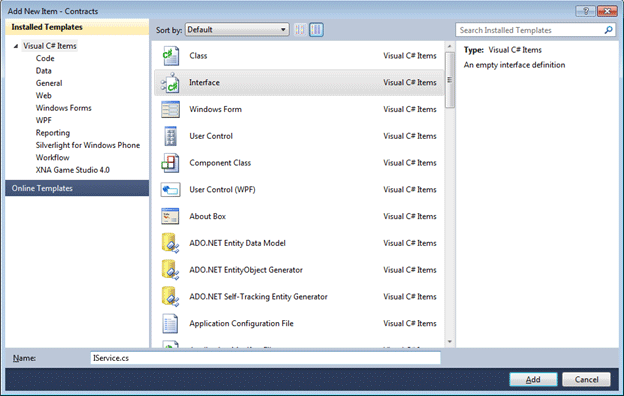

  3. Right click and add a new item then select Interface from Code tab.


  4. Make Interface as public and put ServiceContractattribute.
  5. Declare two operation contracts. Make one attributed with WebGet and another attributed with Web Invoke.
IService.cs

using System;
usingSystem.Collections.Generic;
usingSystem.Linq;
usingSystem.Text;
usingSystem.ServiceModel;
usingSystem.ServiceModel.Web;

namespace Contracts
{
    [ServiceContract]
publicinterfaceIService
    {
        [OperationContract]
        [WebGet]
stringGetMessage(stringinputMessage);

        [OperationContract]
        [WebInvoke]
stringPostMessage(stringinputMessage);
    }
}


Step 5

In this step, I will implement the contract in Service file. To do so,

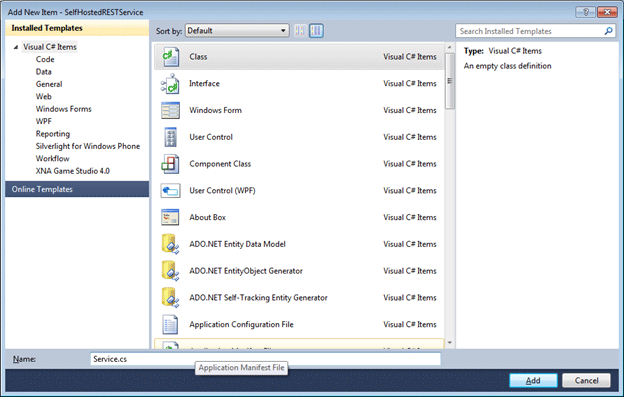

  1. Right click and add a class in Console application.


  2. Give any name; I am giving name here Service of the class.
  3. Implement the interface (Contract IService) in this class.

Service.cs

using System;
usingSystem.Collections.Generic;
usingSystem.Linq;
usingSystem.Text;
using Contracts;

namespaceSelfHostedRESTService
{
publicclassService :IService
    {

publicstringGetMessage(stringinputMessage)
        {
return"Calling Get for you " + inputMessage;
        }

publicstringPostMessage(stringinputMessage)
     {
return"Calling Post for you " + inputMessage;
     }
    }
}


Step 6

In this step, I will host the service in a console application. So to do so

  1. Open Program.cs
  2. Create instanced of WebServieceHostFactory

  3. Add a service end point

  4. Add service debug behavior

As we know, REST service used webHttpBindding. And we need to make sure that HttpHelpPageEanbled is false.

Program.cs

using System;
usingSystem.Collections.Generic;
usingSystem.Linq;
usingSystem.Text;
usingSystem.ServiceModel;
usingSystem.ServiceModel.Description;
usingSystem.ServiceModel.Web;
using Contracts;

namespaceSelfHostedRESTService
{
classProgram
    {
staticvoid Main(string[] args)
        {
WebServiceHost host = newWebServiceHost(typeof(Service), newUri("http://localhost:8000"));
ServiceEndpointep = host.AddServiceEndpoint(typeof(IService),newWebHttpBinding(), "");
ServiceDebugBehaviorstp=host.Description.Behaviors.Find<ServiceDebugBehavior>();
stp.HttpHelpPageEnabled = false;
host.Open();
Console.WriteLine("Service is up and running");
Console.WriteLine("Press enter to quit ");
Console.ReadLine();
host.Close();

        }
    }
}


Step 7

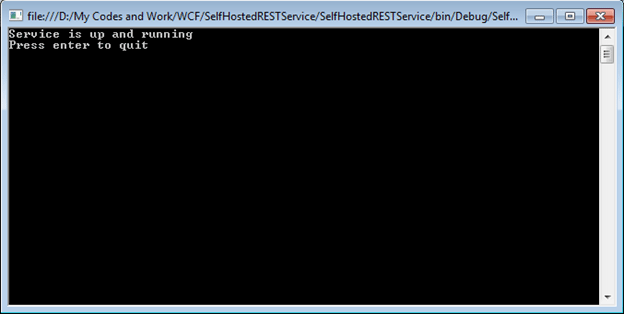

Just press F5 to run the service.


Now once service is up and running, I can test,

[OperationContract]
        [WebGet]
stringGetMessage(stringinputMessage);

In browser.Because it is attributed with WebGet. To test this, I need to browse to URL,
http://localhost:8000/GetMessage?inputMessage=dj

If you see WebServiceHost , I am hosting my REST service in http://localhost:8000/ and then I need to append the method name and then parameter I need to pass.


Step 8

In this step, I will create a Console client which will consume the REST client. So to do so , follow the below steps

  • Create a console project.
  • Add reference of System.ServiceModel and System.ServiceModel.Web (See Step 3).
  • Add reference of Contract class library (we created in Step 2)
  • Write below code in Program.cs
Program.cs

using System;
usingSystem.Collections.Generic;
usingSystem.Linq;
usingSystem.Text;
usingSystem.ServiceModel;
usingSystem.ServiceModel.Web;
usingSystem.ServiceModel.Description;
using Contracts;
namespaceClientForRESTSelfHosted
{
classProgram
    {
staticvoid Main(string[] args)
        {

ChannelFactory<IService>cf = newChannelFactory<IService>(newWebHttpBinding(), "http://localhost:8000");
cf.Endpoint.Behaviors.Add(newWebHttpBehavior());
IService channel = cf.CreateChannel();
Console.WriteLine(channel.GetMessage("Dhananjay Get"));
Console.WriteLine(channel.PostMessage("Dhananjay Post"));
Console.Read();

        }
    }
}

Explanation

  1. I am creating an instance of Channel Factory.
  2. I am passing IService (from dll of Contract class library) as type to channel factory.
  3. I am passing as parameter type of binding that is WebHttpBinding and address.
  4. Address is exactly as same as of the address was in host instance.
  5. I am creating a channel of type IService1.
  6. Calling the methods on the channel.

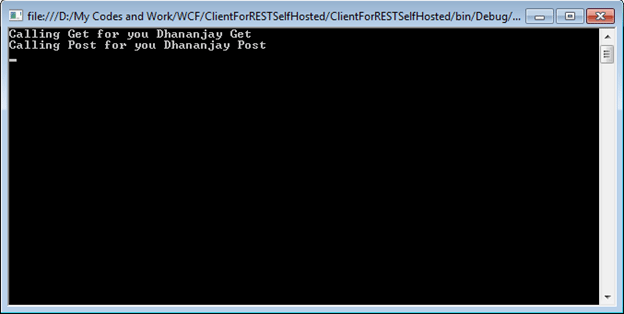

Press F5 to run the application,


I hope this post was useful. Thanks for reading. Happy coding .
