How to Use Balloon Pop Extender and Ajax Calendar Control in ASP.Net

Initial Chamber

Step 1

Open Visual Studio 2010 and create an empty website, name it Calendar_demo.

Step 2

In Solution Explorer you get your empty website, then add a Web Form as in the following.

For Web Form:

    Calendar_demo (Your Empty Website) and right-click to Add New Item as Web Form, name it calendar_demo.aspx.

Design Chamber

Step 3

Now open your calendar_demo.aspx file and make some design code to build up your application like the following.

Calendar_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %><%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="asp" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.         <style type="text/css">
  8.         .style2
  9.         {
  10.             width: 95px;
  11.         }
  12.         .style3
  13.         {
  14.             width: 188px;
  15.         }
  16.         .style4
  17.         {
  18.             width: 23px;
  19.         }
  20.         .style5
  21.         {
  22.             text-decoration: underline;
  23.             font-size: large;
  24.         }
  25.
  26.         .style6
  27.         {
  28.             width: 226px;
  29.         }
  30.
  31.         .style7
  32.         {
  33.             text-decoration: underline;
  34.             font-size: x-large;
  35.         }
  36.         .style8
  37.         {
  38.             width: 258px;
  39.         }
  40.         .style9
  41.         {
  42.             width: 40px;
  43.         }
  44.
  45.     </style>
  46.     </head>
  47.     <body>
  48.         <form id="form1" runat="server">
  49.             <asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server"></asp:ToolkitScriptManager>
  50.             <div id="man">
  51.                 <table style="width: 66%; margin-left: 119px;">
  52.                     <caption class="style5"></caption>
  53.                     <tr>
  54.                         <td class="style4">
  55.                      </td>
  56.                         <td class="style9">
  57.                      </td>
  58.                         <td class="style3">
  59.                             <asp:Label ID="Label2" runat="server" ForeColor="#6600FF"
  60.                         style="font-weight: 700; text-decoration: underline"
  61.                         Text="Student Admission Form"></asp:Label>
  62.                         </td>
  63.                     </tr>
  64.                     <tr>
  65.                         <td class="style4">
  66.                      </td>
  67.                         <td class="style9">
  68.                      </td>
  69.                         <td class="style3">
  70.                      </td>
  71.                     </tr>
  72.                     <tr>
  73.                         <td class="style4">
  74.                      </td>
  75.                         <td class="style9">
  76.                      </td>
  77.                         <td class="style3">
  78.                      </td>
  79.                     </tr>
  80.                     <tr>
  81.                         <td class="style4">
  82.                      </td>
  83.                         <td class="style9">
  84.                     Student Name</td>
  85.                         <td class="style3">
  86.                             <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  87.                             <asp:BalloonPopupExtender ID="BalloonPopupExtender1"  BalloonPopupControlID="Panel1" TargetControlID="TextBox1" runat="server"></asp:BalloonPopupExtender>
  88.                             <asp:Panel ID="Panel1" runat="server">
  89.                     Please Enter your Name
  90.                     </asp:Panel>
  91.                         </td>
  92.                         <td>
  93.
  94.                      </td>
  95.                     </tr>
  96.                     <tr>
  97.                         <td class="style4">
  98.                      </td>
  99.                         <td class="style9">
  100.                     Father Name</td>
  101.                         <td class="style3">
  102.                             <asp:TextBox ID="TextBox2"  runat="server"></asp:TextBox>
  103.                             <asp:BalloonPopupExtender ID="BalloonPopupExtender2" BalloonPopupControlID="Panel2" TargetControlID="TextBox2" runat="server"></asp:BalloonPopupExtender>
  104.                             <asp:Panel ID="Panel2" runat="server">
  105.                     Please Enter your Father Name
  106.                     </asp:Panel>
  107.                         </td>
  108.                     </tr>
  109.                     <tr>
  110.                         <td class="style4">
  111.                      </td>
  112.                         <td class="style9">
  113.                     Mother Name</td>
  114.                         <td class="style3">
  115.                             <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  116.                             <asp:BalloonPopupExtender ID="BalloonPopupExtender3" BalloonPopupControlID="Panel3" TargetControlID="TextBox3" runat="server"></asp:BalloonPopupExtender>
  117.                             <asp:Panel ID="Panel3" runat="server">
  118.                     Please Enter your Mother Name
  119.                     </asp:Panel>
  120.                         </td>
  121.                         <td>
  122.
  123.                      </td>
  124.                     </tr>
  125.                     <tr>
  126.                         <td class="style4">
  127.                      </td>
  128.                         <td class="style9">
  129.                     Student Age
  130.                 </td>
  131.                         <td class="style3">
  132.                             <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  133.                             <asp:BalloonPopupExtender ID="BalloonPopupExtender5" BalloonPopupControlID="Panel5" TargetControlID="TextBox4" runat="server"></asp:BalloonPopupExtender>
  134.                             <asp:Panel ID="Panel5" runat="server">
  135.                     How old are you?
  136.                     </asp:Panel>
  137.                         </td>
  138.                     </tr>
  139.                     <tr>
  140.                         <td class="style2">
  141.                      </td>
  142.                         <td class="style9">
  143.                             <asp:CalendarExtender ID="CalendarExtender1" OnClientDateSelectionChanged="SelectDate"  TargetControlID="TextBox4"  runat="server"></asp:CalendarExtender>
  144.                             <script type="text/javascript">
  145.
  146.                 function SelectDate(e) {
  147.
  148.                 var PresentDay = new Date();
  149.
  150.                 var dateOfBirth = e.get_selectedDate();
  151.
  152.                 var months = (PresentDay.getMonth() - dateOfBirth.getMonth() + (12 * (PresentDay.getFullYear() - dateOfBirth.getFullYear())));
  153.
  154.                 alert("You Are Of " + Math.round(months / 12) + " Years");
  155.
  156.                 document.getElementById("TextBox6").value = Math.round(months / 12);
  157.
  158.             }
  159.
  160.             </script>
  161.                         </td>
  162.                         <td class="style3">
  163.                             <asp:TextBox ID="TextBox6" ReadOnly="true" runat="server" Font-Size="12px" ></asp:TextBox>
  164.                         </td>
  165.                     </tr>
  166.                     <tr>
  167.                         <td class="style4">
  168.                      </td>
  169.                         <td class="style9">
  170.                     Qualification</td>
  171.                         <td class="style3">
  172.                             <asp:DropDownList ID="DropDownList1" runat="server">
  173.                                 <asp:ListItem>-- Select Class--</asp:ListItem>
  174.                                 <asp:ListItem>1st</asp:ListItem>
  175.                                 <asp:ListItem>2nd</asp:ListItem>
  176.                                 <asp:ListItem>3rd</asp:ListItem>
  177.                                 <asp:ListItem>4th</asp:ListItem>
  178.                                 <asp:ListItem>5th</asp:ListItem>
  179.                                 <asp:ListItem>6th</asp:ListItem>
  180.                                 <asp:ListItem>7th</asp:ListItem>
  181.                                 <asp:ListItem>8th</asp:ListItem>
  182.                                 <asp:ListItem>9th</asp:ListItem>
  183.                                 <asp:ListItem>10th</asp:ListItem>
  184.                                 <asp:ListItem>11th</asp:ListItem>
  185.                                 <asp:ListItem>12th</asp:ListItem>
  186.                             </asp:DropDownList>
  187.                         </td>
  188.                     </tr>
  189.                     <tr>
  190.                         <td class="style4">
  191.                      </td>
  192.                         <td class="style9">
  193.                     Phone No
  194.                 </td>
  195.                         <td class="style3">
  196.                             <asp:TextBox ID="TextBox5" runat="server"></asp:TextBox>
  197.                             <asp:BalloonPopupExtender ID="BalloonPopupExtender4" BalloonPopupControlID="Panel4" TargetControlID="TextBox5" runat="server"></asp:BalloonPopupExtender>
  198.                             <asp:Panel ID="Panel4" runat="server">
  199.                     Please Enter your PhoneNo
  200.                     </asp:Panel>
  201.                         </td>
  202.                     </tr>
  203.                     <tr>
  204.                         <td class="style4">
  205.                      </td>
  206.                         <td class="style9">
  207.                      </td>
  208.                         <td class="style3">
  209.                      </td>
  210.                     </tr>
  211.                     <tr>
  212.                         <td class="style4">
  213.                      </td>
  214.                         <td class="style9">
  215.                      </td>
  216.                         <td class="style3">
  217.                             <asp:Button ID="Button1" runat="server" Text="Submit" onclick="Button1_Click" />
  218.                         </td>
  219.                     </tr>
  220.                 </table>
  221.             </div>
  222.             <p>
  223.                 <table style="width:100%;">
  224.                     <caption class="style7"></caption>
  225.                     <tr>
  226.                         <td class="style6">
  227.                      </td>
  228.                         <td align="center" class="style8">
  229.                      </td>
  230.                         <td>
  231.                      </td>
  232.                     </tr>
  233.                     <tr>
  234.                         <td class="style6">
  235.                      </td>
  236.                         <td class="style8">
  237.                      </td>
  238.                         <td>
  239.                      </td>
  240.                     </tr>
  241.                     <tr>
  242.                         <td class="style6">
  243.                      </td>
  244.                         <td class="style8">
  245.                             <asp:Label ID="Label1" runat="server"></asp:Label>
  246.                         </td>
  247.                     </tr>
  248.                 </table>
  249.             </p>
  250.         </form>
  251.     </body>
  252. </html>

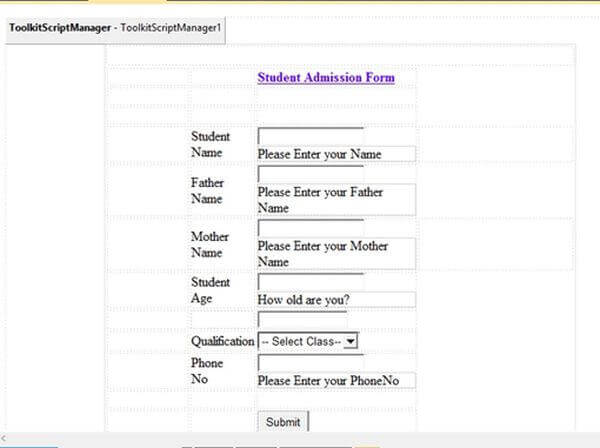

Your design will look like the following.

Design

Code Chamber

Step 4

Open your calendar_demo.aspx.cs file, where we will write the following code for printing the data that you provided in the TextBox in label.

Calendar_demo.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8.
  9. public partial class _Default : System.Web.UI.Page
  10. {
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.
  14.     }
  15.     protected void Button1_Click(object sender, EventArgs e)
  16.     {
  17.
  18.
  19.         Label1.Text = "My Name is:" + TextBox1.Text + "</br>" + "My Father Name is:" + TextBox2.Text + "</br>" + "My Mothe Name is:" + TextBox3.Text + "</br>" + TextBox4.Text + "My DOB is:" + DropDownList1.SelectedItem.Text + "</br>" + "My Phone No is:" + TextBox5.Text + "</br>";
  20.         Label1.ForeColor = System.Drawing.Color.Green;
  21.
  22.     }
  23.
  24. }

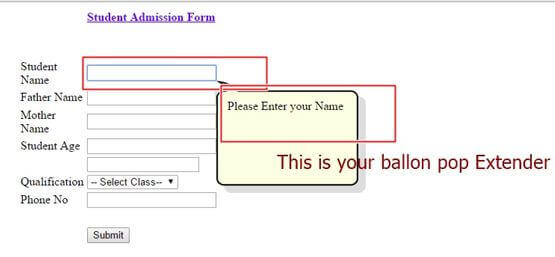

Output Chamber

Output

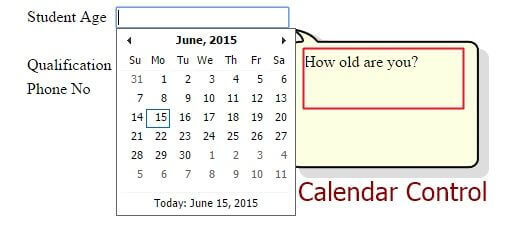

calendar control

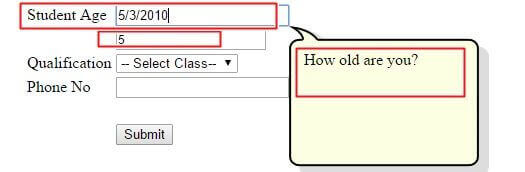

Here it will automatically get your age by giving your date of birth.

date of birth

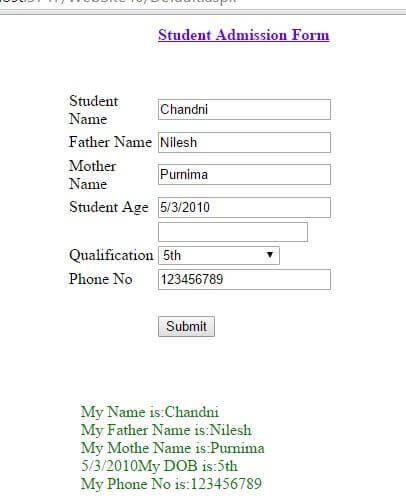

student admission form

I hope you like this. Have a nice day, Thank you for reading!
