Pass a Parameter into a Screen from the Command Bar in a LightSwitch Application

In this article, I will tell you how to Pass a Parameter into a Screen from the Command Bar in a LightSwitch Application.

Pass a Parameter into a Screen from the Command Bar in a LightSwitch Application step by step.

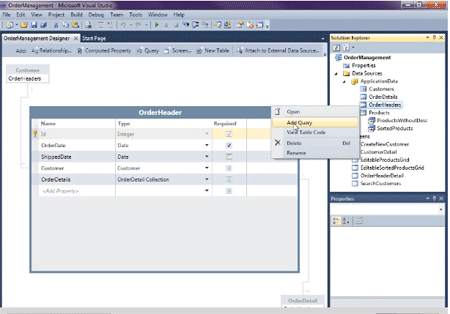

Step 1: Right click on the  OrderHeader table->Add Query.

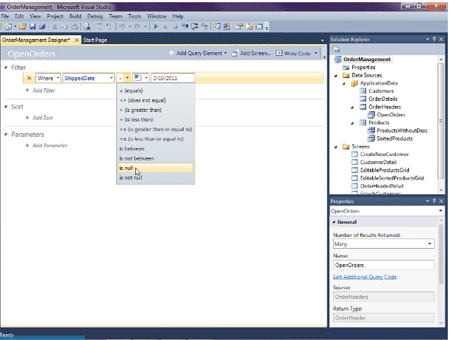

Step 2: Change query name (OpenOrders)->Add filter (ShippedDate is null)->Save like the below image.

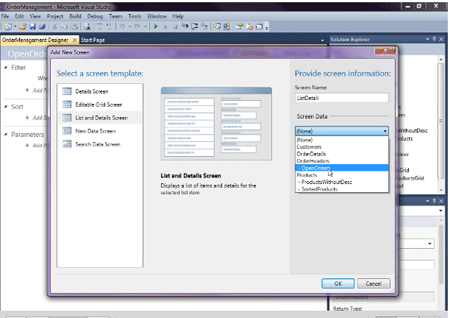

Step 3: Add screen->List and Details screen->Select OpenOrder from screen data->Check OrderHeader->Ok.

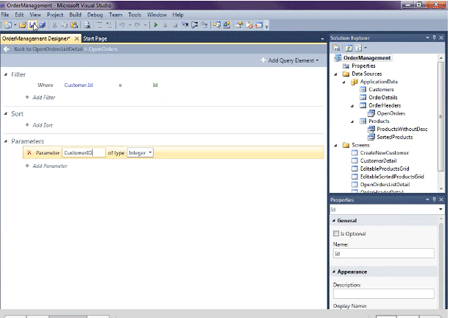

Step 4: Now edit query of  OpenOrders->Add filter->Select CustomerID as parameter->Add new ID->Parameter (CustomerID) and type is Integer->Save.

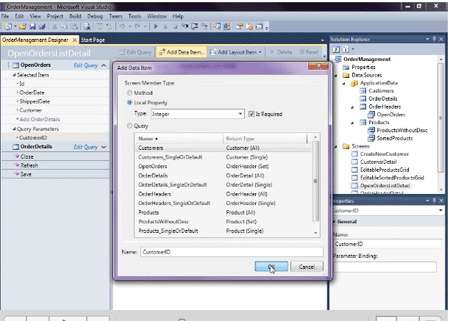

Step 5: Click OpenOrderListDetail screen->AddDataItem->Local Property->Type (Integer)->Name (CustomerID)->Ok->Check parameter box.

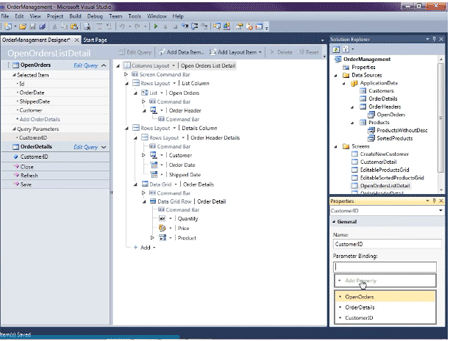

Step 6: Click CustomerID of OpenOrder->Select Parameter Binding as CustomerID.

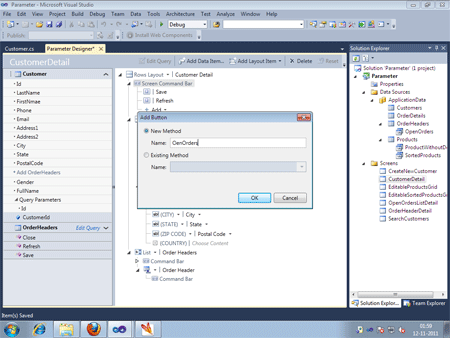

Step 7: Click CustomerDetail screen->Screen CommandBar->Add->New button->Write name (OpenOrder)->Ok.

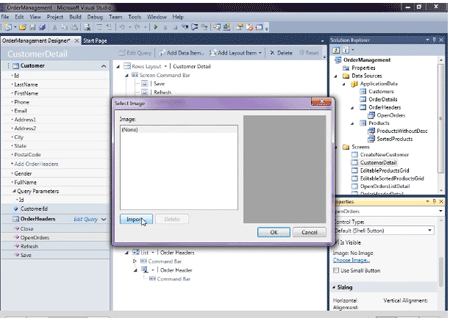

Step 8: Now Choose image->Import image->Ok.

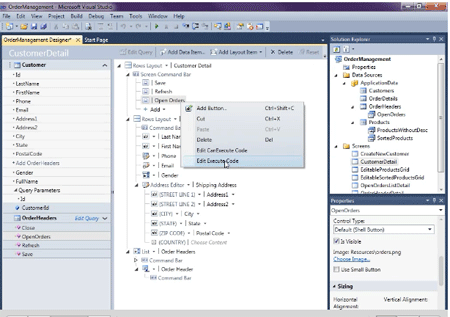

Step 9: Right click on OpenOrder->Edit Execute Code->Write the below code.


  1. using System;
  2. using System.Linq;
  3. using System.IO;
  4. using System.IO.IsolatedStorage;
  5. using System.Collections.Generic;
  6. using Microsoft.LightSwitch;
  7. using Microsoft.LightSwitch.Framework.Client;
  8. using Microsoft.LightSwitch.Presentation;
  9. using Microsoft.LightSwitch.Presentation.Extensions;
  10. namespace LightSwitchApplication
  11. {
  12.     public partial class CustomerDetail
  13.     {
  14.         partial void Customer_Loaded(bool succeeded)
  15.         {
  16.             // Write your code here.
  17.             this.SetDisplayNameFromEntity(this.Customer);
  18.         }
  19.         partial void Customer_Changed()
  20.         {
  21.             // Write your code here.
  22.             this.SetDisplayNameFromEntity(this.Customer);
  23.         }
  24.         partial void CustomerDetail_Saved()
  25.         {
  26.             // Write your code here.
  27.             this.SetDisplayNameFromEntity(this.Customer);
  28.         }
  29.         partial void OenOrders_Execute()
  30.         {
  31.             // Write your code here.
  32.             this.Application.ShowOpenOrdersListDetail(this.Customer.Id)
  33.         }
  34.     }
  35. }
Step 10: Run application->Open any customer->Click OpenOrder image->Design Screen->Customer property->Check show as a link->Save.

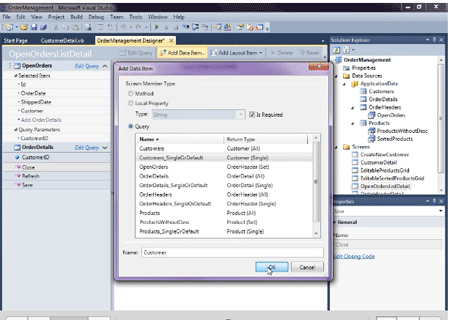

Step 11: Click OpenOrderListDetail screen->AddDataItem->Query->Select Customer_SinglrOrDefault->Ok.

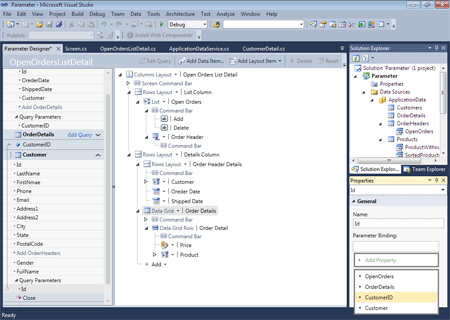

Step 12 Click Id of Customer->Select Parameter Binding (CustomerID).

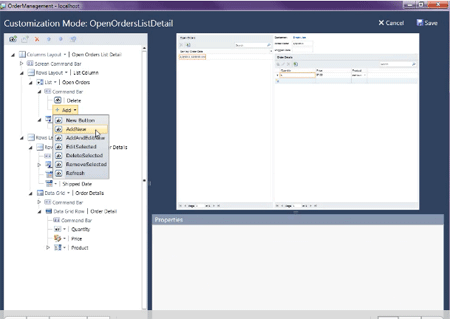

Step 13: Run application->Design screen->Add->AddNew>Move up first->Save.

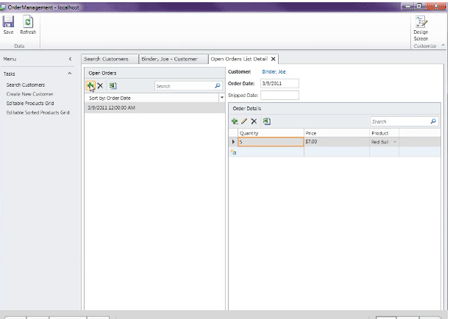

Step 14: Click + sign in OpenOrder->Fill data->Save.
