Accordion Control in Windows Store App Using JQuery

Today we are using an Accordion control in a Windows Store Application that will be implemented using jQuery. It contains multiple panels and each panel has its own header and content area.

Introduction

Today we are using an Accordion control in a Metro Style Application that will be implemented using  jQuery. It contains multiple panels and each panel has its own header and content area. Here we will implement it for a header <h3> tag and for the content area <p> tag. An Accordion control has the visual facility to display one panel at a time from multiple panels.

In the following we are including the entire code of the HTML file and the JavaScript file to create this mini application.

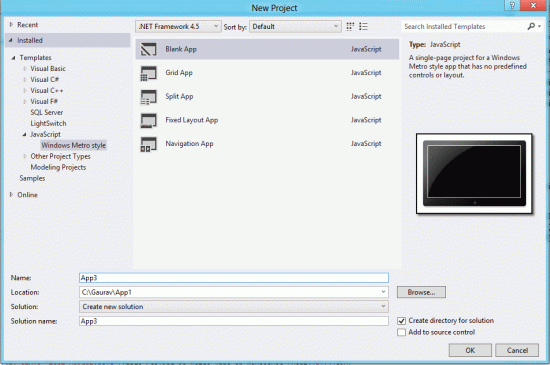

Step 1 : First, you will create a new Metro Style Application. Let us see the description with images of how to create it.

  • Open Visual Studio 2012
  • File -> New -> Project
  • Choose Template -> JavaScript -> Metro Style Application
  • Rename the application


Step 2 : In the Solution Explorer there are two files that we will primarily work with; the Default.Html file:


Step 3 : First of all we add a jQuery library to our project. The JavaScript code and the style sheet code is written in the header section. The following are the contents of the project:



  • JavaScript Code

  • Style Sheet Code

Code :



 <script src="/js/default.js"></script>

    <script type="text/javascript" src="jquery-1.7.2.min.js"></script>

    <script type="text/javascript">

        $(document).ready(function () {



            $(".accordion h3:first").addClass("active");

            $(".accordion p:not(:first)").hide();



            $(".accordion h3").click(function () {

                $(this).next("p").slideToggle("slow")

                .siblings("p:visible").slideUp("slow");

                $(this).toggleClass("active");

                $(this).siblings("h3").removeClass("active");

            });

      });

</script>

Code :

<style type="text/css">

body {

       margin: 10px auto;

       width: 570px;

       font: 75%/120% Arial, Helvetica, sans-serif;

}

.accordion {

    margin-top:50px;

       width: 680px;

       border-bottom: solid 5px #f00;

}

.accordion h3 {

       background: #0026ff url(images/arrow-square.gif) no-repeat right -51px;

       padding: 7px 15px;

       margin: 0;

       font: bold 120%/100% Arial, Helvetica, sans-serif;

       border: solid 5px #c4c4c4;

       border-bottom: none;

       cursor: pointer;

}

.accordion h3:hover {

       background-color: #0094ff;

}

.accordion h3.active {

       background-position: right 5px;

}

.accordion p {

       background: #fff;

       margin: 0;

       padding: 10px 15px 20px;

       border-left: solid 1px #c4c4c4;

       border-right: solid 1px #c4c4c4;

    color:#f00;

}

</style>



Step 4 : The complete code of this application is written below. It contains the code of the HTML file code and JavaScript file code.



Code :



<!DOCTYPE html>

<html>

<head>

    <meta charset="utf-8" />

    <title>App14</title>



    <!-- WinJS references -->

    <link href="//Microsoft.WinJS.1.0.RC/css/ui-dark.css" rel="stylesheet" />

    <script src="//Microsoft.WinJS.1.0.RC/js/base.js"></script>

    <script src="//Microsoft.WinJS.1.0.RC/js/ui.js"></script>



    <!-- App14 references -->

    <link href="/css/default.css" rel="stylesheet" />

    <script src="/js/default.js"></script>

    <script type="text/javascript" src="jquery-1.7.2.min.js"></script>

    <script type="text/javascript">

        $(document).ready(function () {



            $(".accordion h3:first").addClass("active");

            $(".accordion p:not(:first)").hide();



            $(".accordion h3").click(function () {

                $(this).next("p").slideToggle("slow")

                .siblings("p:visible").slideUp("slow");

                $(this).toggleClass("active");

                $(this).siblings("h3").removeClass("active");

            });



        });

</script>



<style type="text/css">

body {

       margin: 10px auto;

       width: 570px;

       font: 75%/120% Arial, Helvetica, sans-serif;

}

.accordion {

    margin-top:50px;

       width: 680px;

       border-bottom: solid 5px #f00;

}

.accordion h3 {

       background: #0026ff url(images/arrow-square.gif) no-repeat right -51px;

       padding: 7px 15px;

       margin: 0;

       font: bold 120%/100% Arial, Helvetica, sans-serif;

       border: solid 5px #c4c4c4;

       border-bottom: none;

       cursor: pointer;

}

.accordion h3:hover {

       background-color: #0094ff;

}

.accordion h3.active {

       background-position: right 5px;

}

.accordion p {

       background: #fff;

       margin: 0;

       padding: 10px 15px 20px;

       border-left: solid 1px #c4c4c4;

       border-right: solid 1px #c4c4c4;

    color:#f00;

}

</style>





</head>

<body>

    <div>

        <h1 style="font-size:30px;font-weight:bolder; margin-top:45px">Accordion Control in Metro Apps </h1>

    </div>

  <div class="accordion">

       <h3>Personal Detail</h3>

       <p>Name: Shubham Srivastava<br /> Date of Birth: 22 Sep 1987<br />Eyes Color- Black<br />Status- Single</p>

       <h3>Qualification Detail</h3>

       <p>I have completed MCA in 2010 from Institute of Management Studies Ghaziabad(UP) with 70%. My schooling education completed from GIC Sultanpur in 2001 and 2003 and graduate in Math streem</p>

       <h3>Working Profile</h3>

       <p>I have done my industrial training in SAP technology in Shiv-vani Oil & Gas Corporation. Currently i am working in MCN Solution Noida as Jr. Software Engineer in .Net Profile</p>

       <h3>Current Address</h3>

       <p>M.NO: C-31 Sashi Garden Pocket-5 Opposite Bala ji Bhawan Mayur Vihar Phase -1 New Delhi (Delhi)</p>

       <h3>Parmanent Address</h3>

       <p>Vill- Pratappur Post- Kurwar Block- Kurwar Dist. Sultanpur (UP)</p>

</div>

</body>

</html>

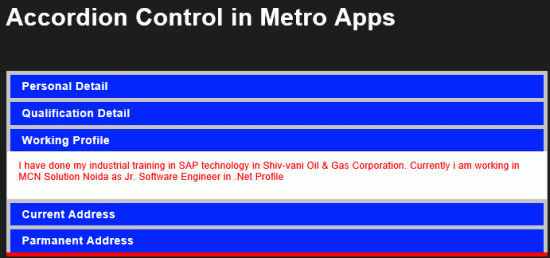

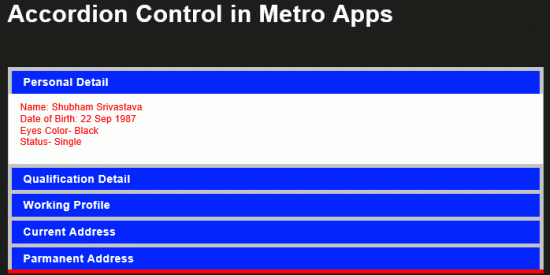

Step 5 : After running this code the output looks like this:




Click on different- 2 panel you can get different -2 information.
