Telerik RadCube in SilverLight 5


Introduction

Today, in this article let's play around with another interesting concept of Telerik RadControls.



Question: What is RadCube?



In simple terms "It enables to wrap application logic and binds it to six different sides of a cube. So the accessing of small information is associated with each component in the cube (six dimensional) which provides a much better way to view the information".



I think we are now good to go to implement this wonderful concept.


Step 1: The complete code of IService1.cs looks like this:


using
System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfCubeApp
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]double add(double a, double b);
        [OperationContract]double sub(double a, double b);
        [OperationContract]double mul(double a, double b);
        [OperationContract]double div(double a, double b);
        [OperationContract]double mod(double a, double b);
        [OperationContract]double total(double a, double b);
    }
}



Step 2: The complete code of Service1.svc.cs looks like this:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace WcfCubeApp
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {
        public double add(double a, double b)
        {
            return a + b;
        }
        public double sub(double a, double b)
        {
            return a - b;
        }
        public double mul(double a, double b){return a * b;
        }
        public double div(double a, double b)
        {
            return a / b;
        }
        public double mod(double a, double b)
        {
            return a % b;
        }
        public double total(double a, double b)
        {
            return a + b * a / b;
        }
    }
}


Step 3: The complete code of Web.Config looks like this:


<?xml version="1.0"?>
<configuration>
  <
system.web>
    <
compilation debug="true" targetFramework="4.0" />
  </system.web>
  <
system.serviceModel>
    <
behaviors>
      <
serviceBehaviors>
        <
behavior>
          <!--
To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
          <
serviceMetadata httpGetEnabled="true"/>
          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
          <
serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </
serviceBehaviors>
    </
behaviors>
    <
serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
  </system.serviceModel>
  <
system.webServer>
    <
modules runAllManagedModulesForAllRequests="true"/>
  </system.webServer>
</
configuration>


Step 4: The complete code of ClientAccessPolicy.xml looks like this:


<?xml version="1.0" encoding="utf-8"?>
<access-policy>
  <
cross-domain-access>
    <
policy>
      <
allow-from http-request-headers="SOAPAction">
        <domain uri="*"/>
      </allow-from>
      <
grant-to>
        <
resource path="/" include-subpaths="true"/>
      </grant-to>
    </
policy>
  </
cross-domain-access>
</
access-policy>


Step 5: The complete code of MainPage.xaml looks like this:


<UserControl x:Class="RadCubeApplication.MainPage"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480">
    <Grid x:Name="LayoutRoot" Width="626">
        <TextBlock Grid.Row="1"Height="23"HorizontalAlignment="Left"Margin="72,61,0,0"Name="textBlock1"FontFamily="Verdana"FontSize="15"Text="Please Enter First Number: "VerticalAlignment="Top"Width="214" />
        <TextBox Grid.Row="1"Height="23"HorizontalAlignment="Left"Margin="320,60,0,0"Name="textBox1"VerticalAlignment="Top"Width="120" />
        <TextBlock Grid.Row="1"Height="23"HorizontalAlignment="Left"Margin="58,121,0,0"FontFamily="Verdana"FontSize="15"Name="textBlock2"Text="Please Enter Second Number: "VerticalAlignment="Top"Width="228" />
        <TextBox Grid.Row="1"Height="23"HorizontalAlignment="Left"Margin="320,120,0,0"Name="textBox2"VerticalAlignment="Top"Width="120" />
        <Button Content="Arthmetic Operation" Height="23" HorizontalAlignment="Left" Margin="320,180,0,0" Name="button1" VerticalAlignment="Top" Width="120" Background="DeepSkyBlue"Click="button1_Click"/>
        <telerik:RadCube XWidth="200" YWidth="200" ZWidth="200" Margin="339,360,301,120"IsRotateOnClickEnabled="True"HorizontalAlignment="Center"VerticalAlignment="Center"Name="radCube1"
Side1Background="LightBlue"Side2Background="LightCoral"Side3Background="LightCyan"Side4Background="LightGray"Side5Background="LightGreen"
Side6Background="LightGoldenrodYellow">
            <!--Addition Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockAdd"  Width="200"/>
            </Grid>
            <!--Subtraction Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockSub"  Width="200"/>
            </Grid>
            <!--Multiplication Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockMul"  Width="200"/>
            </Grid>
            <!--Division Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockDiv"  Width="200"/>
            </Grid>
            <!--Modulos Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockMod"  Width="200"/>
            </Grid>
            <!--Total Operation Cube Side-->
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <TextBlock FontFamily="Verdana"FontSize="12"HorizontalAlignment="Stretch"VerticalAlignment="Center"FontWeight="Bold" Name="textBlockTotal"  Width="200"/>
            </Grid>
        </telerik:RadCube>
    </Grid>
</
UserControl>

Step 6: The complete code of MainPage.xaml.cs looks like this:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Telerik.Windows.Controls;
using RadCubeApplication.ServiceReference1;namespace RadCubeApplication
{
    public partial class MainPage : UserControl
    {
        public MainPage(){InitializeComponent();
        }
        private void add_Call(object sender, addCompletedEventArgs e)
        {
            textBlockAdd.Text = "Addition Result is: " + e.Result.ToString();
        }
        private void sub_Call(object sender, subCompletedEventArgs e)
        {
            textBlockSub.Text = "Subtraction Result is: " + e.Result.ToString();
        }
        private void mul_Call(object sender, mulCompletedEventArgs e)
        {
            textBlockMul.Text = "Multiplication Result is: " + e.Result.ToString();
        }
        private void div_Call(object sender, divCompletedEventArgs e)
        {
            textBlockDiv.Text = "Division Result is: " + e.Result.ToString();
        }
        private void mod_Call(object sender, modCompletedEventArgs e)
        {
            textBlockMod.Text = "Modulos Result is: " + e.Result.ToString();
        }
        private void total_Call(object sender, totalCompletedEventArgs e)
        {
            textBlockTotal.Text = "Total Result is: " + e.Result.ToString();
        }
        private void button1_Click(object sender, RoutedEventArgs e)
        {
            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                textBlockAdd.Text = "";
                textBlockSub.Text = "";
                textBlockMul.Text = "";
                textBlockDiv.Text = "";
                textBlockMod.Text = "";
                textBlockTotal.Text = "";
                RadWindow.Alert("Please Enter Some Values");
            }
            else
            {
                objClient.addCompleted +=new EventHandler<addCompletedEventArgs>(add_Call);
                objClient.addAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);
                objClient.subAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);
                objClient.mulAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);
                objClient.divAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                objClient.modCompleted += new EventHandler<modCompletedEventArgs>(mod_Call);
                objClient.modAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                objClient.totalCompleted += new EventHandler<totalCompletedEventArgs>(total_Call);
                objClient.totalAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }
        #region Instance VariablesService1Client objClient = new Service1Client();
        #endregion
    }
}

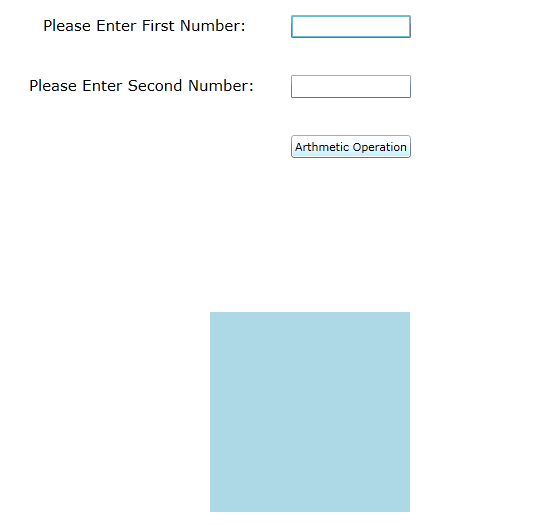

Step 7: The output of the application looks like this:

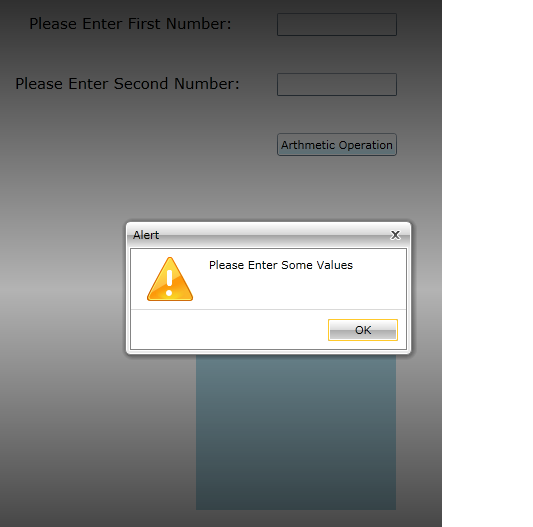

Step 8: The output of the nothing entered application looks like this:

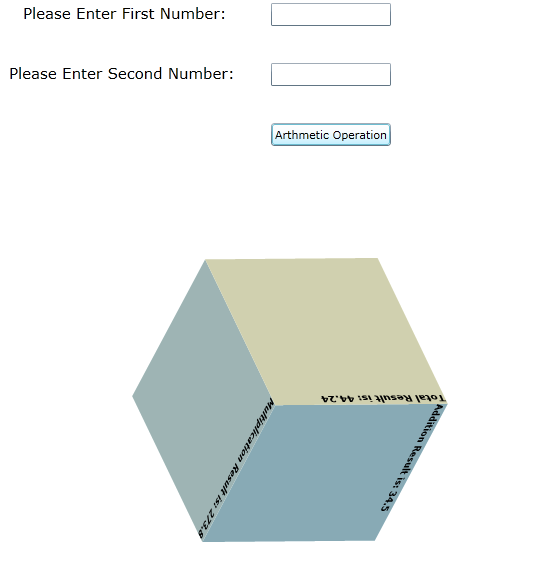

Step 9: The output of the addition side cube application looks like this:

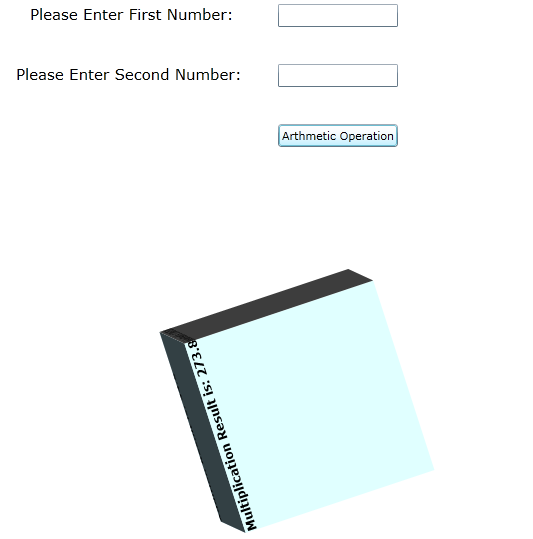

Step 10: The output of the multiplication side cub application looks like this:

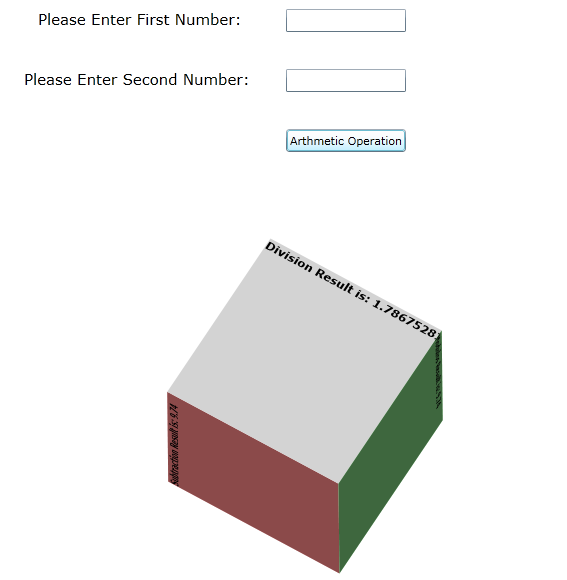

Step 11: The output of the division side cub application looks like this:





I hope this article is useful for you.
