Working With PasswordInputPrompt Control in Windows Phone 7

In this article we are going to discuss the PasswordInputPrompt in Windows Phone 7.


Introduction

In this article we are going to discuss the PasswordInputPrompt in Windows Phone 7. This article will also discuss in details how it is possible to work with that type of control in Windows Phone 7. Further as we have discussed before basically the PasswordInputPrompt is an UI component derived from the toolkit`s UserPrompt class. We can see here that as its name implies it is a kind of extended popup  that prompts the user to enter password input. In this we are going to talk about the functionality it has; whatever we enter into the control is not visible, only password characters that represent the text are displayed. If you want to implement such that then you should follow the steps given below. Before you proceed to make it, let me tell you that you will have to download the Coding4Fun toolkit from here.

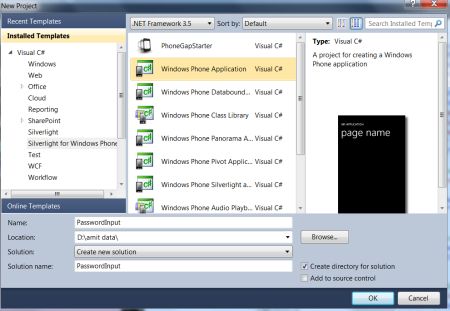

Step 1: In this step first of all we have to create a Windows Phone application; let's see how to create it:

  • Go to Visual Studio 2010
  • File->New->Project
  • Select the template named Silverlight for Windows Phone
  • Select the Windows Phone application
  • Give it a name as you want.

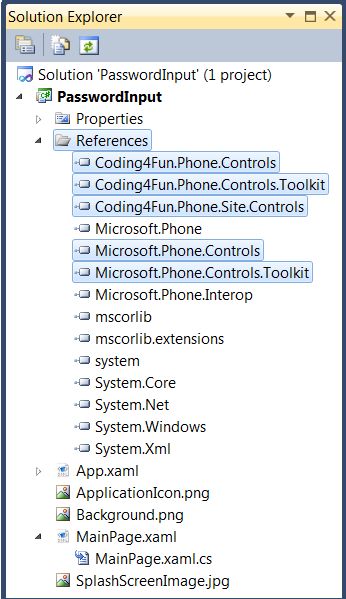

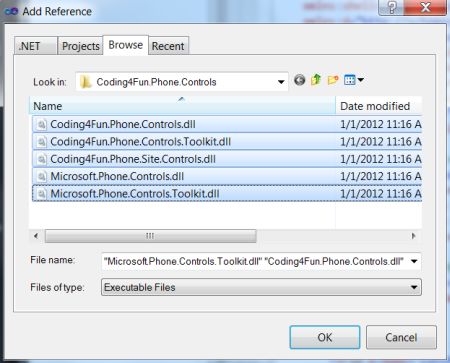

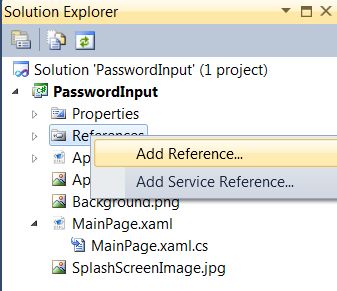

Step 2: In this step we will see from where you add the assembly reference which is shown in the figures given below.




Step 3: In this step you will add a namespace to the MainPage.xaml.cs file which is shown below.


Step 4: In this step you will see the code for the btn1_click which is shown below.

Code:

private void btn1_Click(object sender, RoutedEventArgs e)

{

   PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

   Pwd_Input.Title = "My Demo Control";

   Pwd_Input.Message = "Click to Enter Password!";

   Pwd_Input.Completed += Myinput_Completed;

   Pwd_Input.Show();
}

Step 5: In this step you will see the code for the second button which shows the PasswordInputPrompt control with a cancel button given below.

Code:

private void btn2_Click(object sender, RoutedEventArgs e)

{

   PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

   Pwd_Input.Title = "Control with cancel button";

   Pwd_Input.Message = "Click to Enter Password or press Cancel!";

   Pwd_Input.IsCancelVisible = true;

   Pwd_Input.Completed += Myinput_Completed;

   Pwd_Input.Show();

}

Step 6: In this step you just see the code for the third Button which shows you a PasswordInputPrompt control with color as given below.

Code:

private void btn3_Click(object sender, RoutedEventArgs e)
{

   PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

   Opacity=5;

   Pwd_Input.Title = "Control with colors";

   Pwd_Input.Message = "Click to Enter Password!";

   Pwd_Input.Background = new SolidColorBrush(Colors.Yellow);

   Pwd_Input.Foreground = new SolidColorBrush(Color.FromArgb(0, 0, 0, 0));

   Pwd_Input.Completed += Myinput_Completed;

   Pwd_Input.Show();

}

Step 7: In this step you will see the Complete MainPage.xaml.cs file code which is shown below.

Code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

using Coding4Fun.Phone.Controls;

namespace PasswordInput

{

    public partial class MainPage : PhoneApplicationPage

    {

        // Constructor

        public MainPage()

        {

            InitializeComponent();

        }

        private void btn1_Click(object sender, RoutedEventArgs e)

        {

            PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

            Pwd_Input.Title = "My Demo Control";

            Pwd_Input.Message = "Click to Enter Password!";

            Pwd_Input.Completed += Myinput_Completed;



            Pwd_Input.Show();

        }

        void Myinput_Completed(object sender, PopUpEventArgs<string, PopUpResult> e)

        {

            //add some code here

        }

        private void btn2_Click(object sender, RoutedEventArgs e)

        {

            PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

            Pwd_Input.Title = "Control with cancel button";

            Pwd_Input.Message = "Click to Enter Password or press Cancel!";

            Pwd_Input.IsCancelVisible = true;

            Pwd_Input.Completed += Myinput_Completed;

            Pwd_Input.Show();

        }

        private void btn3_Click(object sender, RoutedEventArgs e)

        {

            PasswordInputPrompt Pwd_Input = new PasswordInputPrompt();

            Opacity=5;

            Pwd_Input.Title = "Control with colors";

            Pwd_Input.Message = "Click to Enter Password!";

            Pwd_Input.Background = new SolidColorBrush(Colors.Yellow);

            Pwd_Input.Foreground = new SolidColorBrush(Color.FromArgb(0, 0, 0, 0));

            Pwd_Input.Completed += Myinput_Completed;

            Pwd_Input.Show();

        }

    }

}

Step 8: In this step you just see the code for the MainPage.xaml file which is shown below.

Code:

<phone:PhoneApplicationPage

    x:Class="PasswordInput.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"

    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"

    FontFamily="{StaticResource PhoneFontFamilyNormal}"

    FontSize="{StaticResource PhoneFontSizeNormal}"

    Foreground="{StaticResource PhoneForegroundBrush}"

    SupportedOrientations="Portrait" Orientation="Portrait"

    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->

    <Grid x:Name="LayoutRoot" Background="Transparent">

        <Grid.RowDefinitions>

            <RowDefinition Height="Auto"/>

            <RowDefinition Height="*"/>

        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->

        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">

            <TextBlock x:Name="PageTitle" Text="My PasswordInput Control" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}" FontFamily="Comic Sans MS" FontSize="36">

               <TextBlock.Foreground>

                  <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                      <GradientStop Color="Black" Offset="0" />

                      <GradientStop Color="#FF87FFFF" Offset="1" />

                  </LinearGradientBrush>

               </TextBlock.Foreground>

            </TextBlock>

        </StackPanel>

        <!--ContentPanel - place additional content here-->

        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <StackPanel x:Name="ContentPanel1" Grid.Row="1" Margin="12,0,12,0">

                <StackPanel.Background>

                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                        <GradientStop Color="Black" Offset="0" />

                        <GradientStop Color="#FFFFBCC6" Offset="1" />

                    </LinearGradientBrush>

                </StackPanel.Background>

                <Button Content="Default Control" x:Name="btn1" Click="btn1_Click" FontFamily="Comic Sans MS" FontSize="28">

                    <Button.Background>

                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                            <GradientStop Color="Black" Offset="0" />

                            <GradientStop Color="#FFFFC9D7" Offset="1" />

                        </LinearGradientBrush>

                    </Button.Background>

                </Button>

                <Button Content="See Pwd_control with Cancel" x:Name="btn32" Click="btn2_Click" FontFamily="Comic Sans MS" FontSize="28">

                    <Button.Background>

                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                            <GradientStop Color="Black" Offset="0" />

                            <GradientStop Color="#FF15FFFF" Offset="1" />

                        </LinearGradientBrush>

                    </Button.Background>

                </Button>

                <Button Content="See Control with Colors" x:Name="btn3" Click="btn3_Click" FontFamily="Comic Sans MS" FontSize="28">

                    <Button.Background>

                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                            <GradientStop Color="Black" Offset="0" />

                            <GradientStop Color="#FF89A3FA" Offset="1" />

                        </LinearGradientBrush>

                    </Button.Background>

                </Button>

            </StackPanel>

        </Grid>

    </Grid>

</phone:PhoneApplicationPage>

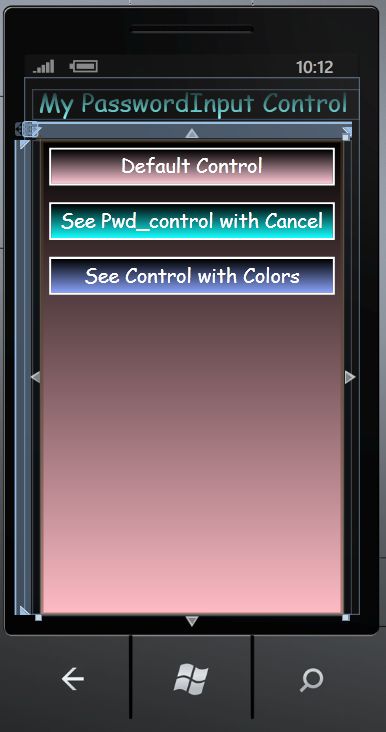

Step 9: In this step you will see the design picture of the MainPage.xaml file which is shown below.


Step 10: In this step we are going to run the application by pressing F5 and the output regarding this is given below.

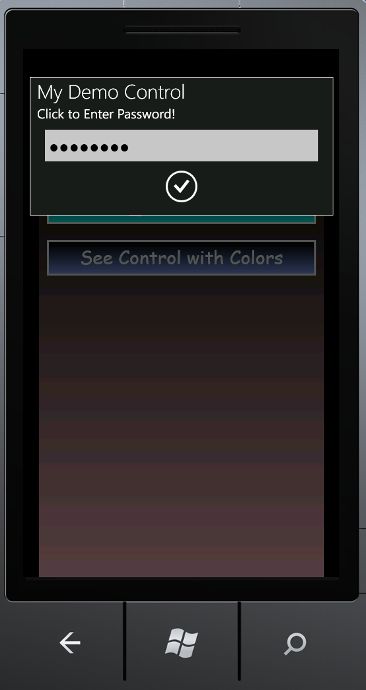

Output 1: In this output we will see that whenever you click on the first button then a window is popped up; this control is what we call a PasswordInputPrompt control in a Windows Phone application.

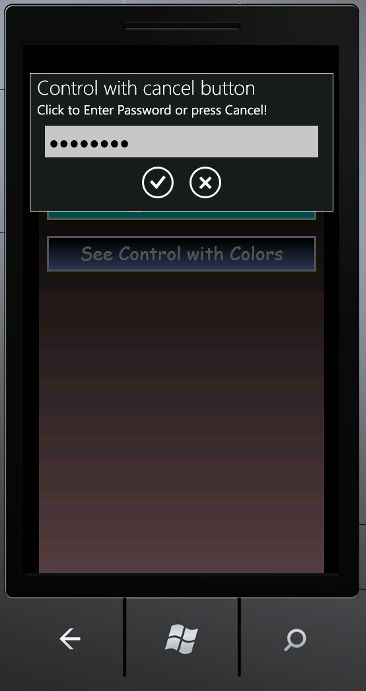

Output 2: In this output we just see that when you click on the second button then it will show a popup with cancel button as shown below.

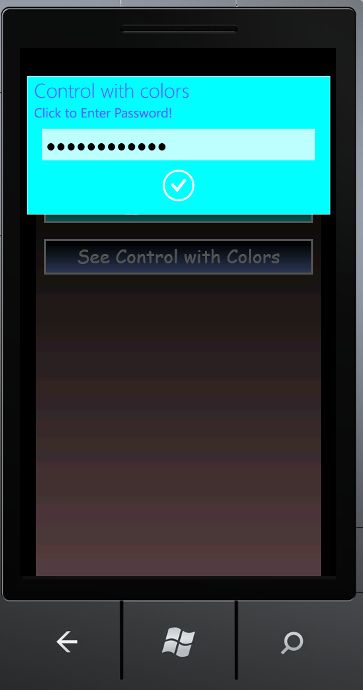

Output 3: In this output you just see a control filled with color as shown below.
