Set Visibility on Buttons in Android

Introduction


This article shows how to set visibility on buttons in Android.

Procedure
  • Start the Eclipse IDE.
  • Create a new project.
  • Create a MainActivity.java file.
  • Create an XML file with three buttons.
  • In the onClick function set the visibility of buttons using the setVisibility function.
For example
  1. public void onClick(View v) {
  2.      b1.setVisibility(v.INVISIBLE);
  3.      b2.setVisibility(v.VISIBLE);
  4.  }
The following is the code.

MainActivity.java
  1. package com.example.visibilityyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy;
  2.
  3.  import android.app.Activity;
  4.  import android.os.Bundle;
  5.  import android.view.Menu;
  6.  import android.view.View;
  7.  import android.view.View.OnClickListener;
  8.  import android.widget.Button;
  9.  import android.widget.Toast;
  10.
  11.  public class MainActivity extends Activity {
  12.      Button b1,b2,b3;
  13.
  14.      @Override
  15.      protected void onCreate(Bundle savedInstanceState) {
  16.          super.onCreate(savedInstanceState);
  17.          setContentView(R.layout.activity_main);
  18.          b1=(Button)findViewById(R.id.button1);
  19.          b2=(Button)findViewById(R.id.button2);
  20.          b3=(Button)findViewById(R.id.button3);
  21.          b1.setOnClickListener(new OnClickListener() {
  22.              public void onClick(View v) {
  23.                  // TODO Auto-generated method stub
  24.                  b1.setVisibility(v.INVISIBLE);
  25.                  b2.setVisibility(v.VISIBLE);
  26.                  Toast.makeText(getApplicationContext(), "Button2 is visible",Toast.LENGTH_LONG).show();
  27.              }
  28.          });
  29.          b2.setOnClickListener(new OnClickListener() {
  30.              public void onClick(View v) {
  31.                  // TODO Auto-generated method stub
  32.                  b2.setVisibility(v.INVISIBLE);
  33.                  b3.setVisibility(v.VISIBLE);
  34.                  Toast.makeText(getApplicationContext(), "Button3 is visible ", Toast.LENGTH_LONG).show();
  35.              }
  36.          });
  37.          b3.setOnClickListener(new OnClickListener() {
  38.              public void onClick(View v) {
  39.                  b3.setVisibility(v.INVISIBLE);
  40.                  b1.setVisibility(v.VISIBLE);
  41.                  Toast.makeText(getApplicationContext(), "Button1 is visible", Toast.LENGTH_LONG).show();
  42.                  // TODO Auto-generated method stub
  43.              }
  44.          });
  45.      }
  46.      @Override
  47.      public boolean onCreateOptionsMenu(Menu menu) {
  48.          // Inflate the menu; this adds items to the action bar if it is present.
  49.          getMenuInflater().inflate(R.menu.main, menu);
  50.          return true;
  51.      }
  52.  }
    activity_main.xml
    1. <RelativeLayout
    2.     xmlns:android="http://schemas.android.com/apk/res/android"
    3.     xmlns:tools="http://schemas.android.com/tools"
    4.
    5.    android:layout_width="match_parent"
    6.    android:layout_height="match_parent"
    7.    android:paddingBottom="@dimen/activity_vertical_margin"
    8.    android:paddingLeft="@dimen/activity_horizontal_margin"
    9.    android:paddingRight="@dimen/activity_horizontal_margin"
    10.    android:paddingTop="@dimen/activity_vertical_margin"
    11.    tools:context=".MainActivity" >
    12.
    13. <TextView
    14.       android:id="@+id/textView1"
    15.       android:layout_width="wrap_content"
    16.       android:layout_height="wrap_content"
    17.       android:text="Abhijeet's game of visibility" />
    18.
    19. <Button
    20.       android:id="@+id/button1"
    21.       android:layout_width="wrap_content"
    22.       android:layout_height="wrap_content"
    23.       android:layout_alignTop="@+id/textView1"
    24.       android:layout_marginLeft="14dp"
    25.       android:visibility="visible"
    26.       android:layout_toRightOf="@+id/textView1"
    27.       android:text="Button1" />
    28.
    29. <Button
    30.       android:id="@+id/button2"
    31.       android:layout_width="wrap_content"
    32.       android:layout_height="wrap_content"
    33.       android:layout_alignRight="@+id/button1"
    34.       android:layout_below="@+id/button1"
    35.       android:visibility="gone"
    36.       android:layout_marginRight="40dp"
    37.       android:text="Button2" />
    38.
    39. <Button
    40.       android:id="@+id/button3"
    41.       android:layout_width="wrap_content"
    42.       android:layout_height="wrap_content"
    43.       android:layout_alignRight="@+id/button2"
    44.       android:layout_below="@+id/button2"
    45.       android:visibility="gone"
    46.       android:layout_marginRight="15dp"
    47.       android:layout_marginTop="26dp"
    48.       android:text="Button3" />
    49.
    50. </RelativeLayout>

    Output

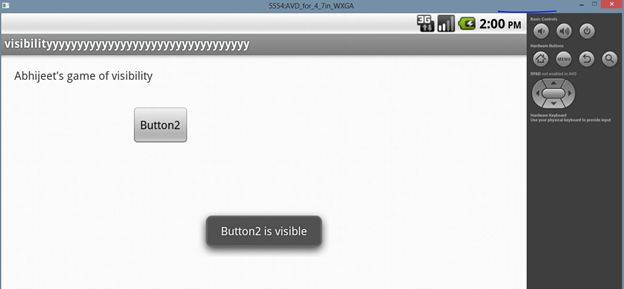

    When clicking on Button1:


    When clicking on Button2:

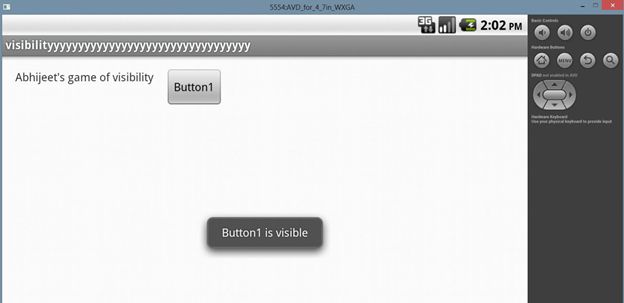

    When clicking on Button3:
