Learn How to Configure Lightswitch With MVC Part 3

This article provides a walkthrough of how to use MVC with Visual Studio LightSwitch.

Introduction

This article provides a walkthrough of how to use MVC with Visual Studio LightSwitch. In my previous articles we saw how to get started by creating a LightSwitch application. You can get them from the following:


Now let's continue by creating the remaining.

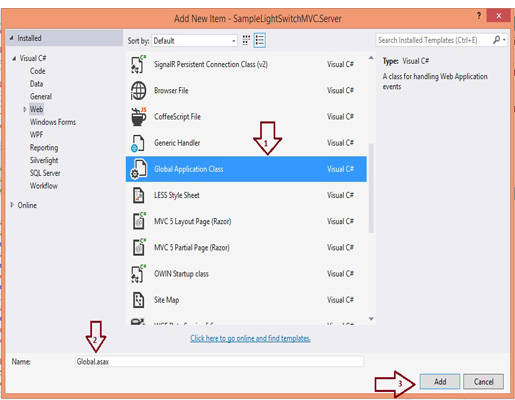

  • Step 1 Right-click on the server application and add a Global.asax file and use the following code.



The call passes the the Routes collection of the Global RouteTable as a parameter to the RegisterRoutes method, that then populates the routes collection with pre-defined route templates for the application.

  1. using System.Web.Mvc;
  2. using System.Web.Routing;
  3. namespace LightSwitchApplication
  4. {
  5.     public class Global : System.Web.HttpApplication
  6.     {
  7.         protected void Application_Start()
  8.         {
  9.             AreaRegistration.RegisterAllAreas();
  10.             RouteConfig.RegisterRoutes(RouteTable.Routes);
  11.         }
  12.     }
  13. }

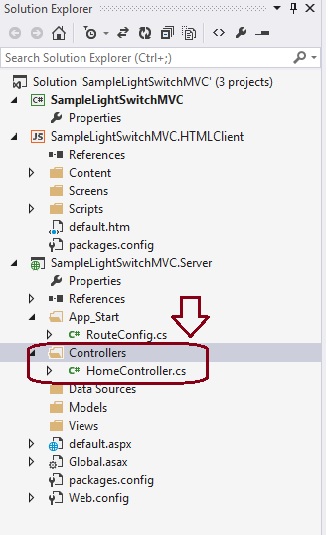

  • Step 2: Now Let's create a MVC controller under the Conrollers folder and add the following implementation.




  1. using System.Web.Mvc;
  2. namespace LightSwitchApplication.Controllers
  3. {
  4.     public class HomeController : Controller
  5.     {
  6.
  7.         public ActionResult Index()
  8.         {
  9.             return View();
  10.         }
  11.     }
  12. }
  • Step 3: Let's create a MVC view under the Views folder.

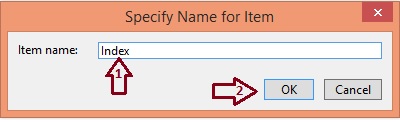

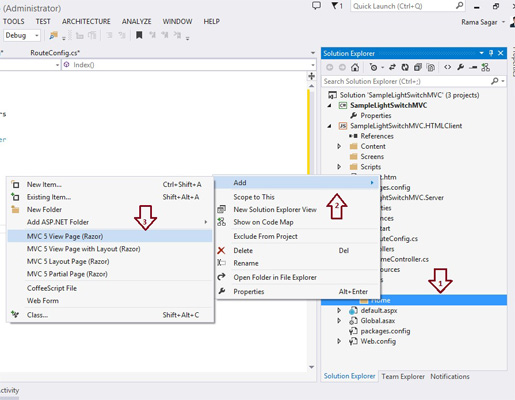

Right-click on the Views folder and add a Home Folder and create a MVC5 Razor view under it as shown below.




  1. @{
  2.     Layout = null;
  3. }
  4. <!DOCTYPE html>
  5. <html>
  6. <head>
  7.     <meta name="HandheldFriendly" content="true" />
  8.     <meta name="viewport" content="width=device-width,
  9.           initial-scale=1minimum-scale=1maximum-scale=1user-scalable=no/>
  10.     <title>Welcome to Lightswitch with Model View Controller</title>
  11. </head>
  12. <body>
  13.     <div>
  14.         <h1>Hello from MVC!</h1>
  15.         <a href="HTMLClient">LightSwitch Application</a>
  16.     </div>
  17. </body>
  18. </html>

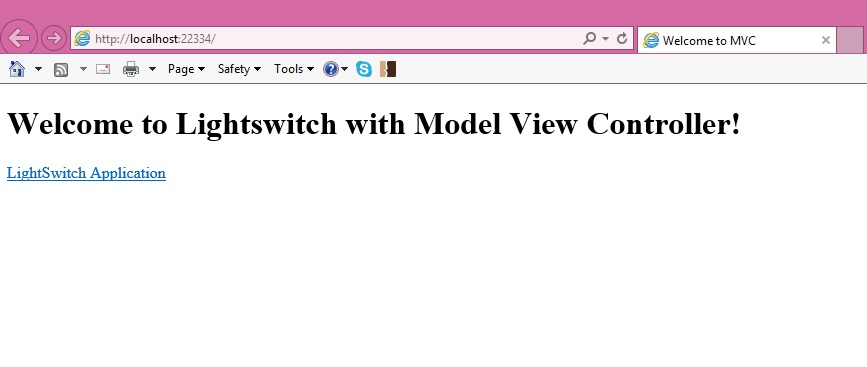

Run the application. We will get the following output.



Summary

In this small article, I explained how to prepare a LightSwitch application to use MVC, so now we are able to follow the structure of MVC in Lightswitch..
