Image Gallery Using Fileupload Control and DataList in ASP.Net

This article explains how to create an image gallery in ASP.NET using the FileUpload control and a DataList.

I have designed the form and added the following two controls:

  1. Fileupload control: control to upload the image file to a folder and the information is saved into a SQL Server database table.
  2. DataList: to display the image in a repeating column row.

The following is the step-by-step procedure to create an Image Gallery in ASP.NET C# using a FileUpload control and a DataList.

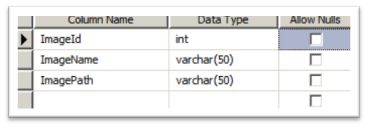

Step 1: Create a table in your database as below:

table

The Image id is the identity column.

Step 2: Design the form as follows:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="ImageGallery.aspx.cs" Inherits="Image_Library.ImageGallery" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5.     <title></title>
  6. </head>
  7. <body>
  8.     <form id="form1" runat="server">
  9.     <div>
  10.         <table>
  11.             <tr>
  12.                 <td colspan="3">
  13.                     <h2>
  14.                         Image Gallery</h2>
  15.                 </td>
  16.             </tr>
  17.             <tr>
  18.                 <td>
  19.                     Upload Image
  20.                 </td>
  21.                 <td>
  22.                     <asp:FileUpload ID="imgFileUpload" runat="server" />
  23.                 </td>
  24.                 <td>
  25.                     <asp:Button ID="btnUpload" runat="server" Text="Upload" OnClick="btnUpload_Click" />
  26.                 </td>
  27.             </tr>
  28.         </table>
  29.     </div>
  30.     <div id="divImageList" runat="server">
  31.         <asp:DataList ID="dtListImageGallery" runat="server" RepeatColumns="3" RepeatDirection="Horizontal"
  32.             Width="50%" BorderColor="#336699" BorderStyle="Solid" BorderWidth="2px">
  33.             <ItemTemplate>
  34.                 <asp:Label ID="Label1" runat="server" Text='<%# Eval("ImageName") %>' Font-Bold="True"
  35.                     Font-Size="10pt" ForeColor="#336699" Width="100%" />
  36.                 <br />
  37.                 <asp:Image Width="100" ID="imgGallery" ImageUrl='<%# Bind("ImagePath", "~/ImageGallery/{0}") %>'
  38.                     runat="server" />
  39.             </ItemTemplate>
  40.             <ItemStyle HorizontalAlign="Center" VerticalAlign="Top" />
  41.         </asp:DataList>
  42.     </div>
  43.     </form>
  44. </body>
  45. </html>

Step 3: Add the following code on the click of the button.

  1. SqlConnection conn = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
  2. if (imgFileUpload.PostedFile != null)
  3. {
  4.         string imagename = Path.GetFileName(imgFileUpload.PostedFile.FileName);
  5.         imagename = imagename.Split('.')[0].ToString();
  6.         string pathname;
  7.         pathname = Server.MapPath("~\\ImageGallery\\") + DateTime.Now.ToString("ddMMyyhhmmsstt") + imgFileUpload.FileName;
  8.         imgFileUpload.PostedFile.SaveAs(pathname);
  9.         try
  10.         {
  11.             conn.Open();
  12.             string insquery = "Insert into MyImageGallery(ImageName,ImagePath) values('" + imagename + "','"+DateTime.Now.ToString("ddMMyyhhmmsstt") + imgFileUpload.FileName.ToString() + "')";
  13.             SqlCommand cmd = new SqlCommand(insquery, conn);
  14.             cmd.ExecuteNonQuery();
  15.             conn.Close();
  16.             BindDataList();
  17.         }
  18.         catch (Exception ex)
  19.         {
  20.             Response.Write(ex.Message);
  21.         }
  22. }

Step 4: Call a method BindDataList on page load and write the following code inside the method:

  1. private void BindDataList()
  2. {
  3.     SqlConnection conn = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
  4.     conn.Open();
  5.     sqlda = new SqlDataAdapter("SELECT * FROM MyImageGallery", conn);
  6.     dt = new DataTable();
  7.     sqlda.Fill(dt);
  8.     sqlda.Dispose();
  9.     dtListImageGallery.DataSource = dt;
  10.     dtListImageGallery.DataBind();
  11.     conn.Close();
  12. }

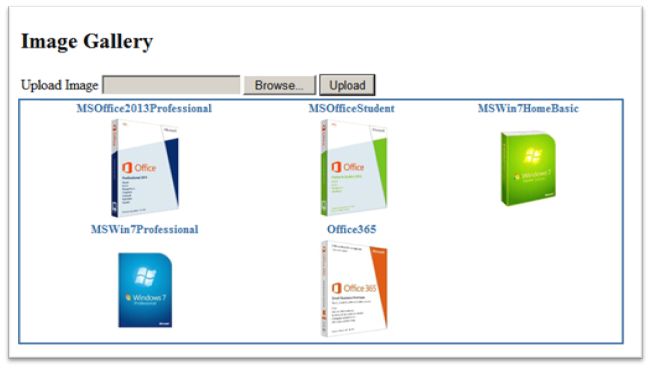

Step 5: Run the application, the Image gallery will be shown as below:

Run

Conclusion

In this article, I explained how to design and develop the image gallery in ASP.NET C#.
