Generation of CAPTCHA Image Using Generic Handler for Login Page

This article explains how to create a CAPTCHA image using a generic handler.

This article explains how to create a CAPTCHA image using a generic handler.

Required Tools

  1. Visual Studio
  2. SQL Server 2005

Step 1

Create a new solution and add an empty web project.

Step 2

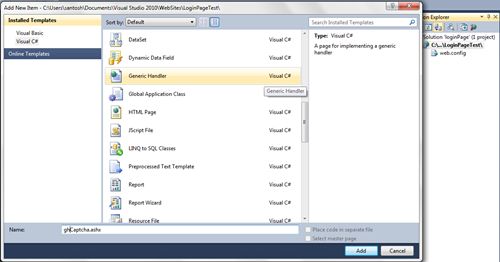

Add a generic handler page (.ashx).

generic handler

Step 3

Replace the ProcessRequest method implementation with the following code.

  1. <%@ WebHandler Language="C#" Class="ghCaptcha" %>
  2.
  3. using System;
  4. using System.Web;
  5. using System.IO;
  6. using System.Web.SessionState;
  7. using System.Drawing;
  8. using System.Drawing.Imaging;
  9.
  10. public class ghCaptcha : IHttpHandler, IReadOnlySessionState
  11. {
  12.     public void ProcessRequest(HttpContext context)
  13.     {
  14.         MemoryStream memStream = new MemoryStream();
  15.         string phrase = Convert.ToString(context.Session["Captcha"]);
  16.
  17.         //Generate an image from the text stored in session
  18.         Bitmap CaptchaImg = new Bitmap(180, 60);
  19.         Graphics Graphic = Graphics.FromImage(CaptchaImg);
  20.         Graphic.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;
  21.
  22.         //Set height and width of captcha image
  23.         Graphic.FillRectangle(new SolidBrush(Color.Blue), 0, 0, 180, 60);
  24.         Graphic.DrawString(phrase, new Font("Calibri", 30), new SolidBrush(Color.White), 15, 15);
  25.         CaptchaImg.Save(memStream, System.Drawing.Imaging.ImageFormat.Jpeg);
  26.         byte[] imgBytes = memStream.GetBuffer();
  27.
  28.         Graphic.Dispose();
  29.         CaptchaImg.Dispose();
  30.         memStream.Close();
  31.
  32.         //write image
  33.         context.Response.ContentType = "image/jpeg";
  34.         context.Response.BinaryWrite(imgBytes);
  35.     }
  36.
  37.     public bool IsReusable
  38.     {
  39.         get
  40.         {
  41.             return false;
  42.         }
  43.     }
  44. }

Step 4

Build the page and resolve the namespace.

Since the .ashx is a generic handler it process HTTP requests and doesn't write session values. So we need to inherit the class with IReadOnlySessionState as in the following:

inherit class

The following namespaces are used:

  1. using System;
  2. using System.Web;
  3. using System.IO;
  4. using System.Web.SessionState;
  5. using System.Drawing;
  6. using System.Drawing.Imaging;

Step 5

Prepare the Login page; add a new page named Login.aspx and add the following .aspx script:

  1. <form id="form1" runat="server">
  2.     <h1>
  3.         Login</h1>
  4.     <table id="tblLogin" width="40%" border="0" cellpadding="0" cellspacing="4" style="background-color: #cecece;"
  5.         align="center">
  6.         <tbody>
  7.             <tr>
  8.                 <td align="center">
  9.                     <asp:Label ID="lblError" runat="server"></asp:Label>
  10.                 </td>
  11.             </tr>
  12.             <tr>
  13.                 <td width="30%" align="right">
  14.                     User ID :
  15.                 </td>
  16.                 <td width="70%">
  17.                     <asp:TextBox ID="txtLogin" runat="server" Width="175px" MaxLength="20" AutoCompleteType="Disabled"></asp:TextBox>
  18.                 </td>
  19.             </tr>
  20.             <tr>
  21.                 <td align="right">
  22.                     Password :
  23.                 </td>
  24.                 <td>
  25.                     <asp:TextBox ID="txtPassword" runat="server" Width="175px" MaxLength="20" AutoCompleteType="Disabled"
  26.                         TextMode="Password"></asp:TextBox>
  27.                 </td>
  28.             </tr>
  29.             <tr>
  30.                 <td>
  31.                 </td>
  32.                 <td colspan="2" align="left">
  33.                     <div>
  34.                         <asp:Image ImageUrl="ghCaptcha.ashx" runat="server" ID="imgCaptcha" />
  35.                     </div>
  36.                 </td>
  37.             </tr>
  38.             <tr>
  39.                 <td align="right">
  40.                     Enter Code :
  41.                 </td>
  42.                 <td>
  43.                     <asp:TextBox ID="txtCode" runat="server" Width="175px" MaxLength="5" AutoCompleteType="Disabled"></asp:TextBox>
  44.                 </td>
  45.             </tr>
  46.             <tr>
  47.                 <td colspan="2" align="center">
  48.                     <asp:Button ID="btnLogin" runat="server" Text="Login" />
  49.                 </td>
  50.             </tr>
  51.         </tbody>
  52.     </table>
  53.     </form>

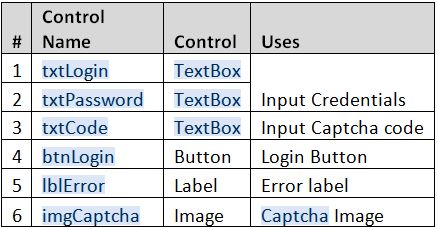

The page has the following controls:

controls

Assign an ImageUrl property of an Image control as Path of the ghCaptcha.ashx file.

Step 6

The following is the code behind of login.aspx.cs:

  1. #region " [ using ] "
  2. using System;
  3. using System.Web.UI;
  4. #endregion
  5.
  6. public partial class Login : System.Web.UI.Page
  7. {
  8.     protected void Page_Load(object sender, EventArgs e)
  9.     {
  10.         if (!Page.IsPostBack)
  11.         {
  12.             UpdateCaptchaText();
  13.         }
  14.     }
  15.
  16.     #region " [ Button Event ] "
  17.     protected void btnRefresh_Click(object sender, ImageClickEventArgs e)
  18.     {
  19.         UpdateCaptchaText();
  20.     }
  21.
  22.
  23.     protected void btnLogin_Click(object sender, EventArgs e)
  24.     {
  25.
  26.     }
  27.     #endregion
  28.     #region " [ Private Function ] "
  29.     private void UpdateCaptchaText()
  30.     {
  31.         txtCode.Text = string.Empty;
  32.         Random randNum = new Random();
  33.
  34.         //Store the captcha text in session to validate
  35.         Session["Captcha"] = randNum.Next(10000, 99999).ToString();
  36.         imgCaptcha.ImageUrl = "~/ghCaptcha.ashx?" + Session["Captcha"];
  37.     }
  38.     #endregion
  39. }

The value of Session["Captcha"] is updated in the Page_Load event of login.aspx.cs and is accessed in the handler page and session code used to generate the CAPTCHA image.

Step 7

Build and run it.

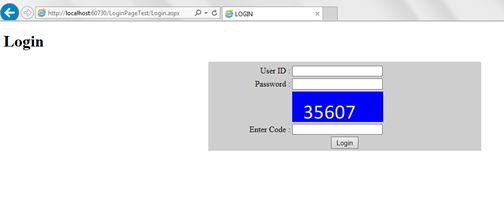

The Login Page Visuals os as below:

Page Visuals
Step 8

The following are enhancements (included in the source code download).

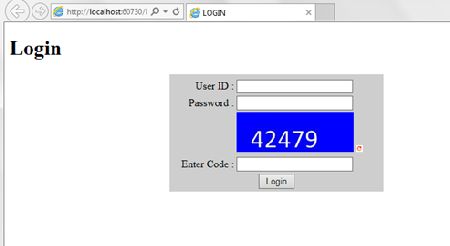

  1. A Refresh button beside the CAPTCHA image for changing the CAPTCHA without a page postback:

    Refresh button

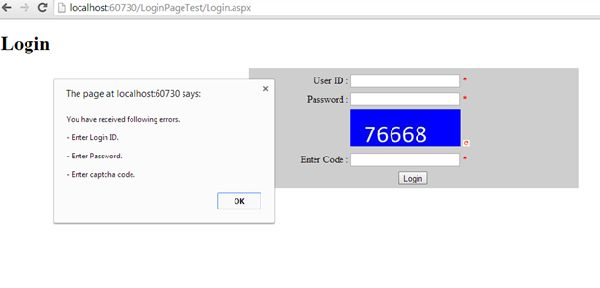

  2. Page validation:

    Page validation
