Stored Procedure For Login Page and Custom Error Handling

This is a continuation of the previous article in which we used a generic handler to generate a CAPTCHA image.

  1. Generation of CAPTCHA Image Using Generic Handler for Login Page

I have added many columns to the basic UserMaster Table to integrate a standard login policy.

# Column DataType Function
1 IsLocked Varchar(1) If the user attempts login with the wrong password for 5
times then the user account is locked ('Y': Unlocked , 'N': Locked)
2 IsLogin Bit This flag states the User Login Status
3 LoginCnt Int Count of Login attempts with invalid password
4 UserSession Varchar(200) This is the user's unique session id
5 LastLogin DateTime DateTime of last login
6 IsActive Bit User Account Status

Step 1: Prepare Table structure

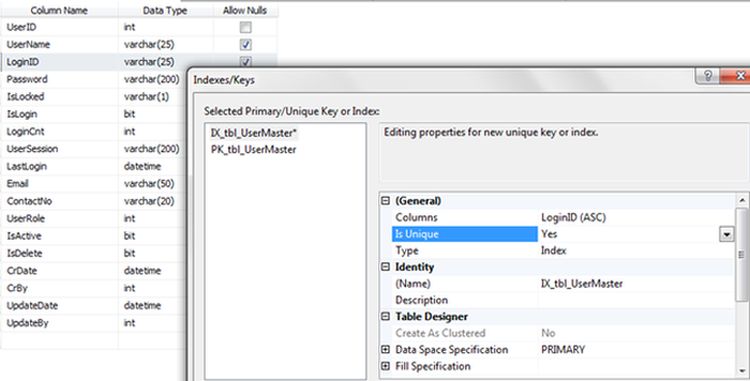

Set the Key/Constraint on the table on the LoginID column since it must be unique.



Step 2: Stored Procedure

  1. CREATE PROCEDURE [dbo].[USP_UserLogin]
  2.     @loginID        VARCHAR(25) ,
  3.     @password       VARCHAR(200),
  4.     @sessionID      VARCHAR(200),
  5.     @mode           VARCHAR(15)
  6. AS
  7. BEGIN
  8.
  9. IF    @mode = 'LOGIN'
  10. BEGIN
  11.
  12. -- USER NOT EXISTS
  13. IF NOT EXISTS(  SELECT 1
  14.                 FROM tbl_UserMaster
  15.                 WHERE LoginID = @loginID AND IsDelete = 0 )
  16.         BEGIN
  17.             SELECT 'USER NOT EXISTS.' AS RES
  18.             RETURN;
  19.         END
  20.
  21. -- USER INACTIVE
  22. IF EXISTS ( SELECT 1
  23.             FROM tbl_UserMaster
  24.             WHERE LoginID = @loginID
  25.             AND IsActive = 0 )
  26.         BEGIN
  27.             SELECT 'USER INACTIVE.' AS RES
  28.             RETURN;
  29.         END
  30.
  31. -- USER LOCKED
  32. IF EXISTS ( SELECT 1
  33.             FROM tbl_UserMaster
  34.             WHERE LoginID = @loginID
  35.             AND IsLocked = 'Y' AND IsActive = 1 AND IsDelete = 0 )
  36.         BEGIN
  37.             SELECT 'USER LOCKED.' AS RES
  38.             RETURN;
  39.         END
  40.
  41. -- PASSWORD CHECK
  42. IF NOT EXISTS ( SELECT 1
  43.                 FROM tbl_UserMaster
  44.                 WHERE LoginID = @loginID
  45.                 AND [Password] = @password
  46.                 AND IsActive = 1 AND IsDelete = 0 )
  47.         BEGIN
  48. -- UPDATE INCORRECT LOGIN ATTEMPT
  49.             UPDATE tbl_UserMaster
  50.             SET LoginCnt = ISNULL(LoginCnt,0)  + 1
  51.             WHERE LoginID = @loginID
  52.
  53. -- IF INCORRECT LOGIN ATTEMPT MORE THAN 5 TIMES THEN LOCK USER ACCOUNT
  54.             IF((SELECT LoginCnt FROM tbl_UserMaster WHERE LoginID = @loginID ) > 5 )
  55.             BEGIN
  56.                 UPDATE tbl_UserMaster
  57.                 SET IsLocked = 'Y'
  58.                 WHERE LoginID = @loginID
  59.             END
  60.
  61.             SELECT 'PASSWORD INCORRECT.' AS RES
  62.         END
  63.         ELSE
  64.         BEGIN
  65.             SELECT UserID ,UserName ,LoginID ,LastLogin ,UserRole ,IsLogin
  66.             FROM tbl_UserMaster
  67.             WHERE LoginID = @loginID
  68.             AND [Password] = @password
  69.             AND IsActive = 1 AND IsDelete = 0
  70.
  71.
  72. -- UPDATE USER LOGIN DETAILS
  73.             IF ( (SELECT IsLogin    FROM tbl_UserMaster
  74.             WHERE LoginID = @loginID AND [Password] = @password AND IsActive = 1 AND IsDelete = 0 ) = 0 )
  75.             BEGIN
  76.                 UPDATE tbl_UserMaster
  77.                 SET IsLogin = 1 ,
  78.                     userSession = @sessionID ,
  79.                     LastLogin = GETDATE()
  80.                 WHERE LoginID = @loginID
  81.             END
  82.         END
  83. END
  84.
  85. ELSE IF @mode = 'CHANGELOGIN'
  86. BEGIN
  87.
  88.     UPDATE tbl_UserMaster
  89.     SET IsLogin = 1 ,
  90.         userSession = @sessionID ,
  91.         LastLogin = GETDATE()
  92.     WHERE LoginID = @loginID
  93. END
  94. END

Step 3: Passing the user credentials from Login.aspx and authenticating CAPTCHA spambots/adbots from signing up.

(Refer to the aspx script from the previous article "Generation of CAPTCHA Image Using Generic Handler for Login Page".)

  1. #region " [ using ] "
  2. using System;
  3. using System.Configuration;
  4. using System.Data;
  5. using System.Data.SqlClient;
  6. using System.Web.UI;
  7. #endregion
  8.
  9. public partial class Login : System.Web.UI.Page
  10. {
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.         if (!Page.IsPostBack)
  14.         {
  15.             UpdateCaptchaText();
  16.         }
  17.     }
  18.
  19.     #region " [ Button Event ] "
  20.     protected void btnRefresh_Click(object sender, ImageClickEventArgs e)
  21.     {
  22.         UpdateCaptchaText();
  23.     }
  24.
  25.     protected void btnLogin_Click(object sender, EventArgs e)
  26.     {
  27.         if (!string.Equals(txtCode.Text.Trim(), (string)Session["Captcha"]))
  28.         {
  29.             lblError.Text = "Enter correct code.";
  30.             return;
  31.         }
  32.
  33.         lblError.Text = string.Empty;
  34.         DataTable dtUser = new DataTable();
  35.         string userSession = Guid.NewGuid().ToString();
  36.         Session["UserSession"] = userSession;
  37.         try
  38.         {
  39.             dtUser = checkUserLogin(userSession, "LOGIN");
  40.
  41.             if (dtUser != null)
  42.             {
  43.                 if (dtUser.Columns.Contains("RES"))
  44.                 {
  45.                     lblError.Text = dtUser.Rows[0][0].ToString();
  46.                     ClearPage();
  47.                 }
  48.                 else
  49.                 {
  50.                     Session["UserID"] = dtUser.Rows[0]["UserID"];
  51.                     Session["UserName"] = dtUser.Rows[0]["UserName"];
  52.                     Session["LastLogin"] = dtUser.Rows[0]["LastLogin"];
  53.
  54.                     Response.Redirect("~/Welcome.aspx");
  55.                 }
  56.             }
  57.             else
  58.             {
  59.                 ClearPage();
  60.                 lblError.Text = "Unexpected error.";
  61.             }
  62.         }
  63.         catch
  64.         {
  65.             throw;
  66.         }
  67.         finally
  68.         {
  69.             dtUser.Dispose();
  70.         }
  71.     }
  72.     #endregion
  73.
  74.     #region " [ Private Function ] "
  75.     private DataTable checkUserLogin(string userSession, string mode)
  76.     {
  77.         DataSet dsData = new DataSet();
  78.         SqlConnection sqlCon = null;
  79.         SqlDataAdapter sqlCmd = null;
  80.
  81.         try
  82.         {
  83.             using (sqlCon = new SqlConnection(ConfigurationManager.ConnectionStrings["connectionString"].ConnectionString))
  84.             {
  85.                 sqlCmd = new SqlDataAdapter("USP_UserLogin", sqlCon);
  86.                 sqlCmd.SelectCommand.CommandType = CommandType.StoredProcedure;
  87.                 sqlCmd.SelectCommand.Parameters.AddWithValue("@loginID", txtLogin.Text.Trim());
  88.                 sqlCmd.SelectCommand.Parameters.AddWithValue("@password", txtPassword.Text.Trim());
  89.                 sqlCmd.SelectCommand.Parameters.AddWithValue("@sessionID", userSession);
  90.                 sqlCmd.SelectCommand.Parameters.AddWithValue("@mode", mode);
  91.
  92.                 sqlCon.Open();
  93.                 sqlCmd.Fill(dsData);
  94.
  95.                 sqlCon.Close();
  96.             }
  97.         }
  98.         catch
  99.         {
  100.             throw;
  101.         }
  102.         return dsData.Tables[0];
  103.     }
  104.
  105.     private void ClearPage()
  106.     {
  107.         txtCode.Text = string.Empty;
  108.         txtPassword.Text = string.Empty;
  109.         txtCode.Text = string.Empty;
  110.         UpdateCaptchaText();
  111.     }
  112.
  113.     private void UpdateCaptchaText()
  114.     {
  115.         txtCode.Text = string.Empty;
  116.         Random randNum = new Random();
  117.
  118.         //Store the captcha text in session to validate
  119.         Session["Captcha"] = randNum.Next(10000, 99999).ToString();
  120.         imgCaptcha.ImageUrl = "~/ghCaptcha.ashx?" + Session["Captcha"];
  121.     }
  122.     #endregion

Step 4: Insert dummy data into the tbl_userMaster table as in the following:

  1. INSERT INTO tbl_UserMaster
  2.            (UserName ,LoginID , [Password]
  3.            , IsLocked, IsLogin, LoginCnt, Email
  4.            , ContactNo, UserRole, IsActive, IsDelete)
  5. VALUES     ('Daniel Craig''daniel''Password@123',
  6.         'N', 0, 0, 'daniel@gmail.com',
  7.         '9837197322', 1, 1, 0 )

Step 5: Log into the new account, you will have the following page.

After successful login, the user is redirected to the home.aspx page.




Step 6: Error handling

  1. If invalid credentials are entered:



  2. If the user enters an invalid CAPTCHA code:

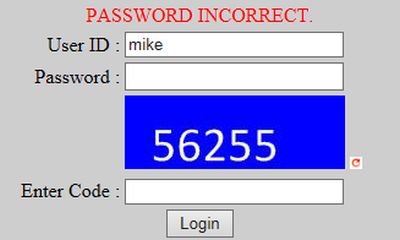

  3. If the user enters an invalid password:

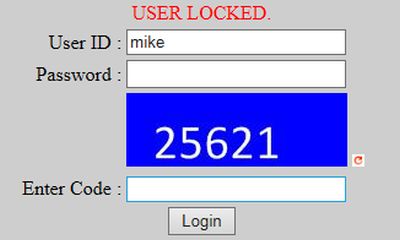

  4. If the user has more than 5 incorrect login attempts then the user is locked as in the following:



    To unlock the user, change the loginCnt value to 0 and LoginLocked flag to "N".
  5. If the user is inactive:


Enhancements

  1. Filtering an XSS attack that occurrs from the login page.
  2. Alert the user if another session is active on another machine for the requested credentials.
  3. Having a single session per user, in other words only one session at a time will be active for each user.
