Box Shadow Property in HTML5

Introduction


In today's article, you will learn about Box-Shadow. The Box-Shadow property allows designers to implement multiple drop shadows on a box element (<div>,<li> etc), specifying the color of a value, blur, offset and size.


Box-Shadow


Y-axis X-axis blur spread color inset There are two types of shadows, they are:
  1. Outer shadow
  2. Inset shadow

The Box-Shadow property by default supports an outer shadow and background color. Browser Support

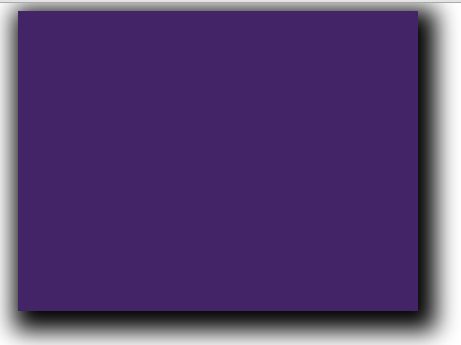

Here's a basic example of a div:
  1. <!DOCTYPE html>
  2. <head>
  3.    <title></title>
  4.    <style>
  5.       #main {
  6.       height: 800px;
  7.       width: 100%;
  8.       }
  9.       #shadow {
  10.       margin: 0 auto;
  11.       height: 300px;
  12.       width: 400px;
  13.       background: #432567;
  14.       box-shadow: 7px 9px 37px 11px;
  15.       }
  16.    </style>
  17. </head>
  18. <body>
  19.    <div id="main">
  20.       <div id="shadow"></div>
  21.    </div>
  22. </body>
  23. </html>

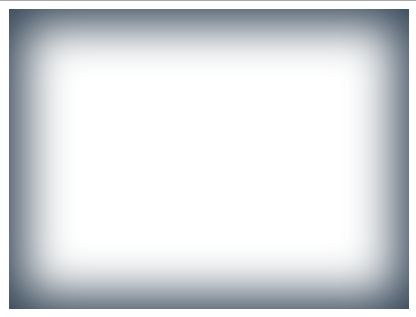

  1. <style>
  2.    #main {
  3.    height: 800px;
  4.    width: 100%;
  5.    }
  6.    #shadow {
  7.    margin: 0 auto;
  8.    height: 300px;
  9.    width: 400px;
  10.    box-shadow: 1px 1px 77px 15px #345 inset;
  11.    }
  12. </style>

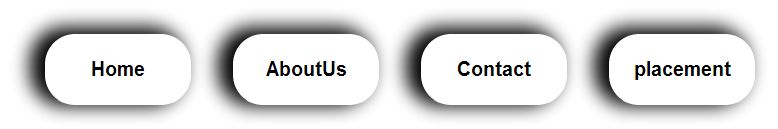

Here's a basic example of <ul> and <li>:
  1. <head>
  2.     <style>
  3.         #main {
  4.           height: 800px;
  5.           width: 100%;
  6.         }
  7.          #shadow {
  8.             margin: 0 auto;
  9.             height: 300px;
  10.             width: 1024px;
  11.         }
  12.         ul {list-style:none;
  13.         }
  14.             ul li {float:left;
  15.                    width:100px;
  16.                    text-align:center;
  17.                    padding:23px;
  18.                    font-weight:bold;
  19.                    font-family:Arial;
  20.                    font-size:20px;
  21.                    margin:21px;
  22.                    box-shadow:-11px -3px 29px 4px;
  23.                    border-radius:30px;
  24.             }
  25.
  26.     </style>
  27. </head>
  28. <body>
  29.     <div id="main">
  30.         <div id="shadow">
  31.             <ul>
  32.                 <li>Home </li>
  33.                 <li>AboutUs</li>
  34.                 <li> Contact</li>
  35.                 <li> placement</li>
  36.             </ul>
  37.         </div>
  38.     </div>
  39. </body>
  40. </html>

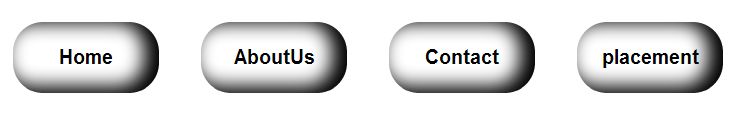

If you will change only:

box-shadow:-11px -3px 29px 4px inset;//You can give any color This type:

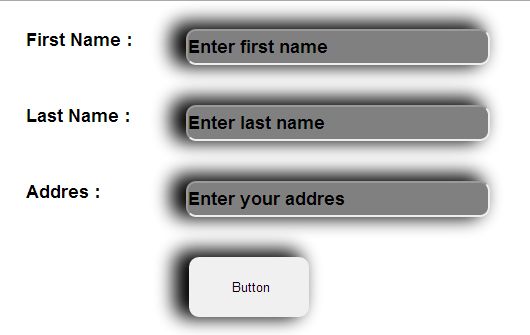

Here's a basic example of Input types showing a button and three text boxes:
  1. <style>
  2.         #main {
  3.             height: 800px;
  4.             width: 100%;
  5.         }
  6.         #shadow {
  7.             margin: 0 auto;
  8.             height: 300px;
  9.             width: 1024px;
  10.         }
  11.         label {width:120px;
  12.                float:left;
  13.                font-weight:bold;
  14.                font-family:Arial;
  15.                font-size:18px;
  16.                margin:20px;
  17.         }
  18.         input.button {
  19.              box-shadow:-11px -3px 29px 4px ;
  20.              height:60px; width:120px;
  21.              border:none;
  22.              border-radius:10px;
  23.              margin-left:170px;
  24.         }
  25.         input.text {height:30px;
  26.                     width:300px;
  27.                     box-shadow:-11px -3px 29px 4px;
  28.                     font-weight:bold;
  29.                     font-family:Arial;
  30.                     font-size:18px;
  31.                     border-radius:10px;
  32.                     margin:20px;
  33.                     background:#808080;
  34.                  }
  35.     </style>
  36. </head>
  37. <body>
  38.     <div id="main">
  39.         <div id="shadow">
  40.    <label> First Name :</label><input type="text" class="text" value="Enter first name" /><br />
  41.    <label> Last Name :</label><input type="text" class="text" value="Enter last name" /><br />
  42.      <label> Addres :</label><input type="text" class="text" value="Enter your addres" /><br /><br />
  43.              <input type="button" class="button" value=" Button" />
  44.
  45.         </div>
  46.     </div>
  47. </body>
  48. </html>

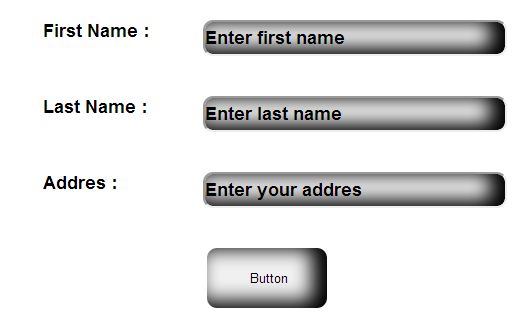

If you change the style in Box-shadow like:
  1. box-shadow:-11px -3px 29px 4px inset;
  2. background:none;
Then you will find this type:
