Activities Life Cycle in Android

In this article, I describe Android activities. Activity is a sub-container within an application container that describes all the UI controls.

Introduction

An Activity is a sub-container within an application container that describes all the UI controls.

Every Container has a life cycle (methods) that determine the phase's Activity.

To create an Activity in Android we have to extend the Activity class.

How to work with an Activity

An Image view of an Activity's life cycle:


The following is the source code.

MainActivity.java
  1. package com.Saving.savingactivity;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. //import android.view.Menu;
  5. import android.widget.Toast;
  6. public class MainActivity extends Activity {
  7.       @Override
  8.       protected void onRestoreInstanceState(Bundle savedInstanceState) {
  9.             super.onRestoreInstanceState(savedInstanceState);
  10.             Toast.makeText(getBaseContext(), "Restored ", Toast.LENGTH_LONG).show();
  11.       };
  12.       @Override
  13.       protected void onStart() {
  14.             // TODO Auto-generated method stub
  15.             super.onStart();
  16.             Toast.makeText(getBaseContext(), "Started ", Toast.LENGTH_LONG).show();
  17.       }
  18.       @Override
  19.       protected void onResume() {
  20.             // TODO Auto-generated method stub
  21.             super.onResume();
  22.             Toast.makeText(getBaseContext(), "Resumed ", Toast.LENGTH_LONG).show();
  23.       }
  24.       @Override
  25.       protected void onPause() {
  26.             // TODO Auto-generated method stub
  27.             super.onPause();
  28.             Toast.makeText(getApplicationContext(), "Paused ", Toast.LENGTH_LONG).show();
  29.       }
  30.       @Override
  31.       protected void onSaveInstanceState(Bundle outState) {
  32.             // TODO Auto-generated method stub
  33.             super.onSaveInstanceState(outState);
  34.             Toast.makeText(getApplicationContext(), "Saved ", Toast.LENGTH_LONG).show();
  35.       }
  36.       @Override
  37.       protected void onStop() {
  38.             // TODO Auto-generated method stub
  39.             super.onStop();
  40.             Toast.makeText(getApplicationContext(), "Stoped ", Toast.LENGTH_LONG).show();
  41.       }
  42.       @Override
  43.       protected void onDestroy() {
  44.             // TODO Auto-generated method stub
  45.             super.onDestroy();
  46.             Toast.makeText(getApplicationContext(),"Destroy ", Toast.LENGTH_LONG).show();
  47.       }
  48. }
Activity_main.xml
  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     tools:context=".MainActivity"
  6.     android:layout_centerHorizontal="true"
  7.      android:layout_centerVertical="true">
  8.     <TextView
  9.         android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:text="@string/hello_world" />
  12. </LinearLayout>
Step 1

First of all an Activity is creates on a pre-defined Layout by the "onCreate" method.

Step 2

 After that the Activity will start in the "onStart" method.

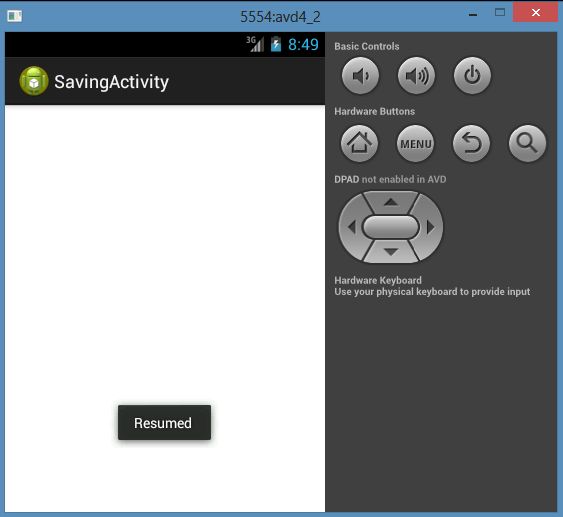

Step 3

After starting the "onResume" method displays your current UI.

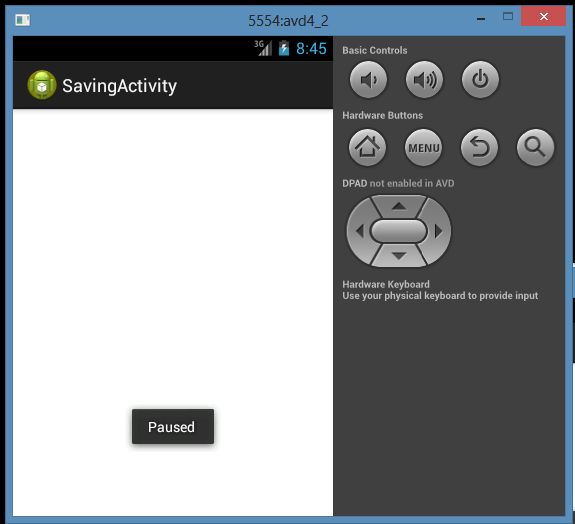

Step 4

After "onResume" if we kill or auto kill the UI then the UI calls the "onPause" method.

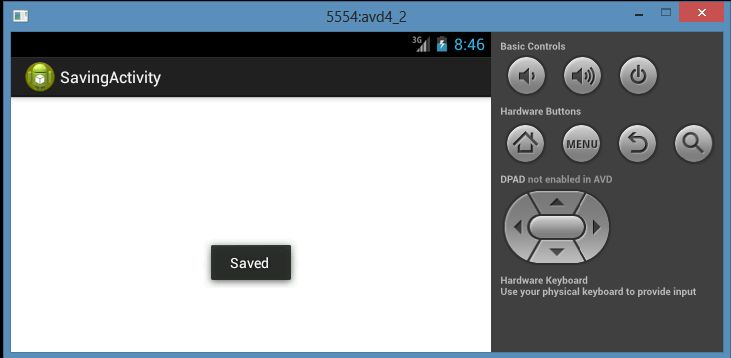

Step 5

After "onPause" for the current UI, the UI call goes to the "onSave" method.


Step 6

The "onSave" method may be called after "onPause" or "onStop"; it depends on the condition in which the UI is killed.

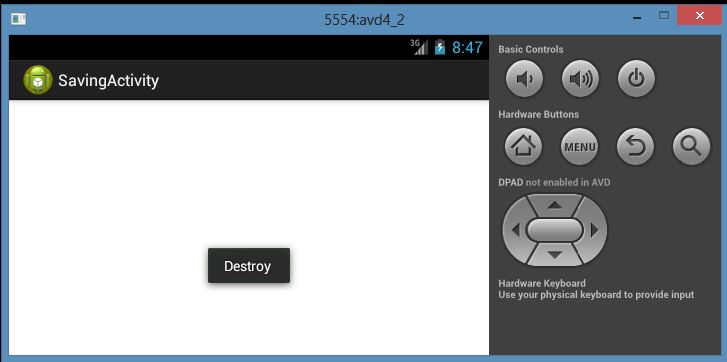

Step 7

If we kill the process or active UI then that goes directly to destroy (without saving the current UI ) by the "onDestroy" method.

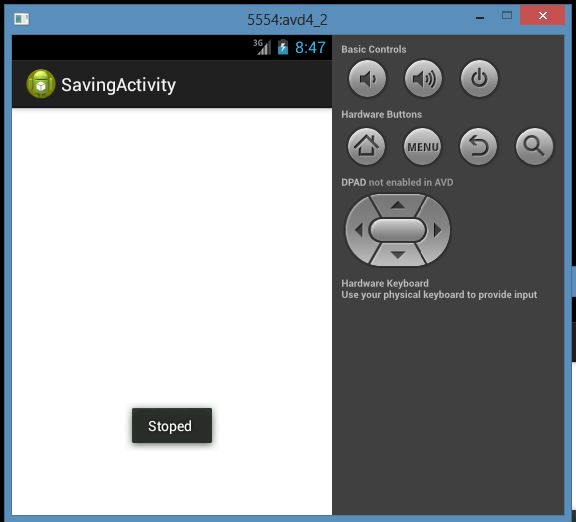

Otherwise it goes to "onStop" (step 4).
