Create a Content Provider in Android

Introduction


In this article I explain what a content provider is. A content provider is a collection of information of which a provider uses a way to access itself using another application. For example Contacts is a content provider because whenever we text a message, we want to import a number from the contact, then the contact provides us access to itself through another app, smsApplication. But in this article I create my own content provider that will provide all the content that will be available in this content provider, as described in the following procedure.

Step 1

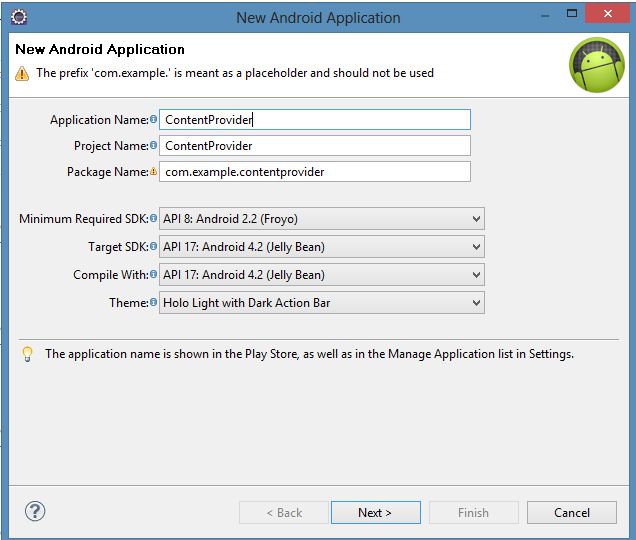

Create a new project as "File" -> "New" -> "Android Application Project" as shown below.


Step 2

Now open the XML file  "res/layout/activity_main.xml" and update it as in the following code.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.    android:orientation="vertical"
  4.    android:layout_width="fill_parent"
  5.    android:layout_height="fill_parent" >
  6.    <TextView
  7.       android:layout_width="fill_parent"
  8.       android:layout_height="wrap_content"
  9.       android:text="ISBN" />
  10.    <EditText
  11.       android:id="@+id/txtISBN"
  12.       android:layout_height="wrap_content"
  13.       android:layout_width="fill_parent" />
  14.    <TextView
  15.       android:layout_width="fill_parent"
  16.       android:layout_height="wrap_content"
  17.       android:text="Title" />
  18.    <EditText
  19.       android:id="@+id/txtTitle"
  20.       android:layout_height="wrap_content"
  21.       android:layout_width="fill_parent" />
  22.    <Button
  23.       android:text="Add title"
  24.       android:id="@+id/btnAdd"
  25.       android:layout_width="fill_parent"
  26.       android:layout_height="wrap_content" />
  27.    <Button
  28.       android:text="Retrieve titles"
  29.       android:id="@+id/btnRetrieve"
  30.       android:layout_width="fill_parent"
  31.       android:layout_height="wrap_content" />
  32. </LinearLayout>

Step 3

Open Java from "src/com.newandroid.project/MainActivity.java" and update it with the following code.
  1. package com.content_provider;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. import android.util.Log;
  5. import android.view.View;
  6. import android.widget.Button;
  7. import android.widget.EditText;
  8. import android.widget.ListView;
  9. import android.widget.Toast;
  10. import android.content.ContentValues;
  11. import android.database.Cursor;
  12. import android.net.Uri;
  13. public class MainActivity extends Activity {
  14.     /** Called when the activity is first created. */
  15.       ListView lv;
  16.     @Override
  17.     public void onCreate(Bundle savedInstanceState) {
  18.         super.onCreate(savedInstanceState);
  19.         setContentView(R.layout.activity_main);
  20.         ContentValues editedValues = new ContentValues();
  21.         editedValues.put(ContentDiary.TITLE, "Android Tips and Tricks");
  22.         getContentResolver().update(
  23.             Uri.parse(
  24.                 "content://com.ContentDiary.provider.books/books/2"),
  25.             editedValues,
  26.             null,
  27.             null);
  28.         getContentResolver().delete(
  29. Uri.parse("content://com.ContentDiary.provider.books/books/2"),
  30.                 nullnull);
  31.         getContentResolver().delete(
  32.                 Uri.parse("content://com.ContentDiary.provider.books/books"),
  33.                 nullnull);
  34.         ListView lv=(ListView) findViewById(R.id.view);
  35.         Button btnAdd = (Button) findViewById(R.id.btnAdd);
  36.         btnAdd.setOnClickListener(new View.OnClickListener() {
  37.             public void onClick(View v) {
  38.               ContentValues values = new ContentValues();
  39.               values.put("title", ((EditText) findViewById(R.id.txtTitle)).getText().toString());
  40.               values.put("isbn", ((EditText) findViewById(R.id.txtISBN)).getText().toString());
  41.               Uri uri = getContentResolver().insert(
  42. Uri.parse("content://com.ContentDiary.provider.books/books"),
  43.                       values);
  44.               Toast.makeText(getBaseContext(),uri.toString(), Toast.LENGTH_LONG).show();
  45.           }
  46.         });
  47.         Button btnRetrieve = (Button) findViewById(R.id.btnRetrieve);
  48.         btnRetrieve.setOnClickListener(new View.OnClickListener() {
  49.             public void onClick(View v) {
  50.                 //---retrieve the titles---
  51.                 Uri allTitles = Uri.parse(
  52.                     "content://com.ContentDiary.provider.books/books");
  53.                 Cursor c = managedQuery(allTitles, nullnullnull"title desc");
  54.                 if (c.moveToFirst()) {
  55.                     do{
  56.                         Log.d("ContentProviders",
  57.                             c.getString(c.getColumnIndex(
  58.                                 ContentDiary._ID)) + ", " +
  59.                             c.getString(c.getColumnIndex(
  60.                                 ContentDiary.TITLE)) + ", " +
  61.                             c.getString(c.getColumnIndex(
  62.                                 ContentDiary.ISBN)));
  63.                     } while (c.moveToNext());
  64.                 }
  65.             }
  66.         });
  67.     }
Step 5

Create a new Java file "ContentDairy.java" as "src/com.content_provider/ContentDairy.java" and update it using the following code.
  1. package com.content_provider;
  2. import android.content.ContentProvider;
  3. import android.content.ContentUris;
  4. import android.content.ContentValues;
  5. import android.content.Context;
  6. import android.content.UriMatcher;
  7. import android.database.Cursor;
  8. import android.database.SQLException;
  9. import android.database.sqlite.SQLiteDatabase;
  10. import android.database.sqlite.SQLiteOpenHelper;
  11. import android.database.sqlite.SQLiteQueryBuilder;
  12. import android.net.Uri;
  13. import android.text.TextUtils;
  14. import android.util.Log;
  15. public class ContentDiary extends ContentProvider
  16. {
  17.     public static final String PROVIDER_NAME =
  18.         "com.ContentDiary.provider.books";
  19.     public static final Uri CONTENT_URI =
  20.         Uri.parse("content://"+ PROVIDER_NAME + "/books");
  21.     public static final String _ID = "_id";
  22.     public static final String TITLE = "title";
  23.     public static final String ISBN = "isbn";
  24.     private static final int BOOKS = 1;
  25.     private static final int BOOK_ID = 2;
  26.     private static final UriMatcher uriMatcher;
  27.     static{
  28.         uriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
  29.         uriMatcher.addURI(PROVIDER_NAME, "books", BOOKS);
  30.         uriMatcher.addURI(PROVIDER_NAME, "books/#", BOOK_ID);
  31.     }
  32.     //---for database use---
  33.     private SQLiteDatabase booksDB;
  34.     private static final String DATABASE_NAME = "Books";
  35.     private static final String DATABASE_TABLE = "titles";
  36.     private static final int DATABASE_VERSION = 1;
  37.     private static final String DATABASE_CREATE =
  38.             "create table " + DATABASE_TABLE +
  39.             " (_id integer primary key autoincrement, "
  40.             + "title text not null, isbn text not null);";
  41.     private static class DatabaseHelper extends SQLiteOpenHelper
  42.     {
  43.         DatabaseHelper(Context context) {
  44.             super(context, DATABASE_NAME, null, DATABASE_VERSION);
  45.         }
  46.         @Override
  47.         public void onCreate(SQLiteDatabase db)
  48.         {
  49.             db.execSQL(DATABASE_CREATE);
  50.         }
  51.         @Override
  52.         public void onUpgrade(SQLiteDatabase db, int oldVersion,
  53.         int newVersion) {
  54.             Log.w("Content provider database",
  55.                   "Upgrading database from version " +
  56.                   oldVersion + " to " + newVersion +
  57.                   ", which will destroy all old data");
  58.             db.execSQL("DROP TABLE IF EXISTS titles");
  59.             onCreate(db);
  60.         }
  61.     }
  62.     @Override
  63.     public int delete(Uri arg0, String arg1, String[] arg2) {
  64.         // arg0 = uri
  65.         // arg1 = selection
  66.         // arg2 = selectionArgs
  67.         int count=0;
  68.         switch (uriMatcher.match(arg0)){
  69.             case BOOKS:
  70.                 count = booksDB.delete(
  71.                         DATABASE_TABLE,
  72.                         arg1,
  73.                         arg2);
  74.                 break;
  75.             case BOOK_ID:
  76.                 String id = arg0.getPathSegments().get(1);
  77.                 count = booksDB.delete(
  78.                         DATABASE_TABLE,
  79.                         _ID + " = " + id +
  80.                         (!TextUtils.isEmpty(arg1) ? " AND (" +
  81.                                 arg1 + ')' : ""),
  82.                                 arg2);
  83.                 break;
  84.             defaultthrow new IllegalArgumentException("Unknown URI " + arg0);
  85.         }
  86.         getContext().getContentResolver().notifyChange(arg0, null);
  87.         return count;
  88.     }
  89.
  90.     @Override
  91.     public String getType(Uri uri) {
  92.         switch (uriMatcher.match(uri)){
  93.             //---get all books---
  94.             case BOOKS:
  95.                 return "vnd.android.cursor.dir/vnd.learn2develop.books ";
  96.             //---get a particular book---
  97.             case BOOK_ID:
  98.                 return "vnd.android.cursor.item/vnd.learn2develop.books ";
  99.             default:
  100.                 throw new IllegalArgumentException("Unsupported URI: " + uri);
  101.         }
  102.     }
  103.     @Override
  104.     public Uri insert(Uri uri, ContentValues values) {
  105.         //---add a new book---
  106.         long rowID = booksDB.insert(
  107.             DATABASE_TABLE,
  108.             "",
  109.             values);
  110.
  111.         //---if added successfully---
  112.         if (rowID>0)
  113.         {
  114.             Uri _uri = ContentUris.withAppendedId(CONTENT_URI, rowID);
  115.             getContext().getContentResolver().notifyChange(_uri, null);
  116.             return _uri;
  117.         }
  118.         throw new SQLException("Failed to insert row into " + uri);
  119.     }
  120.     @Override
  121.     public boolean onCreate() {
  122.         Context context = getContext();
  123.         DatabaseHelper dbHelper = new DatabaseHelper(context);
  124.         booksDB = dbHelper.getWritableDatabase();
  125.         return (booksDB == null)? false:true;
  126.     }
  127.     @Override
  128.     public Cursor query(Uri uri, String[] projection, String selection,
  129.             String[] selectionArgs, String sortOrder) {
  130.         SQLiteQueryBuilder sqlBuilder = new SQLiteQueryBuilder();
  131.         sqlBuilder.setTables(DATABASE_TABLE);
  132.         if (uriMatcher.match(uri) == BOOK_ID)
  133.             //---if getting a particular book---
  134.             sqlBuilder.appendWhere(
  135.                 _ID + " = " + uri.getPathSegments().get(1));
  136.         if (sortOrder==null || sortOrder=="")
  137.             sortOrder = TITLE;
  138.         Cursor c = sqlBuilder.query(
  139.                 booksDB,
  140.                 projection,
  141.                 selection,
  142.                 selectionArgs,
  143.                 null,
  144.                 null,
  145.                 sortOrder);
  146.         //---register to watch a content URI for changes---
  147.         c.setNotificationUri(getContext().getContentResolver(), uri);
  148.         return c;
  149.     }
  150.     @Override
  151.     public int update(Uri uri, ContentValues values, String selection,
  152.             String[] selectionArgs) {
  153.         int count = 0;
  154.         switch (uriMatcher.match(uri)){
  155.             case BOOKS:
  156.                 count = booksDB.update(
  157.                         DATABASE_TABLE,
  158.                         values,
  159.                         selection,
  160.                         selectionArgs);
  161.                 break;
  162.             case BOOK_ID:
  163.                 count = booksDB.update(
  164.                         DATABASE_TABLE,
  165.                         values,
  166.                         _ID + " = " + uri.getPathSegments().get(1) +
  167.                         (!TextUtils.isEmpty(selection) ? " AND (" +
  168.                             selection + ')' : ""),
  169.                         selectionArgs);
  170.                 break;
  171.             defaultthrow new IllegalArgumentException("Unknown URI " + uri);
  172.         }
  173.         getContext().getContentResolver().notifyChange(uri, null);
  174.         return count;
  175.     }
Step 6

Open and update the "AndroidManifest.xml" file from "res/AndroidManifest.xml" and update it as given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="com.content_provider"
  4.     android:versionCode="1"
  5.     android:versionName="1.0" >
  6.     <uses-sdk
  7.         android:minSdkVersion="8"
  8.         android:targetSdkVersion="17" />
  9.     <application
  10.         android:allowBackup="true"
  11.         android:icon="@drawable/ic_launcher"
  12.         android:label="@string/app_name"
  13.         android:theme="@style/AppTheme" >
  14.         <activity
  15.             android:name="com.content_provider.MainActivity"
  16.             android:label="@string/app_name" >
  17.             <intent-filter>
  18.                 <action android:name="android.intent.action.MAIN" />
  19.                 <category android:name="android.intent.category.LAUNCHER" />
  20.             </intent-filter>
  21.         </activity>
  22.          <provider android:name="ContentDiary"
  23.                 android:authorities="com.ContentDiary.provider.books" />
  24.     </application>
  25. </manifest>
Step 7

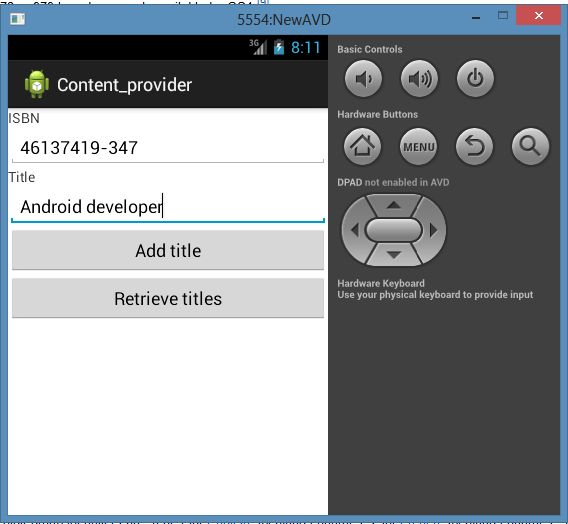

See the output:


You can use the URI "content://com.contentDAiry.provider.books/books/5" in another application.




Recommended Ebook

Printing in C# Made Easy

Download Now!
Similar Articles
