jQuery JSON- Showing Records in GridView and Perform SQL Paging

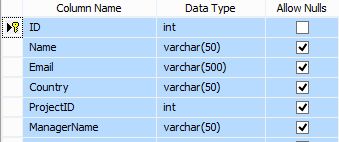

Figure 1 shows the DataTable in design mode from which I am reading records.

table design
Figure 1.

The following is the script of My Employee table:

  1. CREATE TABLE [dbo].[Employee](
  2.     [ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [varchar](50) NULL,
  4.     [Email] [varchar](500) NULL,
  5.     [Country] [varchar](50) NULL,
  6.     [ProjectID] [int] NULL,
  7.     [ManagerName] [varchar](50) NULL,
  8.  CONSTRAINT [PK_Employee] PRIMARY KEY CLUSTERED
  9. (
  10.     [ID] ASC
  11. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
  12. ) ON [PRIMARY]
  13.
  14. GO
To do this I created a Stored Procedure as in the following:
  1. CREATE PROCEDURE [dbo].[GetEmployee_SQLPaging]
  2.       @PageIndex INT = 1
  3.       ,@PageSize INT = 10
  4.       ,@RecordCount INT OUTPUT
  5. AS
  6. BEGIN
  7.       SET NOCOUNT ON;
  8.       SELECT ROW_NUMBER() OVER
  9.       (
  10.             ORDER BY [ID] ASC
  11.       )AS RowNumber
  12.       ,[ID],[Name],[Email],[Country] INTO #Results FROM [Employee]
  13.
  14.       SELECT @RecordCount = COUNT(*) FROM #Results
  15.
  16.       SELECT * FROM #Results
  17.       WHERE RowNumber BETWEEN(@PageIndex -1) * @PageSize + 1 AND(((@PageIndex -1) * @PageSize + 1) + @PageSize) - 1
  18.
  19.       DROP TABLE #Results
  20. END

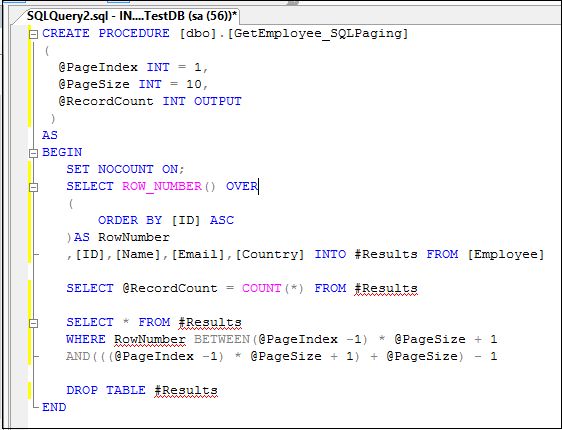

SQL Query
Figure 2.

Now the following is my aspx:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="JSON_GridView_SQLPaging.Default" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <style type="text/css">
  8.         body {
  9.             font-family: Arial;
  10.             font-size: 10pt;
  11.         }
  12.
  13.         .Pager span {
  14.             text-align: center;
  15.             color: navy;
  16.             display: inline-block;
  17.             width: 20px;
  18.             background-color: red;
  19.             margin-right: 3px;
  20.             line-height: 150%;
  21.             border: 2px solid navy;
  22.         }
  23.
  24.         .Pager a {
  25.             text-align: center;
  26.             display: inline-block;
  27.             width: 20px;
  28.             background-color: green;
  29.             color: #fff;
  30.             border: 1px solid #3AC0F2;
  31.             margin-right: 3px;
  32.             line-height: 150%;
  33.             text-decoration: none;
  34.         }
  35.     </style>
  36.     <title></title>
  37.     <script src="Scripts/jquery.min.js"></script>
  38.     <script src="jQueryPager.min.js" type="text/javascript"></script>
  39.     <script type="text/javascript">
  40.         $(function () {
  41.             BindEmployee(1);
  42.         });
  43.         $(".Pager .page").live("click", function () {
  44.             BindEmployee(parseInt($(this).attr('page')));
  45.         });
  46.         function BindEmployee(pageIndex) {
  47.             $.ajax({
  48.                 type: "POST",
  49.                 url: "Default.aspx/BindEmployee",
  50.                 data: '{pageIndex: ' + pageIndex + '}',
  51.                 contentType: "application/json; charset=utf-8",
  52.                 dataType: "json",
  53.                 success: OnSuccess,
  54.                 failure: function (response) {
  55.                     alert(response.d);
  56.                 },
  57.                 error: function (response) {
  58.                     alert(response.d);
  59.                 }
  60.             });
  61.         }
  62.
  63.         function OnSuccess(response) {
  64.             var xmlDoc = $.parseXML(response.d);
  65.             var xml = $(xmlDoc);
  66.             var emp = xml.find("Employee");
  67.             var row = $("[id*=gvEmployee] tr:last-child").clone(true);
  68.             $("[id*=gvEmployee] tr").not($("[id*=gvEmployee] tr:first-child")).remove();
  69.             $.each(emp, function () {
  70.                 var employee = $(this);
  71.                 $("td", row).eq(0).html($(this).find("ID").text());
  72.                 $("td", row).eq(1).html($(this).find("Name").text());
  73.                 $("td", row).eq(2).html($(this).find("Email").text());
  74.                 $("td", row).eq(3).html($(this).find("Country").text());
  75.                 $("[id*=gvEmployee]").append(row);
  76.                 row = $("[id*=gvEmployee] tr:last-child").clone(true);
  77.             });
  78.             var pager = xml.find("Pager");
  79.             $(".Pager").jQueryPagerFunc({
  80.                 ActiveCssClass: "current",
  81.                 PagerCssClass: "pager",
  82.                 PageIndex: parseInt(pager.find("PageIndex").text()),
  83.                 PageSize: parseInt(pager.find("PageSize").text()),
  84.                 RecordCount: parseInt(pager.find("RecordCount").text())
  85.             });
  86.         };
  87.     </script>
  88. </head>
  89. <body>
  90.     <form id="form1" runat="server">
  91.         <div>
  92.             <table style="width: 100%; text-align: center; border: solid 5px red; background-color: blue; vertical-align: top;">
  93.                 <tr>
  94.                     <td>
  95.                         <div>
  96.                             <fieldset style="width: 99%;">
  97.                                 <legend style="font-size: 20pt; color: white; font-family: Verdana">jQuery JSON - Showing Records in Grid View With SQL Paging</legend>
  98.                                 <table style="width: 100%;">
  99.                                     <tr>
  100.                                         <td style="vertical-align: top; background-color: #9DD1F1; text-align: center;">
  101.                                             <asp:GridView ID="gvEmployee" runat="server" AutoGenerateColumns="false"
  102.                                                 HeaderStyle-ForeColor="White" Width="100%" BackColor="Yellow">
  103.                                                 <Columns>
  104.                                                     <asp:BoundField ItemStyle-Width="30px" DataField="ID" HeaderText="ID" ItemStyle-HorizontalAlign="Left" HeaderStyle-HorizontalAlign="Left" ItemStyle-ForeColor="Red" />
  105.                                                     <asp:BoundField ItemStyle-Width="80px" DataField="Name" HeaderText="Name" ItemStyle-HorizontalAlign="Left" HeaderStyle-HorizontalAlign="Left" ItemStyle-ForeColor="Red" />
  106.                                                     <asp:BoundField ItemStyle-Width="100px" DataField="Email" HeaderText="Email" ItemStyle-HorizontalAlign="Left" HeaderStyle-HorizontalAlign="Left" ItemStyle-ForeColor="Red" />
  107.                                                     <asp:BoundField ItemStyle-Width="80px" DataField="Country" HeaderText="City" ItemStyle-HorizontalAlign="Left" HeaderStyle-HorizontalAlign="Left" ItemStyle-ForeColor="Red" />
  108.                                                 </Columns>
  109.                                                 <HeaderStyle BackColor="Red" HorizontalAlign="Left" />
  110.                                             </asp:GridView>
  111.                                             <br />
  112.                                             <div class="Pager" style="background-color: green; padding-top: 10px; padding-bottom: 10px;"></div>
  113.                                         </td>
  114.                                     </tr>
  115.                                 </table>
  116.                             </fieldset>
  117.                         </div>
  118.                     </td>
  119.                 </tr>
  120.             </table>
  121.         </div>
  122.     </form>
  123. </body>
  124. </html>
Now the following is the aspx.cs code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Web.Services;
  9. using System.Configuration;
  10. using System.Data.SqlClient;
  11.
  12. namespace JSON_GridView_SQLPaging
  13. {
  14.     public partial class Default : System.Web.UI.Page
  15.     {
  16.         private static int PageSize = 10;
  17.         protected void Page_Load(object sender, EventArgs e)
  18.         {
  19.             if (!IsPostBack)
  20.             {
  21.                 BindDummyRowToGridView();
  22.             }
  23.         }
  24.
  25.         private void BindDummyRowToGridView()
  26.         {
  27.             DataTable dummy = new DataTable();
  28.             dummy.Columns.Add("ID");
  29.             dummy.Columns.Add("Name");
  30.             dummy.Columns.Add("Email");
  31.             dummy.Columns.Add("Country");
  32.             dummy.Rows.Add();
  33.             gvEmployee.DataSource = dummy;
  34.             gvEmployee.DataBind();
  35.         }
  36.
  37.         [WebMethod]
  38.         public static string BindEmployee(int pageIndex)
  39.         {
  40.             string query = "[GetEmployee_SQLPaging]";
  41.             SqlCommand cmd = new SqlCommand(query);
  42.             cmd.CommandType = CommandType.StoredProcedure;
  43.             cmd.Parameters.AddWithValue("@PageIndex", pageIndex);
  44.             cmd.Parameters.AddWithValue("@PageSize", PageSize);
  45.             cmd.Parameters.Add("@RecordCount", SqlDbType.Int, 4).Direction = ParameterDirection.Output;
  46.             return ReadData(cmd, pageIndex).GetXml();
  47.         }
  48.
  49.         private static DataSet ReadData(SqlCommand cmd, int pageIndex)
  50.         {
  51.             string connectionString = @"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
  52.             using (SqlConnection con = new SqlConnection(connectionString))
  53.             {
  54.                 using (SqlDataAdapter sda = new SqlDataAdapter())
  55.                 {
  56.                     cmd.Connection = con;
  57.                     sda.SelectCommand = cmd;
  58.                     using (DataSet ds = new DataSet())
  59.                     {
  60.                         sda.Fill(ds, "Employee");
  61.                         DataTable dt = new DataTable("Pager");
  62.                         dt.Columns.Add("PageIndex");
  63.                         dt.Columns.Add("PageSize");
  64.                         dt.Columns.Add("RecordCount");
  65.                         dt.Rows.Add();
  66.                         dt.Rows[0]["PageIndex"] = pageIndex;
  67.                         dt.Rows[0]["PageSize"] = PageSize;
  68.                         dt.Rows[0]["RecordCount"] = cmd.Parameters["@RecordCount"].Value;
  69.                         ds.Tables.Add(dt);
  70.                         return ds;
  71.                     }
  72.                 }
  73.             }
  74.         }
  75.     }
  76. }
For this I created JavaScript file jQueryPager.min.js as in the following:
  1. function jQueryPagerFunc(a, b)
  2. {
  3.     var c = '<a style = "cursor:pointer" class="page" page = "{1}">{0}</a>';
  4.     var d = "<span>{0}</span>";
  5.     var e, f, g;
  6.     var g = 5;
  7.     var h = Math.ceil(b.RecordCount / b.PageSize);
  8.     if (b.PageIndex > h)
  9.     { b.PageIndex = h }
  10.     var i = "";
  11.     if (h > 1)
  12.     {
  13.         f = h > g ? g : h;
  14.         e = b.PageIndex > 1 && b.PageIndex + g - 1 < g ? b.PageIndex : 1;
  15.         if (b.PageIndex > g % 2)
  16.         {
  17.             if (b.PageIndex == 2) f = 5;
  18.             else f = b.PageIndex + 2
  19.         }
  20.         else
  21.         {
  22.             f = g - b.PageIndex + 1
  23.         }
  24.         if (f - (g - 1) > e)
  25.         {
  26.             e = f - (g - 1)
  27.         }
  28.         if (f > h)
  29.         {
  30.             f = h;
  31.             e = f - g + 1 > 0 ? f - g + 1 : 1
  32.         }
  33.         var j = (b.PageIndex - 1) * b.PageSize + 1;
  34.         var k = j + b.PageSize - 1;
  35.         if (k > b.RecordCount)
  36.         {
  37.             k = b.RecordCount
  38.         }
  39.         i = "<b>Records " + (j == 0 ? 1 : j) + " - " + k + " of " + b.RecordCount + "</b> ";
  40.         if (b.PageIndex > 1)
  41.         {
  42.             i += c.replace("{0}", "<<").replace("{1}", "1");
  43.             i += c.replace("{0}", "<").replace("{1}", b.PageIndex - 1)
  44.         }
  45.         for (var l = e; l <= f; l++)
  46.         {
  47.             if (l == b.PageIndex)
  48.             {
  49.                 i += d.replace("{0}", l)
  50.             }
  51.             else
  52.             {
  53.                 i += c.replace("{0}", l).replace("{1}", l)
  54.             }
  55.         }
  56.         if (b.PageIndex < h)
  57.         {
  58.             i += c.replace("{0}", ">").replace("{1}", b.PageIndex + 1);
  59.             i += c.replace("{0}", ">>").replace("{1}", h)
  60.         }
  61.     }
  62.     a.html(i);
  63.     try
  64.     {
  65.         a[0].disabled = false
  66.     }
  67.     catch (m)
  68.     { }
  69. }
  70.
  71. (function (a)
  72. {
  73.     a.fn.jQueryPagerFunc = function (b) {
  74.         var c = {};
  75.         var b = a.extend(c, b);
  76.         return this.each(function () { jQueryPagerFunc(a(this), b) })
  77.     }
  78. })
  79. (jQuery);
Now run your application.

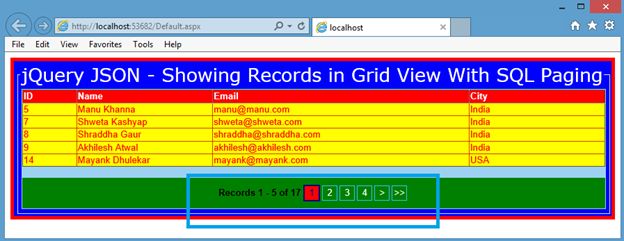

first record
Figure 3.

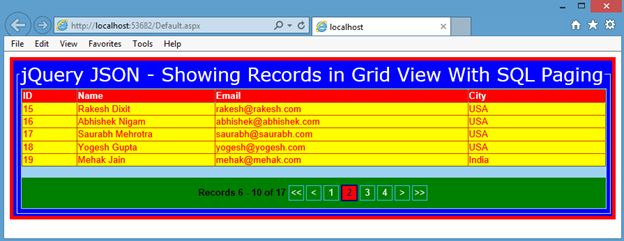

second record
Figure 4.

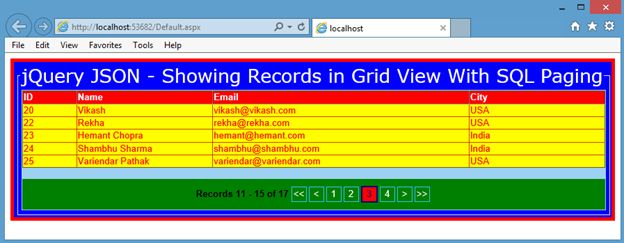

third record
Figure 5.

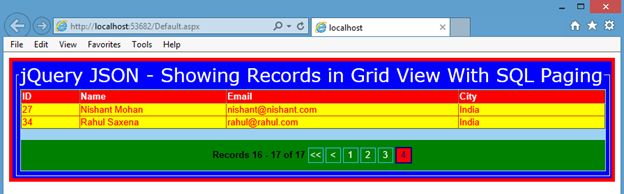

forth record
Figure 6.


Similar Articles
