Note: this article was originally written on 12/01/2022, and is published on 08/20/2024.



Summary


These tips include the most popular tuning SELECT issues.
References

Request Pipeline in IIS 7.0

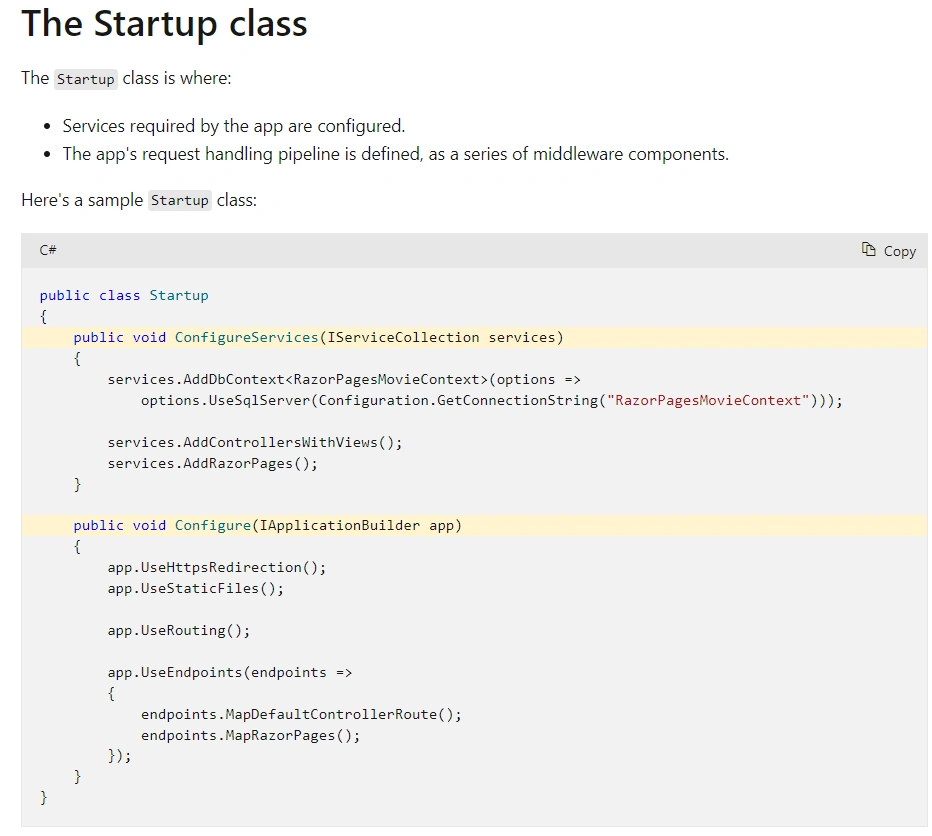

The Startup class

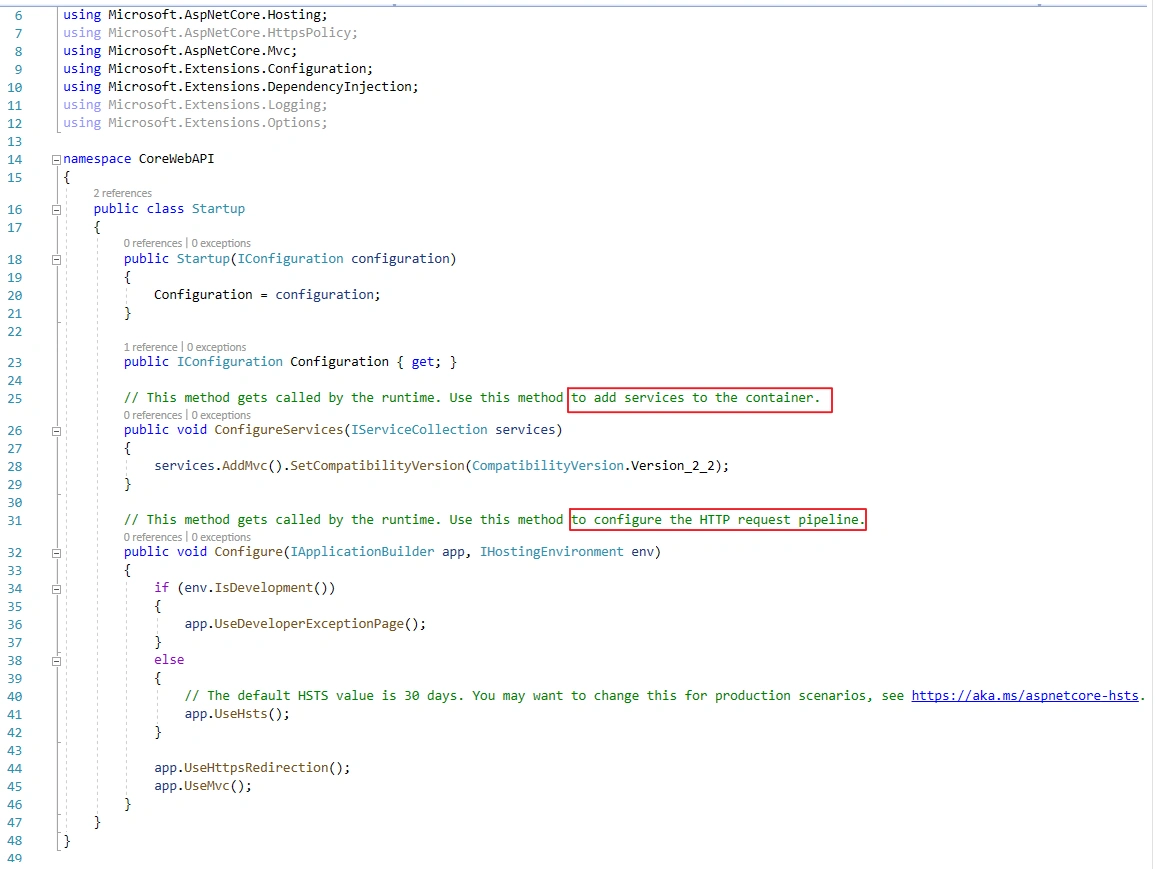

ASP.NET Core apps use a Startup class, which is named Startup by convention. The Startup class:

  • Optionally includes a ConfigureServices method to configure the app's services. A service is a reusable component that provides app functionality. Services are registered in ConfigureServices and consumed across the app via dependency injection (DI) or ApplicationServices.
  • Includes a Configure method to create the app's request processing pipeline.

ConfigureServices and Configure are called by the ASP.NET Core runtime when the app starts:

Create a middleware pipeline with IApplicationBuilder

The ASP.NET Core request pipeline consists of a sequence of request delegates, called one after the other. The following diagram demonstrates the concept. The thread of execution follows the black arrows.

Request processing pattern showing a request arriving, processing through three middlewares, and the response leaving the app. Each middleware runs its logic and hands off the request to the next middleware at the next() statement. After the third middleware processes the request, the request passes back through the prior two middlewares in reverse order for additional processing after their next() statements before leaving the app as a response to the client.



Middleware order

The following diagram shows the complete request processing pipeline for ASP.NET Core MVC and Razor Pages apps. You can see how, in a typical app, existing middlewares are ordered and where custom middlewares are added. You have full control over how to reorder existing middlewares or inject new custom middlewares as necessary for your scenarios.

ASP.NET Core middleware pipeline

The Endpoint middleware in the preceding diagram executes the filter pipeline for the corresponding app type—MVC or Razor Pages.

ASP.NET Core filter pipeline

The order that middleware components are added in the Startup.Configure method defines the order in which the middleware components are invoked on requests and the reverse order for the response. The order is critical for security, performance, and functionality.
