Array to Text File: Detailed Overview of ArrayIOExtensionsLib Class

LoadArrayFromTextFile Method

• This method reads all lines from the specified text file and validates the number of lines against the total number of elements in the array.
• It retrieves the element type of the array and calls the FillArray method to populate the array using the lines read from the file.

Filling the Array with Loaded Values

 /// <summary>
 /// Fills the single or multi-dimensional array with values from the lines.
 /// </summary>
 /// <param name="array">The single or multi-dimensional array to populate.</param>
 /// <param name="lines">The lines from the file.</param>
 /// <param name="lineIndex">The current line index being processed.</param>
 /// <param name="indices">Current indices for the single or multi-dimensional array.</param>
 /// <param name="currentDimension">The current dimension being processed.</param>
 /// <param name="elementType">The type of elements in the array.</param>
 private static void FillArray(Array array,
                               string[] lines,
                               ref int lineIndex,  // Pass lineIndex by reference
                               int[] indices,
                               int currentDimension,
                               Type elementType)
 {
     // If we reach the last dimension, fill the values directly.
     if (currentDimension == array.Rank - 1)
     {
         for (int i = 0; i < array.GetLength(currentDimension); i++)
         {
             indices[currentDimension] = i;
             if (lineIndex < lines.Length)
             {
                 // Deserialize object from consecutive lines
                 object? deserializedValue = DeserializeObject(lines,
                                                               ref lineIndex,
                                                               elementType);

                 array.SetValue(deserializedValue, indices);
             }
         }
     }
     else
     {
         // Recur for the next dimension.
         for (int i = 0; i < array.GetLength(currentDimension); i++)
         {
             indices[currentDimension] = i;
             FillArray(array,
                       lines,
                       ref lineIndex,  // Pass lineIndex by reference
                       indices,
                       currentDimension + 1,
                       elementType);
         }
     }
 }

 #endregion

FillArray Method

• This method fills the array with values from the lines read from the text file.
• It checks if the current dimension is the last one. If so, it iterates over its length, using the DeserializeObject method to convert the corresponding line into the appropriate type and fill each index with the resulting value., handling the null representation appropriately.
• If not at the last dimension, it recursively calls itself for the next dimension, updating the indices accordingly.

Deserialization

/// <summary>
/// Deserializes an object from the lines.
/// </summary>
/// <param name="lines">The lines from the file.</param>
/// <param name="lineIndex">The current line index being processed.</param>
/// <param name="targetType">The type of the object to deserialize.</param>
/// <returns>The deserialized object.</returns>
private static object? DeserializeObject(string[] lines,
                                         ref int lineIndex,
                                         Type targetType)
{
    if (lineIndex >= lines.Length)
    {
        return null;
        // or throw an exception, based on your design choice
    }

    if (targetType == typeof(string))
    {
        // Check if the current line is "null", and return null if it is
        if (lines[lineIndex] == _nullRepresentation)
        {
            lineIndex++; // Move to the next line
            return null;
        }

        return lines[lineIndex++];
    }

    if (targetType.IsPrimitive)
    {
        // Check if the current line is "null", and return null if it is
        if (lines[lineIndex] == _nullRepresentation)
        {
            lineIndex++; // Move to the next line
            return null;
        }

        return Convert.ChangeType(lines[lineIndex++], targetType);
    }

    // Create an instance of the target object
    var obj = Activator.CreateInstance(targetType);
    var properties = targetType.GetProperties();

    foreach (var property in properties)
    {
        if (lineIndex < lines.Length)
        {
            // Read the current line
            string lineValue = lines[lineIndex++];

            // If the value is represented as 'null',
            // assign null to the property
            if (lineValue == _nullRepresentation)
            {
                property.SetValue(obj, null);
            }
            else
            {
                // Get the property type
                Type propertyType = property.PropertyType;

                // Check if the property type is nullable
                bool isNullable = Nullable.GetUnderlyingType(propertyType) != null;

                // Handle non-null values
                Type? targetTypeToConvert = isNullable
                    ? Nullable.GetUnderlyingType(propertyType)
                    : propertyType;

                // Convert the value to the correct type
                var convertedValue = Convert.ChangeType(lineValue, targetTypeToConvert!);

                // Set the property value
                property.SetValue(obj, convertedValue);
            }
        }
        else
        {
            throw new IndexOutOfRangeException(
                $"Not enough lines to deserialize all properties.");
        }
    }

    return obj;
}

DeserializeObject Method

The DeserializeObject method plays a critical role in converting lines from the text file back into the appropriate types for the array.

• It first checks if the current line represents a null value (i.e., if it equals the _nullRepresentation string).
• Depending on the type of the target element (string, primitive, or custom type), it appropriately converts and returns the value.
• For custom types, it uses reflection to create an instance and set each property value based on the corresponding lines from the text file.

Validation

Two validation methods ensure data consistency.

• ValidateArrayAndFilePath: Ensures the array and file path are not null or invalid.
• ValidateArrayAndFileLength: Confirms the number of lines in the file matches the number of expected elements in the array, accounting for custom objects with multiple properties.

Validation of Array Length

Before populating the array, the method ValidateArrayAndFileLength ensures that the number of lines read matches the total expected elements in the array. This validation is crucial for preventing data corruption, especially when dealing with complex objects that may have multiple properties.

/// <summary>
/// Validates the number of lines read from the file
/// against the total elements in the array,
/// accounting for custom object properties.
/// </summary>
/// <param name="totalElements">Total number of elements in the array.</param>
/// <param name="lines">Number of lines read from the file.</param>
/// <param name="elementType">The type of elements in the array.</param>
/// <exception cref="ArgumentException">
/// Thrown when the number of lines does not match the number of elements in the array.
/// </exception>
private static void ValidateArrayAndFileLength(int totalElements,
                                               int lines,
                                               Type elementType)
{
    int expectedLines = totalElements;

    // Check if the element type is a custom class (i.e., not primitive or string).
    if (!elementType.IsPrimitive && elementType != typeof(string))
    {
        // For custom types, calculate the expected number of lines
        // as the total number of elements multiplied by the number of properties.
        int propertyCount = elementType.GetProperties().Length;
        expectedLines *= propertyCount;
    }

    // Compare the number of lines in the file with the expected number of lines.
    if (lines != expectedLines)
    {
        throw new ArgumentException(
            $"The number of lines in the file ({lines}) " +
            $"does not match the expected number of lines " +
            $"({expectedLines}) for the array.");
    }
}

Validation of Array and File Path

Before populating or saving the array, the method ValidateArrayAndFilePath ensures that the array and file path are not null.

/// <summary>
/// Validates the input array and file path for null or invalid values.
/// </summary>
/// <param name="array">The array to validate.</param>
/// <param name="filePath">The file path to validate.</param>
/// <exception cref="ArgumentNullException">Thrown when the array is null.</exception>
/// <exception cref="ArgumentException">Thrown when the file path is null or whitespace.</exception>
private static void ValidateArrayAndFilePath(Array array, string filePath)
{
    if (array == null)
    {
        throw new ArgumentNullException(
            nameof(array),
            "Array cannot be null.");
    }

    if (string.IsNullOrWhiteSpace(filePath))
    {
        throw new ArgumentException(
            "File path cannot be null or whitespace.",
            nameof(filePath));
    }
}

Using ArrayIOExtensionsLib in Phone Book

Download PhoneBook Open Source Solution

The PhoneBook application effectively demonstrates how to utilize the ArrayIOExtensionsLib to manage a simple phone book using a file-based approach. By organizing data in a 2D array and handling persistence through text files, the application remains lightweight and straightforward, avoiding the complexities of database management. This design allows users to easily edit and save contact information while ensuring data integrity and accessibility.

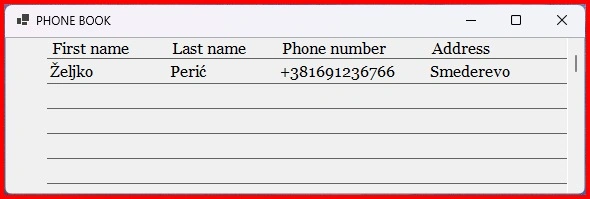

The code implements a Windows Forms application for managing a phone book, utilizing a 2D string array for in-memory storage and a text file for persistent data management, leveraging ArrayIOExtensionsLib for efficient serialization.

using ArrayIOExtensionsLib;

namespace PhoneBook
{
    public partial class Form1 : Form
    {
        #region Properties

        /// <summary>
        /// Path to the phone book file where data is stored.
        /// </summary>
        private const string PhoneBookFilePath = "PhoneBook.txt";

        /// <summary>
        /// Maximum number of entries allowed in the phone book.
        /// </summary>
        private const int MaxEntries = 10000;

        /// <summary>
        /// Number of columns representing the data fields:
        /// FirstName, LastName, PhoneNumber, and Address.
        /// </summary>
        private const int ColumnCount = 4;

        /// <summary>
        /// 2D array to hold phone book data temporarily.
        /// </summary>
        private string?[,] PhoneBookData = new string?[MaxEntries, ColumnCount];

        #endregion

        /// <summary>
        /// Initializes the form
        /// and loads the phone book data into the DataGridView.
        /// </summary>
        public Form1()
        {
            InitializeComponent();
            InitializePhoneBook();
        }

        /// <summary>
        /// Loads the phone book data from a file into the DataGridView.
        /// If the file does not exist, a new file is created from
        /// the 2D array with default values.
        /// </summary>
        private void InitializePhoneBook()
        {
            // Initialize the array
            // with correct initial or default values
            for (int i = 0; i < MaxEntries; i++)
            {
                for (int j = 0; j < ColumnCount; j++)
                {
                    PhoneBookData[i, j] = default!;
                }
            }

            Table_DataGridView.Rows.Clear();
            Table_DataGridView.RowCount = MaxEntries;

            if (File.Exists(PhoneBookFilePath))
            {
                LoadPhoneBookData();
            }
            else
            {
                // If no file exists,
                // initialize a new phone book file
                SavePhoneBookData();
            }

            DisplayDataInGridView();
        }

        /// <summary>
        /// Saves the phone book data to the text file.
        /// </summary>
        private void SavePhoneBookData()
        {
            PhoneBookData.SaveToTextFile(filePath: PhoneBookFilePath);
        }

        /// <summary>
        /// Loads the phone book data from text file.
        /// </summary>
        private void LoadPhoneBookData()
        {
            PhoneBookData.LoadFromTextFile(filePath: PhoneBookFilePath);
        }

        /// <summary>
        /// Updates the 2D array with data from the DataGridView
        /// and saves the updated data to the file.
        /// Triggered when a user finishes editing a cell in the DataGridView.
        /// </summary>
        private void Table_DataGridView_CellEndEdit(object sender, DataGridViewCellEventArgs e)
        {
            // Save the edited cell value to the array
            PhoneBookData[e.RowIndex, e.ColumnIndex] =
                Table_DataGridView.Rows[e.RowIndex].Cells[e.ColumnIndex].Value?.ToString();

            SavePhoneBookData();
        }

        /// <summary>
        /// Copies the data from the 2D array into the DataGridView for display.
        /// </summary>
        private void DisplayDataInGridView()
        {
            for (int row = 0; row < MaxEntries; row++)
            {
                for (int col = 0; col < ColumnCount; col++)
                {
                    Table_DataGridView.Rows[row].Cells[col].Value = PhoneBookData[row, col];
                }
            }
        }
    }
}

Moving from 2D String Arrays to Object-Oriented Data Management

In the above version of our Phone Book application, we relied on a simple 2D string array to store and manipulate Phone Book data. Each entry (row) in the array represented a record with values for FirstName, LastName, PhoneNumber, and Address. This approach worked but had limitations, particularly when it came to maintaining code readability, flexibility, and scalability.

In the updated version, we have transitioned to using a PhoneBookEntry class, which represents a single entry in the phone book as an object. This shift provides several key benefits:

1. Code Readability: With named properties like FirstName, LastName, PhoneNumber, and Address, it's much easier to understand what each field represents. There's no need to remember which column index refers to which piece of data, as was the case with the 2D array.
2. Improved Flexibility: By using a class, we can easily add new fields (e.g., an email address or birthdate) without having to modify array-based logic across the entire application. This makes the solution more adaptable for future needs.
3. Better Data Handling: Managing individual entries as objects allows for more sophisticated operations, like validation, sorting, or filtering, which would have been cumbersome with raw string arrays.
4. IMPORTANT: Values in the array must be properly initialized before calling the save methods, especially when working with arrays of complex or custom types. If not properly initialized, null values in objects may lead to incorrect written values in the text file, as the object will not be serialized with all its properties.

Here is the definition of the new PhoneBookEntry class.

namespace PhoneBook
{
    public class PhoneBookEntry
    {
        public string? FirstName { get; set; }
        public string? LastName { get; set; }
        public string? PhoneNumber { get; set; }
        public string? Address { get; set; }
    }
}

And updated code for the main class.

using ArrayIOExtensionsLib;

namespace PhoneBook
{
    public partial class Form1 : Form
    {
        #region Properties

        /// <summary>
        /// Path to the phone book file where data is stored.
        /// </summary>
        private const string PhoneBookFilePath = "PhoneBook.txt";

        /// <summary>
        /// Maximum number of entries allowed in the phone book.
        /// </summary>
        private const int MaxEntries = 10000;

        /// <summary>
        /// 1D array to hold phone book data temporarily.
        /// </summary>
        private PhoneBookEntry[] PhoneBookData = new PhoneBookEntry[MaxEntries];

        #endregion

        /// <summary>
        /// Initializes the form
        /// and loads the phone book data into the DataGridView.
        /// </summary>
        public Form1()
        {
            InitializeComponent();
            InitializePhoneBook();
        }

        /// <summary>
        /// Loads the phone book data from a file into the DataGridView.
        /// If the file does not exist, a new file is created.
        /// </summary>
        private void InitializePhoneBook()
        {
            // Initialize the 1D array with empty PhoneBookEntry objects
            for (int i = 0; i < MaxEntries; i++)
            {
                PhoneBookData[i] = new PhoneBookEntry();
            }

            Table_DataGridView.Rows.Clear();
            Table_DataGridView.RowCount = MaxEntries;

            if (File.Exists(PhoneBookFilePath))
            {
                LoadPhoneBookData();
            }
            else
            {
                // If no file exists,
                // initialize a new phone book file
                SavePhoneBookData();
            }

            DisplayDataInGridView();
        }

        /// <summary>
        /// Saves the phone book data to the text file.
        /// </summary>
        private void SavePhoneBookData()
        {
            PhoneBookData.SaveToTextFile(filePath: PhoneBookFilePath);
        }

        /// <summary>
        /// Loads the phone book data from the text file.
        /// </summary>
        private void LoadPhoneBookData()
        {
            PhoneBookData.LoadFromTextFile(filePath: PhoneBookFilePath);
        }

        /// <summary>
        /// Updates the 1D array with data from the DataGridView
        /// and saves the updated data to the file.
        /// Triggered when a user finishes editing a cell in the DataGridView.
        /// </summary>
        private void Table_DataGridView_CellEndEdit(object sender, DataGridViewCellEventArgs e)
        {
            // Save the edited cell value to the array
            switch (e.ColumnIndex)
            {
                case 0:
                    PhoneBookData[e.RowIndex].FirstName =
                        Table_DataGridView[e.ColumnIndex, e.RowIndex].Value?.ToString();
                    break;
                case 1:
                    PhoneBookData[e.RowIndex].LastName =
                        Table_DataGridView[e.ColumnIndex, e.RowIndex].Value?.ToString();
                    break;
                case 2:
                    PhoneBookData[e.RowIndex].PhoneNumber =
                        Table_DataGridView[e.ColumnIndex, e.RowIndex].Value?.ToString();
                    break;
                case 3:
                    PhoneBookData[e.RowIndex].Address =
                        Table_DataGridView[e.ColumnIndex, e.RowIndex].Value?.ToString();
                    break;
            }

            SavePhoneBookData();
        }

        /// <summary>
        /// Copies the data from the 2D array into the DataGridView for display.
        /// </summary>
        private void DisplayDataInGridView()
        {
            for (int row = 0; row < MaxEntries; row++)
            {
                Table_DataGridView[0, row].Value = PhoneBookData[row].FirstName;
                Table_DataGridView[1, row].Value = PhoneBookData[row].LastName;
                Table_DataGridView[2, row].Value = PhoneBookData[row].PhoneNumber;
                Table_DataGridView[3, row].Value = PhoneBookData[row].Address;
            }
        }
    }
}

By encapsulating the data for each entry in this class, we now have a more robust and maintainable codebase. This is especially useful for saving and loading the phone book data, where each entry can be serialized or deserialized as an object rather than handling each piece of data individually as a string.

This update is a key step toward improving the overall structure and maintainability of the Phone Book application, setting the stage for future enhancements.

Conclusion

The ArrayIOExtensionsLib class provides a robust and efficient way to manage data in applications like the Phone Book by simplifying the saving and loading of single and multi-dimensional arrays. This approach eliminates the need for complex database setups while still allowing for effective data storage and retrieval.

With its straightforward extension methods, the library ensures that developers can easily handle array data, including the management of null values, through a simple and intuitive API. By leveraging this library, applications can maintain data integrity and provide a seamless user experience.
