In this article, we will learn how to create an AutoCompleteTextBox using a C# Windows Forms application. In my previous article, we learned How to Search Records in DataGridView Using C#.

Let's begin.

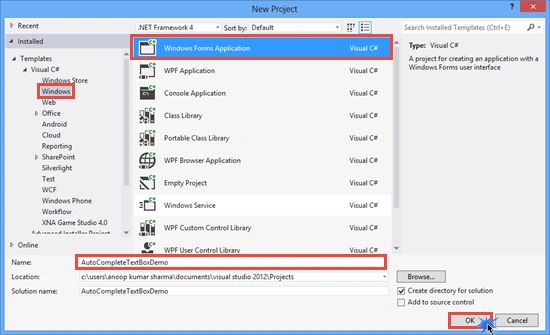

Create a new Windows Forms application.

Drop a Label and TextBox control from the ToolBox.
Now go to the Code Behind file (.cs code) and add the following lines of code:
  1. using System;
  2. using System.Windows.Forms;
  4. namespace AutoCompleteTextBoxDemo
  5. {
  6. public partial class Form1 : Form
  7. {
  8. public Form1()
  9. {
  10. InitializeComponent();
  11. }
  12. //AutoCompleteData Method
  13. private void autoCompleteData()
  14. {
  15. //Set AutoCompleteSource property of txt_StateName as CustomSource
  16. txt_StateName.AutoCompleteSource = AutoCompleteSource.CustomSource;
  17. //Set AutoCompleteMode property of txt_StateName as SuggestAppend. SuggestAppend Applies both Suggest and Append
  18. txt_StateName.AutoCompleteMode = AutoCompleteMode.SuggestAppend;
  19. txt_StateName.AutoCompleteCustomSource.AddRange(new string[]{"Maharastra","Andhra Pradesh","Assam","Punjab","Arunachal
  21. Pradesh","Bihar","Goa","Gujarat","Haryana"});
  22. }
  24. private void Form1_Load(object sender, EventArgs e)
  25. {
  26. autoCompleteData();
  27. }
  28. }
  29. }
In the preceding code, we set the AutoCompleteSource, AutoCompleteMode and AutoCompleteCustomSource properties of the TextBox named txt_StateName so that it automatically completes the input string.

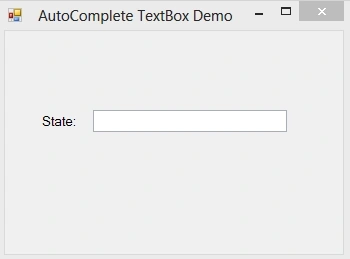

Preview

AutoComplete TextBox with Database:

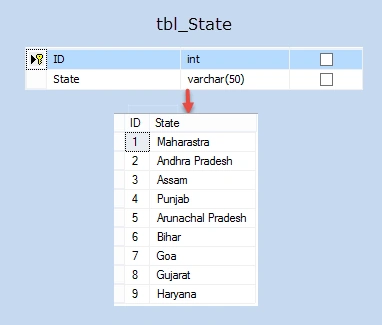

In this example, we will Suggest/Append the data in the TextBox (txt_StateName) from the database. For demonstration, I have created a database (named Sample). Add a Table, tbl_State. The following is the table schema for creating tbl_State.

Add the following lines of code:
  1. using System;
  2. using System.Windows.Forms;
  3. using System.Data.SqlClient;
  5. namespace AutoCompleteTextBoxDemo
  6. {
  7. public partial class Form2 : Form
  8. {
  9. public Form2()
  10. {
  11. InitializeComponent();
  12. }
  13. private void autoCompleteData()
  14. {
  15. SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=Sample;Integrated Security=true;");
  16. SqlCommand com = new SqlCommand("Select State from tbl_State", con);
  17. con.Open();
  18. SqlDataReader rdr = com.ExecuteReader();
  19. //AutoCompleteStringCollection Contains a collection of strings to use for the auto-complete feature on certain Windows Forms controls.
  20. AutoCompleteStringCollection autoCompleteCollection = new AutoCompleteStringCollection();
  21. while (rdr.Read())
  22. {
  23. autoCompleteCollection.Add(rdr.GetString(0));
  24. }
  25. //Set AutoCompleteSource property of txt_StateName as CustomSource
  26. txt_StateName.AutoCompleteSource = AutoCompleteSource.CustomSource;
  27. //Set AutoCompleteMode property of txt_StateName as SuggestAppend. SuggestAppend Applies both Suggest and Append
  28. txt_StateName.AutoCompleteMode = AutoCompleteMode.SuggestAppend;
  29. txt_StateName.AutoCompleteCustomSource = autoCompleteCollection;
  30. con.Close();
  31. }
  32. //Form2_Load Event
  33. private void Form2_Load(object sender, EventArgs e)
  34. {
  35. autoCompleteData();
  36. }
  37. }
  38. }
Preview
I hope you like it. Thanks.
