Automated Water Supply For Crops

In this article, we are going to see how to work with a Moisture sensor, relay module, and motors to create an automated watering system.

INTRODUCTION

In this article, we are going to see how to work with a moisture sensor, relay module, and motors to create an automated watering system. It will be very useful for farmers to save their valuable time. Also, much less maintenance is required for the project. The moisture sensor used in this project sends digital signals to the Arduino by A/D converting and sampling the process. The motor turns on and off as per the Arduino board command. The relay module is used to amplify the Arduino signal using the Main power supply.

Requirements

  1. Arduino
  2. Moisture sensor
  3. Relay Module
  4. Motor Pump
  5. Connecting Wires

Steps to follow.

Step 1

Open the Arduino software you have. I prefer the latest version.

IoT



Step  2

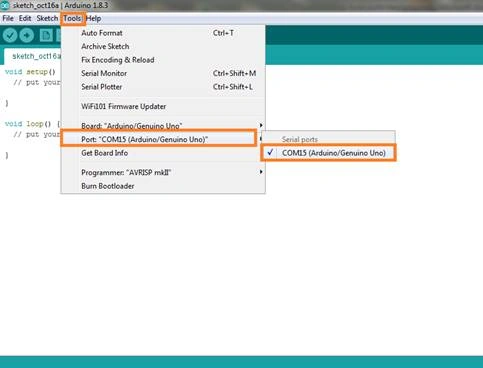

Select the Arduino board type and select the COM port to which Arduino is connected.

Water Supply For Crops

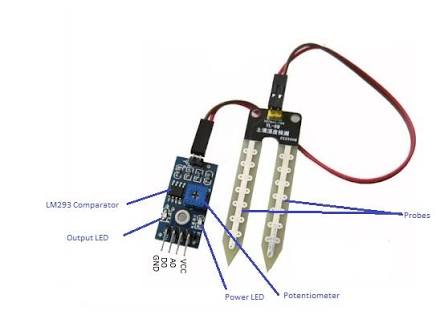

Step 3 - Moisture Sensor

Water Supply For Crops



Step 4

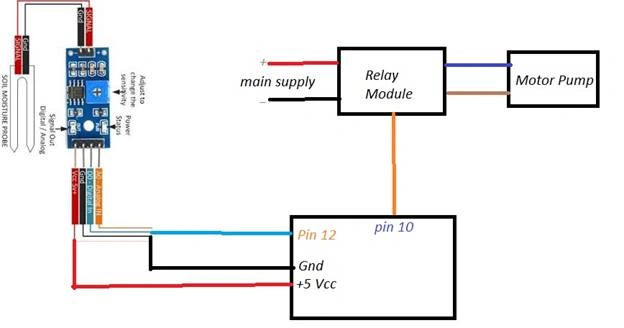

Connect as per the circuit diagram.

Water Supply For Crops



Step 5

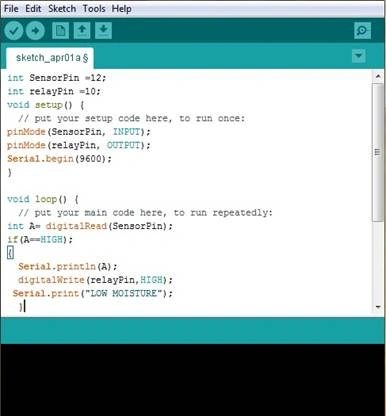

Arduino pin 12 for the sensor value is declared as input and pin 10 is declared as Output.

Pin 12 is used to get the input sensor value.

Water Supply For Crops



Step 6

Relay module is connected to the 10th pin of Arduino. Relay module is used to convert the high voltage of power supply required for the motor and act as a slave for the Arduino.


Water Supply For Crops



Step 7

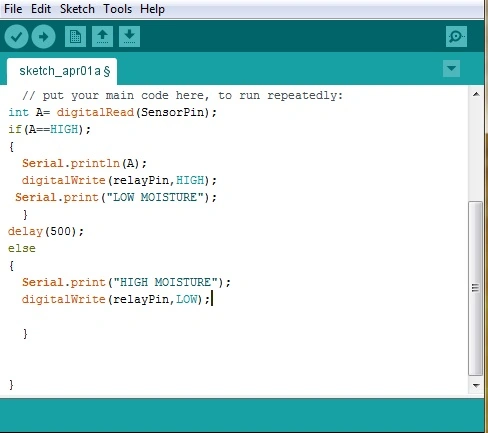

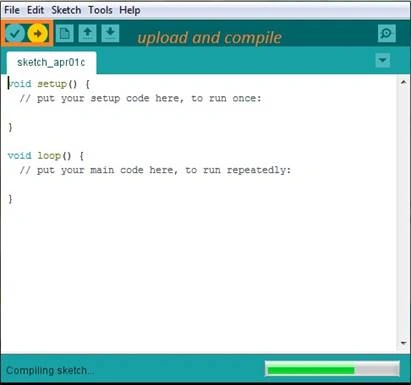

Compile and upload the code using Arduino software.

Water Supply For Crops



Step 8

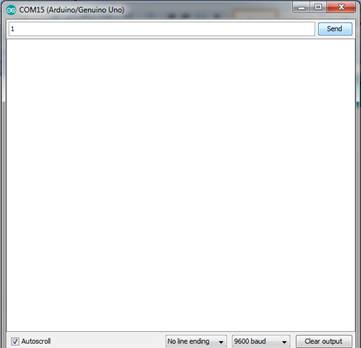

Serial.begin function is used for using the Serial monitor to monitor the current status of the of the moisture sensor and to find out Motor status also.

Water Supply For Crops



Summary

In this article, we learned how to work with the moisture sensor, relay module, and serial monitor to create an automated watering system. This system will be very useful for farmers.
