Azure Queues And Serverless Functions

Introduction

In today’s article, we will take a look at Azure Queues and Serverless functions. These are two very fundamental artifacts of the Microsoft Cloud platform Azure. Queues are used for sending loosely coupled messages. This will ensure the robust performance of our applications. Azure serverless functions is a new concept related to Azure. It allows the developer to create code that will work without any platform needed. Scaling etc. all done automatically by the cloud platform itself. I will not cover much on the definitions of these two concepts as there are many articles covering the basic definitions and functionality. We will see these resources in action today.

Creating the Azure Queue

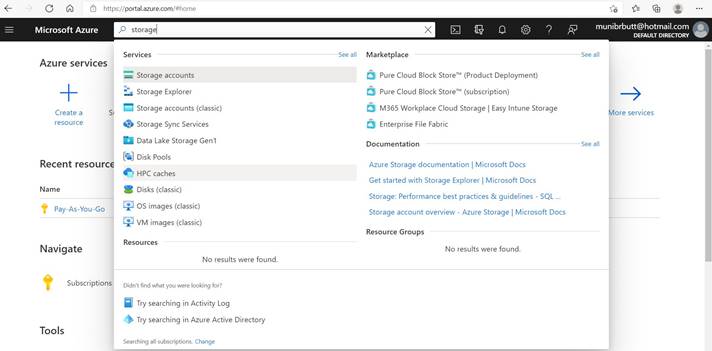

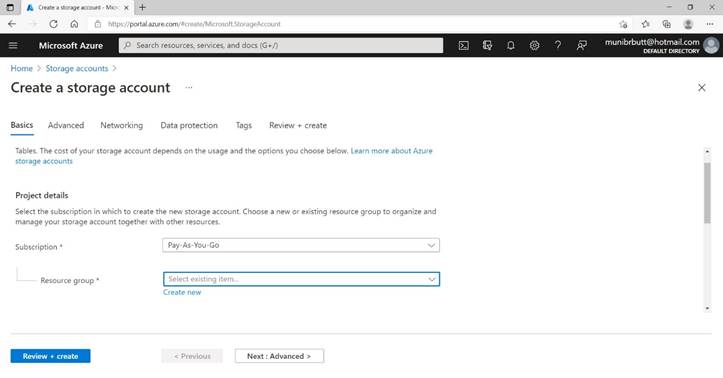

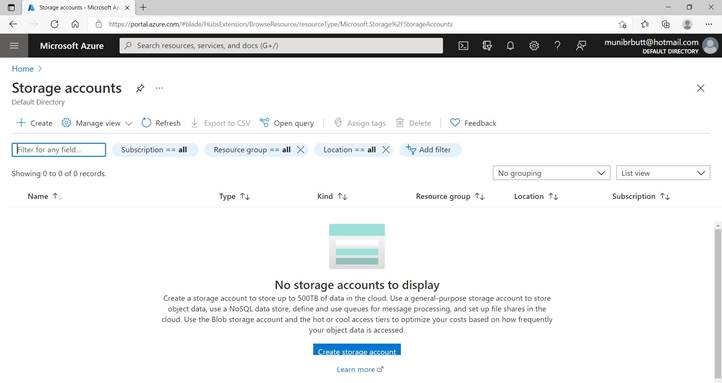

We will first create our queue. For this, we need to create a storage account in Azure. Log into your Azure portal subscription and follow the below steps,

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

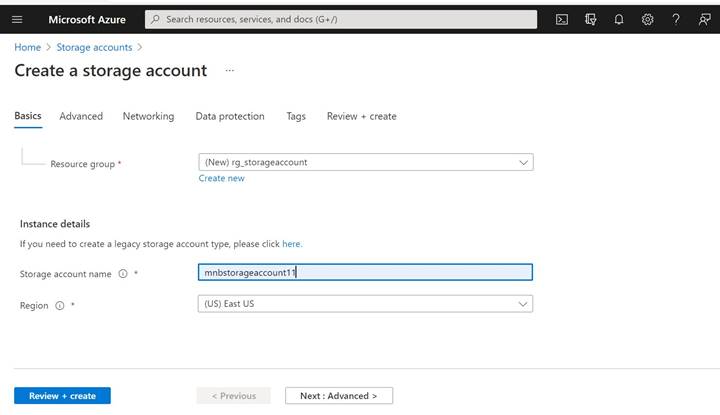

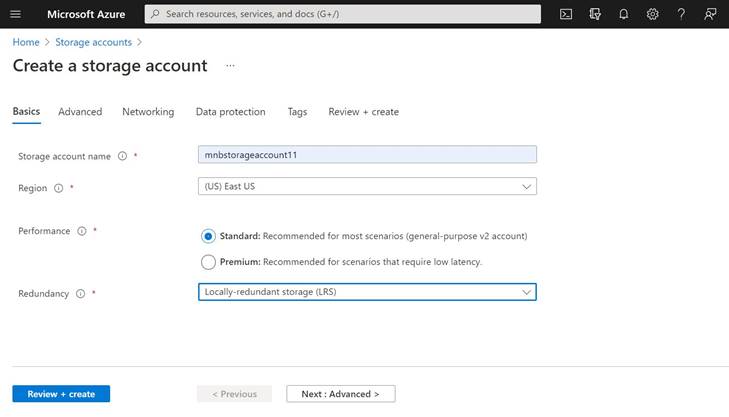

Enter your details as below and always choose the cheapest option for learning unless there is a specific feature you want to test,

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

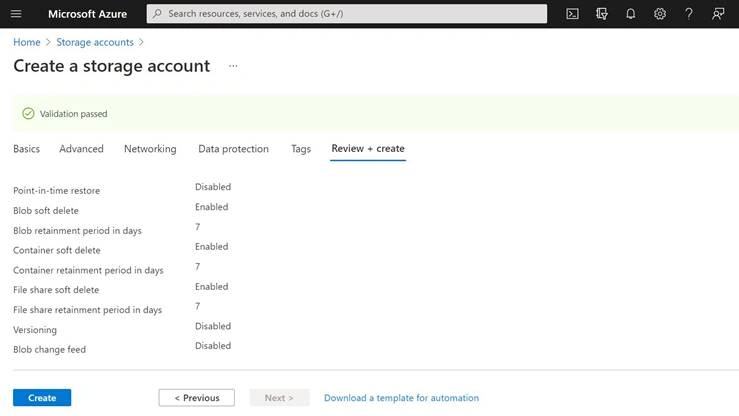

Choose the defaults for other options.

Azure Queues and Serverless Functions

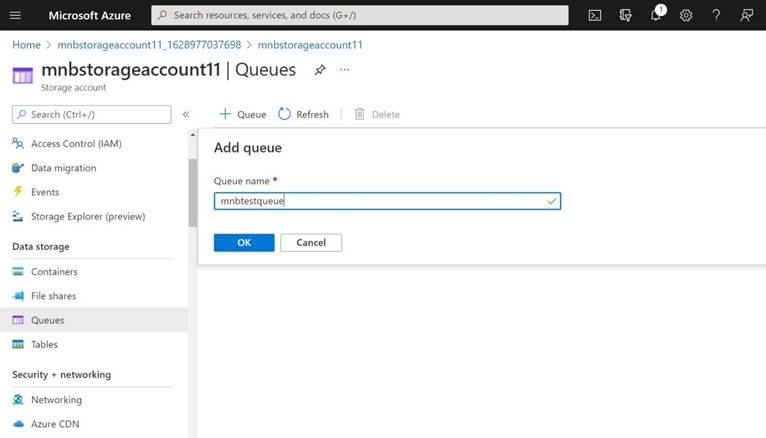

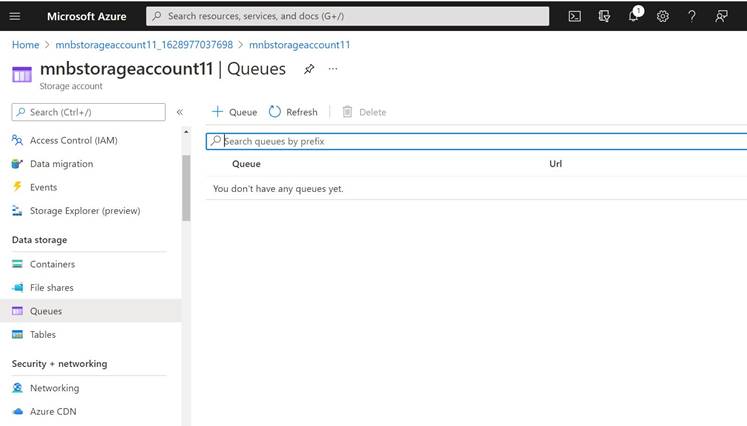

You can now add your queue to the storage account as below,

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

You now have a queue which we will populate through a .NET application.

Creating the console application in Visual Studio 2022 to populate the queue

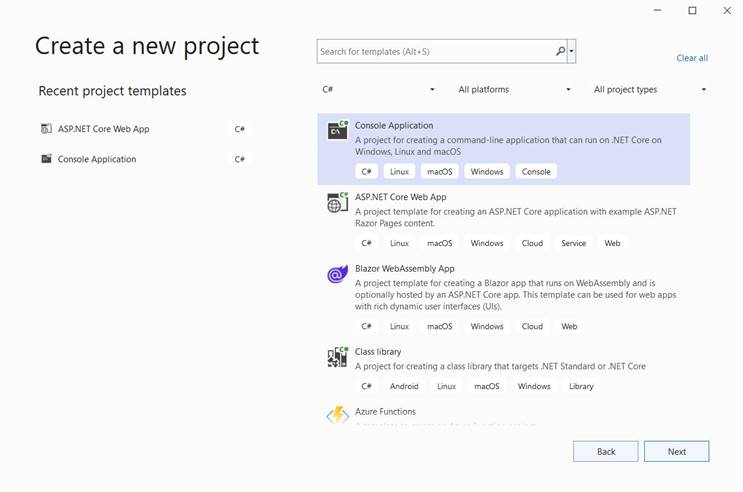

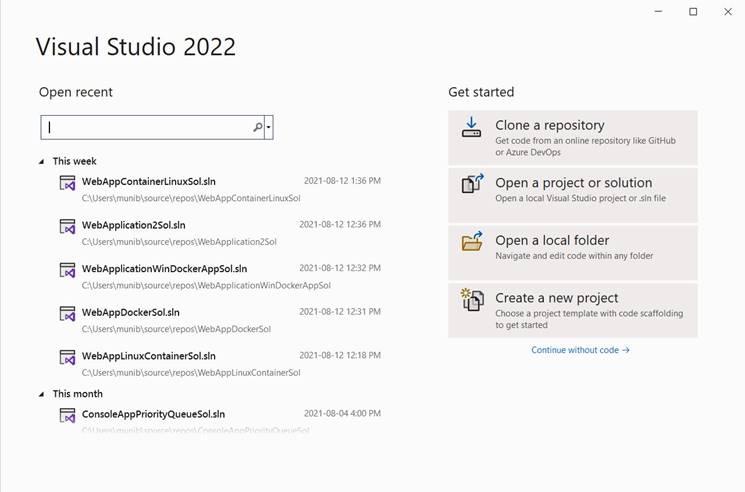

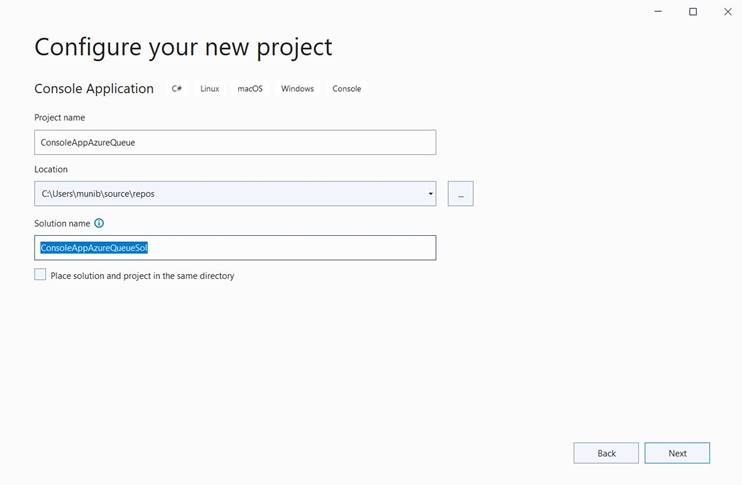

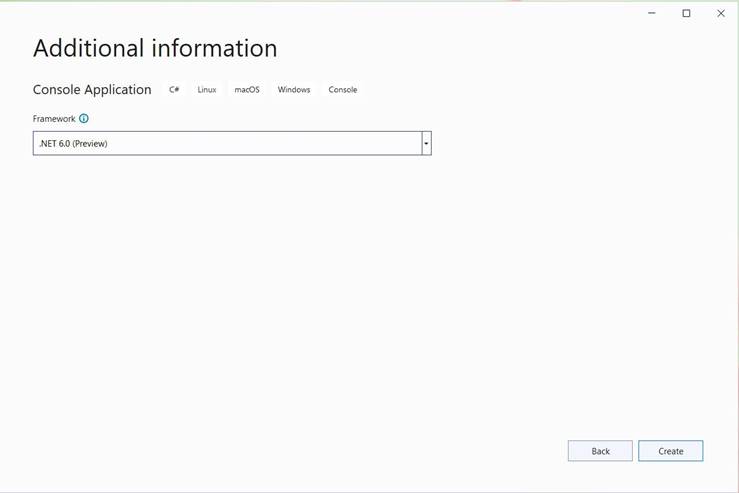

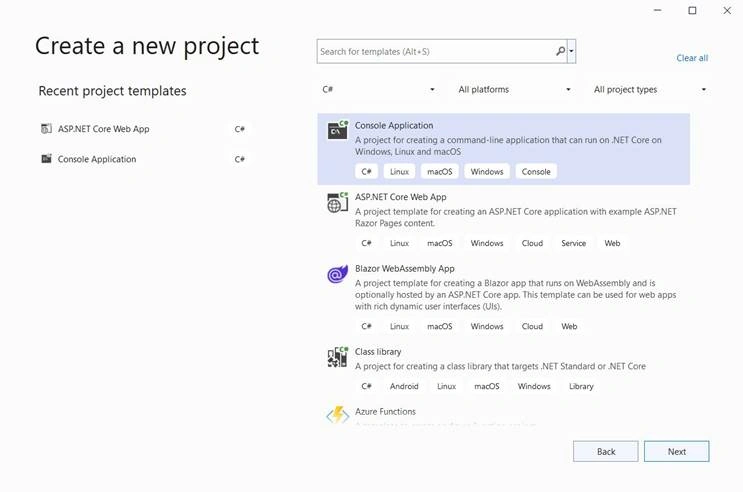

Next, we create a .NET console application using Visual Studio 2022 and the .NET 6 framework.

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

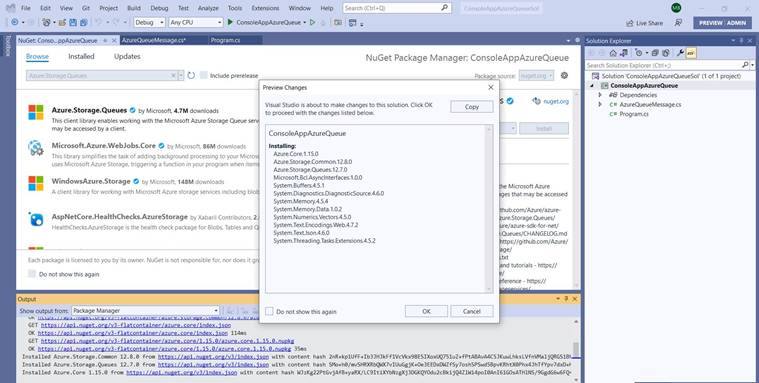

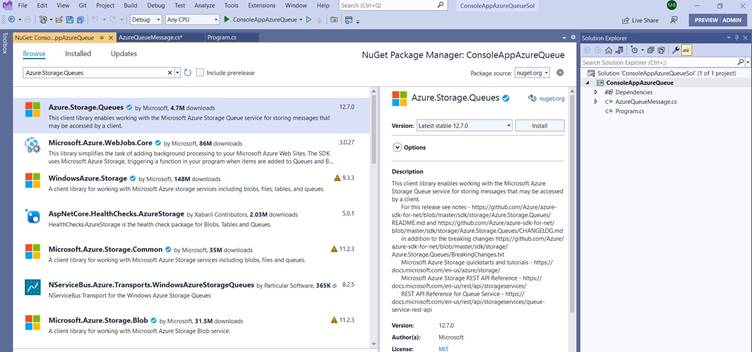

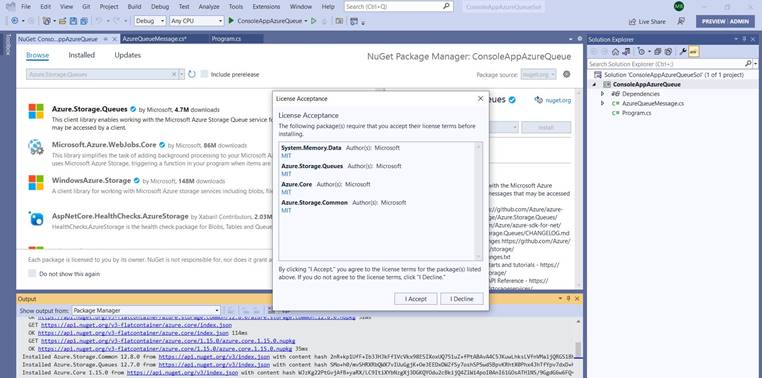

We then add the Azure.Storage.Queues Nugget package as below,

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

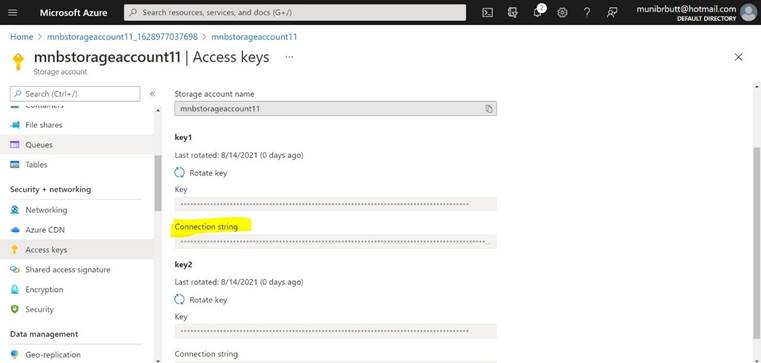

Copy the connection string for the storage account as this is needed in the code,

Azure Queues and Serverless Functions

Next, add a new class called “AzureQueueMessage” to the project and add the below code to it. Do not forget to add your connection string,

using Azure.Storage.Queues;
namespace ConsoleAppAzureQueue {
    public class AzureQueueMessage {
        public static async Task < bool > InsertMessage(string queueName, string message) {
            try {
                QueueClientOptions queueClientOptions = new QueueClientOptions();
                queueClientOptions.MessageEncoding = QueueMessageEncoding.Base64;
                var connectionString = "<Connection string here>";
                var queueClient = new QueueClient(connectionString, queueName, queueClientOptions);
                if (queueClient.Exists()) {
                    await queueClient.SendMessageAsync(message);
                }
            } catch {
                return false;
            }
            return true;
        }
    }
}

Add the below code to the “Program.cs” file,

using ConsoleAppAzureQueue;
await AzureQueueMessage.InsertMessage("mnbtestqueue", "test");
Console.WriteLine("Message added!");

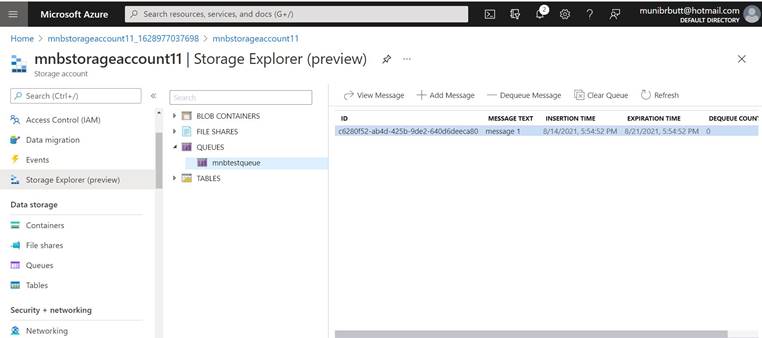

Now, if we run the application, we see a message is added to the Azure queue we just created.

Azure Queues and Serverless Functions

Creating the Serverless function to read the queue

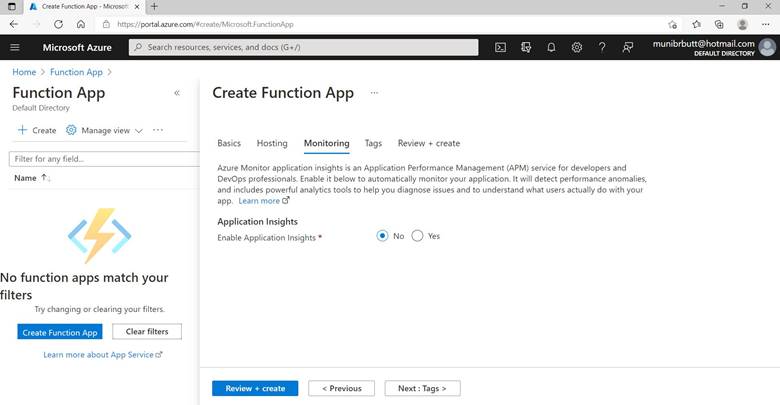

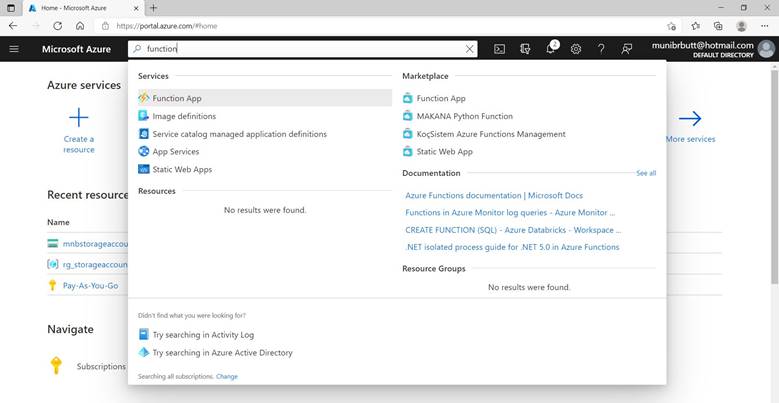

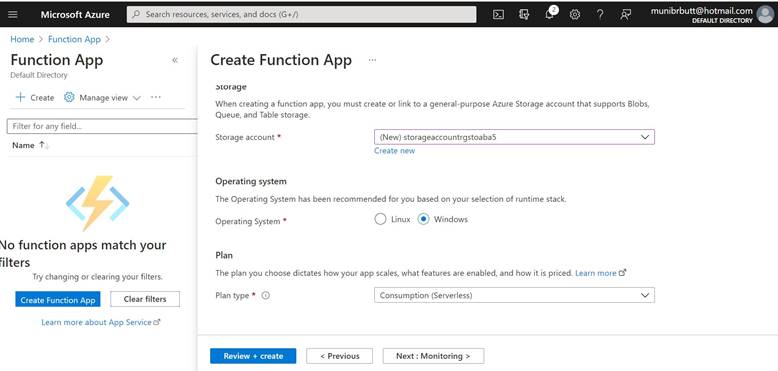

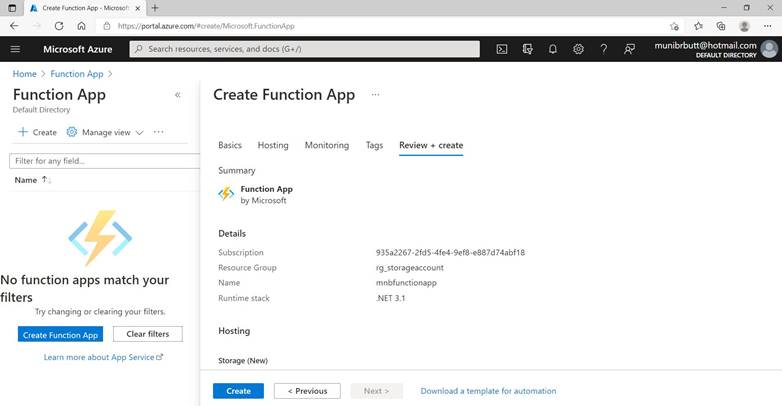

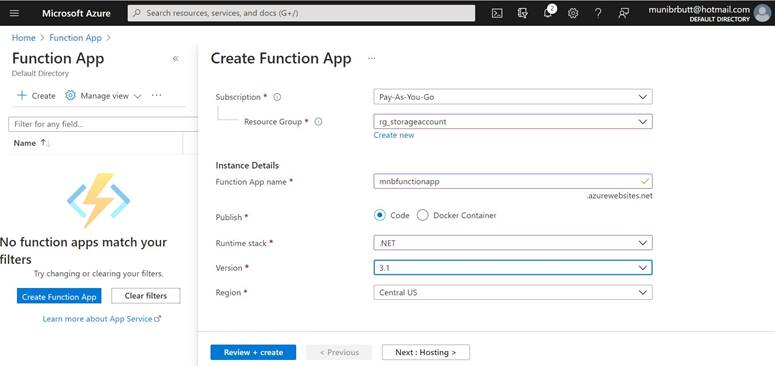

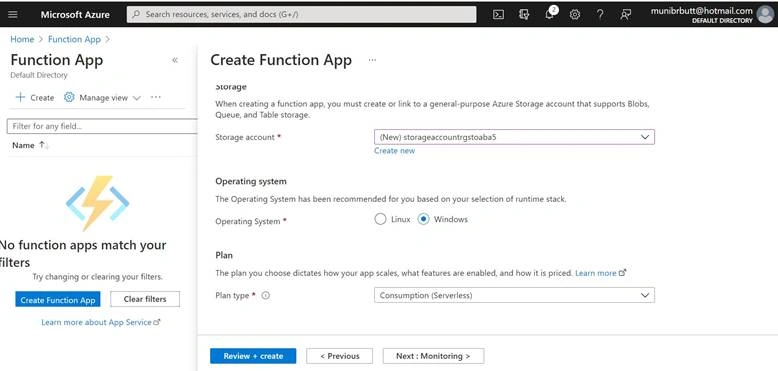

The final part of the article is to create a serverless function that reads the message as soon as it is added into the queue. We follow the below steps. We start by creating a function app,

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

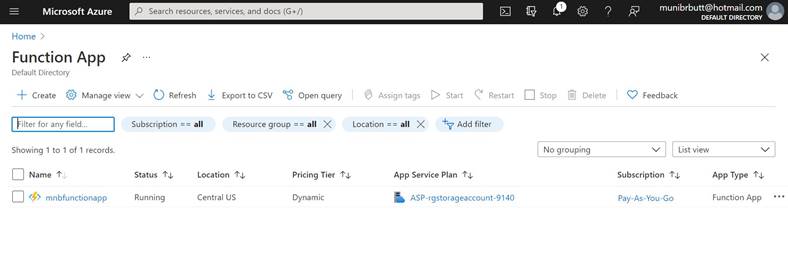

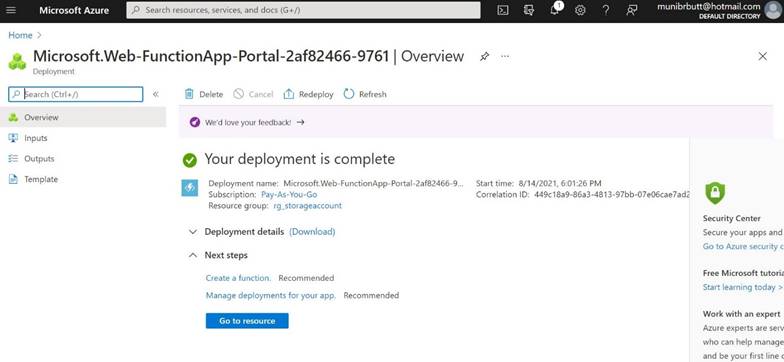

We can see the newly created function app below,

Azure Queues and Serverless FunctionsAzure Queues and Serverless Functions

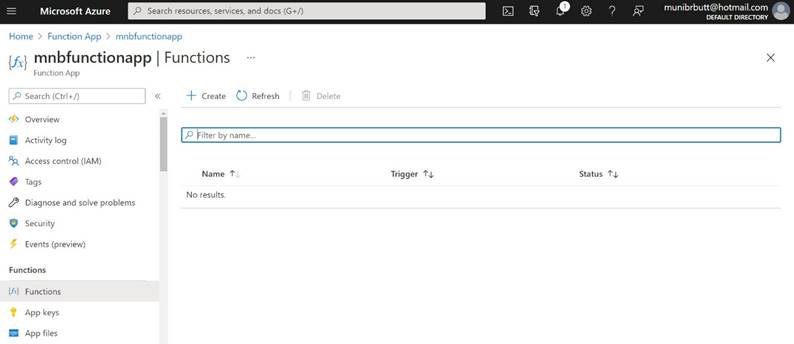

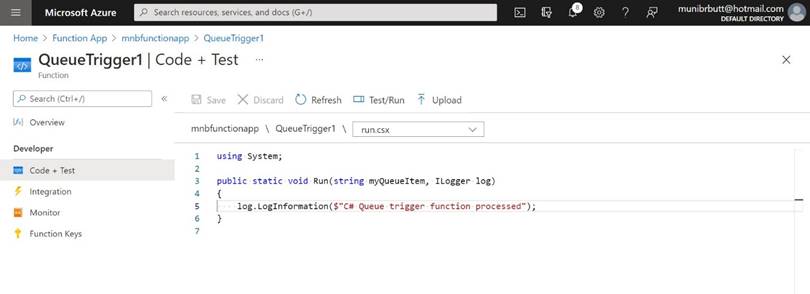

We now create the function.

Azure Queues and Serverless Functions

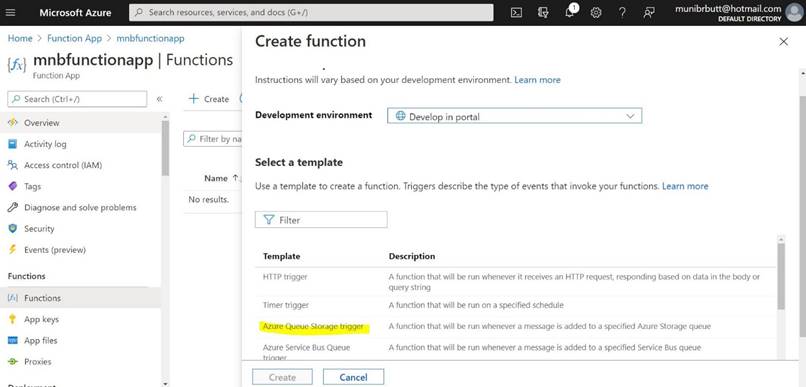

Remember to select the Azure Queue Storage trigger.

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

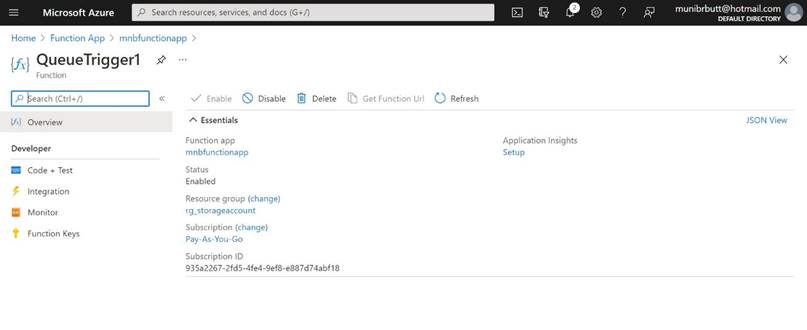

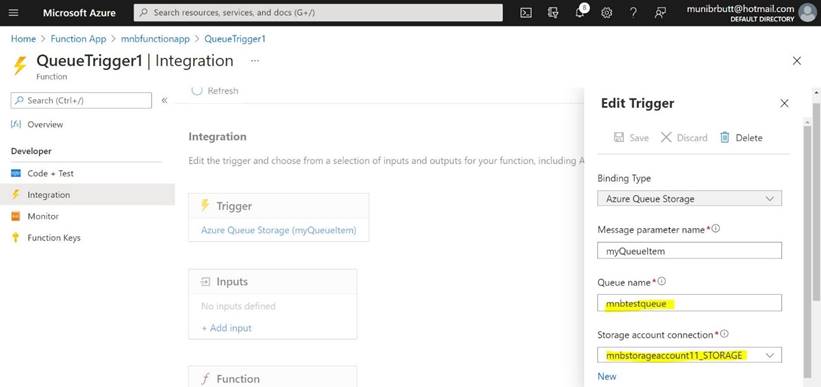

Update the integration settings as below.

Azure Queues and Serverless Functions

Azure Queues and Serverless Functions

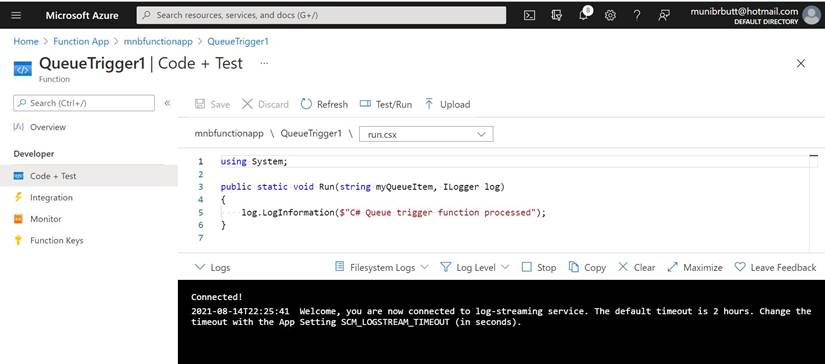

Open the logs as above.

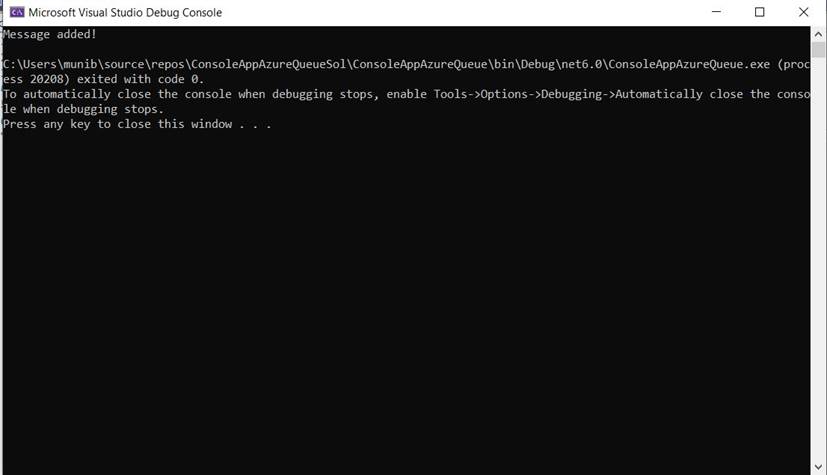

We now run the console application again and a message is added to our queue.

Azure Queues and Serverless Functions

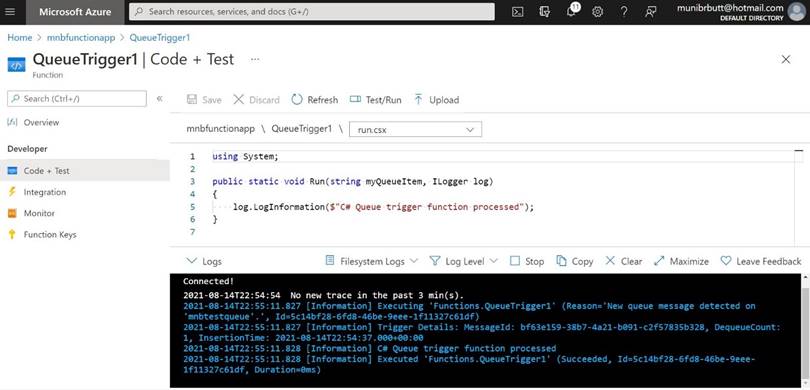

This message is picked up by the function and processed as below,

Azure Queues and Serverless Functions

Summary

In this article, we took a look at Azure queues. How we can populate them using a .NET console application. We finally looked at how we can create a serverless function in Azure to pick the message from this queue and process it. I hope this gives an idea of how these resources can be used in our solutions. Happy coding!
