We will use a bunch of CheckBoxLists and bind them using SQL Server.

Initial Chamber

Step 1

Open Visual Studio 2010 and create an empty website, name it CheckBoxList_demo.

Step 2

In Solution Explorer, you will get your empty website. Add a web form and SQL Database using the following procedure.

For Web Form:

CheckBoxList_demo (your empty website): right-click and select Add New Item Web Form. Name it CheckBoxList_demo.aspx.

For SQL Server Database:

CheckBoxList_demo (your empty website): right-click and select Add New Item SQL Server Database. Add Database inside the App_Data_folder.

Database Chamber

Step 3

In Server Explorer, click on your database Database.mdfTables and Add New Table. Form a table as in the following:

Table, got tp tbl_data [don't forget to make ID as IS Identity -- True]

ID

table design

This is our data that we will bind to the CheckBoxList and show at run time.

Design Chamber

Step 4

Open your CheckBoxList_demo.aspx file from Solution Explorer and start designing your application.

Here's the code:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4. xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6. <title></title>
  7. <style type="text/css">
  8. .style1
  9. {
  10. text-decoration: underline;
  11. font-size: large;
  12. }
  13. .style2
  14. {
  15. width: 128px;
  16. }
  17. .style3
  18. {
  19. width: 407px;
  20. }
  21. </style>
  22. </head>
  23. <body>
  24. <form id="form1" runat="server">
  25. <div>
  26. <br />
  27. <br />
  28. <br />
  29. <table style="width:100%;">
  30. <tr>
  31. <td class="style2">
  32. </td>
  33. <td class="style3">
  34. <span class="style1">
  35. <strong>Select your Language</strong>
  36. </span>
  37. </td>
  38. <td></td>
  39. </tr>
  40. <tr>
  41. <td class="style2">
  42. </td>
  43. <td class="style3">
  44. </td>
  45. <td>
  46. </td>
  47. </tr>
  48. <tr>
  49. <td class="style2">
  50. </td>
  51. <td class="style3">
  52. <asp:CheckBoxList ID="CheckBoxList1" runat="server" DataTextField="language"
  53. DataValueField="language" AutoPostBack="True" RepeatLayout="OrderedList" Width="432px">
  54. <asp:ListItem>COBOL</asp:ListItem>
  55. <asp:ListItem>PERL</asp:ListItem>
  56. <asp:ListItem>JAVA</asp:ListItem>
  57. <asp:ListItem>C#</asp:ListItem>
  58. <asp:ListItem>PHP</asp:ListItem>
  59. <asp:ListItem>C++</asp:ListItem>
  60. </asp:CheckBoxList>
  61. </td>
  62. <td>
  63. <asp:Label ID="lbmsg" runat="server"></asp:Label>
  64. </td>
  65. </tr>
  66. <tr>
  67. <td class="style2">
  68. </td>
  69. <td class="style3">
  70. <asp:Button ID="Button1" runat="server" onclick="Button1_Click"
  71. Text="Click here to show the Data" />
  72. </td>
  73. <td>
  74. </td>
  75. </tr>
  76. </table>
  77. <br />
  78. <br />
  79. <br />
  80. <p>
  81. </p>
  82. <br />
  83. <br />
  84. </div>
  85. </form>
  86. </body>
  87. </html>

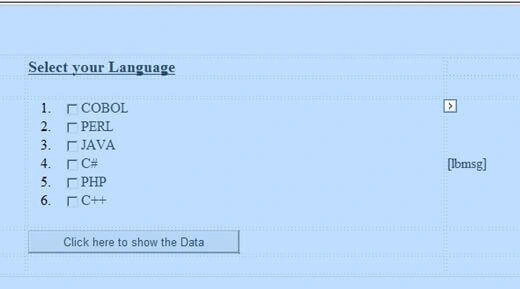

This is how your design looks.

design looks

Code Chamber

Finally open your CheckBoxList_demo.aspx.cs file to write the code for making the list box like we assumed.

Here's the code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12. protected void Page_Load(object sender, EventArgs e)
  13. {
  14. if (!Page.IsPostBack)
  15. {
  16. SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  17. SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  18. SqlDataAdapter sda = new SqlDataAdapter(cmd);
  20. DataTable dt = new DataTable();
  21. sda.Fill(dt);
  22. CheckBoxList1.DataSource = dt;
  23. CheckBoxList1.DataBind();
  24. }
  25. }
  26. protected void Button1_Click(object sender, EventArgs e)
  27. {
  28. string k = "";
  29. for (int i = 0; i < CheckBoxList1.Items.Count; i++)
  30. {
  31. if (CheckBoxList1.Items[i].Selected)
  32. {
  34. k = k + CheckBoxList1.Items[i].Text + "</br>";
  35. }
  37. }
  38. lbmsg.Text = k;
  39. lbmsg.ForeColor = System.Drawing.Color.ForestGreen;
  41. }
  42. }
Output Chamber

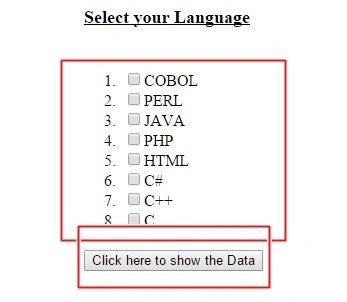

select language



I hope you liked it. Thank you for reading. Have a good day.
