Boxing and Unboxing in TypeScript

Boxing and Unboxing is an essential concept in TypeScript. TypeScript automatically transforms a value type into a reference type; this automatic transformation is called Boxing. In other words, the conversion of a value type to a reference type is known as Boxing and reference type to value type is known as Unboxing.

Here, I am describing Boxing and Unboxing separately.

Boxing

Conversion of value type to reference type (Object):

var x: number=100;
var obj: Object=x; //Boxing

Unboxing

Conversion of reference type to value type:

var a: number=100;
var obj: Object=x; //Boxing
var y: number=parseInt(obj.toString()); // unboxing

The following example tells you, how to use Boxing and Unboxing in TypeScript. Use the following to create a program using Boxing and Unboxing.

Step 1

Open Visual Studio 2012 and click on "File" menu -> "New" -> "Project". A window will be opened; provide the name of your application, like "BoxingAndUnBoxing", then click on the Ok button.

Step 2

After Step 1 your project has been created. The Solution Explorer, which is at the right side of Visual Studio, contains the js file, ts file, CSS file, and HTML files.

Step 3

The code of the Boxing and Unboxing program:

BoxingAndUnBoxing.ts

class BoxingAndUnBoxing {
MyFunction() {
var a: number = 100;
var b: number;
var obj: Object;
obj = a;
b = parseInt(obj.toString());
alert("Boxing value=" + obj + " Unboxing value=" + a);
}
}
window.onload = () => {
var data = new BoxingAndUnBoxing();
data.MyFunction();
}

Note In the above-declared program a and b are number type variables and obj is an object type (reference type). When you assign a value of a to obj, it automatically (implicitly) transforms the value type to a reference type, and whenever you want to do the reverse process, then the object value must be typecast because TypeScript does not convert an object type (reference type) to a value type implicitly.

default.html

<!DOCTYPEhtml>
<htmllang="en"
xmlns="http://www.w3.org/1999/xhtml">
<head>
<metacharset="utf-8"/>
<title>TypeScript HTML App</title>
<linkrel="stylesheet"href="app.css"type="text/css"/>
<scriptsrc="app.js">
</script>
</head>
<body>
<h1>TypeScript Boxing and Unboxing</h1>
<divid="content"/>
</body>
</html>

app.js

var BoxingAndUnBoxing = (function() {
function BoxingAndUnBoxing() {}
BoxingAndUnBoxing.prototype.MyFunction = function() {
var a = 100;
var b;
var obj;
obj = a;
b = parseInt(obj.toString());
alert("Boxing value" + obj + " Unboxing value" + a);
};
return BoxingAndUnBoxing;
})();
window.onload = function() {
var data = new BoxingAndUnBoxing();
data.MyFunction();
};

Step 4

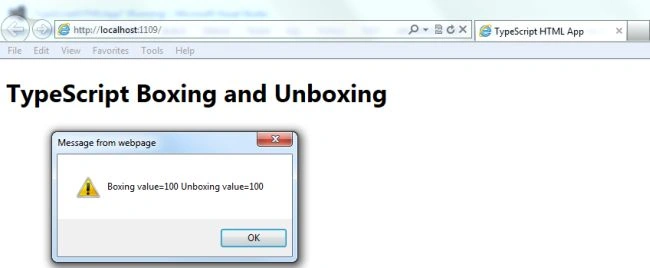

Output
