Breaking Item Permission Inheritance Using SharePoint Workflow And REST API

In this article I’m going to explain about how we break item permission inheritance when the item is added by using SharePoint REST API and SharePoint Designer Workflow 2013.

In this article I’m going to explain about how we break item permission inheritance when the item is added by using SharePoint REST API and SharePoint Designer Workflow 2013.

Introduction

By default, breaking permission inheritance and replacing item permission are not available in SharePoint Workflow 2013.

While using SharePoint Workflow 2010 we are not supposed to save the workflow as a template and we cannot use it in another site collection.

Now I’m going to use SharePoint REST APIs to break roles and permissions inheritance.

SharePoint Designer Workflow 2013 to Break Item Permission Inheritance

Step1

First of all, I’m going to create a new SharePoint workflow 2013 against a SharePoint list that needs to update permissions to the user, based on item level.

SharePoint

Step 2

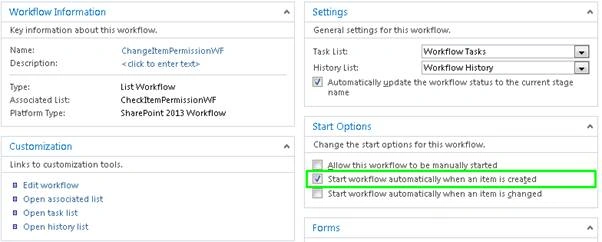

The workflow should be triggered after the item is added.

SharePoint

Step 3

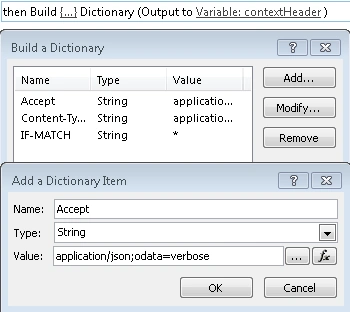

Initially we need context info to call the POST APIs. Create the variable contextHeader as dictionary and set service call header to get context info.

SharePoint

Step 4

Create the variable contextUrl as string to set service URL.

SharePoint

Step 5

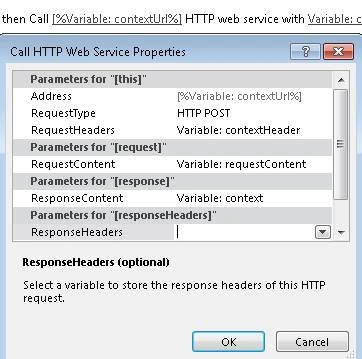

Call the REST API service as POST method

SharePoint

Then read the FormDigestValue from the context response.

SharePoint

Step 6

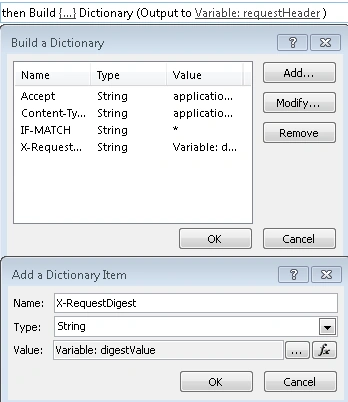

Create the variable requestHeader as dictionary.

SharePoint

Then create the variable breakInheritanceAPIUrl as string.

SharePoint

Step 7

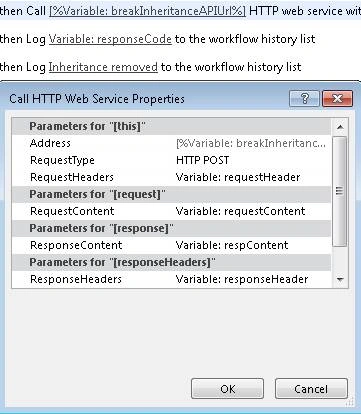

Call the service to break the inheritance permissions to the current item.

SharePoint

The Permission inheritance is stopped for the current item after successful service response.

In the next article, we will see how to read and remove all permissions to the current item.

References

https://msdn.microsoft.com/en-us/library/office/dn531433.aspx#bk_ListItemBreakRoleInheritance

Summary

In this article, we have explored how to break inheritance permission from the parent to item by using SharePoint Workflow 2013 and REST API.
