Building a Multi-Level Approval Workflow using SharePoint and Power Automate

Introduction

In many organizations, requests are not approved by just one person. Things like software access, purchases, onboarding, or finance approvals usually need permission from multiple people. When this is handled only via email, it often leads to delays, missed responses, and no clear way to track status.

In this article, we will build a practical Multi-Level Approval Workflow using SharePoint and Power Automate. A request will automatically be sent to different approvers in turn. If anyone rejects the request, the process will stop immediately.

This solution is easy to understand, scalable, and designed for real business use cases.

Business Scenario

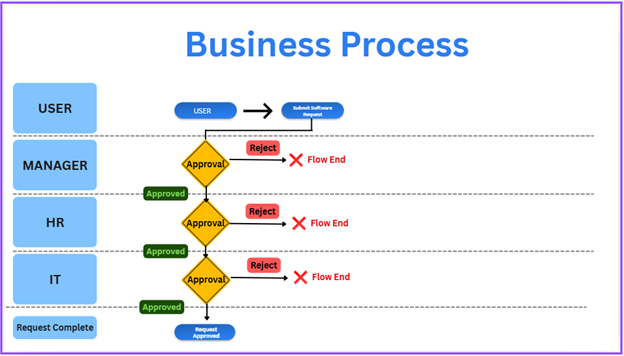

Let’s take a simple example of a Software Access Request process.

When a user submits a request:

  1. The request is first sent to the Manager for approval.

  2. If the Manager approves, it is then sent to HR.

  3. If HR approves, it is sent to IT.

  4. If IT approves, the request status is updated to Completed.

  5. If anyone rejects the request, the workflow stops and the status is updated to Rejected.

All approval actions, comments, and status updates are automatically saved and tracked in SharePoint, giving full visibility into the entire process.


SharePoint List Design

Create a SharePoint list named Software Requests.

Add the following columns:

  • Title – Request title

  • Software Name – Single line of text

  • Requested By – Person

  • Department – Choice

  • Justification – Multiple lines of text

  • Manager Email – Single line of text

  • HR Email – Single line of text

  • IT Email – Single line of text

  • Status – Choice
    (New, Pending Manager Approval, Pending HR Approval, Pending IT Approval, Approved, Rejected)

  • Manager Comments – Multiple lines of text

  • HR Comments – Multiple lines of text

  • IT Comments – Multiple lines of text

This list will work as the central tracking system for the entire approval workflow, where all requests, approval decisions, and comments are stored and monitored.

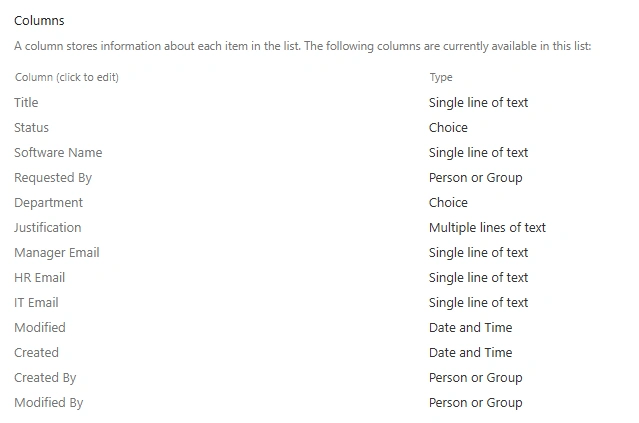

Picture 2

Step-by-Step Flow Logic

Step 1: Trigger and Initial Status

The flow starts when a new item is created in the Software Requests SharePoint list.

As the first action, update the same item and set:

  • Status = Pending Manager Approval

This clearly shows that the request has entered the approval process and is now waiting for the Manager’s review.

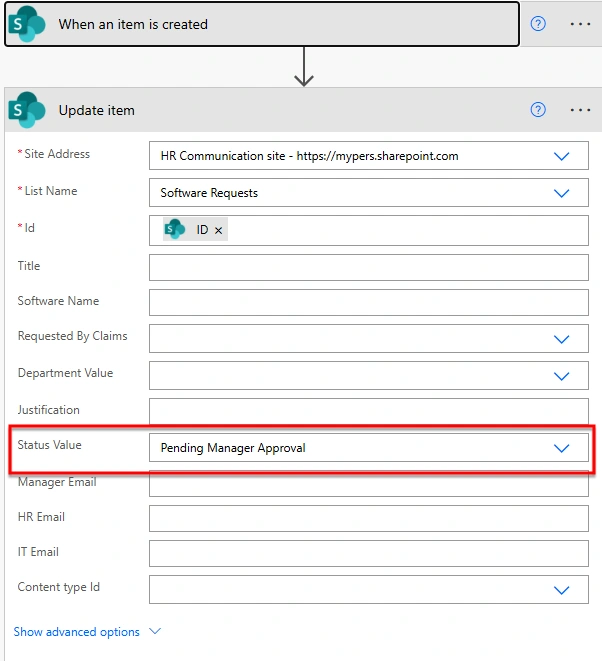

Picture 3

Step 2: Manager Approval

Add the action Start and wait for an approval.

Configure it as follows:

  • Approval type: Approve/Reject – First to respond

  • Assigned to: Manager Email column

  • Title: Software Request – Manager Approval

  • Details: Include the software name, department, justification, and requester name.

After the approval response, add a Condition based on the outcome.


If Approved:

  • Update the SharePoint item

  • Save the Manager’s comments

  • Set Status = Pending HR Approval

If Rejected:

  • Update Status = Rejected

  • Store the Manager’s comments

  • Terminate the flow

This ensures that only approved requests move forward, and rejected requests are stopped immediately.

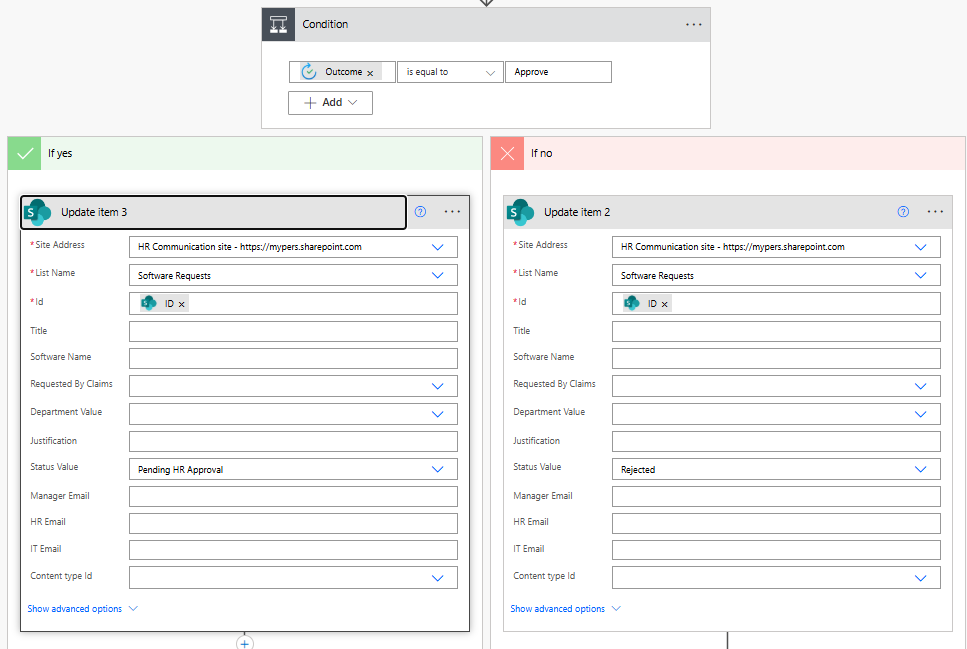

Picture 5

Step 3: HR Approval

This step should run only if the Manager has approved the request.

Add another Start and wait for an approval action and configure:

  • Assigned to: HR Email column

  • (Keep approval type as Approve/Reject – First to respond)

After the response, add a condition.

Picture 6

If HR Approves:

  • Update the SharePoint item

  • Save the HR comments

  • Set Status = Pending IT Approval

If HR Rejects:

  • Update Status = Rejected

  • Save the HR comments

  • Stop the workflow

This ensures the request moves to IT only after HR approval.

Picture 7

Step 4: IT Approval

This step should run only if HR has approved the request.

Add another Start and wait for an approval action and configure:

  • Assigned to: IT Email column

  • (Approval type: Approve/Reject – First to respond)

After the response, add a condition.

Picture 8

If IT Approves:

  • Update the SharePoint item

  • Save the IT comments

  • Set Status = Approved

  • Optionally, send an email to the requester to inform them that the software access process can begin.

If IT Rejects:

  • Update Status = Rejected

  • Save the rejection comments

This completes the multi-level approval process.

Picture 9

If Approved user will be notified through email.

Picture 10

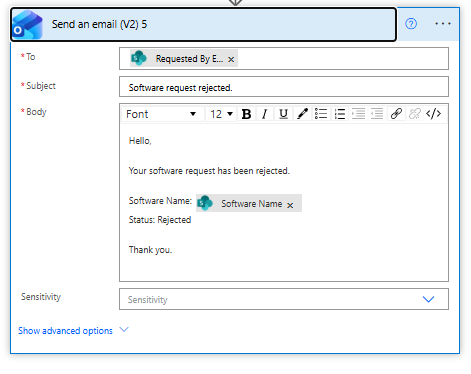

If Rejected user will be notified through email.


Throughout the workflow:

  • The Status column always shows the current stage of the request.

  • All approver comments are saved back to the SharePoint list.

  • Users and administrators can easily create views or filters for:

    • Pending approvals

    • Completed requests

    • Rejected requests

This approach provides clear visibility, supports auditing needs, and makes the system easy to monitor and manage.

Conclusion

Multi-level approval workflows are one of the most practical and powerful use cases of Power Automate. By combining SharePoint with sequential approvals, organizations can remove manual follow-ups, improve accountability, and reduce overall processing time.
