Building Knowledge Graphs with Microsoft GraphRAG and Azure OpenAI

Introduction

Have you ever asked a chatbot a question like "What is the relationship between Alice and Bob?" and received a disappointing answer? Traditional RAG (Retrieval-Augmented Generation) struggles with these questions because it only finds similar text chunks—it doesn't understand connections.

GraphRAG solves this problem. Developed by Microsoft Research, GraphRAG transforms your documents into a knowledge graph with entities (people, projects, technologies) and relationships between them. This enables your AI to answer complex, multi-hop questions that standard RAG simply cannot handle.

What You'll Learn

In this article, you'll learn how to:

• Set up Microsoft GraphRAG with Azure OpenAI

• Build a knowledge graph from interconnected documents

• Query the graph using local and global search

• Visualize and explore the extracted entities and relationships

Prerequisites

• Python 3.10+

• Azure OpenAI resource with GPT-4o and text-embedding-3-small deployments

• Basic familiarity with Python and command line

Standard RAG vs GraphRAG

Before diving into the implementation, let's understand why GraphRAG matters.

Question Type	Standard RAG	GraphRAG
Find documents about Project Alpha	✅ Works well	✅ Works well
Who works with Emily Harrison?	❌ Limited	✅ Excellent
What are the connections to Project Alpha?	❌ Can't do this	✅ Traverses relationships
What themes span the entire organization?	❌ No global view	✅ Community-level analysis

GraphRAG builds a graph structure where:

• Entities are the nodes (people, projects, technologies)

• Relationships are the edges connecting them

• Communities are clusters of related entities detected automatically

Project Setup

Step 1: Create the Project Structure

maf-graphrag-series/
├── .env                    # Azure OpenAI credentials
├── settings.yaml           # GraphRAG configuration
├── requirements.txt        # Python dependencies
├── run_index.ps1           # Build the knowledge graph
├── run_query.ps1           # Query the knowledge graph
├── input/
│   └── documents/          # Your source documents
├── output/                 # Generated graph (auto-created)
└── prompts/                # Custom prompt templates

Step 2: Install Dependencies

Create a virtual environment and install GraphRAG:

python -m venv .venv
.venv\Scripts\activate      # Windows
pip install graphrag==1.2.0 python-dotenv

Important: We use GraphRAG v1.2.0 specifically. Newer versions have breaking API changes.

Step 3: Configure Azure OpenAI

Create a .env file with your Azure OpenAI credentials:

AZURE_OPENAI_API_KEY=your-api-key-here
AZURE_OPENAI_ENDPOINT=https://your-resource.openai.azure.com/
AZURE_OPENAI_API_VERSION=2024-08-01-preview
AZURE_OPENAI_CHAT_DEPLOYMENT=gpt-4o
AZURE_OPENAI_EMBEDDING_DEPLOYMENT=text-embedding-3-small

Step 4: Create settings.yaml

This is the main GraphRAG configuration file:

models:
  chat:
    type: azure_openai_chat
    api_key: ${AZURE_OPENAI_API_KEY}
    api_base: ${AZURE_OPENAI_ENDPOINT}
    model: gpt-4o
    deployment_name: gpt-4o
    api_version: 2024-08-01-preview

  embeddings:
    type: azure_openai_embedding
    api_key: ${AZURE_OPENAI_API_KEY}
    api_base: ${AZURE_OPENAI_ENDPOINT}
    model: text-embedding-3-small
    deployment_name: text-embedding-3-small
    api_version: 2024-08-01-preview

vector_store:
  type: lancedb
  db_uri: output/lancedb
  collection_name: default

input:
  type: file
  file_type: text
  base_dir: input/documents

chunks:
  size: 1200
  overlap: 100

Key settings explained:

• models.chat: GPT-4o extracts entities and answers queries

• models.embeddings: Creates vector embeddings for semantic search

• vector_store: LanceDB stores embeddings locally (no cloud database needed)

• chunks: Documents are split into 1200-token chunks with 100-token overlap

Sample Documents

For this tutorial, we created three interconnected markdown documents about a fictional company called TechVenture Inc.

company_org.md - Organizational structure:

# TechVenture Inc. - Company Organization

TechVenture Inc. is a mid-sized technology company specializing in
AI-powered enterprise solutions. The company employs over 150 people
across three main divisions.

## Executive Leadership- **Sarah Chen** - Chief Executive Officer (CEO)
- **Michael Rodriguez** - Chief Technology Officer (CTO)
- **Lisa Wang** - Chief Operating Officer (COO)
...

project_alpha.md - Project details:

# Project Alpha - Technical Specification

## Project Overview
Project Alpha is TechVenture's flagship AI initiative, focused on
building an enterprise-grade AI assistant platform.

**Project Lead:** Dr. Emily Harrison
**Technical Architect:** David Kumar
**Budget:** $8 million
**Timeline:** 18 months (Q1 2025 - Q2 2026)
...

team_members.md - Team profiles:

# TechVenture Inc. - Team Directory

## Dr. Emily Harrison**Role:** Head of AI Research, Project Alpha Lead
**Reports to:** Michael Rodriguez (CTO)
**Expertise:** Natural Language Processing, Knowledge Graphs
...

The magic happens when GraphRAG discovers that "Dr. Emily Harrison" mentioned in all three documents is the same person, automatically connecting the organizational chart, project details, and team profiles.

Building the Knowledge Graph

Create the Indexing Script

Create run_index.ps1 to handle Windows encoding issues and load environment variables:

# run_index.ps1 - Build the knowledge graph

$ScriptDir = Split-Path -Parent $MyInvocation.MyCommand.Path
Set-Location $ScriptDir

# Fix Windows UTF-8 encoding issues$OutputEncoding = [console]::InputEncoding = [console]::OutputEncoding = `
    New-Object System.Text.UTF8Encoding
$env:PYTHONUTF8 = 1

# Load .env fileGet-Content ".env" | ForEach-Object {
    if ($_ -match '^([^=#]+)=(.*)$') {
        [Environment]::SetEnvironmentVariable($matches[1], $matches[2], 'Process')
    }
}

# Run GraphRAG indexingWrite-Host "Starting GraphRAG indexing..." -ForegroundColor Cyan
$VenvPath = Join-Path $ScriptDir ".venv\Scripts\python.exe"
& $VenvPath -m graphrag index --root $ScriptDir

Run the Indexing

Execute the script:

.\run_index.ps1

The indexing process takes 5-15 minutes depending on document size and Azure OpenAI quota. You'll see progress output like:

🔄 Processing documents...
🔍 Extracting entities...
🔗 Detecting relationships...
🏘️ Building communities...
✅ Indexing complete!

What Gets Generated

After indexing, the output/ folder contains:

File	Description
create_final_entities.parquet	Extracted entities (people, projects, etc.)
create_final_relationships.parquet	Connections between entities
create_final_communities.parquet	Detected community clusters
create_final_community_reports.parquet	AI-generated summaries per community
lancedb/	Vector embeddings for semantic search

Querying the Knowledge Graph

GraphRAG offers two search methods, each optimized for different question types.

Local Search (Entity-Focused)

Best for specific questions about entities and their direct relationships.

Create run_query.ps1:

# run_query.ps1 - Query the knowledge graph

param(
    [Parameter(Mandatory=$true)]
    [ValidateSet("local", "global")]
    [string]$Method,

    [Parameter(Mandatory=$true)]
    [string]$Query
)

$ScriptDir = Split-Path -Parent $MyInvocation.MyCommand.Path
Set-Location $ScriptDir

# UTF-8 encoding fix$OutputEncoding = [console]::InputEncoding = [console]::OutputEncoding = `
    New-Object System.Text.UTF8Encoding
$env:PYTHONUTF8 = 1

# Load .envGet-Content ".env" | ForEach-Object {
    if ($_ -match '^([^=#]+)=(.*)$') {
        [Environment]::SetEnvironmentVariable($matches[1], $matches[2], 'Process')
    }
}

Write-Host "Running $Method search..." -ForegroundColor Cyan
Write-Host "Query: $Query" -ForegroundColor Yellow

$VenvPath = Join-Path $ScriptDir ".venv\Scripts\python.exe"
& $VenvPath -m graphrag query `
    --method $Method `
    --query $Query `
    --root $ScriptDir `
    --data "$ScriptDir\output" `
    --community-level 2

Example: Local Search

.\run_query.ps1 "Who leads Project Alpha and what is their role?" -Method local

Response:

Leadership of Project Alpha

Project Alpha is led by Dr. Emily Harrison, who serves as the Project Lead. Dr. Harrison is the Head of AI Research at TechVenture Inc., and she plays a pivotal role in overseeing the overall project strategy and research direction.

Her responsibilities include coordinating between all contributing teams, managing product management aspects, hosting demo sessions, providing monthly updates, and managing timeline risks.

Dr. Harrison's role is supported by a team of specialists, including Dr. James Mitchell, who focuses on large language model integration, and Sophia Lee, who works on knowledge graph construction.

[Data: Entities (4); Reports (4); Relationships (75, 93)]

Notice how GraphRAG:

• Found Emily Harrison across multiple documents

• Connected her to her team members

• Provided context about her responsibilities

• Cited the source data used

Global Search (Thematic)

Best for broad questions that span the entire organization.

.\run_query.ps1 "What are the main strategic initiatives at TechVenture?" -Method global

Response:

Main Themes at TechVenture Inc.

TechVenture Inc. is a mid-sized technology company that specializes in AI-powered enterprise solutions. The company employs over 150 people across three main divisions.

Strategic Initiatives

Project Alpha is TechVenture Inc.'s flagship initiative, focused on developing an AI assistant platform. It integrates cutting-edge technologies such as natural language processing, knowledge graph technology, and real-time data analytics. The project is expected to launch in Q3 2026 with a budget of $8 million.

Azure Migration is another significant cross-departmental initiative. Led by Jennifer Park with support from David Kumar's engineering team, this project enhances the company's cloud capabilities.

[Data: Reports (0, 2, 5, 7)]

Global search analyzes community reports—AI-generated summaries of entity clusters—to provide a bird's-eye view.

Visualizing the Knowledge Graph

The Jupyter notebook 01_explore_graph.ipynb helps you understand what GraphRAG extracted.

Loading the Entities

import pandas as pd

# Load entities
entities_df = pd.read_parquet("output/create_final_entities.parquet")

print(f"Total entities: {len(entities_df)}")
print(f"\nEntity types:")
print(entities_df['type'].value_counts())

Output:

Total entities: 40

Entity types:
PERSON          18
ORGANIZATION    11
PROJECT          5
TECHNOLOGY       3
EVENT            3

GraphRAG automatically classified 40 entities across 5 types from just 3 documents. The majority are people (18) and organizations (11), which makes sense for our company documentation.

Complete Entity Table

To see all extracted entities, we display them in a simple table:

# Show all entities in a table
entity_table = entities_df[['title', 'type']].copy()
entity_table.columns = ['Entity', 'Type']
entity_table = entity_table.sort_values('Type').reset_index(drop=True)
entity_table.index = entity_table.index + 1
entity_table

First 15 and last 5 entities extracted from the documents, sorted by type.

	Entity	Type
1	AI RESEARCH DEPARTMENT
2	SLACK
3	ROBERT THOMPSON
4	COMPANY ORGANIZATIONAL STRUCTURE
5	SOFTWARE ENGINEER
6	COMPANY ORG	DOCUMENT
7	TEAM MEMBERS	DOCUMENT
8	TEAM MEMBER PROFILES	DOCUMENT
9	AZURE MIGRATION	EVENT
10	CUSTOMER PORTAL	EVENT
11	PROJECT ALPHA	EVENT
12	PRODUCT ENGINEERING DEPARTMENT	ORGANIZATION
13	INFRASTRUCTURE DEPARTMENT	ORGANIZATION
14	PRODUCT DIVISION	ORGANIZATION
15	PROJECT ALPHA TEAM	ORGANIZATION
36	RACHEL ADAMS	PERSON
37	KEVIN WRIGHT	PERSON
38	JENNIFER PARK	PERSON
39	PRIYA PATEL	PERSON
40	CARLOS MARTINEZ	PERSON

Building the Network Graph

import networkx as nx
import matplotlib.pyplot as plt

# Load relationships
relationships_df = pd.read_parquet("output/create_final_relationships.parquet")

# Create graph
G = nx.Graph()

# Add nodes (entities)for _, entity in entities_df.iterrows():
    G.add_node(entity['title'], type=entity['type'])

# Add edges (relationships)  for _, rel in relationships_df.iterrows():
    G.add_edge(rel['source'], rel['target'], description=rel['description'])

print(f"Nodes: {G.number_of_nodes()}")
print(f"Edges: {G.number_of_edges()}")
print(f"Network density: {nx.density(G):.4f}")

Output:

Nodes: 40
Edges: 45
Network density: 0.0577

Visualizing Connections

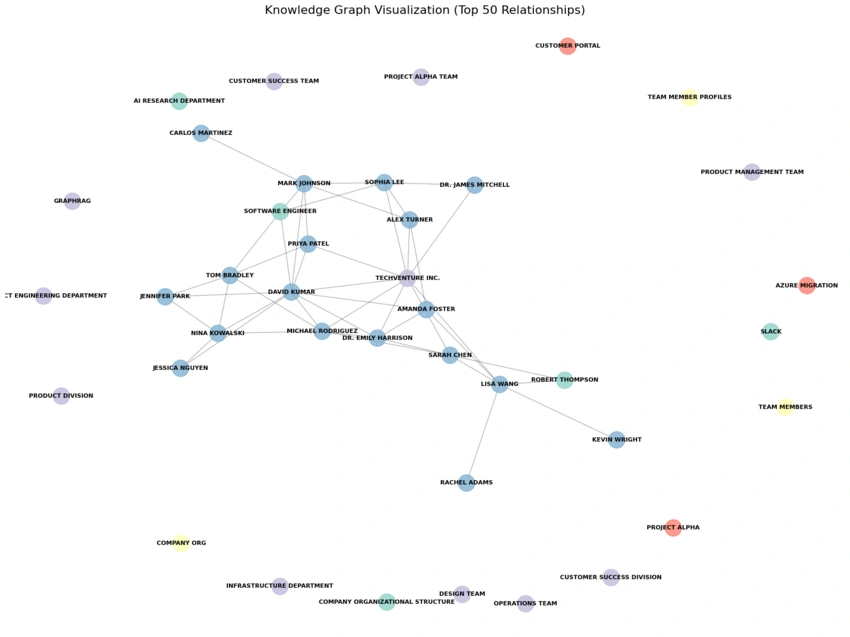

Network visualization showing entities as nodes and relationships as edges. Colors represent entity types: blue for people, green for organizations, orange for projects.

Finding the Most Connected Entities

# Calculate degree centrality
centrality = nx.degree_centrality(G)
top_entities = sorted(centrality.items(), key=lambda x: x[1], reverse=True)[:5]

print("Top 5 connected entities:")
for entity, score in top_entities:
    print(f"  {entity}: {score:.3f}")

Output:

Top 5 connected entities:
  David Kumar: 0.256
  Dr. Emily Harrison: 0.231
  Project Alpha: 0.205
  Michael Rodriguez: 0.179
  TechVenture Inc.: 0.154

This reveals that David Kumar is the most connected person in the organization—a useful insight that would be hard to discover by reading the documents manually.

Key Insights and Lessons Learned

1. GraphRAG Version Matters

We tried three versions before settling on v1.2.0:

• v3.0.1: Incompatible CLI structure

• v2.7.1: Had an InputReaderFactory bug

• v1.2.0: Stable with prompt fixes

Lesson: Pin your GraphRAG version in requirements.txt.

2. Prompt Template Compatibility

GraphRAG v1.2.0 has a bug where custom prompts cannot include {max_length} or {max_report_length} placeholders—the code doesn't pass these parameters.

Fix: Remove these placeholders from prompt files:

• summarize_descriptions.txt

• global_search_map_system_prompt.txt

• community_report_text.txt

3. Azure OpenAI Regional Availability

Not all embedding models are available in all regions:

Region	text-embedding-3-small	text-embedding-3-large
eastus	✅	✅
westus	✅	❌
southcentralus	❌	❌

Lesson: Check Azure OpenAI model availability before deploying.

4. No Incremental Indexing

GraphRAG currently requires full reindexing when you add new documents. This is because:

• Community detection needs the complete graph

• Entity resolution merges entities across all documents

• Hierarchical summaries depend on global structure

Lesson: Plan for reindexing costs in production scenarios.

5. Windows UTF-8 Encoding

PowerShell on Windows defaults to non-UTF-8 encoding, causing crashes with special characters.

Fix: Add this to your scripts:

$OutputEncoding = [console]::InputEncoding = [console]::OutputEncoding = `
    New-Object System.Text.UTF8Encoding
$env:PYTHONUTF8 = 1

Conclusion

Microsoft GraphRAG transforms how we build AI applications that need to understand complex relationships. Instead of just finding similar text, GraphRAG builds a true knowledge graph that enables:

• Entity-focused queries (local search) for specific questions

• Thematic queries (global search) for organizational insights

• Relationship traversal for multi-hop reasoning

• Community analysis for discovering hidden patterns

What's Next?

In Part 2 of this series, we'll expose GraphRAG as an MCP (Model Context Protocol) server, enabling integration with AI agents using Microsoft Agent Framework. This opens the door to building intelligent agents that can query knowledge graphs as part of their reasoning process.

Repository

The complete code for this tutorial is available on GitHub:

• Repository: github.com/cristofima/maf-graphrag-series

• Documentation: See docs/ folder for detailed implementation notes
