Composite Design Pattern With C#

Introduction


Composite design pattern is a structural design pattern. It allows developers to create multiple nested objects of the same type to complete one single system hierarchy.

Players in this pattern:
  • Component: This player defines base contract with composite class to allow the creation of nested objects.
  • Composite: This the player that  will implement the contract defined by the component.
  • Client: With the help of composite player, this player will complete the system hierarchy for particular requirement
We will see with an example:

Requirement: Build a smart city with smart block features.

We will define 3 players:
  • AbstractBlock – Component
  • Block – Composite
  • Client
We will build Abstract block with Add, Remove block features. If we want we can implement Add, Remove features explicitly. In my case I am using List, by default I will be having Add, and Remove features available for adding/removing blocks.
  1. using System.Collections.Generic;
  2.
  3. namespace Composite.Design.Pattern.Demo.Contract
  4. {
  5.     public abstract class AbstractBlock
  6.     {
  7.         public string Name { getset; }
  8.         public double Size { getset; }
  9.         public abstract void BuildBlock();
  10.         public List<AbstractBlock> SubBlocks { getset;}
  11.     }
  12. }
Now implement Composite object; i.e., Block by implementing/inheriting component i.e. in our code AbstractBlock
  1. using Composite.Design.Pattern.Demo.Contract;
  2. using System.Collections.Generic;
  3. using static System.Console;
  4.
  5. namespace Composite.Design.Pattern.Demo.Business
  6. {
  7.     public class Block : AbstractBlock
  8.     {
  9.         public Block()
  10.         {
  11.             SubBlocks = new List<AbstractBlock>();
  12.         }
  13.         public override void BuildBlock() => WriteLine($"Block built with Name {Name} with size {Size} unit");
  14.     }
  15. }
In the above code we can see that, we provided the implementation for BuildBlock method. Based on our need we can make concrete or non-concreate method as well.

Below is the client class code:
  1. using Composite.Design.Pattern.Demo.Contract;
  2. using static System.Console;
  3. using Composite.Design.Pattern.Demo.Business;
  4. using Newtonsoft.Json;
  5.
  6. namespace Composite.Design.Pattern.Demo
  7. {
  8.     class Client
  9.     {
  10.         static void Main(string[] args)
  11.         {
  12.             AbstractBlock smartCity = new Block
  13.             {
  14.                 Name = "SmartCity",
  15.                 Size = 100000
  16.             };
  17.
  18.             AbstractBlock smartlayOut = new Block()
  19.             {
  20.                 Name = "SmartlayOut",
  21.                 Size = 10000,
  22.             };
  23.             smartCity.SubBlocks.Add(smartlayOut);
  24.
  25.             AbstractBlock smartHome = new Block()
  26.             {
  27.                 Name = "smartHome",
  28.                 Size = 1000,
  29.             };
  30.             smartlayOut.SubBlocks.Add(smartHome);
  31.
  32.             AbstractBlock smartRoom = new Block()
  33.             {
  34.                 Name = "smartRoom",
  35.                 Size = 1000,
  36.             };
  37.             smartHome.SubBlocks.Add(smartRoom);
  38.
  39.             AbstractBlock smartLocker = new Block()
  40.             {
  41.                 Name = "smartLocker",
  42.                 Size = 20,
  43.             };
  44.             smartRoom.SubBlocks.Add(smartLocker);
  45.
  46.             AbstractBlock smartFolder = new Block()
  47.             {
  48.                 Name = "smartFolder",
  49.                 Size = 10,
  50.             };
  51.             smartRoom.SubBlocks.Add(smartFolder);
  52.
  53.             AbstractBlock smartFile = new Block()
  54.             {
  55.                 Name = "smartFile",
  56.                 Size = 5,
  57.             };
  58.             smartFolder.SubBlocks.Add(smartFile);
  59.
  60.             Build(smartCity);
  61.             WriteLine();
  62.             string json = JsonConvert.SerializeObject(smartCity, Formatting.Indented);
  63.             WriteLine(json);
  64.
  65.             ReadLine();
  66.         }
  67.
  68.         private static void Build(AbstractBlock block)
  69.         {
  70.             block.BuildBlock();
  71.             block?.SubBlocks?.ForEach(b => Build(b));
  72.         }
  73.     }
  74. }
In above code we can see that the client has utilized composite object and built first Smart City followed by Smart Layout
  • Smart Layout followed by Smart Home
  • Smart Home followed by Smart Room
  • Smart Room followed by Smart Locker
  • Smart Locker followed by Smart Folder
  • Smart Folder followed by Smart File

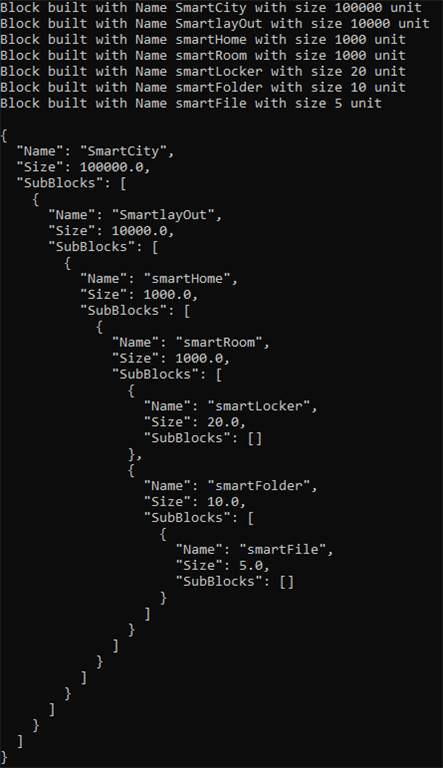

After executing this code we can see the same hierarchy in json format. For easy understating I Serialized object into Json. Below is the output:


When we have a requirement of implementing some nested objects with the same type then we can go for this design pattern.

We can extend this composite object to any extent with N number of blocks inside blocks.


Summary


Above is the simple example of using composite design pattern, you can download the uploaded source code and try adding more blocks. I hope it helps.
