Configure Angular Quick Start Source In Visual Studio 2017

This article explains how to quick start Angular 2 using visual studio 2007. We can download supporting files from the website and can quickly start to implement the application. This article explains step by step how to implement angular quick start.

Introduction

This article explains how to quick start Angular 2 using Visual Studio 2017. We can download all supporting files from the website and can quickly start to implement the application. This article explains steps of implementing Angular QuickStart.

Angular 2 Quick Starts

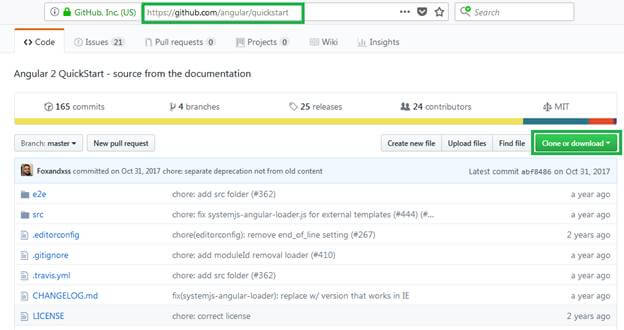

We need to download supporting files from GitHub for Angular 2 QuickStart. Go to the https://github.com/angular/quickstart link to download the same.

Visual Studio

Click "Clone or download" to download Aular 2 QuickStart source.

Visual Studio

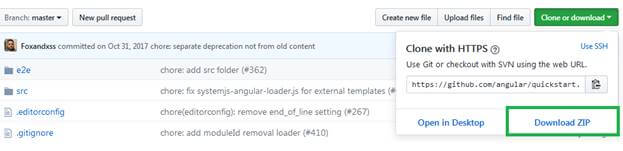

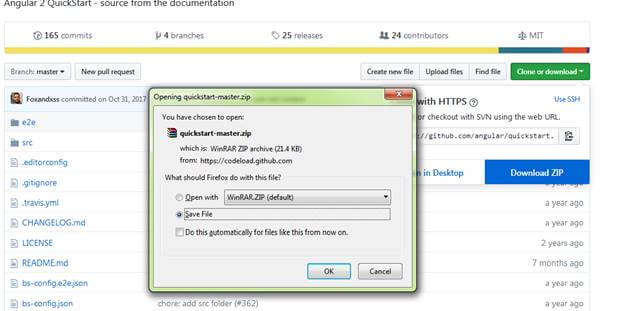

Click Download ZIP on the next window to get the Angular 2 QuickStart source file as a ZIP.

Visual Studio

 Go to the downloaded location in our local system, extract the ZIP file. We can see the extracted Angular 2 QuickStart source in the below screenshot.

Visual Studio

Install NodeJS

We need to install Node.js if not installed. The below article link explains how to install Node in a step by step way.

Install Visual Studio 2017

 We need to install Visual Studio 2017 if not installed. The below article link explains how to install Visual Studio 2017 in a step by step way.



Verify Node JS and NPM

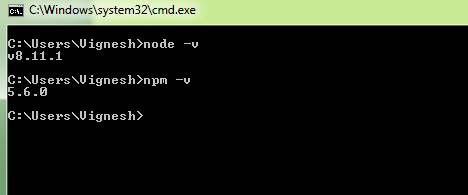

We need to check whether Node Js and NPM are installed or not. If installed successfully we can check the version using the below commands.

For Node Js “node -v”

For NPM “npm -v”

We will be getting an error if both are not installed while executing the above command.

Visual Studio



Check TypeScript

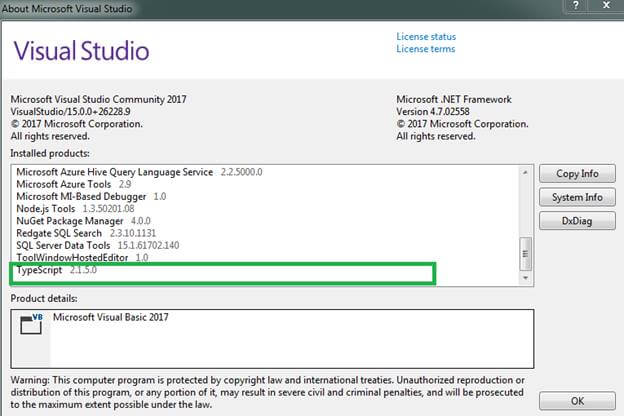

Visual Studio 2017 Typescript  is installed by default. Go to “Help” menu and go to “About Microsoft Visual Studio”. We can see all the installed products. If Typescript is installed we can see the Typescript with the version under installed products at the end.

Visual Studio



If Typescript is not installed we need to install Typescript for Visual Studio 2017. Go to the below link, download and install.

https://www.microsoft.com/en-ca/download/details.aspx?id=55258

Visual Studio



First Angular 2 Quick Starts

Open the Visual Studio 2017. Go to File - New - Project.

Visual Studio

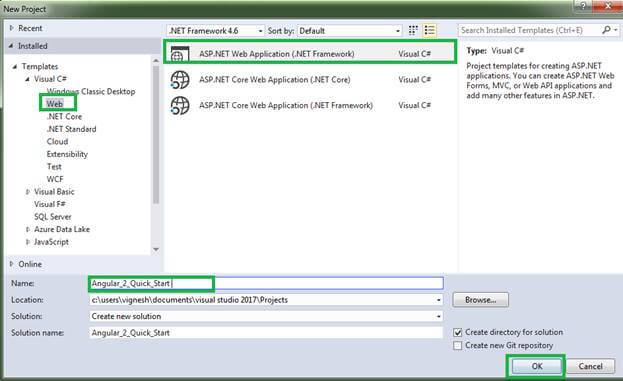

After opening the new project window, go to Visual C# - Web - ASP.NET Web Application (.NET Framework) - Type Project name in Name column - click OK.

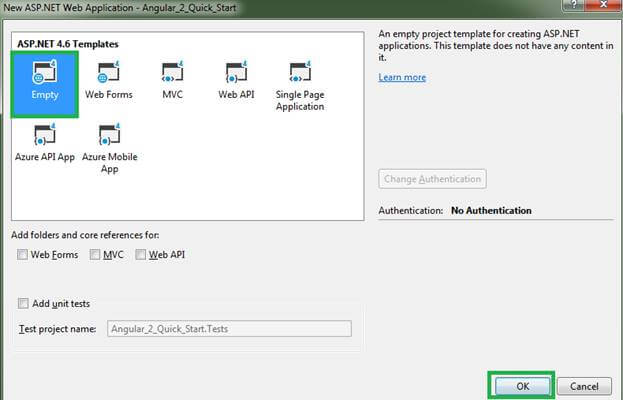

Now “New ASP.NET Web Application – Angular_2_Quick_Start” window will be open. Select Empty and click OK.

Visual Studio

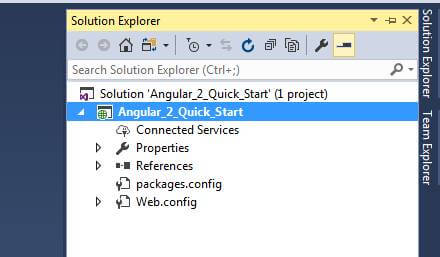

Now Empty ASP.NET Web Application will be opened after clicking ok. We can see the empty web application folder structure.

Visual Studio

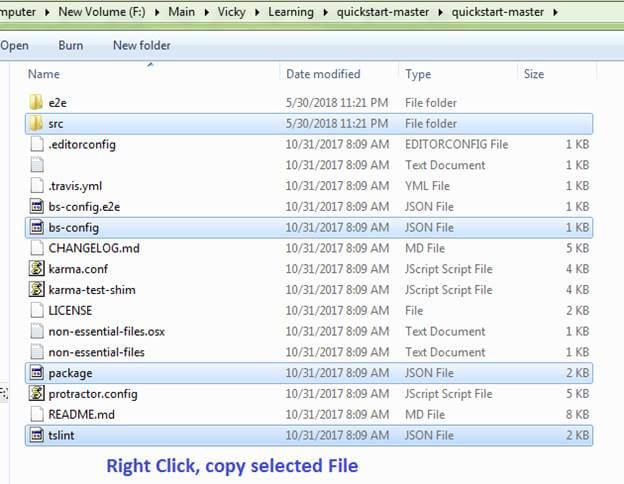

Already, we downloaded Angular 2 QuickStart source as a ZIP file and extracted it. Go to that folder, select and copy the below-mentioned files.

  • src
  • bs-config.json
  • json
  • json

Visual Studio

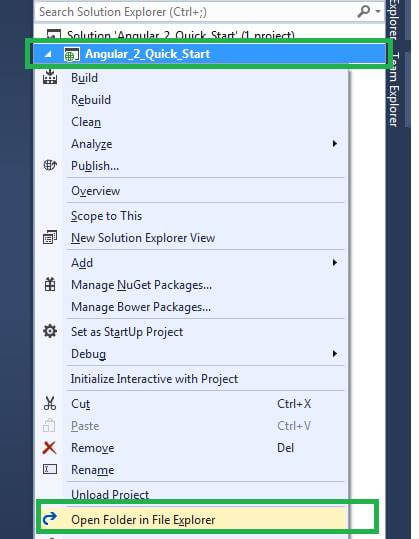

Go to the empty ASP.Net Web application.  Select Project - Right Click - Open Folder in File Explorer.

Visual Studio

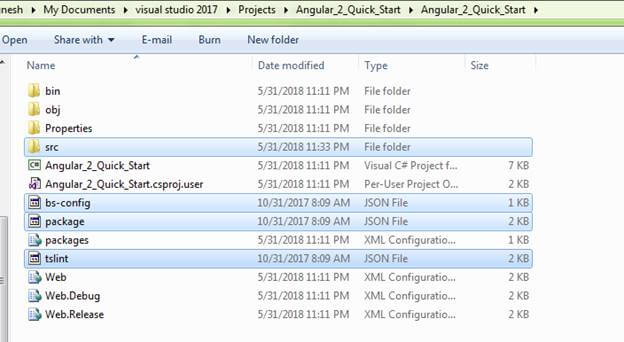

Paste in now opened location from the files copied from Angular 2 QuickStart sources. We can see the pasted files look like the below screenshot.

Visual Studio

After pasting copied files, click “Show All Files” in Solution Explorer.

Visual Studio

After clicking “Show All Files” all pasted files will be shown in Explorer.

Visual Studio

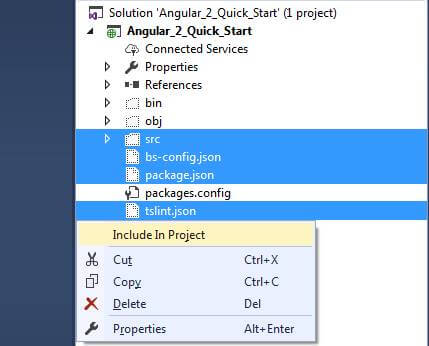

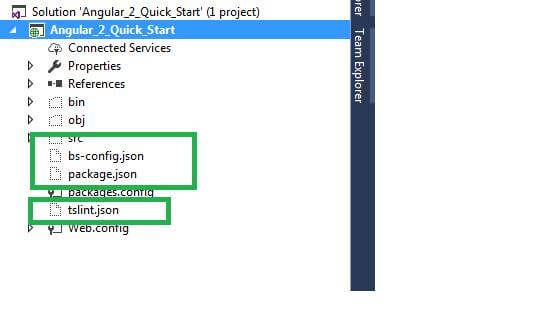

I am only showing the pasted files in Solution Explorer. Now we need to include those files. First select four files, right click and go to “Include In Project” then click. Now those files will be included in our project.

Visual Studio

 After including our file we can see the below screenshot.

Visual Studio



Restore Packages

Package.json file contains the packages as well as the versions we are using in our Angular quick start. Currently, we do not have “node_modules” folder in our solution. Node module folder contains all packages so we need to restore Package.json to download all packages.

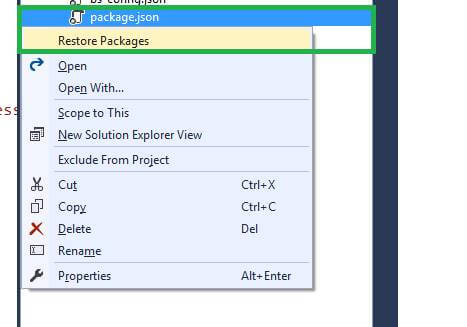

Go to “Package.json” in solution explorer and right click then click “Restore Packages”.

Visual Studio

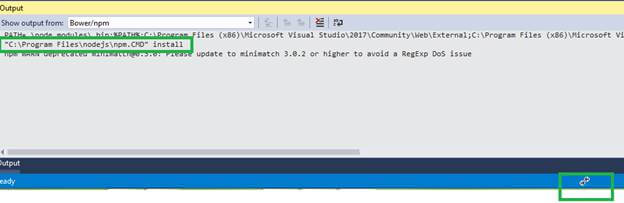

After clicking Package Restore, start to install all packages. We can see the package installation process looks like the below screenshot.

Visual Studio

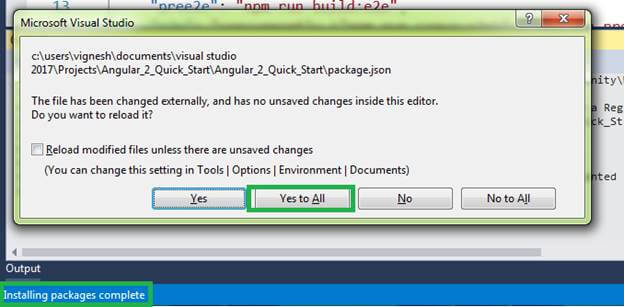

 After installing packages, we can see the “Package Installing Packages Complete”.  After completion, one popup window will be open. Click “Yes To All”.

Visual Studio

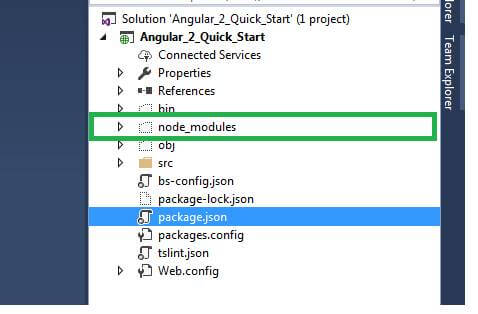

Go to solution explorer click “Show All Files” previously mentioned. Now we can see the node_module folder in our solution explorer, do not include node_module folder in our project.

Visual Studio



Now save our project and open command prompt. Go to our project path in command prompt.

Visual Studio

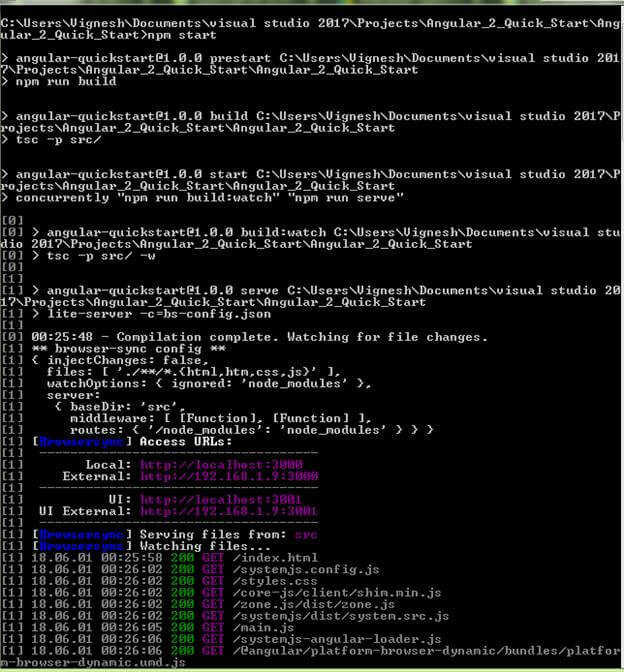

After reaching our project path in command prompt, type “npm start” command to run our Angular 2 quick start application.

Visual Studio

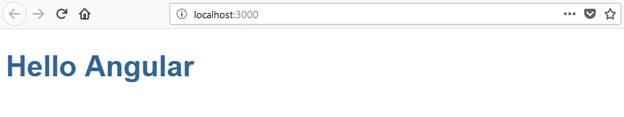

 After executing our application using “npm start” command it will run and look like the above screenshots then launch the browser and execute the output which will look like below.

Visual Studio



We can run this application using “npm start” command but cannot use “F5” or Run icon in Visual Studio 2017. The next article explains how to execute our project using “F5” or run icon.

Conclusion

This article explained how to configure Angular 2 QuickStart source with Visual Studio 2017 in a step by step way. I hope this helps new learners.
