Create Repeating Section In PowerApps Edit Form - Step By Step - Part Two

Repeating section is a key feature of InfoPath forms. Now, if we move to PowerApps, how we can achieve the functionality of the InfoPath Form’s repeating section? This two part article series will help you to find the answer to your questions. During this article we will retrieve the values of the of the repeating section in Edit Mode of the form.

Overview


In this article, we will create the Repeating Section with PowerApps forms in Edit Form.

I divided the creation of Repeating section into two parts. If you didn’t visit the first part of this article, please visit my first article.
So, now let’s get started!

In Part 1 of the article, we have created the concatenated string to store the value of the repeating section. Here, we need to retrieve those values in the Edit mode of the form.

The basic concept we are going to use here is,
  • We will create the Edit Form.
  • We will navigate to Edit Form using PowerApps Gallery Grid.
  • On Select of the Gallery, we will get the context of the selected item.
  • Once we get the selected item, we will store concatenated value into one variable.
  • On Screen ‘s Visible event we will parse the string and show the values in the Repeating Section.
Download Code

I added the code to download for your practice on GITHUB.

Let’s get started!

Step 1

Below is the Home Page of the app.

Write the below code on the “OnSelect” event of the gallery.
  1. Navigate(EditPage,ScreenTransition.None,{SelectedItem:Gallery1.Selected})
Create Repeating Section In PowerApps Edit Form

Step 2
  1. Let’s create an Edit Page.

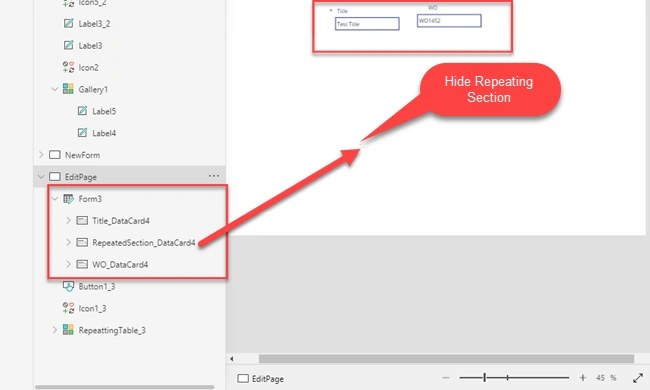

  2. Create a New screen and add Edit Form. Hide the repeating section.

    Create Repeating Section In PowerApps Edit Form

  3. Add the following code in below events of the form.

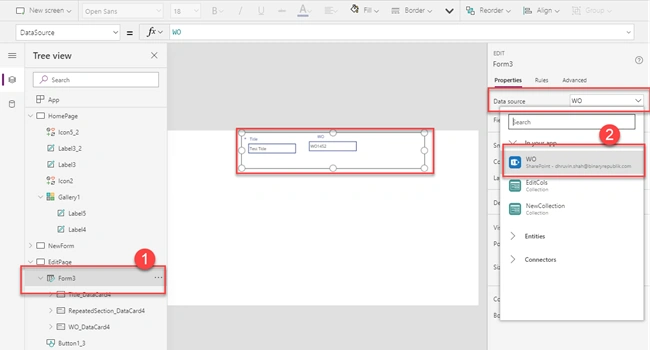

Data Source


Select WO.

Create Repeating Section In PowerApps Edit Form

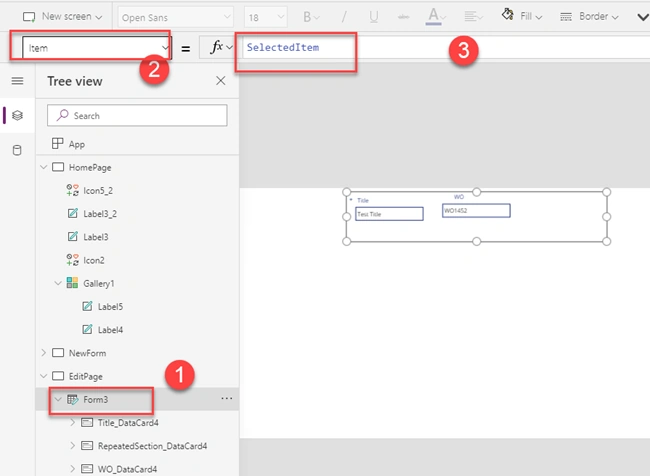

Item


Add “SelectedItem” which we have passed as a variable in step 1.2

Create Repeating Section In PowerApps Edit Form

Add the following code snippet in the OnVisible event of the edit form.
  1. UpdateContext({EditStringVal: SelectedItem.RepeatedSection});
  2. Clear(EditCols);
  3. Set(
  4.     Editstr,
  5.     SelectedItem.RepeatedSection
  6. );
  7. Set(
  8.     Editstr,
  9.     Left(
  10.         Editstr,
  11.         Len(Editstr) - 1
  12.     )
  13. );
  14. ForAll(
  15.     Split(
  16.         Editstr,
  17.         "|"
  18.     ),
  19.     Collect(
  20.         EditCols,
  21.         {
  22.             CItemSerialNumber: Text(
  23.                 Last(
  24.                     FirstN(
  25.                         Split(
  26.                             Result,
  27.                             ";"
  28.                         ).Result,
  29.                         1
  30.                     ).Result
  31.                 ).Result
  32.             ),
  33.             Clevel: Text(
  34.                 Last(
  35.                     FirstN(
  36.                         Split(
  37.                             Result,
  38.                             ";"
  39.                         ).Result,
  40.                         2
  41.                     ).Result
  42.                 ).Result
  43.             ),
  44.             Ctc: Text(
  45.                 Last(
  46.                     FirstN(
  47.                         Split(
  48.                             Result,
  49.                             ";"
  50.                         ).Result,
  51.                         3
  52.                     ).Result
  53.                 ).Result
  54.             ),
  55.             Cdescription: Text(
  56.                 Last(
  57.                     FirstN(
  58.                         Split(
  59.                             Result,
  60.                             ";"
  61.                         ).Result,
  62.                         4
  63.                     ).Result
  64.                 ).Result
  65.             )
  66.         }
  67.     )
  68. )
Create Repeating Section In PowerApps Edit Form

Now let’s add the Gallery control with labels, buttons, and dropdowns.

Create Repeating Section In PowerApps Edit Form

In Items > Add “EditCols” collection which we have created in the above section.

Now, let’s add the code snippet for the following sections.

Create Repeating Section In PowerApps Edit Form

New button Code
  1. Collect(
  2.     EditCols,
  3.     {
  4.         CItemSerialNumber: Text(Last(EditCols).CItemSerialNumber + 1),
  5.         Clevel: "",
  6.         Ctc: "",
  7.         Cdescription: ""
  8.     }
  9. )
Create Repeating Section In PowerApps Edit Form

Close Button Code
  1. RemoveIf(EditCols,CItemSerialNumber = ThisItem.CItemSerialNumber)
Create Repeating Section In PowerApps Edit Form

Save button Code
  1. UpdateContext(
  2.     {
  3.         EditStringVal: Concat(
  4.             RepeattingTable_3.AllItems,
  5.             Concatenate(
  6.                 'sr.no_edit'.Text,
  7.                 ";",
  8.                 drpedit.SelectedText.Value,
  9.                 ";",
  10.                 technicalcontent_edit.Text,
  11.                 ";",
  12.                 description_edit.Text,
  13.                 ";",
  14.                 "|"
  15.             )
  16.         )
  17.     }
  18. );
  19. SubmitForm(Form3);
Create Repeating Section In PowerApps Edit Form

Now, let’s add the following variable as a default value for the Repeating section data card which we hide in the second step of this section.

Create Repeating Section In PowerApps Edit Form

Now, let’s test the functionality!


Testing

  1. Navigate from the Grid.

    Create Repeating Section In PowerApps Edit Form

  2. Add a New Row.

    Create Repeating Section In PowerApps Edit Form

  3. Click on Save button.
  4. The row has been saved.

Conclusion


This is how we can retrieve values of the repeating section in the PowerApps Edit Form. I hope you love this article. Stay connected with me for more amazing articles!

Happy PowerApping!!
