Create Site Column In SharePoint From OOB And JSOM

In this article, I would like to share the steps to create site column and code to create the site column in SharePoint using JSOM. Most of us know how to create column in SharePoint list.

In this article, I would like to share the steps to create a site column and code to create the site column in SharePoint using JSOM. Most of us know how to create a column in a SharePoint list. If we create a field as a site column, we can reuse the column in multiple lists when we need the same data type and column.

SharePoint Columns

  • SharePoint list is used to categorize and group the columns and track the information in lists and libraries
  • Multiple data types can be used in a column, such as a single line of text, multi-line of text, person or group, number, dropdown list etc.

Steps to create a site column

Follow the below-listed steps to create a site column.

Step 1

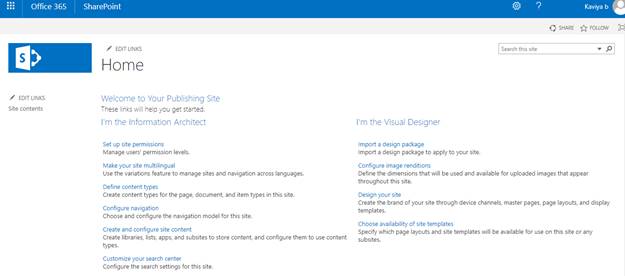

Open the SharePoint site on your browser.

SharePoint

Step 2

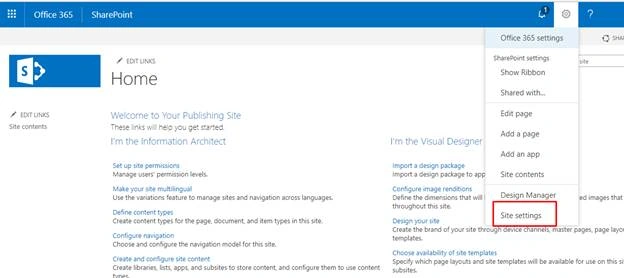

Then, go to the "Site Settings" page by clicking the gear icon on the site.

SharePoint

 Step 3

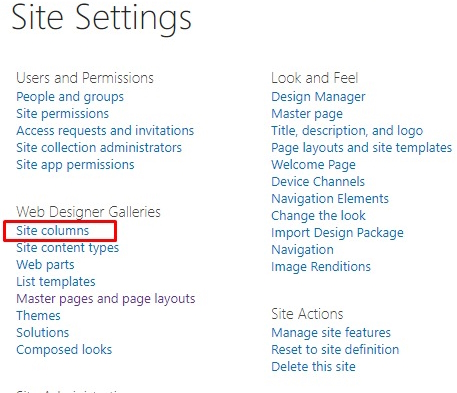

On the Site Settings page, you can see site columns under the “Web Designer galleries” category as shown below.

SharePoint

Step 4

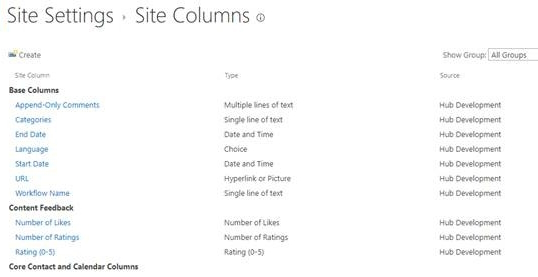

Then, we can create the column in site columns page.

SharePoint



Step 5

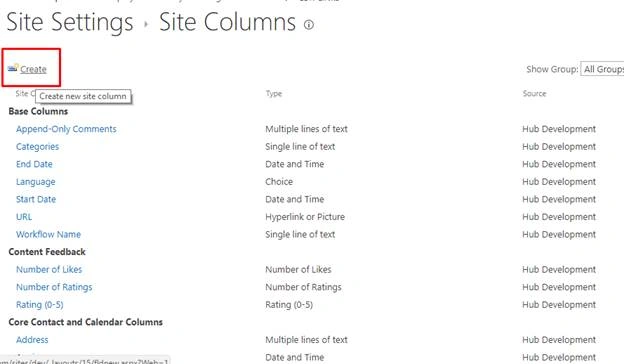

Click “Create” button to create a new site column as shown below.

SharePoint



Step 6

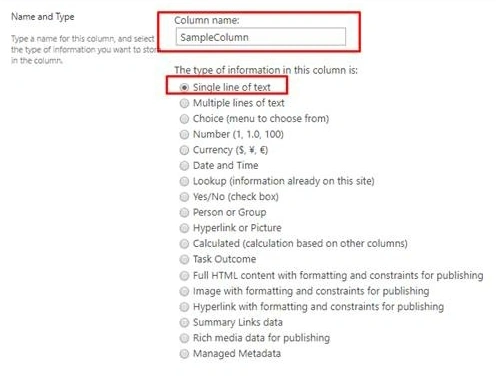

On "Create Column" page, provide field name and select the type in “Name and Type” category, as shown below.

SharePoint

Step 7

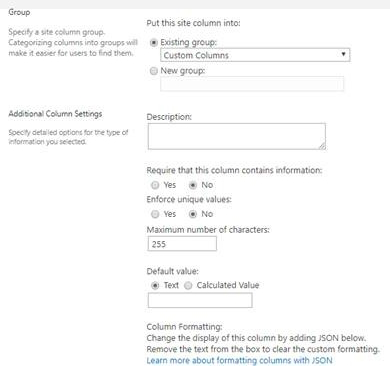

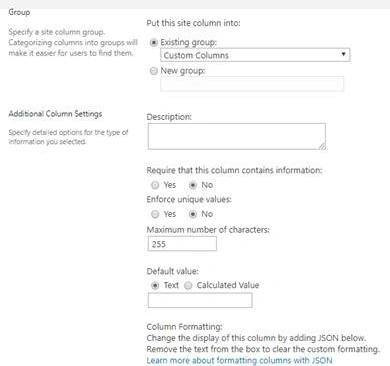

Then, select the group and additional column settings and click “OK” button to create a new field.

SharePoint

SharePoint

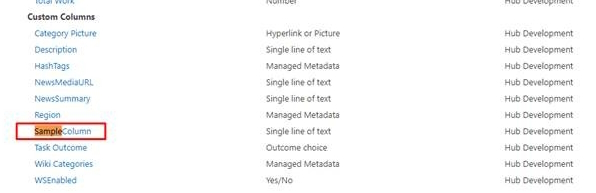

Finally, you can see the site field in Custom column group.

SharePoint

Here is the code to create site column using JavaScript Object Model.

  1. $(document).ready(function()
  2. {
  3. createSiteField();
  4. });
  5.
  6. function createSiteField() {
  7.    var context = new SP.ClientContext.get_current();
  8.    var web = context.get_web();
  9.    var fields = web.get_fields();
  10.    var fldSchema = '<Field Type="Text" \
  11.                              Name="sampleColumn" \
  12.                              DisplayName="Test SiteColumn" \
  13.                              Required="TRUE" \
  14.                              Group="Gowtham Columns" />';
  15.    fields.addFieldAsXml(fldSchema);
  16.    context.executeQueryAsync(Success,Fail);
  17.
  18. }
  19.
  20. function Success() {
  21.    alert('SiteColumn is created successfully');
  22.
  23. }
  24.
  25. function Fail()  {
  26.    alert('site column Creation Failed');
  27.
  28. }

Summary

In this article, we have explored how to create a site column in SharePoint using UI and using JavaScript object model.
