Introduction

In this article, you will see how to create a strongly typed view in the MVC4 Web API. When we create a strongly typed view the main benefit is that we can send the data in object form.

Use the following procedure to create the sample application.

Step 1

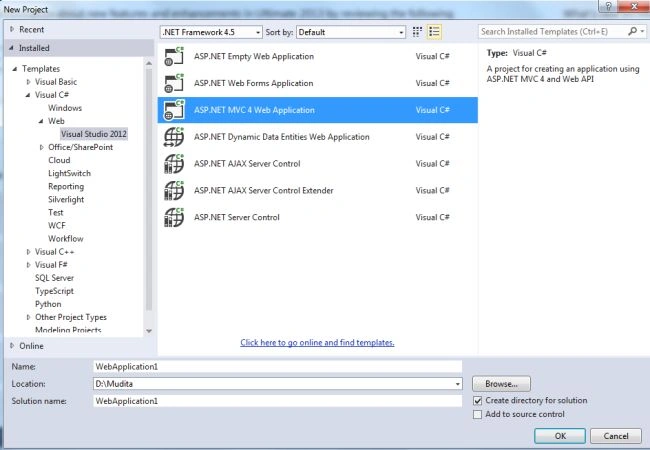

Create the application using the Web API.

Step 2

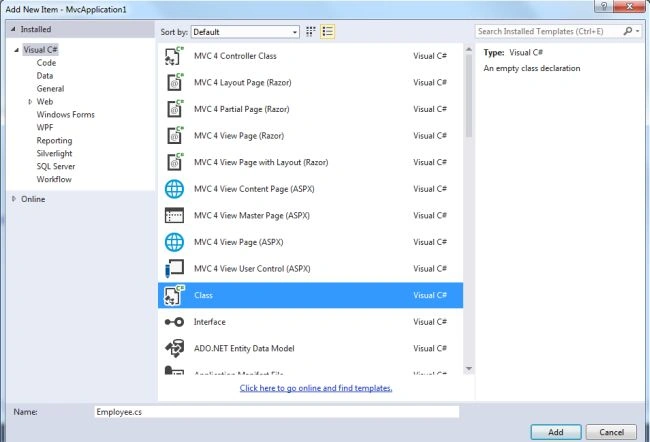

Create a Model class as in the following:

Add the following Code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace MvcApplication1.Models
  6. {
  7. public class Employee
  8. {
  9. public string Name { get; set; }
  10. public string Address { get; set; }
  11. public string Designation { get; set; }
  12. }
  13. }

Step 3

Create a Controller as in the following:

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using MvcApplication1.Models;
  7. namespace MvcApplication1.Controllers
  8. {
  9. public class EmployeeController : Controller
  10. {
  11. //
  12. // GET: /Employee/
  13. public ActionResult Index()
  14. {
  15. return View();
  16. }
  17. public ActionResult Display(Employee emp)
  18. {
  19. string Name = emp.Name;
  20. string Address = emp.Address;
  21. string Designation = emp.Designation;
  22. return Content("Name:" + Name + "Address:" + emp.Address + "Designation:" +emp.Designation);
  23. }
  24. }
  25. }

Step 4

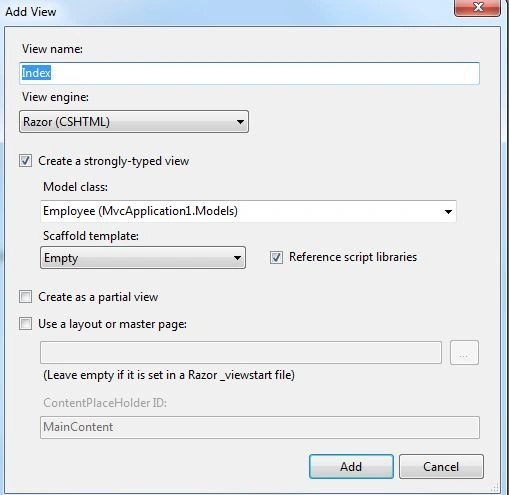

Add a new View as in the following:

Add the following Code:

  1. @model MvcApplication1.Models.Employee
  2. @{
  3. Layout = null;
  4. }
  5. <!DOCTYPE html>
  6. <html>
  7. <head>
  8. <meta name="viewport" content="width=device-width" />
  9. <title>Index</title>
  10. </head>
  11. <body>
  12. <div>
  13. @using (Html.BeginForm("Display", "Employee", FormMethod.Post))
  14. {
  15. @Html.LabelFor(m => m.Name)
  16. @Html.TextBoxFor(m => m.Name)
  17. @Html.LabelFor(m => m.Address)
  18. @Html.TextBoxFor(m => m.Address);
  19. @Html.LabelFor(m => m.Designation)
  20. @Html.TextBoxFor(m => m.Designation);
  21. <input type="submit" name="Submit" value="submit" />
  22. }
  23. </div>
  24. </body>
  25. </html>

Step 5

Execute the application.

Output detail

Click on the "Submit" Button.

Show Detail
