Creating Charts With ASP.NET Core

In this article, I will be explaining how to integrate chart.js with your Asp.Net Core application with 4 different types of charts, which are:

Pie
Bar
Line
Stacked Bar

Creation and usage of the Pie, Bar and Line Charts are very similar but the stacked chart is a bit more complex. Basically, a chart is a key-value list grouped in an animated way making it easier to understand and see the numbers, except for the stacked chart which has two keys and a value. A more detailed explanation will be placed with each example.

What is chart.js?

"Simple, clean and engaging HTML5 based JavaScript charts. Chart.js is an easy way to include animated, interactive graphs on your website for free." https://www.chartjs.org/

Pre-requisite?

We have two prerequisites that must be loaded at every each view with a chart as content, and they are the Jquery and Chart.js libraries:

<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.bundle.min.js"></script>
<script src="https://code.jquery.com/jquery-3.3.1.min.js"></script>

Models used here

SimpleReportViewModel

public class SimpleReportViewModel
{
public string DimensionOne { get; set; }
public int Quantity { get; set; }
}

StackedViewModel

public class StackedViewModel
{
public string StackedDimensionOne { get; set; }
public List<SimpleReportViewModel> LstData { get; set; }
}

Bar Chart

Controller Action

public IActionResult Bar()
{
private Random rnd = new Random();
//list of department
var lstModel = new List<SimpleReportViewModel>();
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Technology",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Sales",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Marketing",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Human Resource",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Research and Development",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Acconting",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Support",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Logistics",
Quantity = rnd.Next( 10 )
} );
return View( lstModel );
}

View

@model List<SimpleReportViewModel>
@{
var XLabels = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.DimensionOne ).ToList() );
var YValues = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.Quantity ).ToList() );
ViewData["Title"] = "Bar Chart";
}
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>Bar</title>
</head>
<body>
<div class="box-body">
<div class="chart-container">
<canvas id="chart" style="width:100%; height:500px"></canvas>
</div>
</div>
</body>
</html>
<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.bundle.min.js"></script>
<script src="https://code.jquery.com/jquery-3.3.1.min.js"></script>
<script type="text/javascript">
$(function () {
var chartName = "chart";
var ctx = document.getElementById(chartName).getContext('2d');
var data = {
labels: @Html.Raw(XLabels),
datasets: [{
label: "Departments Chart",
backgroundColor: [
'rgba(255, 99, 132, 0.2)',
'rgba(54, 162, 235, 0.2)',
'rgba(255, 206, 86, 0.2)',
'rgba(75, 192, 192, 0.2)',
'rgba(153, 102, 255, 0.2)',
'rgba(255, 159, 64, 0.2)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderColor: [
'rgba(255,99,132,1)',
'rgba(54, 162, 235, 1)',
'rgba(255, 206, 86, 1)',
'rgba(75, 192, 192, 1)',
'rgba(153, 102, 255, 1)',
'rgba(255, 159, 64, 1)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderWidth: 1,
data: @Html.Raw(YValues)
}]
};
var options = {
maintainAspectRatio: false,
scales: {
yAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: true,
color: "rgba(255,99,164,0.2)"
}
}],
xAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: false
}
}]
}
};
var myChart = new Chart(ctx, {
options: options,
data: data,
type:'bar'
});
});
</script>

Result

Explanation

Here we use the SimpleReportViewModel because we have a simple bar chart with a department list and their head number

Pie Chart

Controller Action

public IActionResult Pie()
{
private Random rnd = new Random();
//list of drinks
var lstModel = new List<SimpleReportViewModel>();
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Beer",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Wine",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Whisky",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Water",
Quantity = rnd.Next( 10 )
} );
return View( lstModel );
}

View

@using System.Linq;
@model List<SimpleReportViewModel>
@{
var XLabels = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.DimensionOne ).ToList() );
var YValues = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.Quantity ).ToList() );
ViewData["Title"] = "Pie Chart";
}
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>Pie</title>
</head>
<body>
<div class="box-body">
<div class="chart-container">
<canvas id="chart" style="width:100%; height:500px"></canvas>
</div>
</div>
</body>
</html>
<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.bundle.min.js"></script>
<script src="https://code.jquery.com/jquery-3.3.1.min.js"></script>
<script type="text/javascript">
$(function () {
var chartName = "chart";
var ctx = document.getElementById(chartName).getContext('2d');
var data = {
labels: @Html.Raw(XLabels),
datasets: [{
label: "Drinks Chart",
backgroundColor: [
'rgba(255, 99, 132, 0.2)',
'rgba(54, 162, 235, 0.2)',
'rgba(255, 206, 86, 0.2)',
'rgba(75, 192, 192, 0.2)',
'rgba(153, 102, 255, 0.2)',
'rgba(255, 159, 64, 0.2)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderColor: [
'rgba(255,99,132,1)',
'rgba(54, 162, 235, 1)',
'rgba(255, 206, 86, 1)',
'rgba(75, 192, 192, 1)',
'rgba(153, 102, 255, 1)',
'rgba(255, 159, 64, 1)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderWidth: 1,
data: @Html.Raw(YValues)
}]
};
var options = {
maintainAspectRatio: false,
scales: {
yAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: true,
color: "rgba(255,99,164,0.2)"
}
}],
xAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: false
}
}]
}
};
var myChart = new Chart(ctx, {
options: options,
data: data,
type:'pie'
});
});
</script>

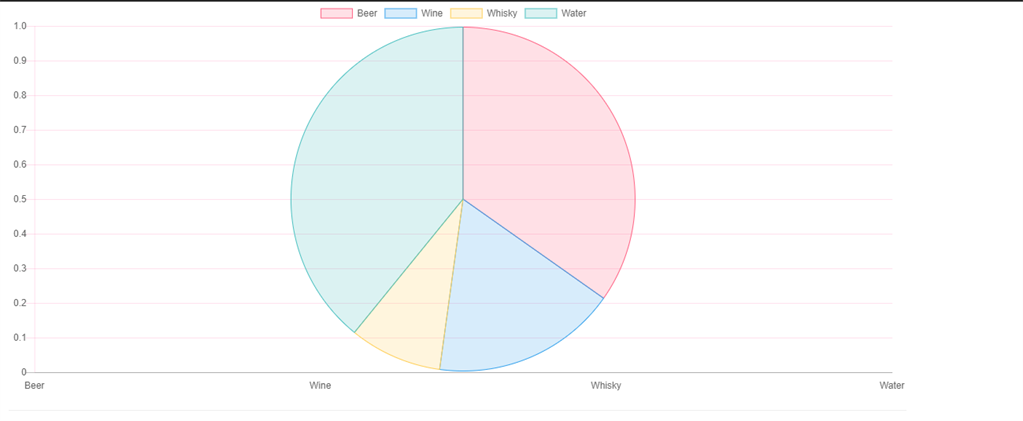

Result

Explanation

Here we also use the SimpleReportViewModel because we have a simple pie chart with a drink list and their quantity number.

Line Chart

Controller Action

public IActionResult Line()
{
private Random rnd = new Random();
//list of countries
var lstModel = new List<SimpleReportViewModel>();
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Brazil",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "USA",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Portugal",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Russia",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Ireland",
Quantity = rnd.Next( 10 )
} );
lstModel.Add( new SimpleReportViewModel
{
DimensionOne = "Germany",
Quantity = rnd.Next( 10 )
} );
return View( lstModel );
}

View

@model List<SimpleReportViewModel>
@{
var XLabels = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.DimensionOne ).ToList() );
var YValues = Newtonsoft.Json.JsonConvert.SerializeObject( Model.Select( x => x.Quantity ).ToList() );
ViewData["Title"] = "Line Chart";
}
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>Line</title>
</head>
<body>
<div class="box-body">
<div class="chart-container">
<canvas id="chart" style="width:100%; height:500px"></canvas>
</div>
</div>
</body>
</html>
<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.bundle.min.js"></script>
<script src="https://code.jquery.com/jquery-3.3.1.min.js"></script>
<script type="text/javascript">
$(function () {
var chartName = "chart";
var ctx = document.getElementById(chartName).getContext('2d');
var data = {
labels: @Html.Raw(XLabels),
datasets: [{
label: "Countries Chart",
backgroundColor: [
'rgba(255, 99, 132, 0.2)',
'rgba(54, 162, 235, 0.2)',
'rgba(255, 206, 86, 0.2)',
'rgba(75, 192, 192, 0.2)',
'rgba(153, 102, 255, 0.2)',
'rgba(255, 159, 64, 0.2)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderColor: [
'rgba(255,99,132,1)',
'rgba(54, 162, 235, 1)',
'rgba(255, 206, 86, 1)',
'rgba(75, 192, 192, 1)',
'rgba(153, 102, 255, 1)',
'rgba(255, 159, 64, 1)',
'rgba(255, 0, 0)',
'rgba(0, 255, 0)',
'rgba(0, 0, 255)',
'rgba(192, 192, 192)',
'rgba(255, 255, 0)',
'rgba(255, 0, 255)'
],
borderWidth: 1,
data: @Html.Raw(YValues)
}]
};
var options = {
maintainAspectRatio: false,
scales: {
yAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: true,
color: "rgba(255,99,164,0.2)"
}
}],
xAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
gridLines: {
display: false
}
}]
}
};
var myChart = new Chart(ctx, {
options: options,
data: data,
type:'line'
});
});
</script>

Result

Explanation

Here we also use the SimpleReportViewModel because we have a simple line chart with a country list and their quantity number.

Stacked Chart

Controller Action

public IActionResult Stacked()
{
private Random rnd = new Random();
var lstModel = new List<StackedViewModel>();
//sales of product sales by quarter
lstModel.Add( new StackedViewModel
{
StackedDimensionOne = "First Quarter",
LstData = new List<SimpleReportViewModel>()
{
new SimpleReportViewModel()
{
DimensionOne="TV",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Games",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Books",
Quantity = rnd.Next(10)
}
}
} );
lstModel.Add( new StackedViewModel
{
StackedDimensionOne = "Second Quarter",
LstData = new List<SimpleReportViewModel>()
{
new SimpleReportViewModel()
{
DimensionOne="TV",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Games",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Books",
Quantity = rnd.Next(10)
}
}
} );
lstModel.Add( new StackedViewModel
{
StackedDimensionOne = "Third Quarter",
LstData = new List<SimpleReportViewModel>()
{
new SimpleReportViewModel()
{
DimensionOne="TV",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Games",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Books",
Quantity = rnd.Next(10)
}
}
} );
lstModel.Add( new StackedViewModel
{
StackedDimensionOne = "Fourth Quarter",
LstData = new List<SimpleReportViewModel>()
{
new SimpleReportViewModel()
{
DimensionOne="TV",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Games",
Quantity = rnd.Next(10)
},
new SimpleReportViewModel()
{
DimensionOne="Books",
Quantity = rnd.Next(10)
}
}
} );
return View( lstModel );
}

View

@model List < StackedViewModel > @ {
var XLabels = Newtonsoft.Json.JsonConvert.SerializeObject(Model.FirstOrDefault().LstData.Select(x => x.DimensionOne).ToList());
var YValues = Newtonsoft.Json.JsonConvert.SerializeObject(Model.Select(x => x.LstData.Select(w => w.Quantity)).ToList());
var label2 = Newtonsoft.Json.JsonConvert.SerializeObject(Model.Select(x => x.StackedDimensionOne).ToList());
ViewData["Title"] = "Stacked Chart";
} < !DOCTYPE html > < html > < head > < meta name = "viewport"
content = "width=device-width" / > < title > Stacked < /title> < /head> < body > < div class = "box-body" > < div class = "chart-container" > < canvas id = "chartStacked"
style = "width:100%; height:500px" > < /canvas> < /div> < /div> < /body> < /html> < script src = "https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.bundle.min.js" > < /script> < script src = "https://code.jquery.com/jquery-3.3.1.min.js" > < /script> < script type = "text/javascript" > $(function() {
var chartName = "chartStacked";
var ctx = document.getElementById(chartName).getContext('2d');
var XLabels = @Html.Raw(XLabels);
var YValues = @Html.Raw(YValues);
var label = @Html.Raw(label2);
var aux = 0;
var barChartData = {
labels: @Html.Raw(label2),
datasets: []
}
XLabels.forEach(function(a, i) {
var data = [];
YValues.forEach(function(a, i) {
data.push(a[aux]);
});
barChartData.datasets.push({
label: XLabels[aux],
backgroundColor: random_rgba(),
data: data
});
aux++;
});
var options = {
maintainAspectRatio: false,
scales: {
yAxes: [{
ticks: {
min: 0,
beginAtZero: true
},
stacked: true,
gridLines: {
display: true,
color: "rgba(255,99,164,0.2)"
}
}],
xAxes: [{
stacked: true,
gridLines: {
display: false
}
}]
}
};
function random_rgba() {
var o = Math.round,
r = Math.random,
s = 255;
return 'rgba(' + o(r() * s) + ',' + o(r() * s) + ',' + o(r() * s) + ',' + r().toFixed(1) + ')';
}
var myChart = new Chart(ctx, {
options: options,
data: barChartData,
type: 'bar'
});
}); < /script>

Result

Explanation

Here we use the StackedViewModel because we have a stacked chart with the number of product sales by quarter.

Ps.: Javascript is needed here to order the data from the model to chart.js dataset.

Congratulations, you have successfully integrated Chart.Js with your Asp.net Core application.

Project on GitHub

22 Comments

Join the conversation! Your thoughts help the community grow.

Kanan Garazada5y ago
Thank You very much you are perfect
Harvey Triana6y ago
Clear and clean. Thank you.
- Thiago Vivas6y ago
  Thanks Harvey, those were exactly my intention when creating articles. I am glad you liked it.
vijendra singh6y ago
The xAxis name are not visible if yAxis value is 0 in bar char. Can you suggest a solution ?
lalit bhardwaj6y ago
These are good example for chart.js core. I want to use group bar chart with database. Could you suggest me or share any example or reference .
- Thiago Vivas6y ago
  Hello Lalit, thanks for the compliment. There is a bar chart in the article samples, you have to prepare your data from the database in order to present, and replace the random data created in the controller with this data from the database.
Francis Amooti7y ago
How do i add data from a mode rather than a random number generated everytime. Like add data from one property of the model
- Francis Amooti7y ago
  Im new to asp.net core. How do i add the key value pair
- Thiago Vivas7y ago
  Hi Francis. Thanks for reading the article.You may handle your model as you wish as far as you return one object with a Key-Value pair to your view.
- Thiago Vivas7y ago
  You may read more about key-value pair here:
Mike Doerr7y ago
Fantastic! Thank you for this.
- Thiago Vivas7y ago
  Thank you very much, I'm glad you liked it
Michael White8y ago
These work great as long as they are in a Razor page, but I can't seem to get a chart to render within a Razor view. I suspect the script is not firing within the view, any advice?
- Maroš Klempa8y ago
  Michael, you are right, script is not fired in Razor view page. Thiago, there is no error message. Place where chart have to be rendered is empty. Any idea how to show chart also on Razor view page?
- Thiago Vivas8y ago
  Thanks Michael. Which error are you facing? Can you give me more details?
Paulo Assunção8y ago
Hi, awesome article, thank you very much for it. By the way, how do I put the labels for the pie chart on the left, instead of on top? Thank you
- Thiago Vivas8y ago
  Thank you very much, I'm glad you liked it. You may find more information about labels in here: https://www.chartjs.org/docs/latest/configuration/legend.html
José Sánchez8y ago
Thank you so much for code! It is very helpfull. I would like to ask you if it is possible to load charts in Index.cshtml, without links.
- Thiago Vivas8y ago
  Hi Jose, I'm glad you liked it. Yes, you may load it in the Index.cshtml, the links are just redirecting you to their Views. Check in the Views/Charts folders that you have one view for each chart.
Naresh Singhal8y ago
Very well explained Bro @Thiago .....
- Thiago Vivas8y ago
  Thank you, Naresh!
