Introduction

In this article, we will learn how we can delete multiple records from Grid data, by using Web API 2, AngularJS, and Entity Framework.

Prerequisites

As I said earlier, we are going to use MVC application with AngularJS. For this, you must have Visual Studio 2015 (.NET Framework 4.5.2) and SQL Server.

SQL Database part

Here, you will find the scripts to create database and table.

Create Database
  1. USE [master]
  2. GO
  3. /****** Object: Database [CustomerDB] Script Date: 9/21/2016 7:42:43 AM ******/
  4. CREATE DATABASE [CustomerDB]
  5. CONTAINMENT = NONE
  6. ON PRIMARY
  7. ( NAME = N'CustomerDB', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\CustomerDB.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  8. LOG ON
  9. ( NAME = N'CustomerDB_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\CustomerDB_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  10. GO
  11. ALTER DATABASE [CustomerDB] SET COMPATIBILITY_LEVEL = 110
  12. GO
  13. IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  14. begin
  15. EXEC [CustomerDB].[dbo].[sp_fulltext_database] @action = 'enable'
  16. end
  17. GO
  18. ALTER DATABASE [CustomerDB] SET ANSI_NULL_DEFAULT OFF
  19. GO
  20. ALTER DATABASE [CustomerDB] SET ANSI_NULLS OFF
  21. GO
  22. ALTER DATABASE [CustomerDB] SET ANSI_PADDING OFF
  23. GO
  24. ALTER DATABASE [CustomerDB] SET ANSI_WARNINGS OFF
  25. GO
  26. ALTER DATABASE [CustomerDB] SET ARITHABORT OFF
  27. GO
  28. ALTER DATABASE [CustomerDB] SET AUTO_CLOSE OFF
  29. GO
  30. ALTER DATABASE [CustomerDB] SET AUTO_CREATE_STATISTICS ON
  31. GO
  32. ALTER DATABASE [CustomerDB] SET AUTO_SHRINK OFF
  33. GO
  34. ALTER DATABASE [CustomerDB] SET AUTO_UPDATE_STATISTICS ON
  35. GO
  36. ALTER DATABASE [CustomerDB] SET CURSOR_CLOSE_ON_COMMIT OFF
  37. GO
  38. ALTER DATABASE [CustomerDB] SET CURSOR_DEFAULT GLOBAL
  39. GO
  40. ALTER DATABASE [CustomerDB] SET CONCAT_NULL_YIELDS_NULL OFF
  41. GO
  42. ALTER DATABASE [CustomerDB] SET NUMERIC_ROUNDABORT OFF
  43. GO
  44. ALTER DATABASE [CustomerDB] SET QUOTED_IDENTIFIER OFF
  45. GO
  46. ALTER DATABASE [CustomerDB] SET RECURSIVE_TRIGGERS OFF
  47. GO
  48. ALTER DATABASE [CustomerDB] SET DISABLE_BROKER
  49. GO
  50. ALTER DATABASE [CustomerDB] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  51. GO
  52. ALTER DATABASE [CustomerDB] SET DATE_CORRELATION_OPTIMIZATION OFF
  53. GO
  54. ALTER DATABASE [CustomerDB] SET TRUSTWORTHY OFF
  55. GO
  56. ALTER DATABASE [CustomerDB] SET ALLOW_SNAPSHOT_ISOLATION OFF
  57. GO
  58. ALTER DATABASE [CustomerDB] SET PARAMETERIZATION SIMPLE
  59. GO
  60. ALTER DATABASE [CustomerDB] SET READ_COMMITTED_SNAPSHOT OFF
  61. GO
  62. ALTER DATABASE [CustomerDB] SET HONOR_BROKER_PRIORITY OFF
  63. GO
  64. ALTER DATABASE [CustomerDB] SET RECOVERY SIMPLE
  65. GO
  66. ALTER DATABASE [CustomerDB] SET MULTI_USER
  67. GO
  68. ALTER DATABASE [CustomerDB] SET PAGE_VERIFY CHECKSUM
  69. GO
  70. ALTER DATABASE [CustomerDB] SET DB_CHAINING OFF
  71. GO
  72. ALTER DATABASE [CustomerDB] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  73. GO
  74. ALTER DATABASE [CustomerDB] SET TARGET_RECOVERY_TIME = 0 SECONDS
  75. GO
  76. ALTER DATABASE [CustomerDB] SET READ_WRITE
  77. GO
Create Table
  1. USE[CustomerDB]
  2. GO
  3. /****** Object: Table [dbo].[Customers] Script Date: 9/21/2016 7:43:07 AM ******/
  4. SET ANSI_NULLS ON
  5. GO
  6. SET QUOTED_IDENTIFIER ON
  7. GO
  8. SET ANSI_PADDING ON
  9. GO
  10. CREATE TABLE[dbo].[Customers](
  11. [CustomerID][int] NOT NULL, [CustomerName][varchar](50) NULL, [CustomerEmail][varchar](50) NULL, [CustomerZipCode][int] NULL, [CustomerCountry][varchar](50) NULL, [CustomerCity][varchar](50) NULL,
  12. CONSTRAINT[PK_Customers] PRIMARY KEY CLUSTERED(
  13. [CustomerID] ASC
  14. ) WITH(PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON[PRIMARY]
  15. ) ON[PRIMARY]
  16. GO
  17. SET ANSI_PADDING OFF
  18. GO

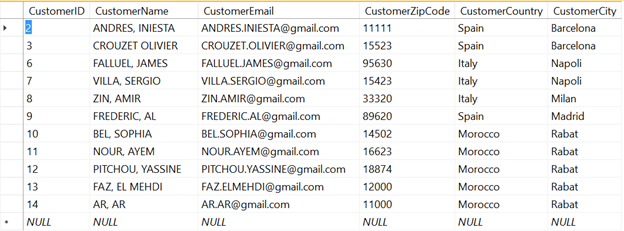

After creating the table, you can add some records as shown below.

table

Create your MVC application

Open Visual Studio and select File, click New Project.

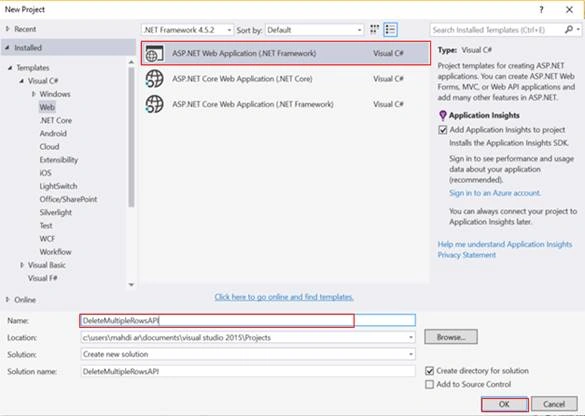

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

table

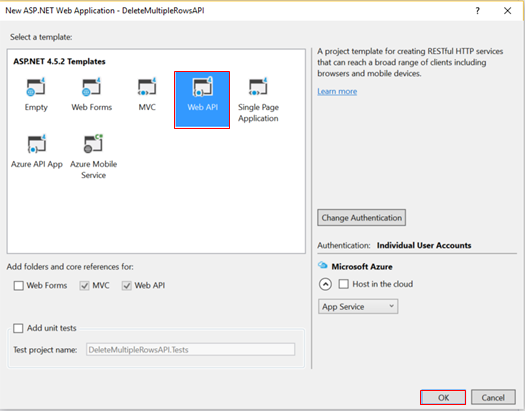

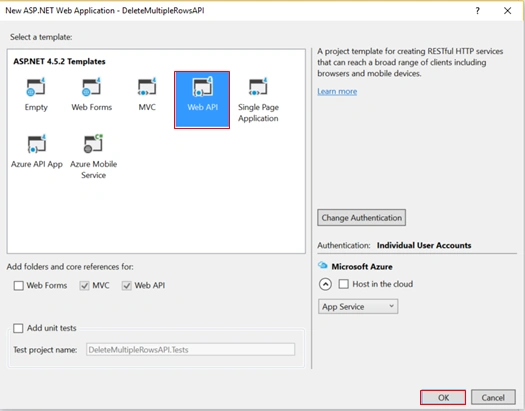

Next, new window will pop up for selecting the template. Choose Web API and click OK.

table

After creating our project, we are going to add ADO.NET Entity Data Model.

Adding ADO.NET Entity Data Model

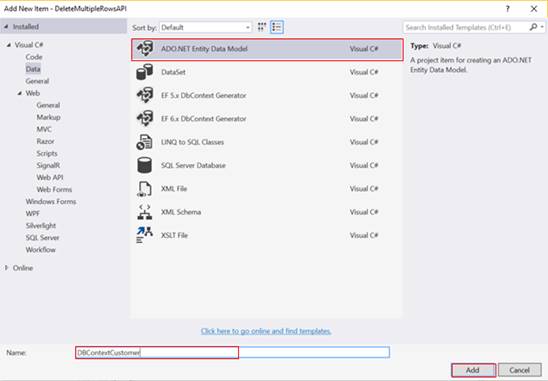

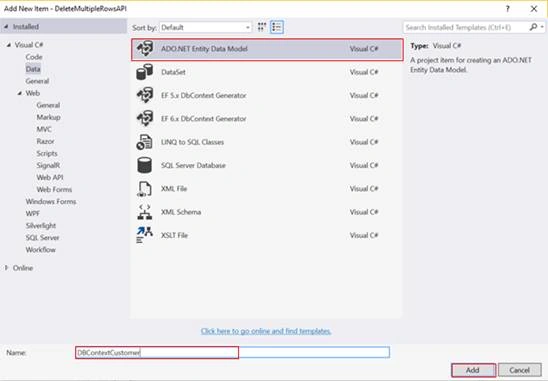

In order to add ADO.NET Entity Data Model, right click on the project name, click Add > Add New Item. New dialog box will pop up. Inside Visual C#, select Data >> ADO.NET Entity Data Model. Enter a name for your Dbcontext model as DbContextCustomer. Finally, click Add.

DbContextCustomer

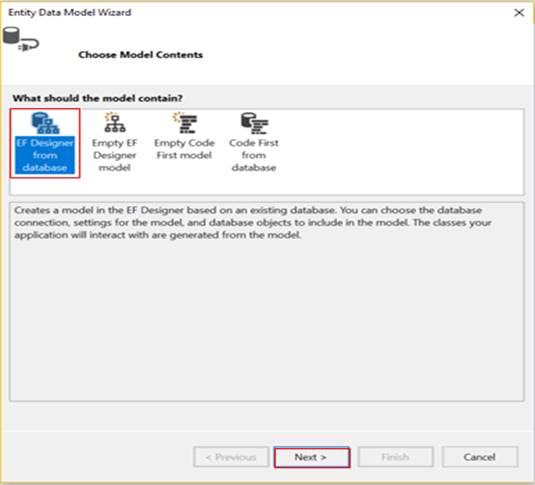

In this level, we are going to choose EF Designer from database, as shown below.

DbContextCustomer

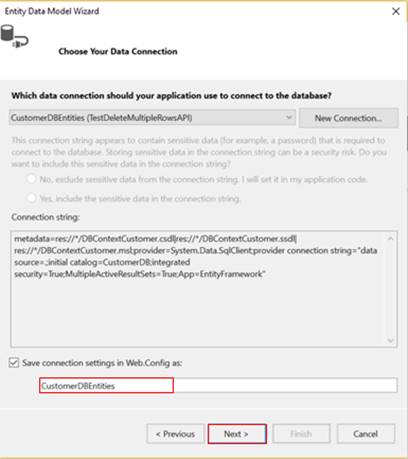

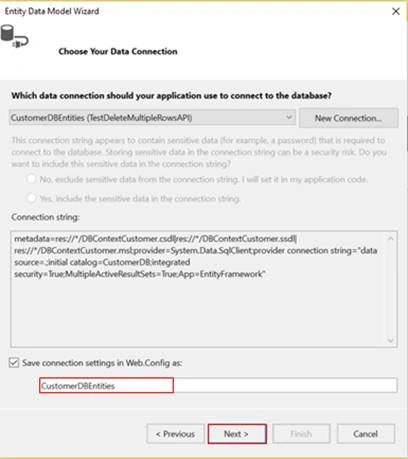

In this snapshot given below, we need to choose data connection which should be used to connect to the database. If the connection doesn’t exist, I will suggest you click on New connection button for creating the new one.

button for creating

After clicking on Next button, the Entity Data Model Wizard will pop up for choosing object which we want to use. In this example, we are going to choose customers table and click Finish button. Finally, we see that EDMX model generates customer class.

customer

Create a Controller

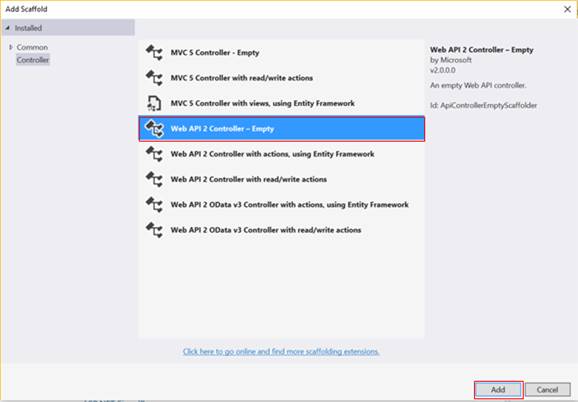

Now, we are going to create a Controller. Right click on the Controllers folder > Add > Controller> select Web API 2 Controller – Empty > click Add.

create a controller

Enter Controller name (‘CustomerController’).

create a controller

CustomerController.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7. using DeleteMultipleRowsAPI;
  8. namespace DeleteMultipleRowsAPI.Controllers {
  9. public class CustomerController: ApiController {
  10. //DbContext
  11. private CustomerDBEntities context = new CustomerDBEntities();
  13. //Get Customer List
  14. [HttpGet]
  15. public IEnumerable < Customer > GetAllCustomers() {
  16. var data = context.Customers.ToList();
  17. return data;
  18. }
  20. //Delete Customers
  21. [HttpPost]
  22. public HttpResponseMessage DeleteCustomers(int[] itemsSelected) {
  24. try {
  25. if (itemsSelected == null) {
  26. return Request.CreateResponse(HttpStatusCode.BadRequest, "Error null !");
  27. } else {
  28. for (int i = 0; i < itemsSelected.Length; i++) {
  29. var customer = context.Customers.Find(itemsSelected[i]);
  31. context.Customers.Remove(customer);
  33. }
  34. context.SaveChanges();
  35. return Request.CreateResponse(HttpStatusCode.OK, "Success !");
  36. }
  38. } catch (Exception ex) {
  40. return Request.CreateResponse(HttpStatusCode.BadRequest, ex);
  41. }
  42. }
  43. }
  44. }
After creating our Controller, it’s time to implement respectively two functions. GetAllCustomers() function which selects all the data from customers table, and Delete customers() function that takes an array of integer as parameter and performs the deletion of all records based on the array given as parameter.

AngularJS Part

 Now, we are going to create two JS files, AppCustomer.js and CustomerController.js respectively.

AppCustomers

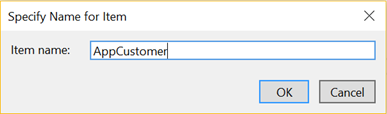

For doing this, right click on AppCustomers folder > Add > JavaScript file.

AppCustomers

AppCustomer.js
  1. var app = angular.module('myApp', ['ngRoute']);
  2. app.config(['$routeProvider', function($routeProvider) {
  3. $routeProvider.when('/CustomerGrid', {
  4. templateUrl: '/AppCustomers/Views/CustomerGrid.html',
  5. controller: 'CustomerController'
  6. }).otherwise({
  7. controller: 'CustomerController'
  8. });
  9. }]);
CustomerController.js
  1. app.controller('CustomerController', function($scope, $http, $window) {
  2. $scope.CustomerList = [];
  3. $http.get('api/Customer/GetAllCustomers').success(function(data) {
  4. $scope.CustomerList = data;
  5. }).error(function() {
  6. console.log('Something Wrong');
  7. });
  8. $scope.DeleteCustomer = function(list) {
  9. var itemList = [];
  10. angular.forEach(list, function(value, key) {
  11. if (list[key].selected) {
  12. itemList.push(list[key].selected);
  13. }
  14. });
  15. //console.log(itemList.length);
  16. $http.post("api/Customer/DeleteCustomers", itemList).success(function(data) {
  17. $window.alert(data);
  18. }).error(function(msg) {
  19. console.log(msg);
  20. });
  21. }
  22. });
Create html page

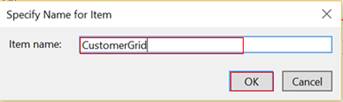

Now, we are going to add HTML file. For this right click on Views folder > Add > HTML Page.

Create html page

CustomerGrid.html
  1. <a href="" class="btn btn-primary" ng-click="DeleteCustomer(CustomerList)">Delete Multiple Rows selected</a>
  2. <br /><br />
  3. <div class="table-responsive">
  4. <table id="mytable" class="table table-bordred table-striped">
  5. <thead>
  6. <th></th>
  7. <th>Customer ID</th>
  8. <th>Customer Name</th>
  9. <th>Customer Email</th>
  10. <th>Customer ZipCode</th>
  11. <th>Customer Country</th>
  12. <th>Customer City</th>
  13. </thead>
  14. <tbody>
  15. <tr ng-repeat="item in CustomerList">
  16. <td><input type="checkbox" id="check1" ng-true-value="{{item.CustomerID}}" ng-false-value="''" ng-model="item.selected" /></td>
  17. <td>{{item.CustomerID}}</td>
  18. <td>{{item.CustomerName}}</td>
  19. <td>{{item.CustomerEmail}}</td>
  20. <td>{{item.CustomerZipCode}}</td>
  21. <td>{{item.CustomerCountry}}</td>
  22. <td>{{item.CustomerCity}}</td>
  23. </tr>
  24. </tbody>
  25. </table>
  26. </div>
Note - Don’t forget to call the following libraries inside Layout.cshtml.
  1. <!-- AngularJS Libraries-->
  2. <
  3. script src = "https://ajax.googleapis.com/ajax/libs/angularjs/1.4.7/angular.min.js" > < /script> <
  4. script src = "https://code.angularjs.org/1.4.7/angular-route.js" > < /script>
  5. <!--AppCustomer.js-->
  6. <
  7. script src = "~/AppCustomers/AppCustomer.js" > < /script>
  8. <!--CustomerController.js-->
  9. <
  10. script src = "~/AppCustomers/CustomerController.js" > < /script>

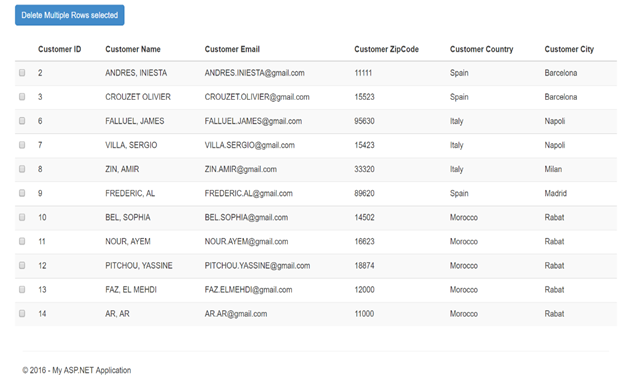

Output

Output
