Display Data In A DataGridView C# 6

This article is based on the original article that was previously written using an older version of Visual Studio. You can find the original article on the below link:

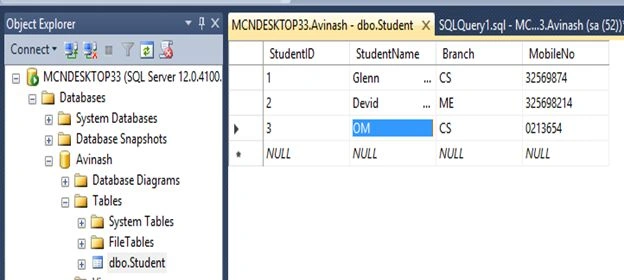

Step 1: Make a database with table in SQL Server.

1
Figure 1

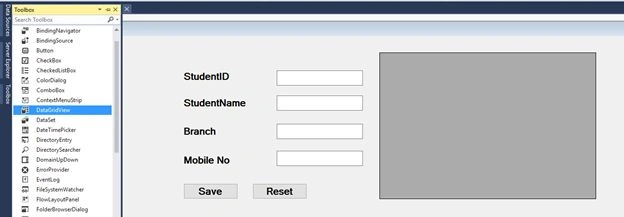

Step 2: Create a Windows Application and add DataGridView on the Form. Now Add a DataGridView control to the form by selecting it from Toolbox and set properties according to your needs.

2
Figure 2

Adding Source Code for GridView

Now you can add this few lines of code anywhere you want to load the data from the database. It may be a mouse button click or the Form load event handler.
  1. private void Form1_Load(object sender, EventArgs e)
  2. {
  3.   SqlDataAdapter da = new SqlDataAdapter("SELECT * FROM Student""server = MCNDESKTOP33;
      database = Avinash; UID = sa; password = *******"
    );
  4.   DataSet ds = new DataSet();
  5.   da.Fill(ds, "Student");
  6.   dataGridView1.DataSource = ds.Tables["Student"].DefaultView;
  7. }
Step 3: Code for the Save and Reset button
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Threading.Tasks;
  9. using System.Windows.Forms;
  10. using System.Data.SqlClient;
  11.
  12. namespace WindowsFormsDataGrid
  13. {
  14.
  15. public partial class Form1 : Form
  16. {
  17.
  18. public Form1()
  19. {
  20. InitializeComponent();
  21. }
  22.
  23. private void Form1_Load(object sender, EventArgs e)
  24. {
  25. SqlDataAdapter da = new SqlDataAdapter("SELECT * FROM Student""server = MCNDESKTOP33;
    database = Avinash; UID = sa; password = *******"
    );
  26. DataSet ds = new DataSet();
  27. da.Fill(ds, "Student");
  28. dataGridView1.DataSource = ds.Tables["Student"].DefaultView;
  29. }
  30.
  31. private void button1_Click(object sender, EventArgs e)
  32. {
  33. SqlConnection con = new SqlConnection("server = MCNDESKTOP33; database = Avinash;
    UID = sa; password = *******"
    );
  34. con.Open();
  35. string qur = "INSERT INTO Student VALUES ('" + textBox1.Text + "','" + textBox2.Text + "',
    '"
    +textBox3.Text+"','"+textBox4.Text+"')";
  36.
  37. SqlCommand cmd = new SqlCommand(qur, con);
  38. cmd.ExecuteNonQuery();
  39. con.Close();
  40. MessageBox.Show("Inserted sucessfully");
  41. textBox1.Text = "";
  42. textBox2.Text = "";
  43. textBox3.Text = "";
  44. textBox4.Text = "";
  45. }
  46.
  47. private void button2_Click(object sender, EventArgs e)
  48. {
  49. textBox1.Text = "";
  50. textBox2.Text = "";
  51. textBox3.Text = "";
  52. textBox4.Text = "";
  53.
  54. }
  55. }
  56. }

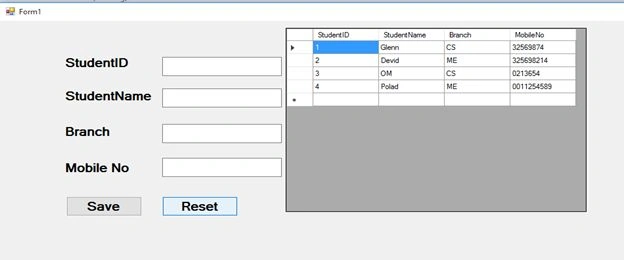

Output: The contents of DataGridView look as in the below figure.

Figure 3
3

How to Run

Add using System.Data.SqlClient; namespace in your project.

Change the database path in this string. "server = MCNDESKTOP33; database = Avinash; UID = sa; password = *******"
Run the application.
