Dockerize Node.js App

Introduction


In the earlier articles (Article 1Article 2 - Article 3), we learned about the usage and installation of Docker in a Windows application. Now let's start learning how to Dockerize NodeJs applications.

Dockerize Node.js App



What is Docker?


Docker is an internal or integral part of DevOps (a clipped compound of "development" and "operations"). With its amazing architecture design tool, we can achieve major issues or exceptional use of Docker as a virtual machine. It is a platform for service products that create a virtual container that contains a collection of software. A container is a collection of software, libraries, configured files that communicate with each other with well-defined channels. Docker Containers are standalone, executable packages, lightweight collection of software which just need to run for use. The major thing is open-source, which is a software development solution known as containers.

The main purpose of Docker will let you run all the microservices with a distributed architecture.

Dockerize Node.js App

Getting Started


Before moving forward to dockerize a NodeJs application, we need to configure and set-up the NodeJs application first.

Let's create a sample NodeJs application.

Step 1

Create a directory named myapp -> change directory -> run npm init command

Dockerize Node.js App

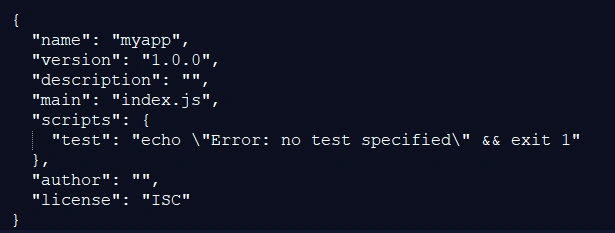

Basically, it will create a folder name with myapp, in which the default `package.json` file will be created which will looks like below.

Dockerize Node.js App

Step 2

Now install express as a dependency package.

Dockerize Node.js App

Step 3

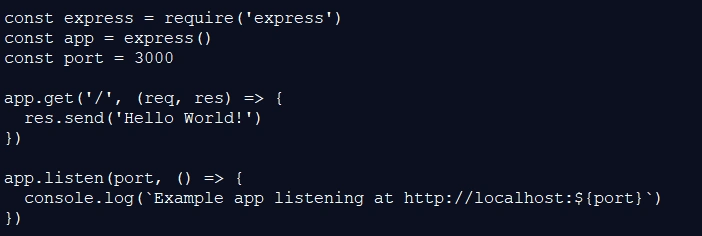

Add a new file named app.js and copy write code as below

Dockerize Node.js App

Step 4

Run the app with the following command

Dockerize Node.js App

Step 5

You can see your NodeJs application is running on 3000 port of localhost, Open http://localhost:3000/ in a browser to see the output.

So now our NodeJs application is created successfully, now let's dockerize the same app.


Dockerizing a Node.js web app


Step 1

Launch docker-machine or Docker Desktop so that docker services gets run

Dockerize Node.js App


Step 2 - Creating a Dockerfile

Dockerfile - A Dockerfile is a collection of all the commands a user could initialize and call written in a text document, which later on assembles into one image.

Dockerize Node.js App

Step 3

Open the Dockerfile, write executable command lines that handling the bundling of the app, and automatically runs the application in Docker container.

Dockerize Node.js App

- This command will identify that which build image we need to pull out, here we are using the latest LTS version of Node

Dockerize Node.js App

- The build files which are generated will move to app folder directory, which is considered as a working directory

Dockerize Node.js App

- This will copy the package.json files and install all dependent packages using package.json file, This command will not copy whole files or folder from the project, it will copy only package.json file,


Dockerize Node.js App

- We must copy our source code or project file to a working directory. To bundle that application's source code we have to use COPY command.


Dockerize Node.js App

- Now after copying app files, we need to define port on which the application will run, for that we have to use EXPOSE command that identifies the port number to run an application that is mapped in docker daemon.


Dockerize Node.js App

- At last, we need to provide executable command line that runs the application, using CMD command you can run the application in a docker.

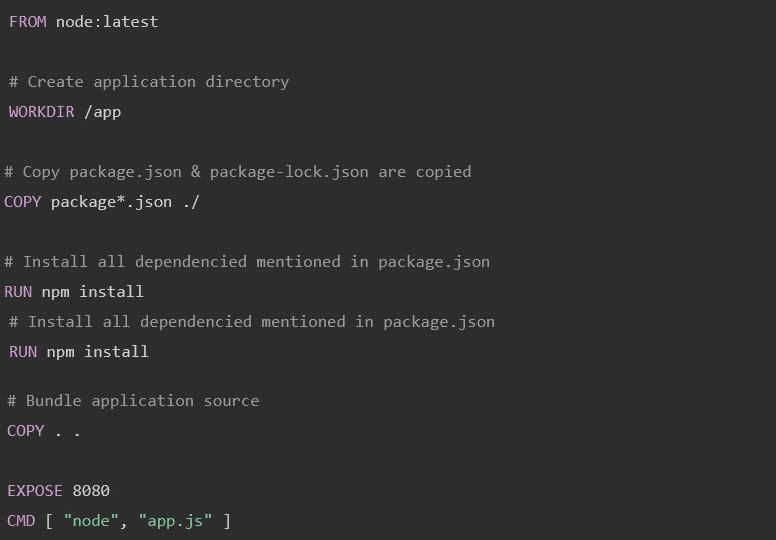

Your Dockerfile will look like below

Dockerize Node.js App

Step 4 - Now add a .dockerignore

This file is not mandatory, but it's a good practice to have this file which can help to boost the build process and make Docker Image to build unnecessary code and files.

Dockerize Node.js App


Step 5 - Create a Docker Image / Build Docker Image

Let's run the docker build command which will help us to create Docker Image with NodeJs App.

Dockerize Node.js App

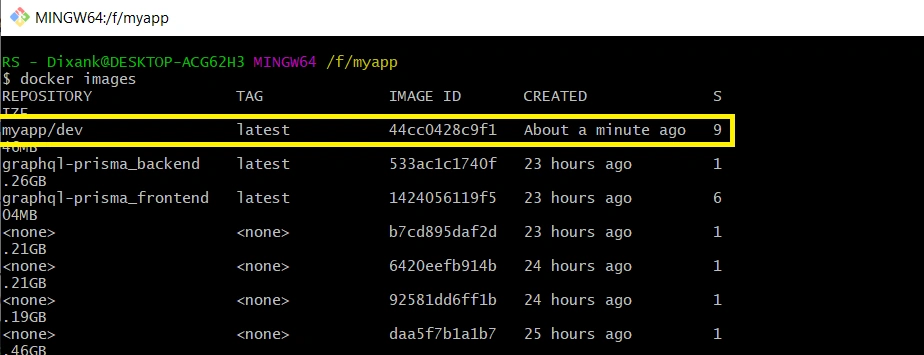

Your image will now be listed by Docker like below

Dockerize Node.js App


Step 6

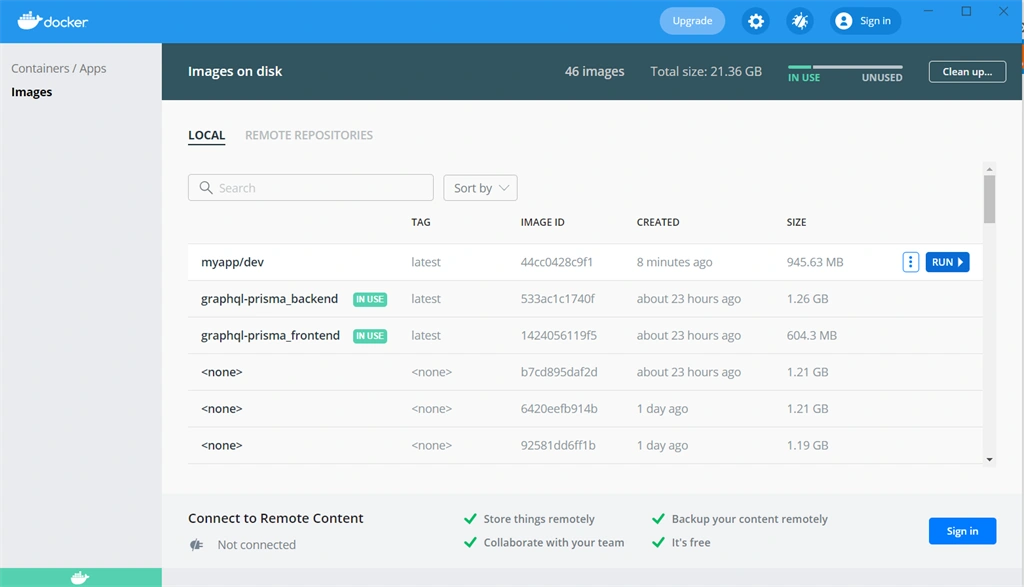

In case you're using Docker Desktop, then you can see Docker Image in Docker Desktop. You just need to open Docker Desktop and run your published application by clicking on RUN button.

Dockerize Node.js App

Step 7

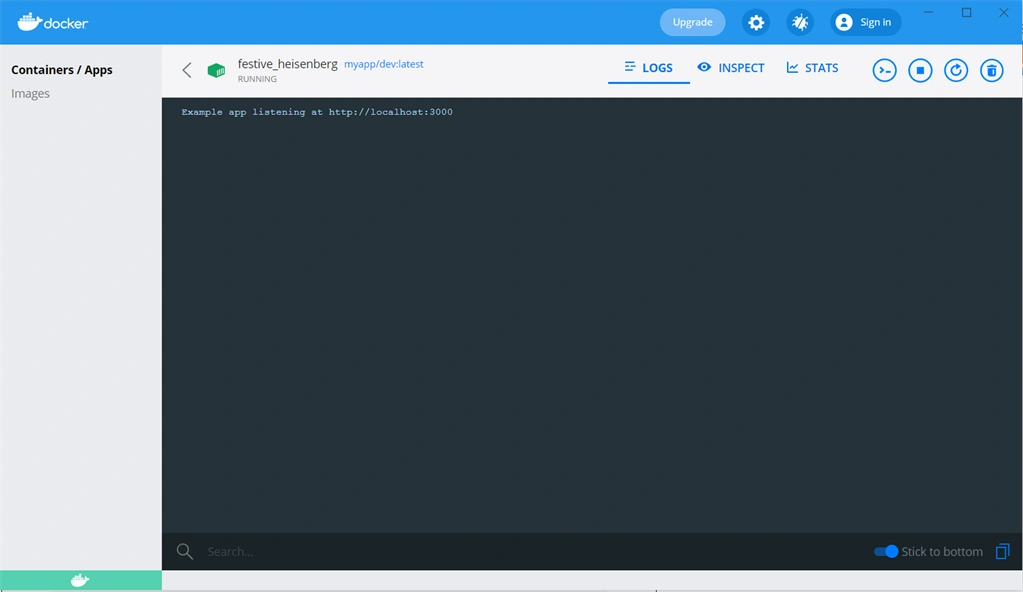

After successfully running Docker Container, Docker Desktop will provide the URL which can be run in the browser.

Dockerize Node.js App


Summary


In this article, we've learned how to Dockerize a NodeJs application,. This approach is on a beginner level - Docker provides large enhancement with its best use, so after learning the  beginner level Dockerizing you should learn more in detail about development and production environment configuration.
