Dropdown With Multiple CheckBox Select With jQuery In MVC 5

In this article, I will explain how to implement a Multiple Select (MultiSelect) DropDownList with CheckBoxes in ASP.NET with jQuery Bootstrap Multi-Select Plugin.

To actualize a Multiple Select (MultiSelect) DropDownList with CheckBoxes in ASP.NET, we should make use of ListBox control and apply jQuery Bootstrap Multi-Select Plugin to it.

If you are a beginner in ASP.NET MVC and jQuery, I am listing some important links to learn-
You can follow the simple steps, given below, to implement a Multiple Select DropdownList with CheckBox. I am creating a MVC Application and creating controller "Home".

In the next step, create an Action to open the view "Index". See the example, given below-
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6.
  7. namespace DropdownCheckbox.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.             return View();
  14.         }
  15.
  16.
  17.     }
  18. }
Create view name as "Index.cshtml". See the example, given below-
  1. @{
  2.     ViewBag.Title = "Home Page";
  3.     Layout = null;
  4. }
  5.
  6.
  7. <div>
  8.   <table>
  9.       <tr>
  10.           <td><p >Select Expert's Name  </p></td>
  11.           <td>
  12.     <select id="EmpList" multiple="multiple">
  13.     <option value="1">Navdeep-Asp.net</option>
  14.     <option value="2">Pankaj-C#</option>
  15.     <option value="3">Bikesh-Asp.Net</option>
  16.     <option value="4">Pritam-Salesforce</option>
  17.     <option value="5">Payal-Salesforce</option>
  18.     <option value="6">Sujata-SSRS</option>
  19.     <option value="7">Harikant-UI</option>
  20.
  21. </select>
  22.           </td>
  23.           <td><input type="button" id="btnSelected" value="Get Selected" /></td>
  24.       </tr>
  25.   </table>
  26.
  27.
  28. </div>
In this article, I am using hard code value, but you can bind from the database. Afterwards, add jQuery Plugins or CDN, as shown below-
  1. <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
  2.     <link href="http://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.0.3/css/bootstrap.min.css"
  3.           rel="stylesheet" type="text/css" />
  4.     <script type="text/javascript" src="http://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.0.3/js/bootstrap.min.js"></script>
  5.     <link href="http://cdn.rawgit.com/davidstutz/bootstrap-multiselect/master/dist/css/bootstrap-multiselect.css"
  6.           rel="stylesheet" type="text/css" />
  7.     <script src="http://cdn.rawgit.com/davidstutz/bootstrap-multiselect/master/dist/js/bootstrap-multiselect.js"
  8.             type="text/javascript"></script>
Use the references in your Application.

Afterwards, write JS code to implement multiselect with Checkbox in Dropdown. Use the code, given below-
  1. <script type="text/javascript">
  2.        $(function () {
  3.            $('#EmpList').multiselect({
  4.                includeSelectAllOption: true
  5.            });
  6.            $('#btnSelected').click(function () {
  7.                var selected = $("#EmpList option:selected");
  8.                var message = "";
  9.                selected.each(function () {
  10.                    message += $(this).text() + " " + $(this).val() + "\n";
  11.                });
  12.                alert(message);
  13.            });
  14.        });
  15.    </script>
Set routing inside "route.config" file. See the code, given below-
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using System.Web.Routing;
  7.
  8. namespace DropdownCheckbox
  9. {
  10.     public class RouteConfig
  11.     {
  12.         public static void RegisterRoutes(RouteCollection routes)
  13.         {
  14.             routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
  15.
  16.             routes.MapRoute(
  17.                 name: "Default",
  18.                 url: "{controller}/{action}/{id}",
  19.                 defaults: new { controller = "Home", action = "Index", id = UrlParameter.Optional }
  20.             );
  21.         }
  22.     }
  23. }

Complete code

You can see and understand the complete code, given below-
  1. @{
  2.     ViewBag.Title = "Home Page";
  3.     Layout = null;
  4. }
  5.
  6.     <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
  7.     <link href="http://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.0.3/css/bootstrap.min.css"
  8.           rel="stylesheet" type="text/css" />
  9.     <script type="text/javascript" src="http://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/3.0.3/js/bootstrap.min.js"></script>
  10.     <link href="http://cdn.rawgit.com/davidstutz/bootstrap-multiselect/master/dist/css/bootstrap-multiselect.css"
  11.           rel="stylesheet" type="text/css" />
  12.     <script src="http://cdn.rawgit.com/davidstutz/bootstrap-multiselect/master/dist/js/bootstrap-multiselect.js"
  13.             type="text/javascript"></script>
  14.     <script type="text/javascript">
  15.         $(function () {
  16.             $('#EmpList').multiselect({
  17.                 includeSelectAllOption: true
  18.             });
  19.             $('#btnSelected').click(function () {
  20.                 var selected = $("#EmpList option:selected");
  21.                 var message = "";
  22.                 selected.each(function () {
  23.                     message += $(this).text() + " " + $(this).val() + "\n";
  24.                 });
  25.                 alert(message);
  26.             });
  27.         });
  28.     </script>
  29. <div>
  30.   <table>
  31.       <tr>
  32.           <td><p >Select Expert's Name  </p></td>
  33.           <td>
  34.     <select id="EmpList" multiple="multiple">
  35.     <option value="1">Navdeep-Asp.net</option>
  36.     <option value="2">Pankaj-C#</option>
  37.     <option value="3">Bikesh-Asp.Net</option>
  38.     <option value="4">Pritam-Salesforce</option>
  39.     <option value="5">Payal-Salesforce</option>
  40.     <option value="6">Sujata-SSRS</option>
  41.     <option value="7">Harikant-UI</option>
  42.
  43. </select>
  44.           </td>
  45.           <td><input type="button" id="btnSelected" value="Get Selected" /></td>
  46.       </tr>
  47.   </table>
  48.
  49.
  50. </div>

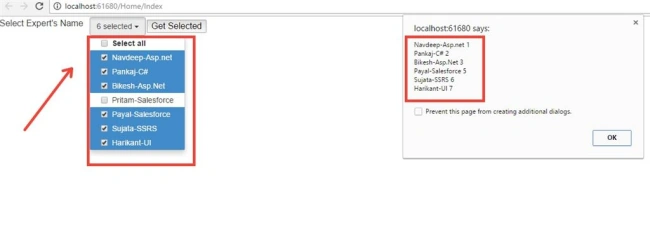

 Now, run the Application and see the output, as shown below-


According to the example, I can select any one or multiple choices. Also, you can see the count of the selected items.

We can see the item on the popup after clicking on "
GetSelected".

I hope, you enjoyed this article and learned lots of things. If you have any confusion regarding these topics, you can download the project.
