Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

In our previous article, we have learned how to configure Azure Site-to-Site VPN. Now, let us learn to connect our On-premises server to Azure Virtual Server using Routing and Remote Access.

Before this demo, check out my previous article about implementing Azure Site-to-Site VPN here.

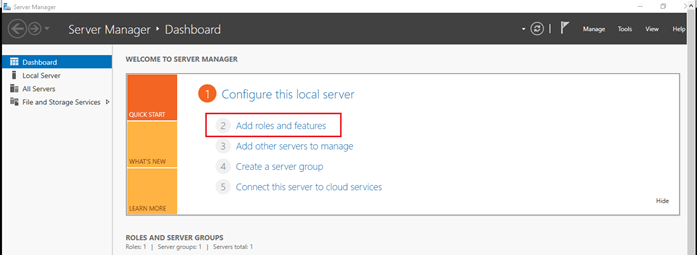

Step 1 - Server Manager in Server 2016

In the Server Manager, click the “Add roles and features”.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

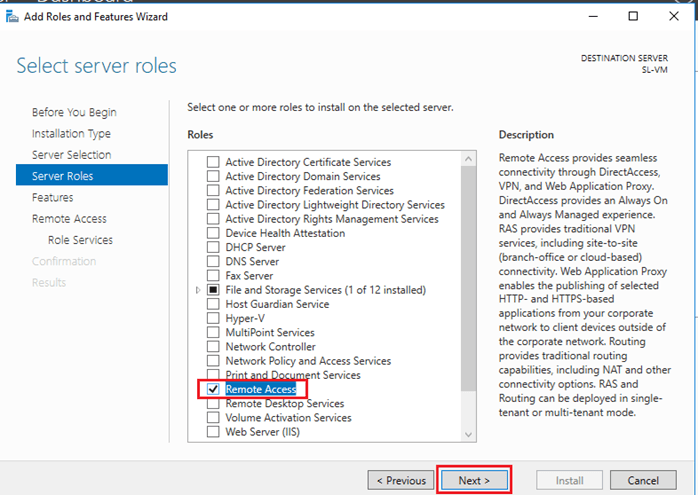

Step 2 - Selecting Remote Access

In the Role section, we need to select “Remote Access” and then click "Next".

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

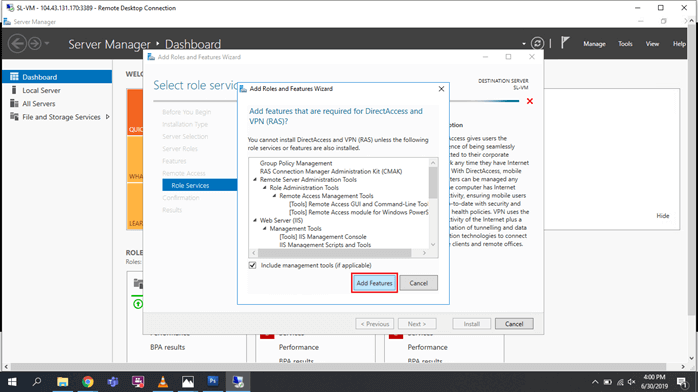

Step 3 - Adding Features

When we select Remote Access, we will get the pop-up, i.e., “Add features that are required for DirectAccess and VPN (RAS)”?, so click Add Features, and then click “Next”.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

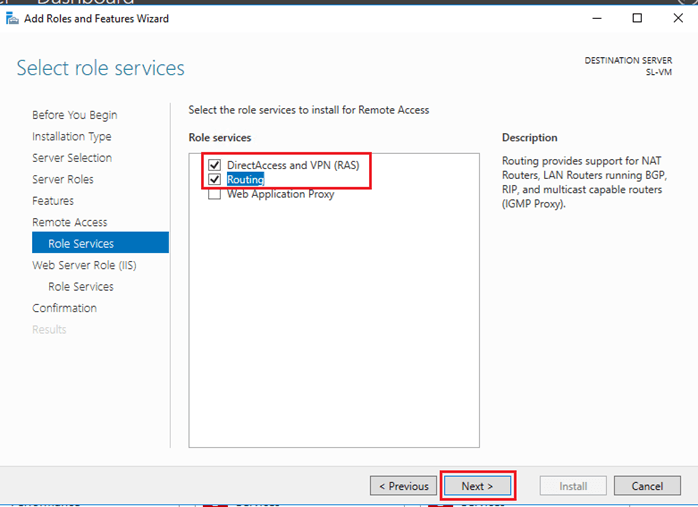

Step 4 - Selecting Role Services.

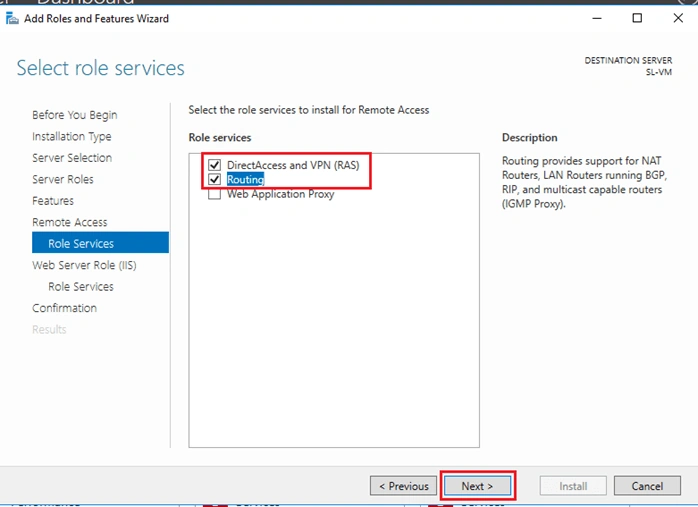

Under the Role Services, we have to select “DirectAccess and VPN (RAS) and Routing” and then click "Next".

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

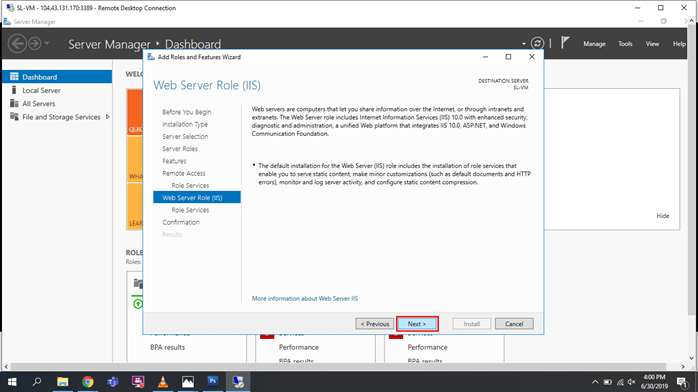

Step 5 - Web Server Role (IIS)

In the Web Server Roles (IIS) part, we don’t want to select anything, so click Next, and then click "Install" to complete the Installation Wizard.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

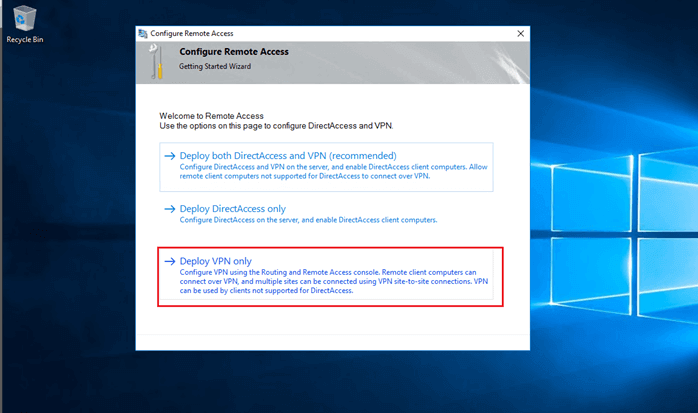

Step 6 - Deploy VPN Only

After installing the Remote Access, we will receive the notification to “Configure Remote Access”, so Click “Deploy VPN Only”.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

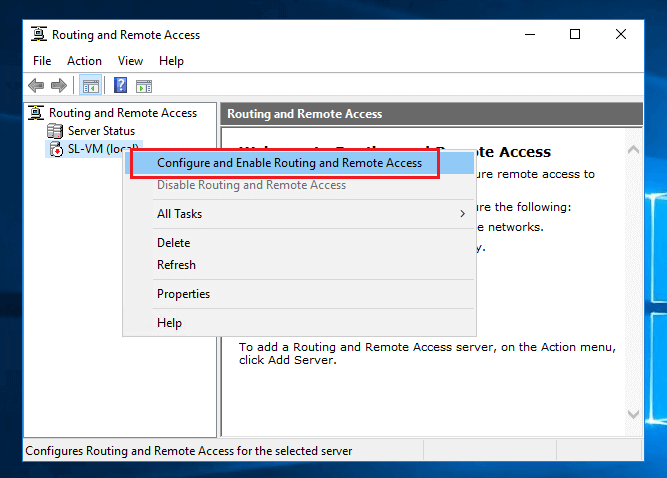

Step 6 - Enabling Routing and Remote Access

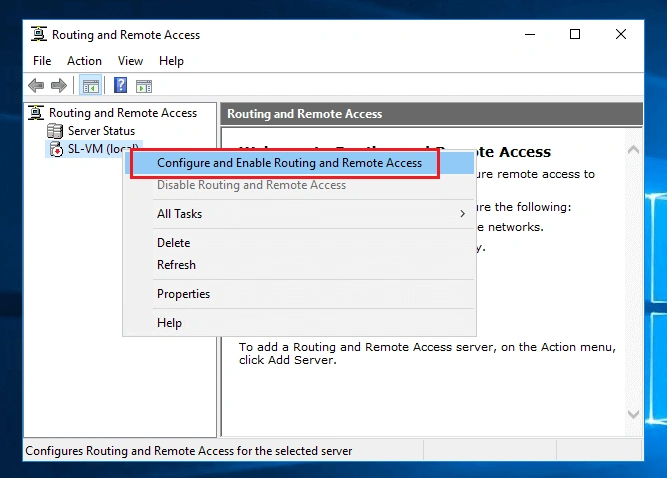

Now we can find our Local Server (SL-VM) under the Routing and Remote Access. Now it’s disabled, so right click the local server, and then Click the “Configure and Enable Routing and Remote Access”.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

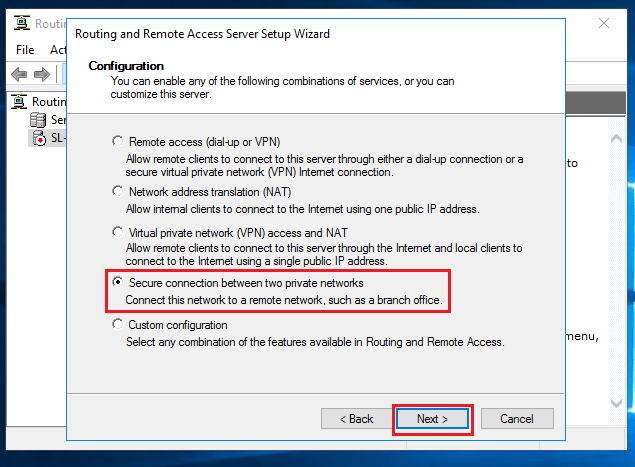

Step 7 - Selecting Secure Connection

In the Configuration wizard we need to select “Secure connection between two private networks”, and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

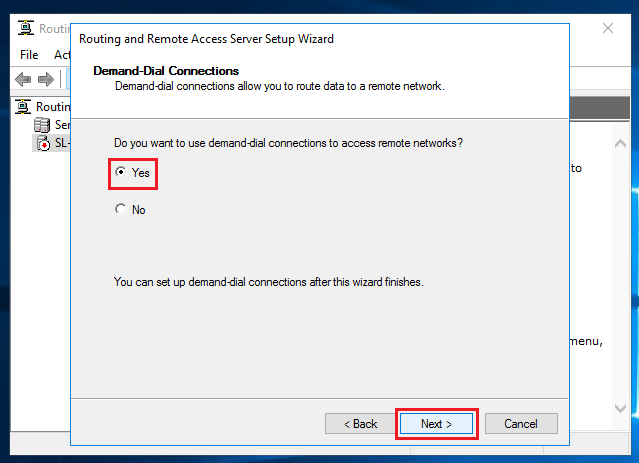

Step 8 - Demand-Dial Connections

Now we need to setup demand-dial connection, so select “Yes”, and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

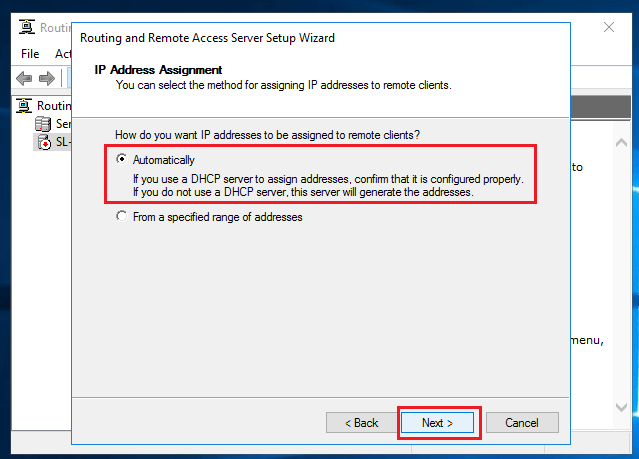

Step 9 - Assigning IP Address for VPN Clients

In the IP address assignment, if we have a  DHCP server we can select "Automatically," otherwise we need to assign the IP address manually. In this part we already assigned DHCP, so select “Automatically” and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

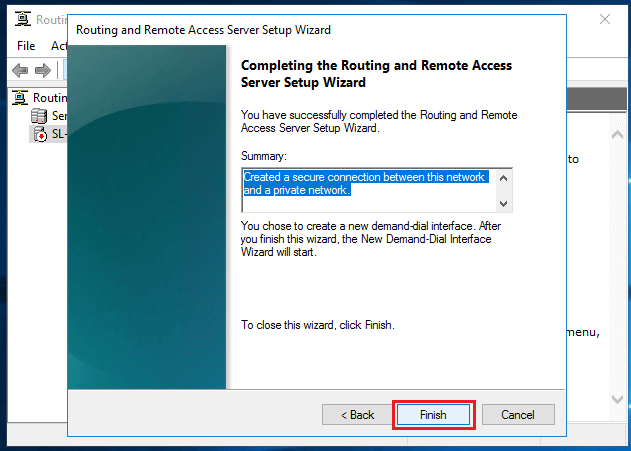

Step 10 - Completing the Wizard

Click the Finish button to start the VPN Deployment.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

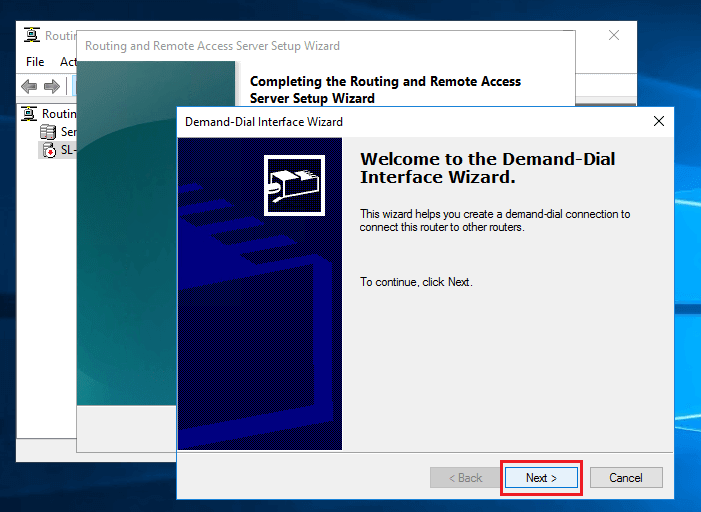

Step 11 - Demand-Dial Configuration

After finishing the Routing and Remote access server setup wizard, the Demand-Dial Interface Wizard will automatically prompt, so click Next to start the deployment.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

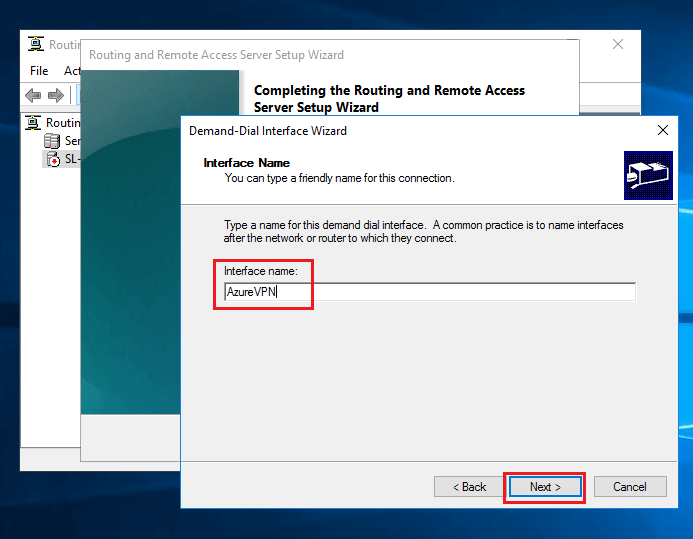

Step 12 - Assigning the Interface Name

Now we need to assign our VPN Connection name. In this demo we can type “Azure VPN”, and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

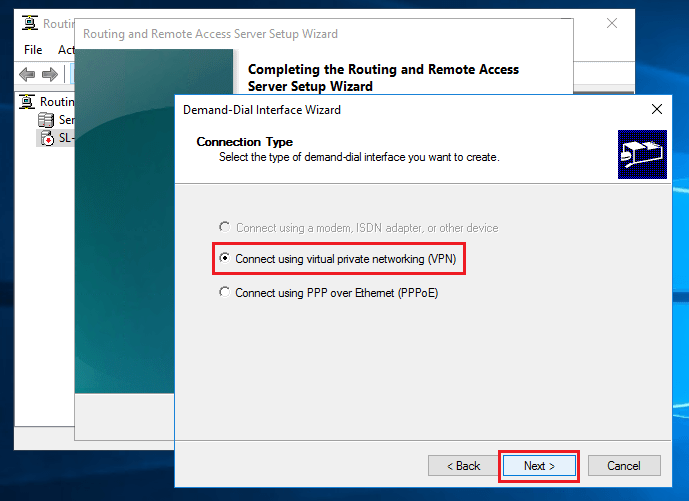

Step 13 - Selecting the Connection Type

In this part we need to select our connection type. We need to connect using VPN so select “Connect using Virtual Private Network (VPN)”, and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

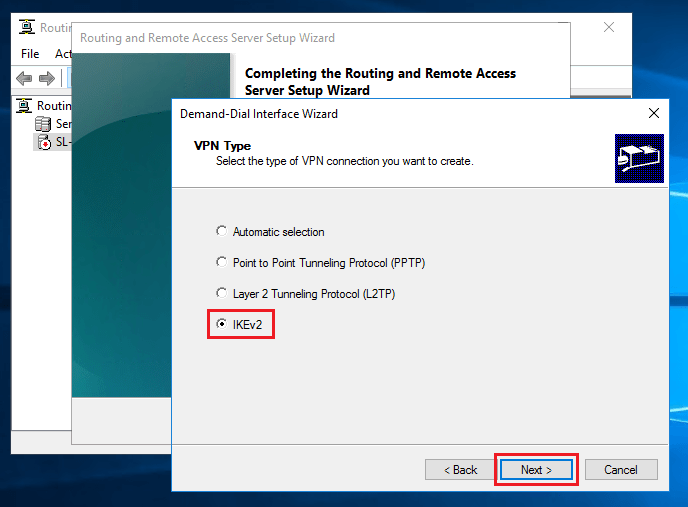

Step 14 - VPN Connection Type

Now we need to select the protocol, for Site to Site VPN we can select “IKEv2”, a VPN encryption protocol. So select “IKEv2” and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

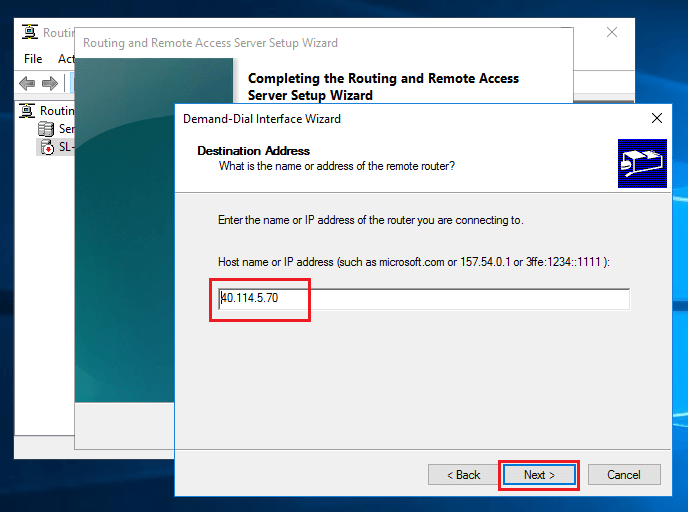

Step 15 - Destination Address

Now we need to add our Azure IP Address because our server is running in Azure. So we need to add our Azure Gateway IP Address, so enter the Azure IP address and click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

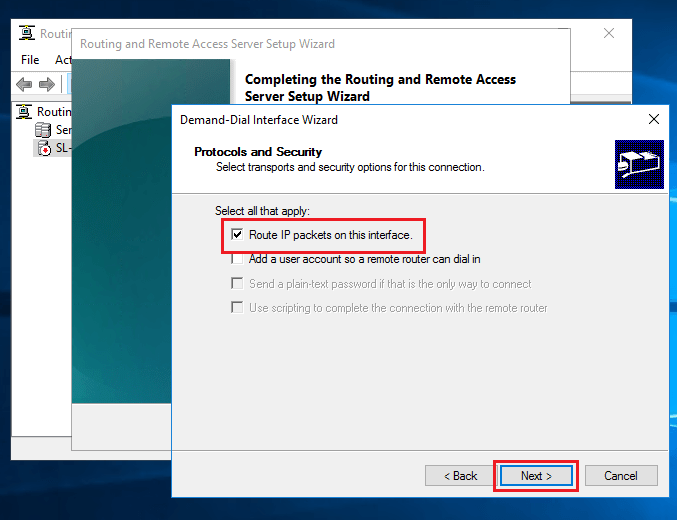

Step 16 - Protocol and Security

In the transport and security part, we need to select “Route IP packets on this interface”, and then click Next.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

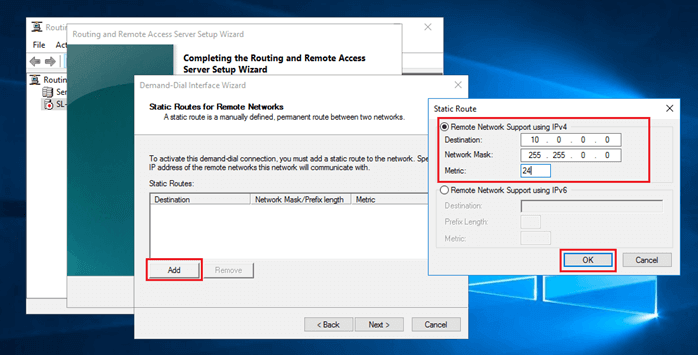

Step 17 - Assigning Remote Network Private IP Address

In the Static Routers for Remote Networks, we need to add our Azure Private IP address range, so click “Add” and enter the Azure Private IP address range and click Ok.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

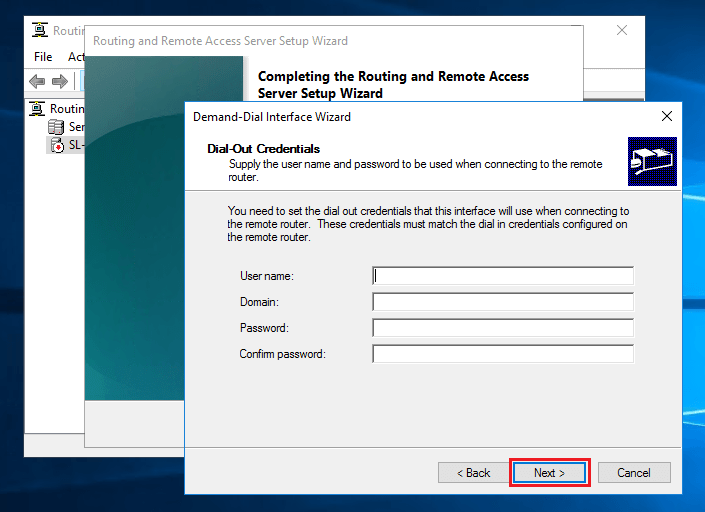

Step 18 - Dial-Out Credentials

In the Dial-Out Credentials information we don’t create any Username or Password, so leave it blank and click Next, and in the next wizard you can click the “Finish” button to close the wizard.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

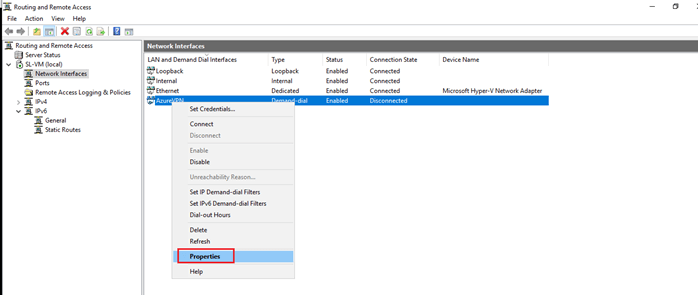

Step 19 - Azure VPN Properties

After successfully creating the VPN connection we need to configure the connection, so right click the AzureVPN Connection and then Click “Properties”.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

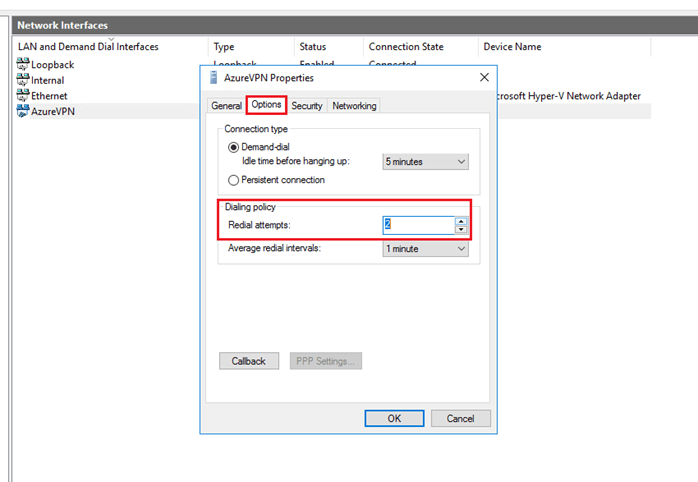

Step 20 - Dialing Policy

In the Options Tab, we need to select the “Redial Attempts”, it’s under the Dialing Policy.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

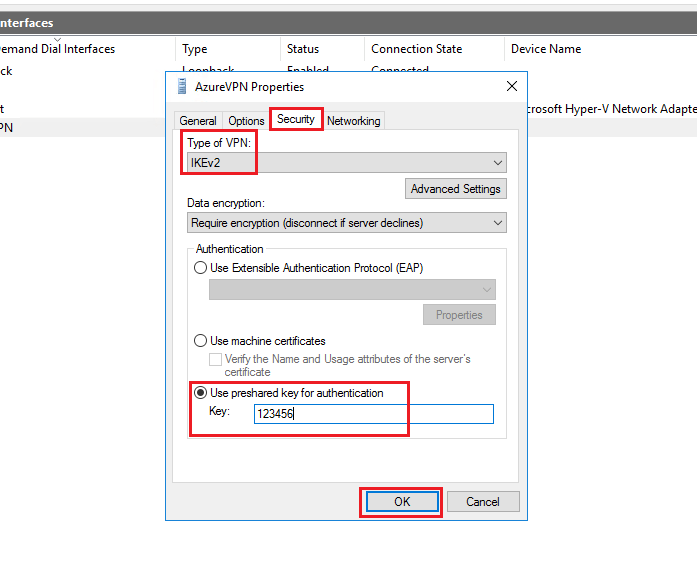

Step 21 - VPN Security Settings

In the Security Tab, we need to select the type of VPN as IKEv2, and we need to add the “Preshared Key”. We have already created this key in Azure, so enter the key, and click Ok.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

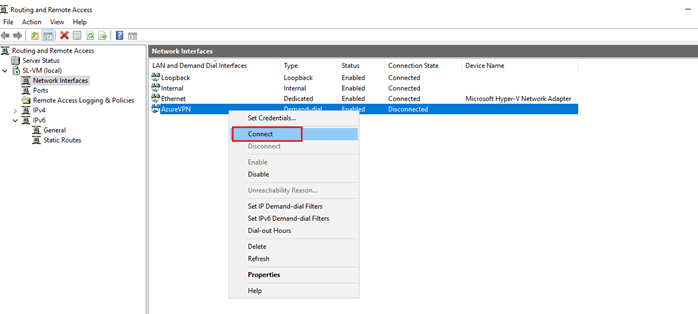

Step 22 - Connect to Azure

We have successfully configured the settings, and the status is disconnected, so right-click the AzureVPN and click "Connect".

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

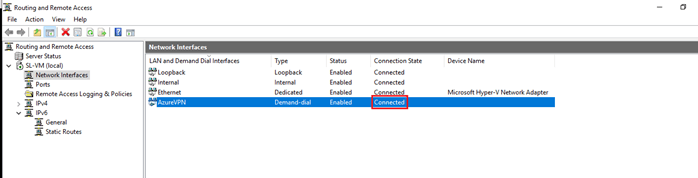

Step 23 - Successfully Connected

Now, we can verify that our AzureVPN is successfully connected.

Establishing Connection Between On-Premises Server To Azure VM Using Azure Site To Site VPN

Summary

In this demo, we learned how to connect our On-Premises Server to Azure Server using Routing and Remote Access. We have already configured Site to Site VPN in Azure. If you have any clarification feel free to comment.
