Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Let us learn about Float Menu Item Action in Navigation page in Android and UWP using Xamarin.Forms.

Introduction


Xamarin is a platform that allows us to create a multi-platform app for Android, Windows, or iOS through a single integrated development environment (IDE). And with Xamarin.forms, the interface design for all three platforms can be accomplished within its XAML-based standard, native user-interface control.

Step 1

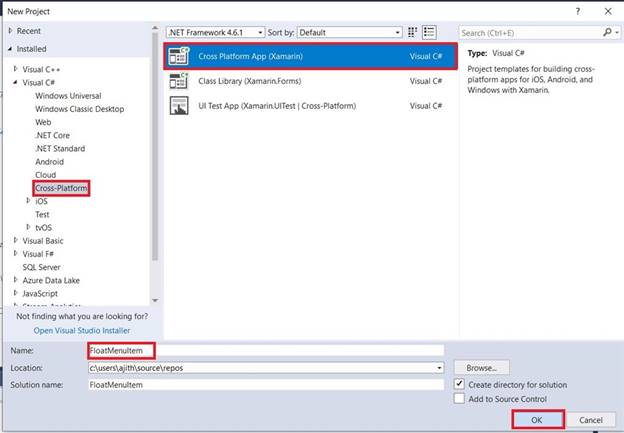

Open Visual Studio and go to New Project >> Installed >> Visual C# >> Cross-Platform.

Select the Cross-Platform app, then give your project a name and location.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Step 2

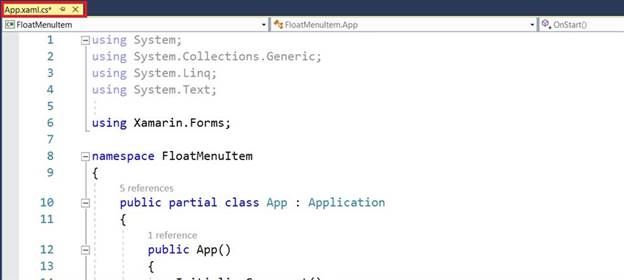

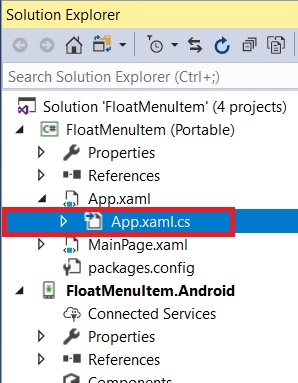

Open Solution Explorer >> Project Name(Portable) >> App.xaml.cs >> double-click will open the design view of this page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5.
  6. using Xamarin.Forms;
  7.
  8. namespace FloatMenuItem
  9. {
  10.     public partial class App : Application
  11.     {
  12.         public App()
  13.         {
  14.             InitializeComponent();
  15.
  16.             MainPage = new NavigationPage(new MainPage());
  17.         }
  18.
  19.         protected override void OnStart()
  20.         {
  21.             // Handle when your app starts
  22.         }
  23.
  24.         protected override void OnSleep()
  25.         {
  26.             // Handle when your app sleeps
  27.         }
  28.
  29.         protected override void OnResume()
  30.         {
  31.             // Handle when your app resumes
  32.         }
  33.     }
  34. }
Step 3

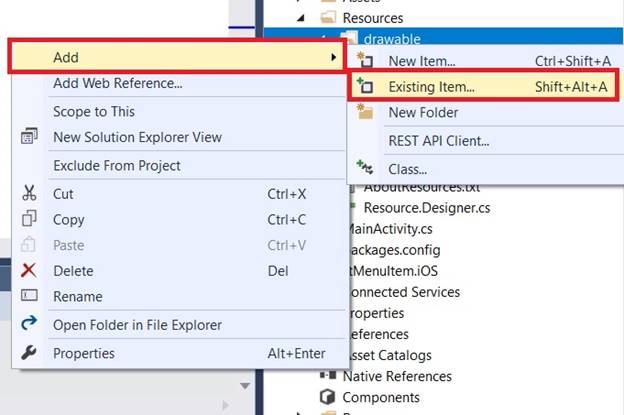

Next, add an image to Solution Explorer >> Project Name.Android >> Resourses >> Right Click >> drawable >> Add >> Existing Item.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

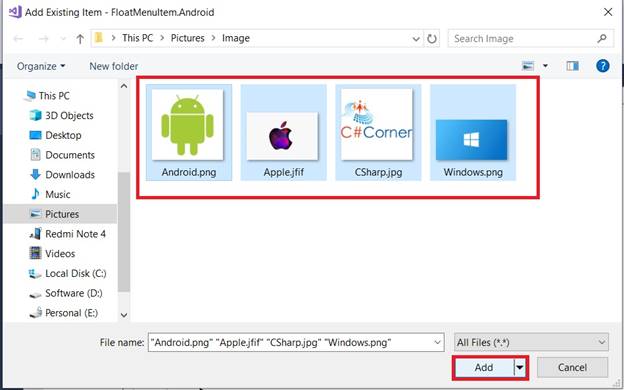

Next, a dialogue box will open. Choose image location and add images.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Step 4

Next, add an image to Solution Explorer >> Project Name.Universal Windows Platform >>Right Click >> Add >> Existing Item.

 Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Next, a dialogue box will open Choose image location and add images.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Step 5

The Image is added successfully for Android and UWP.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms   Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Step 6

Next, Open Solution Explorer >> Project Name(Portable) >> Right-Click >> Add  >> New Item or Ctrl+Shift+A.


Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

A new dialogue box will open. Now, add the XAML page and give it a name. Click the "Add" button.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

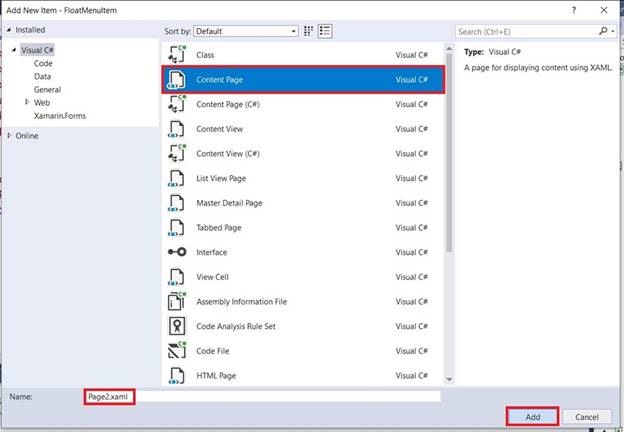

Similarly, add the XAML page and give your name - "Page 2".

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Similarly, add the XAML page and give your name - "Page 3".

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Step 7

Open Solution Explorer >> Project Name >> Page1.xaml. Open the design view of this page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Xaml Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="FloatMenuItem.Page1">
  5.     <ContentPage.Content>
  6.         <StackLayout>
  7.             <Image Source="Android.png"/>
  8.         </StackLayout>
  9.     </ContentPage.Content>
  10. </ContentPage>
Step 8

Open Solution Explorer >> Project Name >> Page2.xaml. Open the design view of this Page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Xaml Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="FloatMenuItem.Page2">
  5.     <ContentPage.Content>
  6.         <StackLayout>
  7.             <Image Source="Windows.png"/>
  8.         </StackLayout>
  9.     </ContentPage.Content>
  10. </ContentPage>
Step 9

Open Solution Explorer >> Project Name >> Page3.xaml. Open the design view of this Page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Xaml Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="FloatMenuItem.Page3">
  5.     <ContentPage.Content>
  6.         <StackLayout>
  7.             <Image Source="Apple.jfif"/>
  8.         </StackLayout>
  9.     </ContentPage.Content>
  10. </ContentPage>
Step 10

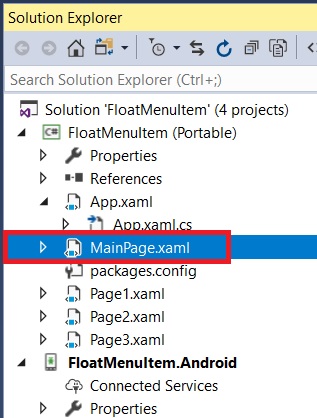

Open Solution Explorer >> Project Name >> MainPage.xaml. Open the design view of this Page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Xaml Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:FloatMenuItem"
  5.              x:Class="FloatMenuItem.MainPage"
  6.              BackgroundImage="CSharp.jpg">
  7.     <AbsoluteLayout>
  8.
  9.
  10.         <Grid AbsoluteLayout.LayoutBounds="1,1,-1,-1"
  11.               AbsoluteLayout.LayoutFlags="PositionProportional"
  12.               Margin="0,0,10,100">
  13.             <Grid.RowDefinitions>
  14.                 <RowDefinition/>
  15.                 <RowDefinition/>
  16.                 <RowDefinition/>
  17.             </Grid.RowDefinitions>
  18.
  19.             <StackLayout Grid.Row="0" Orientation="Horizontal" IsVisible="False" x:Name="FloatMenuItem1">
  20.                 <Label Text="Android" VerticalOptions="Center"/>
  21.                 <Frame BackgroundColor="Red" CornerRadius="30">
  22.                     <Frame.GestureRecognizers>
  23.                         <TapGestureRecognizer x:Name="FloatMenuItem1Tap" Tapped="FloatMenuItem1Tap_OnTapped" />
  24.                     </Frame.GestureRecognizers>
  25.                 </Frame>
  26.             </StackLayout>
  27.
  28.             <StackLayout Grid.Row="1" Orientation="Horizontal" IsVisible="False" x:Name="FloatMenuItem2">
  29.                 <Label Text="Windows" VerticalOptions="Center"/>
  30.                 <Frame BackgroundColor="Green" CornerRadius="30">
  31.                     <Frame.GestureRecognizers>
  32.                         <TapGestureRecognizer x:Name="FloatMenuItem2Tap" Tapped="FloatMenuItem2Tap_OnTapped" />
  33.                     </Frame.GestureRecognizers>
  34.                 </Frame>
  35.             </StackLayout>
  36.
  37.             <StackLayout Grid.Row="2" Orientation="Horizontal" IsVisible="False" x:Name="FloatMenuItem3">
  38.                 <Label Text="iOS" VerticalOptions="Center"/>
  39.                 <Frame BackgroundColor="LightBlue" CornerRadius="30">
  40.                     <Frame.GestureRecognizers>
  41.                         <TapGestureRecognizer x:Name="FloatMenuItem3Tap" Tapped="FloatMenuItem3Tap_OnTapped" />
  42.                     </Frame.GestureRecognizers>
  43.                 </Frame>
  44.             </StackLayout>
  45.         </Grid>
  46.
  47.         <Frame BackgroundColor="Blue" CornerRadius="30" HasShadow="True"
  48.                AbsoluteLayout.LayoutFlags="PositionProportional"
  49.                AbsoluteLayout.LayoutBounds="1,1,-1,-1"
  50.                Margin="10">
  51.             <Label Text="C#" TextColor="White" FontSize="Medium" FontAttributes="Bold"/>
  52.             <Frame.GestureRecognizers>
  53.                 <TapGestureRecognizer Tapped="TapGestureRecognizer_OnTapped"/>
  54.             </Frame.GestureRecognizers>
  55.         </Frame>
  56.     </AbsoluteLayout>
  57. </ContentPage>
Step 11

Open Solution Explorer >> Project Name >> MainPage.xaml.cs. Open the design view of this Page.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

The Code is given below.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7.
  8. namespace FloatMenuItem
  9. {
  10.     public partial class MainPage : ContentPage
  11.     {
  12.         public MainPage()
  13.         {
  14.             InitializeComponent();
  15.         }
  16.
  17.         private bool isOpen = false;
  18.         private async void TapGestureRecognizer_OnTapped(object sender, EventArgs e)
  19.         {
  20.             if (isOpen == false)
  21.             {
  22.                 isOpen = true;
  23.                 //Scale to smaller
  24.                 await ((Frame)sender).ScaleTo(0.8, 50, Easing.Linear);
  25.                 //Wait a moment
  26.                 await Task.Delay(100);
  27.                 //Scale to normal
  28.                 await ((Frame)sender).ScaleTo(1, 50, Easing.Linear);
  29.
  30.                 //Show FloatMenuItem1
  31.                 FloatMenuItem1.IsVisible = true;
  32.                 await FloatMenuItem1.TranslateTo(0, 0, 100);
  33.                 await FloatMenuItem1.TranslateTo(0, -20, 100);
  34.                 await FloatMenuItem1.TranslateTo(0, 0, 200);
  35.
  36.                 //Show FloatMenuItem2
  37.                 FloatMenuItem2.IsVisible = true;
  38.                 await FloatMenuItem2.TranslateTo(0, 0, 100);
  39.                 await FloatMenuItem2.TranslateTo(0, -20, 100);
  40.                 await FloatMenuItem2.TranslateTo(0, 0, 200);
  41.
  42.                 //Show FloatMenuItem3
  43.                 FloatMenuItem3.IsVisible = true;
  44.                 await FloatMenuItem3.TranslateTo(0, 0, 100);
  45.                 await FloatMenuItem3.TranslateTo(0, -20, 100);
  46.                 await FloatMenuItem3.TranslateTo(0, 0, 200);
  47.             }
  48.             else
  49.             {
  50.                 isOpen = false;
  51.                 //Scale to smaller
  52.                 await ((Frame)sender).ScaleTo(0.8, 50, Easing.Linear);
  53.                 //Wait a moment
  54.                 await Task.Delay(100);
  55.                 //Scale to normal
  56.                 await ((Frame)sender).ScaleTo(1, 50, Easing.Linear);
  57.
  58.                 //Hide FloatMenuItem1
  59.                 await FloatMenuItem1.TranslateTo(0, 0, 100);
  60.                 await FloatMenuItem1.TranslateTo(0, -20, 100);
  61.                 await FloatMenuItem1.TranslateTo(0, 0, 200);
  62.                 FloatMenuItem1.IsVisible = false;
  63.
  64.                 //Hide FloatMenuItem2
  65.                 await FloatMenuItem2.TranslateTo(0, 0, 100);
  66.                 await FloatMenuItem2.TranslateTo(0, -20, 100);
  67.                 await FloatMenuItem2.TranslateTo(0, 0, 200);
  68.                 FloatMenuItem2.IsVisible = false;
  69.
  70.                 //Hide FloatMenuItem3
  71.                 await FloatMenuItem3.TranslateTo(0, 0, 100);
  72.                 await FloatMenuItem3.TranslateTo(0, -20, 100);
  73.                 await FloatMenuItem3.TranslateTo(0, 0, 200);
  74.                 FloatMenuItem3.IsVisible = false;
  75.             }
  76.
  77.         }
  78.
  79.         private async void FloatMenuItem1Tap_OnTapped(object sender, EventArgs e)
  80.         {
  81.             await Navigation.PushAsync(new Page1());
  82.         }
  83.
  84.         private async void FloatMenuItem2Tap_OnTapped(object sender, EventArgs e)
  85.         {
  86.             await Navigation.PushAsync(new Page2());
  87.         }
  88.
  89.         private async void FloatMenuItem3Tap_OnTapped(object sender, EventArgs e)
  90.         {
  91.             await Navigation.PushAsync(new Page3());
  92.         }
  93.     }
Step 12

Next, select the "Build and Deploy"  option followed by selecting from the list of Android Emulator or simulator. You can choose any API(Application Program Interface) Level Emulator or simulator to run it.

Output

After a few seconds, you will see your app working.

Android Output

You can choose the Android Platform.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click the "C#" Float item menu in Android, Windows, iOS.

 Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click Android Navigate and the Page 1 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click Windows Navigate and the Page 2 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click iOS Navigate the Page 3 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Windows Output

You can choose the UWP Platform.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click the "C#" Float item menu in Android, Windows, iOS.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

 Click Android Navigate and the Page 1 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

 Click Windows Navigate and the Page 2 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Click iOS Navigate and the Page 3 result is displayed.

Float Menu Item Working Navigation In Android And UWP Using Xamarin.Forms

Finally, we have successfully created our desired Xamarin.Forms application.


Conclusion


I hope you have learned about Float Item Menu Working Navigation Android and UWP Using Xamarin.Forms with C#.
