Getting Started With Ansible - Part Nine

This is in continuation to the articles of the series “Learning Ansible”. In our previous articles we have learned about loops, variables and their precedence.

This is in continuation of the articles of the series “Learning Ansible”. In our previous articles, we have learned about loops, variables, and their precedence.
So, in this article we will be covering the below topics:
  • Install NTP service along with other packages on all servers
  • Set up local NTP configuration for RedHat and Ubuntu servers
So, let’s get started now.

Here we are going to write a playbook to deploy NTP service. NTP keeps the system time in check so that it doesn’t drift because if the servers time is not in sync, then there could be a lot of issues as all our log files contain logs with the timestamp.

This service will be syncing the machine time with global NTP servers.

One thing to note here is when you set up any servers (VM, EC2 or physical machines) then make sure that all the machines have NTP service.

Before getting started let’s see what all do we have. We have a local ansible config and inventory file with the name invent which we created in the previous articles with the screenshot below:

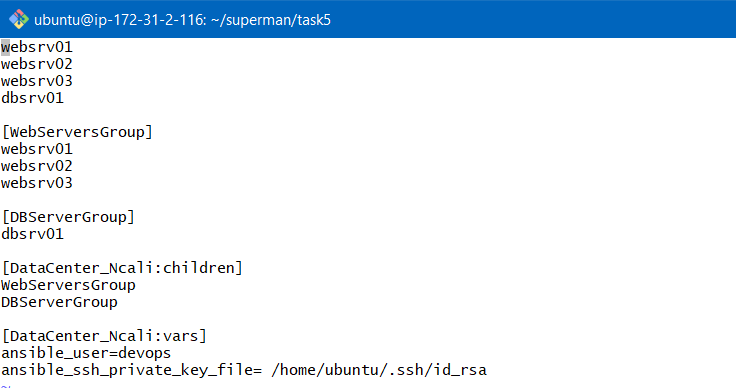

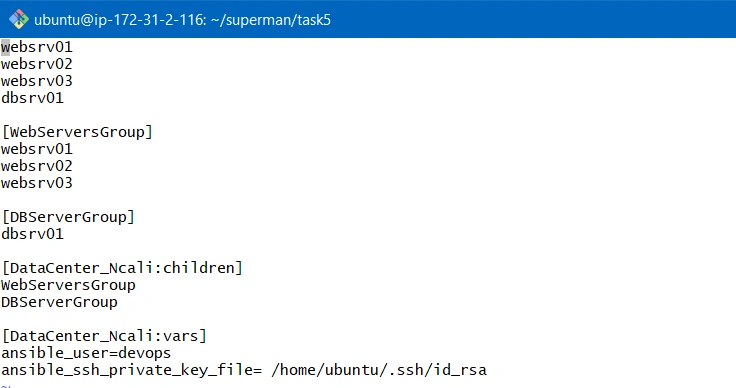

Inventory File

Ansible

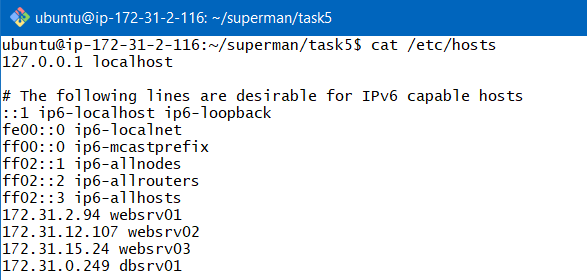

Hosts file at /etc/hosts

Ansible

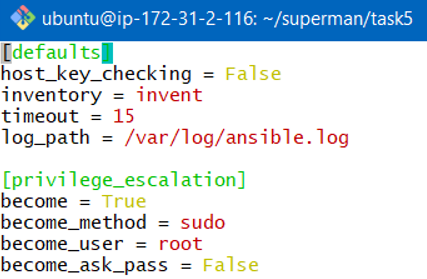

Local ansible config file

Ansible

Our Directory

Ansible


Install NTP service along with other packages on all servers


Now, let’s write a playbook to install NTP service with other packages on all servers.

Create a playbook with the below command
  1. vim ntp_playbook.yml
Below is the code for the playbook,
  1. ---
  2.
  3. - name: Deploying NTP Service
  4.   hosts: all
  5.   become: yes
  6.   tasks:
  7.           - name: Install packages on RedHat OS
  8.             yum:
  9.               name: "{{item}}"
  10.               state: present
  11.             loop:
  12.               - ntp
  13.               - unzip
  14.               - git
  15.               - wget
  16.               - zip
  17.             when: ansible_os_family == "RedHat"
  18.
  19.           - name: Install packages on Debian OS
  20.             apt:
  21.               name: "{{item}}"
  22.               state: present
  23.             loop:
  24.               - ntp
  25.               - unzip
  26.               - git
  27.               - wget
  28.               - zip
  29.             when: ansible_os_family == "Debian"
  30.
  31.           - name: Start and Enable NTP service in RedHat OS
  32.             service:
  33.               name: ntpd
  34.               state: started
  35.               enabled: yes
  36.             when: ansible_os_family == "RedHat"
  37.
  38.           - name: Start and Enable NTP service in Debian OS
  39.             service:
  40.               name: ntp
  41.               state: started
  42.               enabled: yes
  43.             when: ansible_os_family == "Debian"

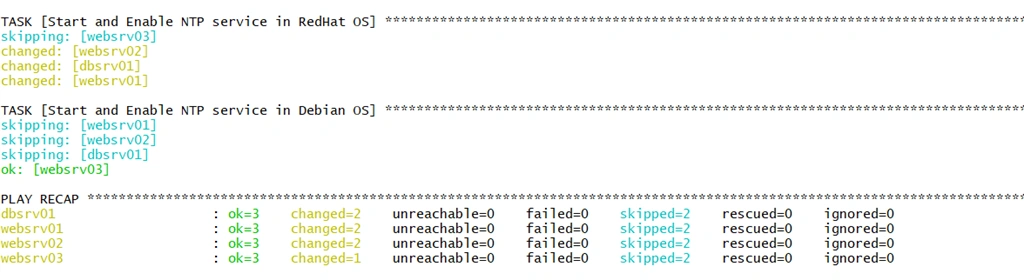

Let’s run the playbook and see the output.

Ansible

We can see that all the packages along with NTP have been installed successfully and service has also been started.


Set up local NTP configuration for RedHat and Ubuntu servers


As the NTP service has been installed so we can log in to any server and can see the NTP config file.
  • Login to the web server 01 with the below command
    ssh devops@websrv01

  • Open the configuration file with the below command
    vim /etc/ntp.conf

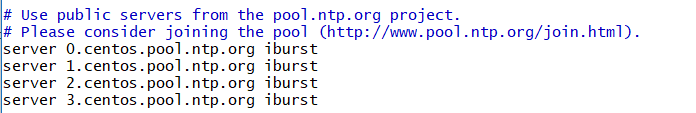

  • Setting present in /etc/ntp.conf file

    Ansible
Now if we want to use the NTP service from any of the global NTP servers then these 4 lines need to be changed. So, what we do now is we will copy the entire /etc/ntp.conf file and paste it inside the directory in our ansible machine.

Suppose we have 100 servers then we will have to manually login to each server and change this setting which is a pretty cumbersome and inefficient approach.


Steps to create NTP configuration in ansible machine for RedHat OS based servers

  1. Create a folder named files and the create a file for RedHat OS based servers,

    mkdir files
    vim files/ntp_redhat.conf
  1. Copy all the information from websrv 01 ntp configuration and paste it inside ansible machine ntp_redhat.conf file.
  1. We are going to use NTP server for, suppose, North America region… keeping in mind that our servers reside in North America from here

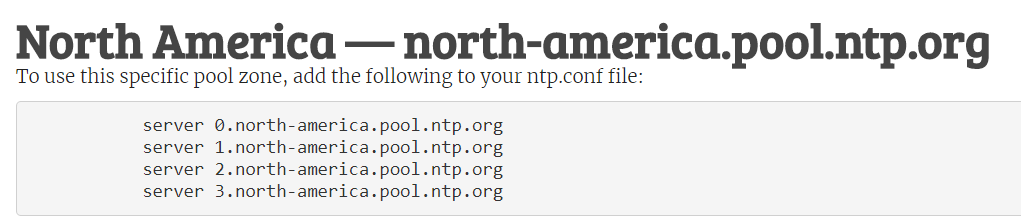

  2. Then we will update the server 0,1,2 and 3 in ntp_redhat.conf file from the below information for north America region.

    Ansible

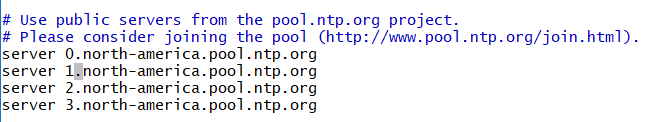

Below is the updated ntp_redhat.conf file.

Ansible


Steps to create NTP configuration in ansible machine for Debian OS based servers


Now we will do the same for Debian based OS server which is our web server 03.
  1. Create an NTP configuration file for Debian OS based servers.

    vim files/ntp_debian.conf
  1. Login to the websrv03 and copy all the information from websrv 03 ntp configuration and paste it inside ansible machine ntp_debian.conf
  2. Update the pool 0,1,2 and 3 in ntp_debian.conf file with the information for the North America region as done above.

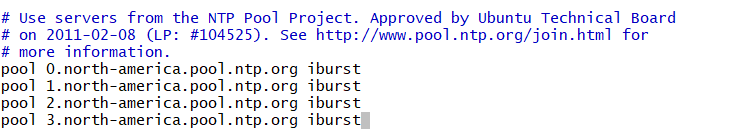

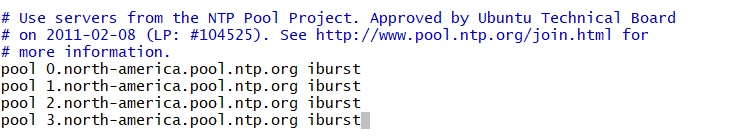

Below is the updated ntp_debian.conf file.

Ansible

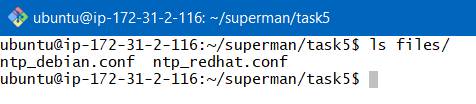

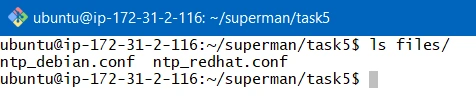

Now our files directory contains 2 NTP configuration files.

Ansible
Now, we are going to deploy these NTP config files for RedHat and Debian based systems on our servers and will restart the NTP service. For this, we need to add 4 more tasks in our playbook.

Below is the updated playbook code.
  1. ---
  2.
  3. - name: Deploying NTP Service
  4.   hosts: all
  5.   become: yes
  6.   tasks:
  7.           - name: Install packages on RedHat OS
  8.             yum:
  9.               name: "{{item}}"
  10.               state: present
  11.             loop:
  12.               - ntp
  13.               - unzip
  14.               - git
  15.               - wget
  16.               - zip
  17.             when: ansible_os_family == "RedHat"
  18.
  19.           - name: Install packages on Debian OS
  20.             apt:
  21.               name: "{{item}}"
  22.               state: present
  23.             loop:
  24.               - ntp
  25.               - unzip
  26.               - git
  27.               - wget
  28.               - zip
  29.             when: ansible_os_family == "Debian"
  30.
  31.           - name: Start and Enable NTP service in RedHat OS
  32.             service:
  33.               name: ntpd
  34.               state: started
  35.               enabled: yes
  36.             when: ansible_os_family == "RedHat"
  37.
  38.           - name: Start and Enable NTP service in Debian OS
  39.             service:
  40.               name: ntp
  41.               state: started
  42.               enabled: yes
  43.             when: ansible_os_family == "Debian"
  44.
  45.           - name: Deploy the NTP configuration file for Debian OS
  46.             copy:
  47.               src: files/ntp_debian.conf
  48.               dest: /etc/ntp.conf
  49.               backup: yes
  50.             when: ansible_os_family == "Debian"
  51.
  52.           - name: Deploy the NTP configuration file for RedHat OS
  53.             copy:
  54.               src: files/ntp_redhat.conf
  55.               dest: /etc/ntp.conf
  56.               backup: yes
  57.             when: ansible_os_family == "RedHat"
  58.
  59.           - name: Restart NTP service in RedHat OS
  60.             service:
  61.               name: ntpd
  62.               state: restarted
  63.             when: ansible_os_family == "RedHat"
  64.
  65.           - name: Restart NTP service in Debian OS
  66.             service:
  67.               name: ntp
  68.               state: restarted
  69.             when: ansible_os_family == "Debian"

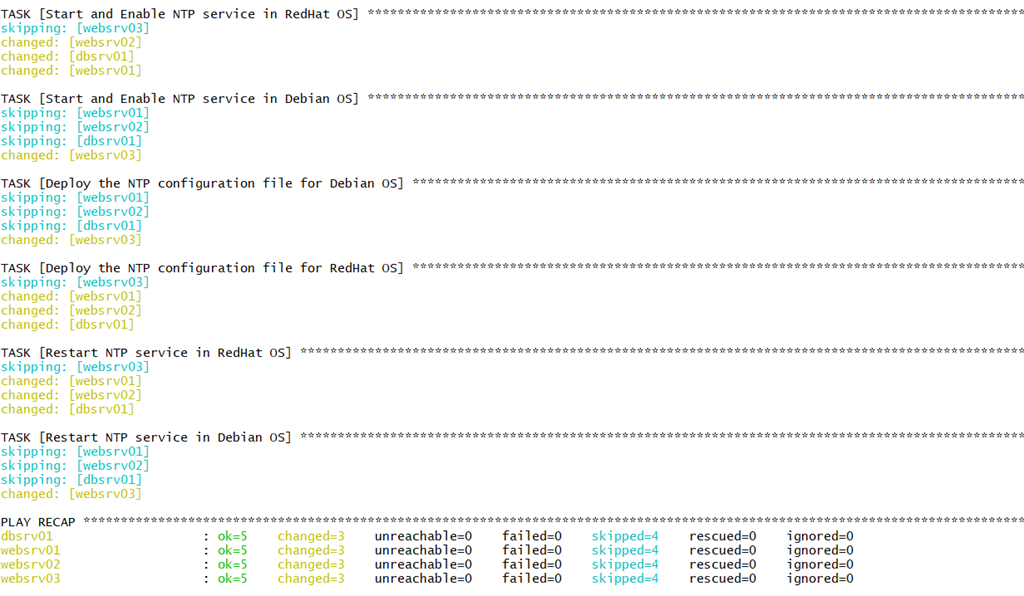

OUTPUT

Ansible
So, we can see that our newly added tasks have been executed successfully and our local NTP configuration files have been deployed and the service has restarted.


Summary


In this article, we have learned how we can install NTP service and how we can set up the local NTP configuration which can be deployed on multiple machines rather than setting up on each machine one by one.

In the next article in this series, we will be learning some more interesting concepts.

I hope you find this article helpful. Stay tuned for more … Cheers!!
