Getting Started With Azure DevOps - Part Two

This is a series of articles to get our hands dirty with Azure DevOps (previously known as VSTS).

Please refer to the previous part to understand the basics of Azure DevOps and a hands-on lab.

This part will cover the following things.
  • Hands-on Lab - Create App Service in Azure
  • Hands-on Lab - Create a build pipeline
  • Hands-on Lab - Create a release pipeline (artifacts + tasks)
  • Hands-on Lab - Run the Azure app
  • Hands-on Lab - Enable continuous deployment + Code changes
  • Hands-on Lab - Post to slack using Service hooks

Hands-on Lab - Create App Service in Azure


Steps to be followed,
  • Open http://portal.azure.com and select an active subscription.
  • Go to the "App Services" section and click on the "Create" button.
  • Choose a web-app.
  • Provide the name of the app along with the resource group and service plan.
  • Click "Add".
  • Check if the app-service is created and running or not.

Hands-on Lab - Create a build pipeline


Steps to be followed,
  • Open https://dev.azure.com/ and log in using your Azure credentials.
  • Go the "Pipelines" tab, select the build, and click on "Create new build pipeline".

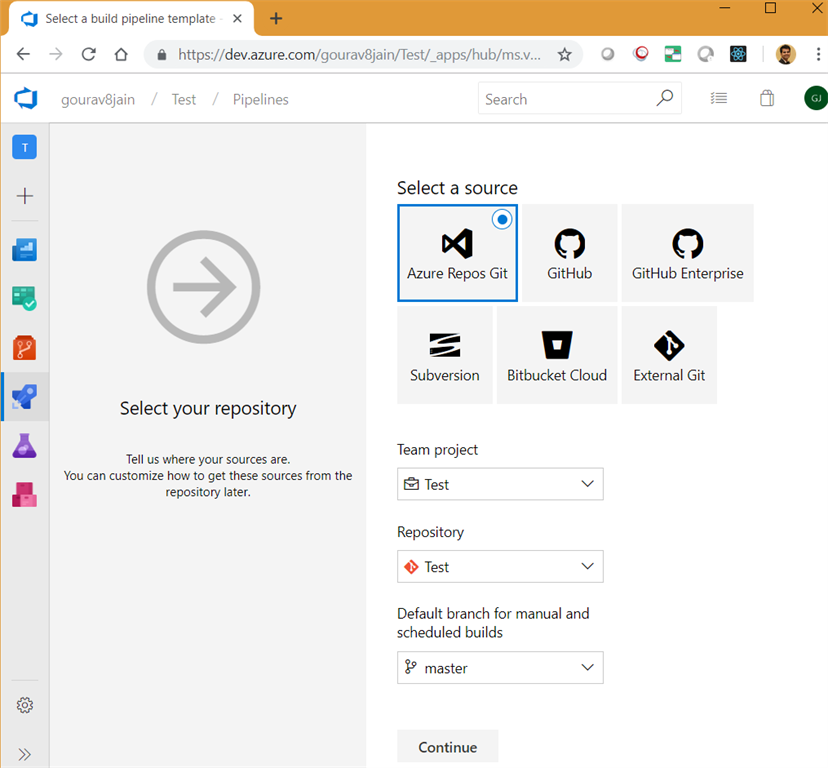

  • Choose a repo (GitHub / AzureDevops Git)

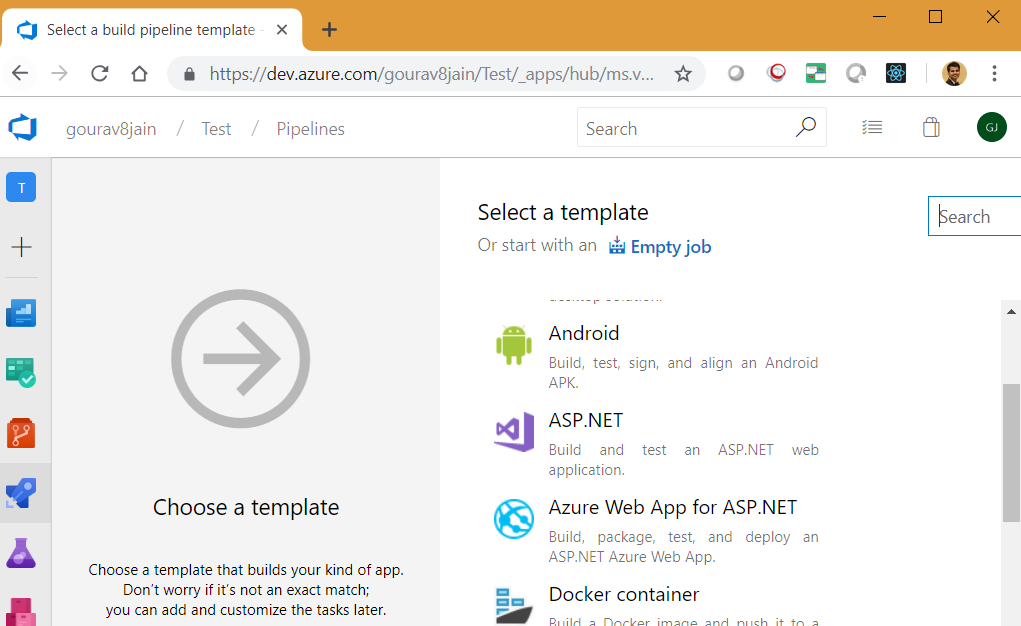

  • Select ASP.NET template and apply.

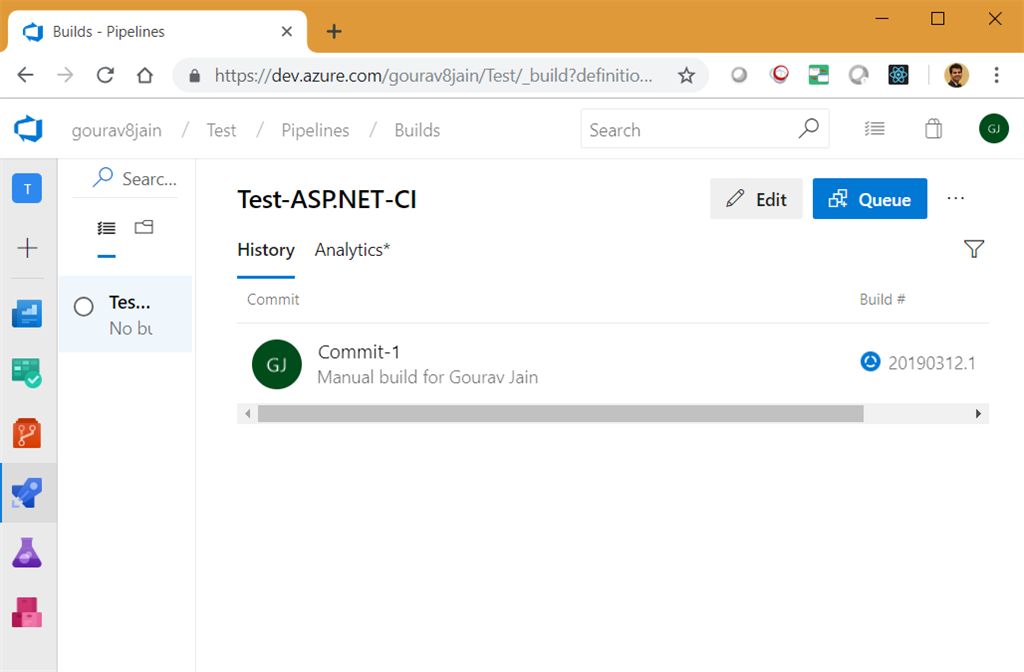

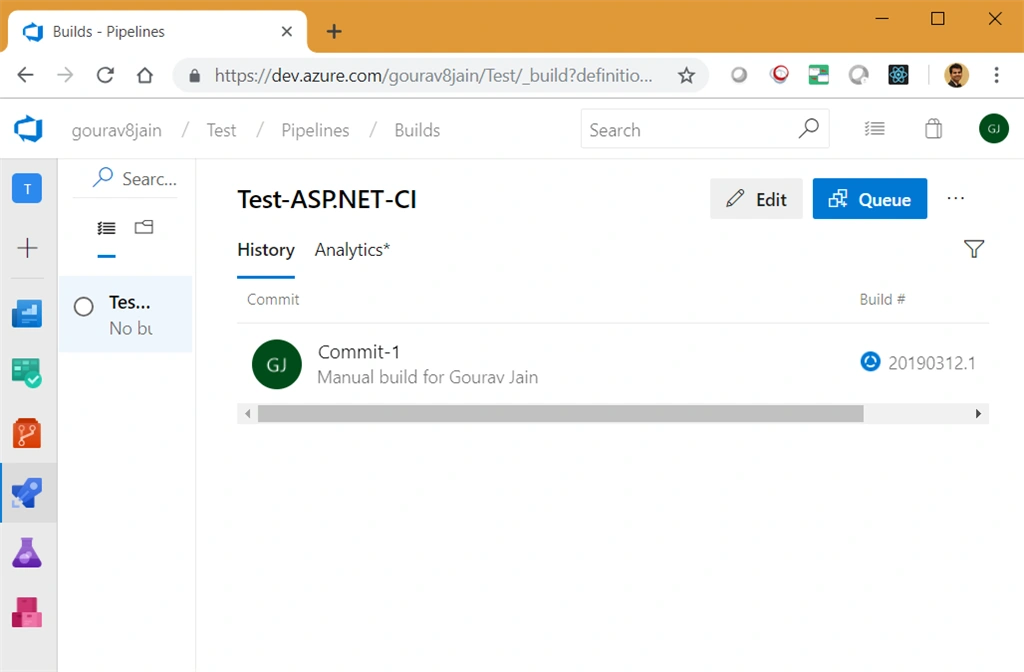

  • Click on "Save and Queue" after checking all the options and wait for the success.

  • Open your mailbox to check email.

Hands-on Lab - Create a release pipeline (artifacts + tasks)


Steps to be followed,
  • Open https://dev.azure.com/ and log in using your Azure credentials.
  • Go to the pipeline section and select "Release".

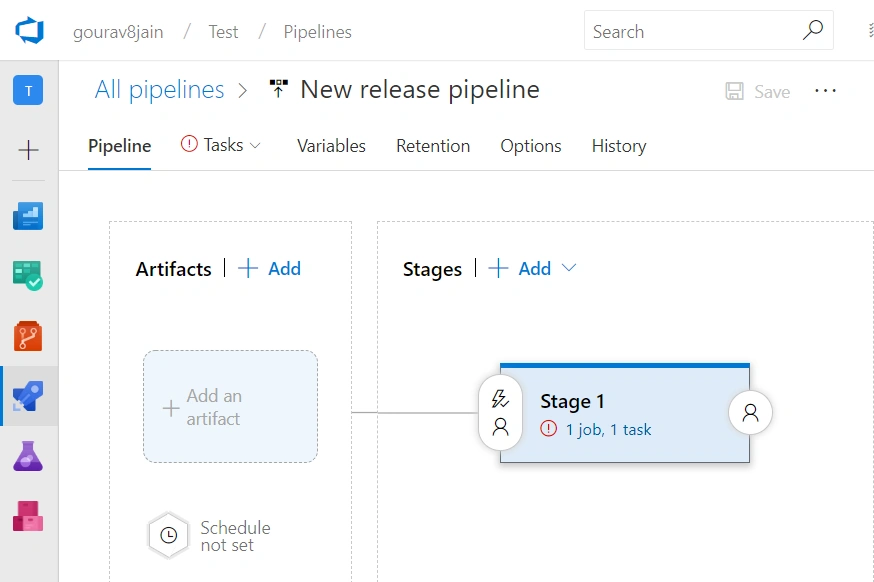

  • Create a new release and select a template ‘Azure App Service Deployment’.

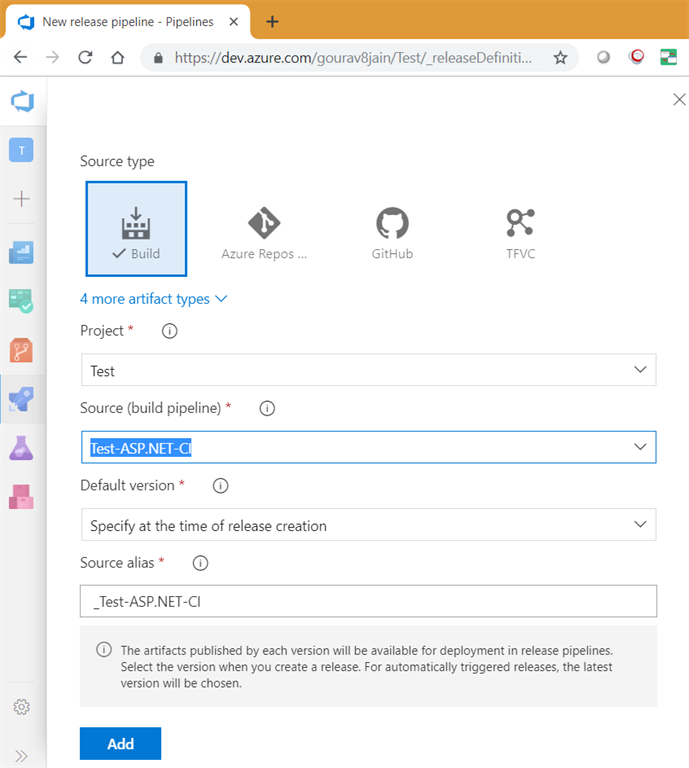

  • Add an artifact section and select source as build.

  • Select a build definition and click "Add".
  • Now, go to the stage and click on the added task.

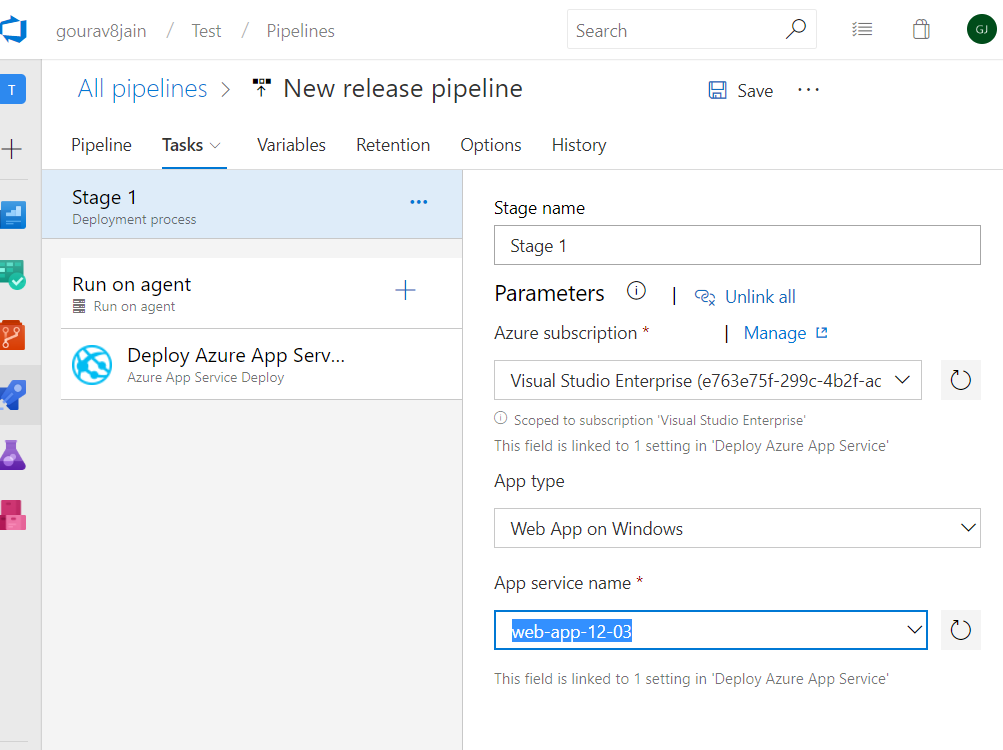

  • Select Azure subscription and created the web-app.

  • Then, go to “Deploy Azure App Service” and choose a package folder to test.zip
  • Save

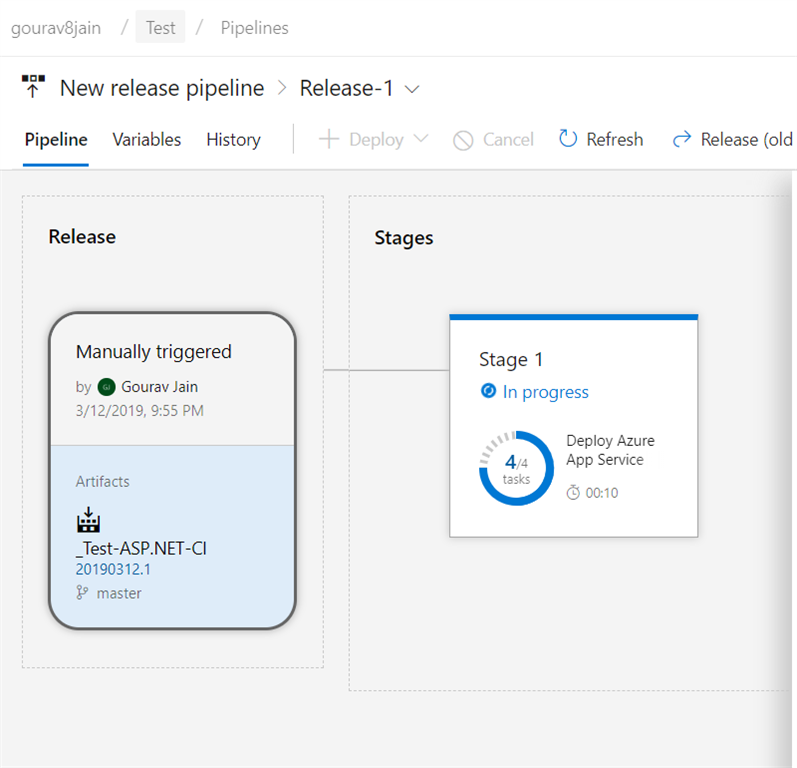

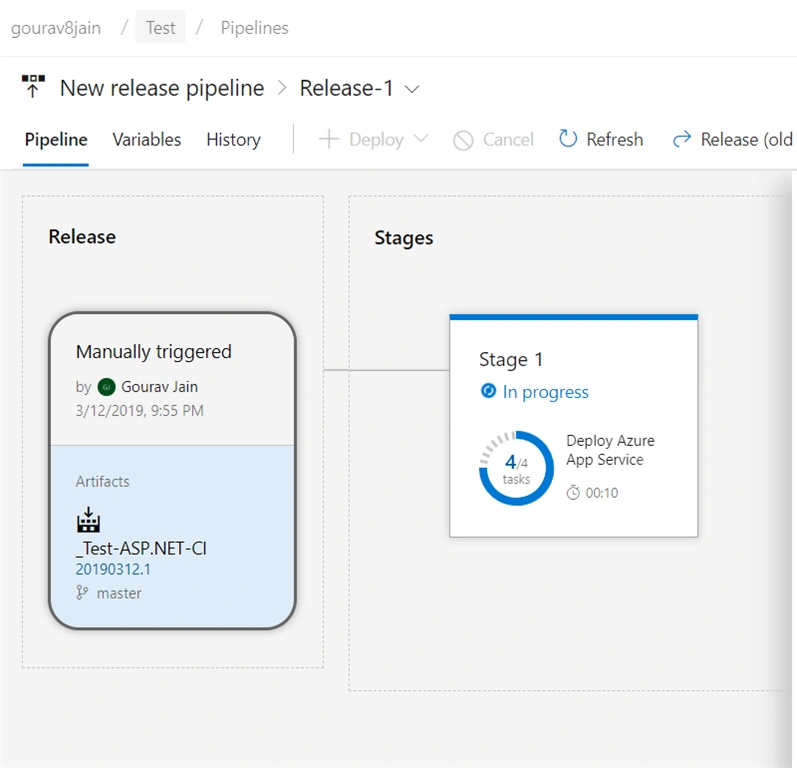

  • Create a release from the release pipeline and wait for its success.


Hands-on Lab - Run the Azure app


Steps to be followed

  • Open http://portal.azure.com and go to the app-service.
  • Copy the URL from the Overview section.

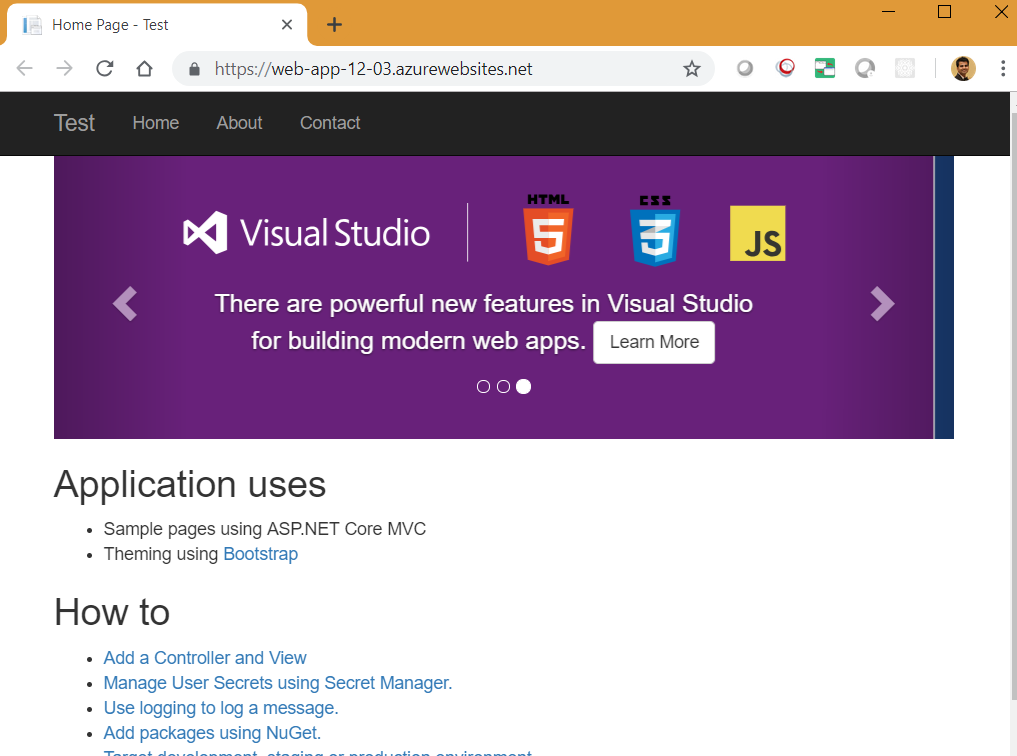

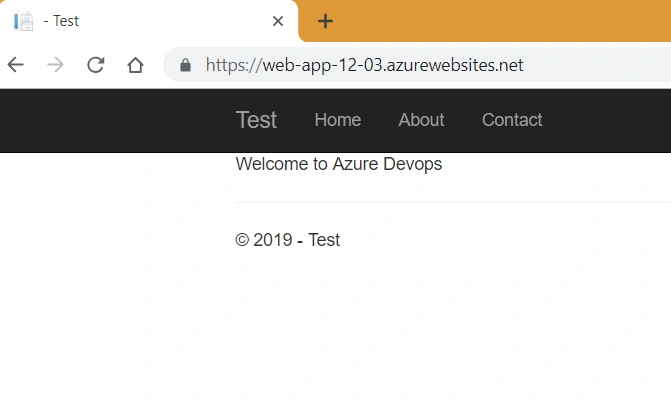

  • Hit the URL on the browser and wait to see the application changes.


Hands-on Lab - Enable continuous deployment + Code changes


Steps to be followed -

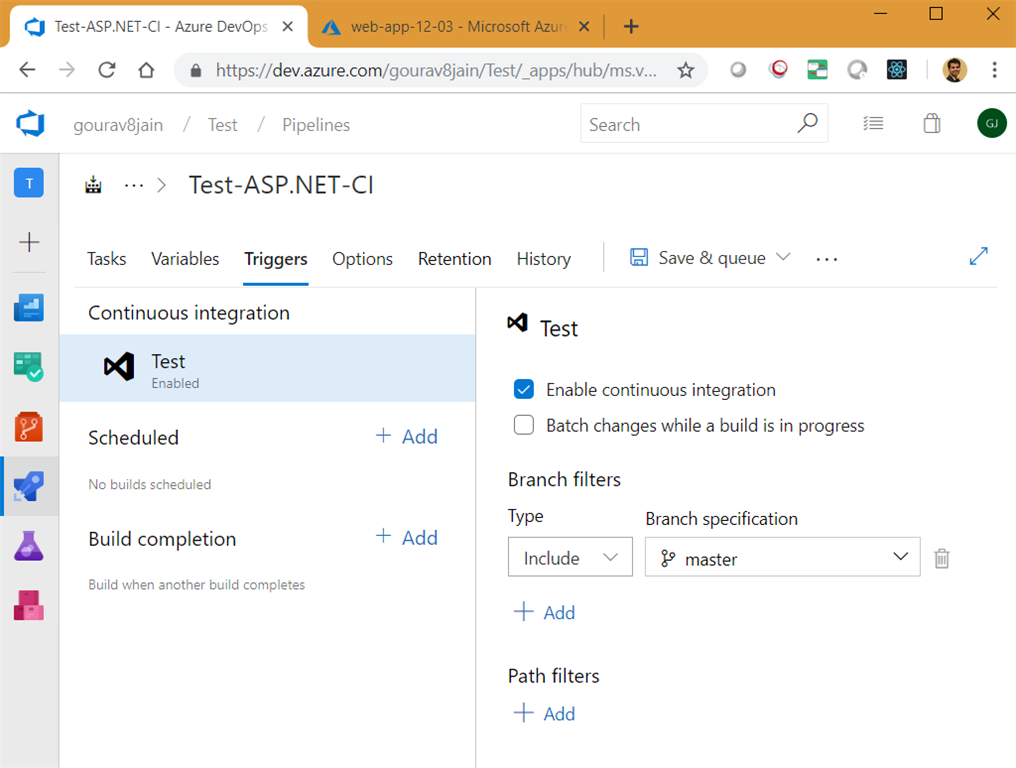

  • Go to the Build section >> Triggers section and then enable continuous deployment.

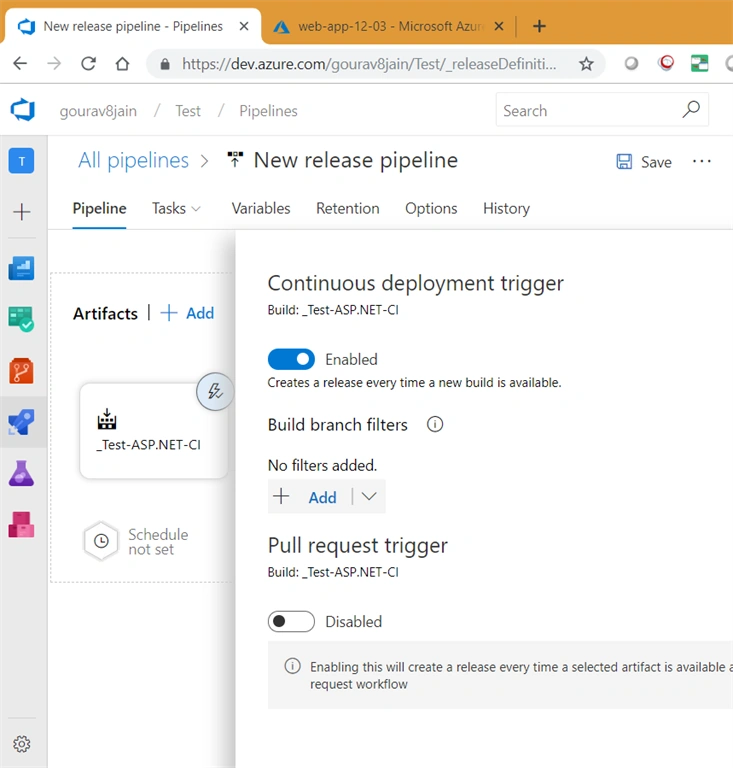

  • Go to the Release section >> artifacts section and enable “release every time”.


  • Click on the "Save" button.
  • Open VS 2017 and do any change in the view of the app.
  • Push those changes and wait for the build and release to get success.
  • Run the app to check the changes.


Hands-on Lab - Post to slack using Service hooks


Steps to be followed -

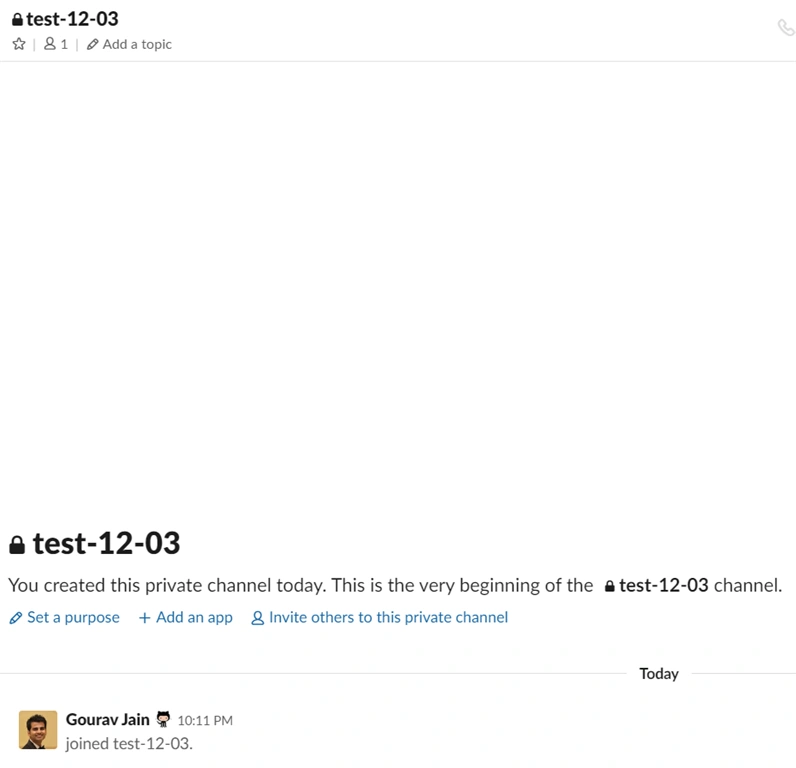

  • Open the Slack app and create a private channel over Slack – for example - ‘test’.


  • Go to Channel Settings and click on ‘Add Apps’.
  • Click on ‘View App Directory’ and search for ‘Visual Studio Team Services’.
  • Click on "Install for the channel" and add integration.
  • Copy the ‘Web Hook URL’ and Save Integration.
  • Open https://dev.azure.com/ and log in using your Azure credentials.
  • Go to the project settings and click on service hook.

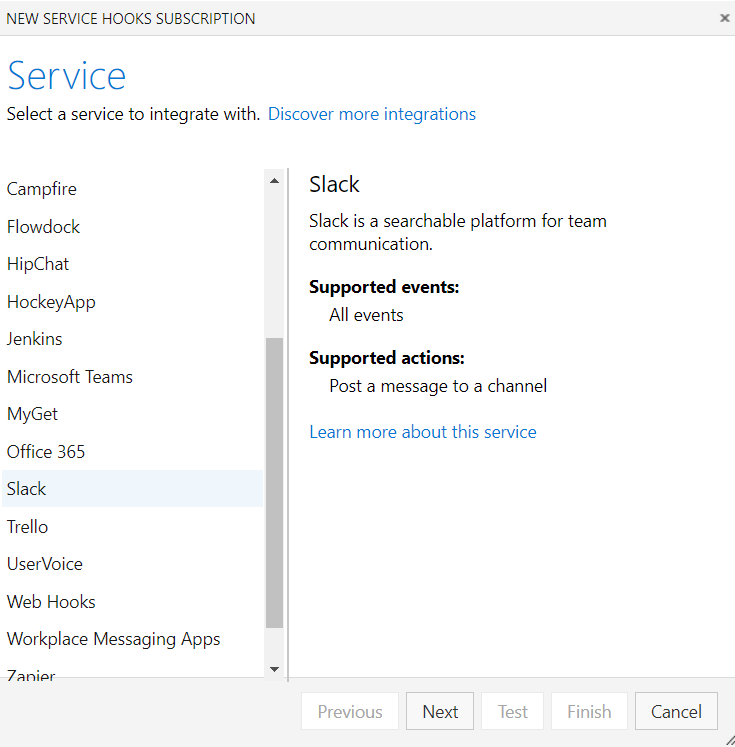

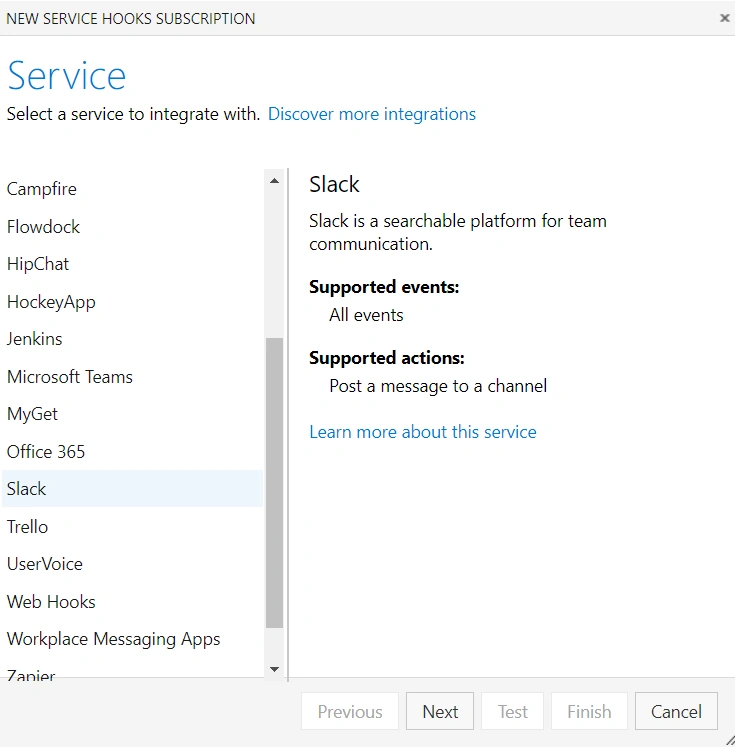

  • Add a subscription, choose Slack and Build completed option – paste service hook.


  • Click on Test

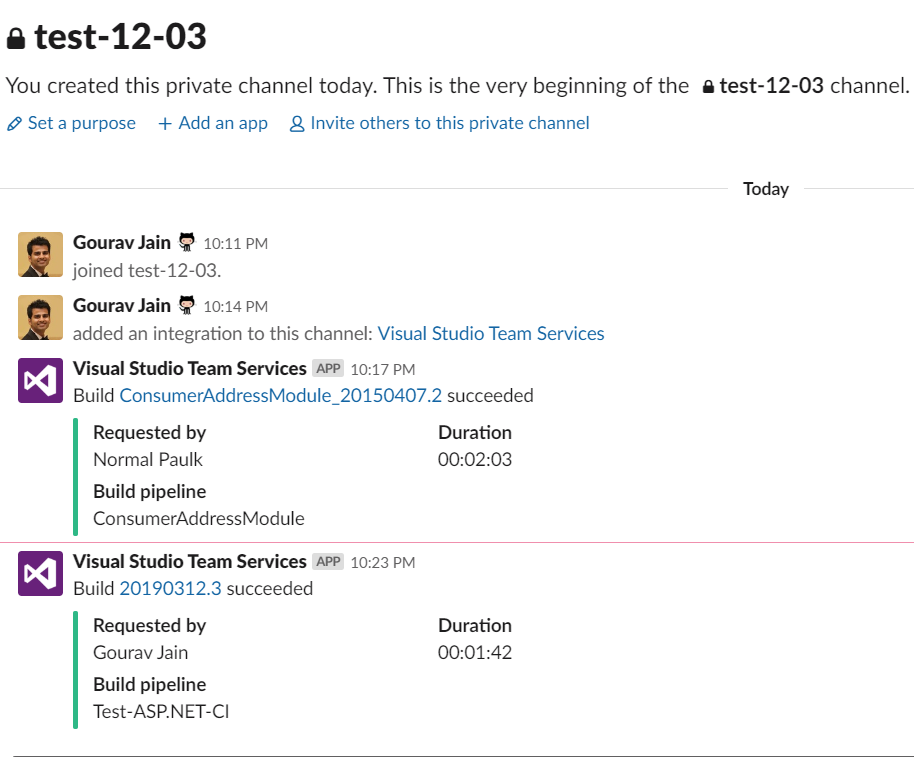

  • If successful, queue a new build and check for the message posted on the new channel.

Stay tuned for the next series of articles which will cover a deep dive into Azure Devops.

Happy learning!
