Getting Started with OpenCV in .NET

OpenCV (Open Source Computer Vision Library) is a popular open-source framework for image processing, computer vision, and machine learning. While OpenCV’s roots are in C++, it can be seamlessly used in .NET applications via bindings provided by OpenCvSharp, a .NET wrapper around the OpenCV library.

This article is a beginner-friendly guide to getting OpenCV up and running in your .NET environment, demonstrating a basic example: loading an image and converting it to grayscale.

Prerequisites

Before diving into code, ensure you have the following set up.

  1. Visual Studio (or any C# IDE of your choice).
  2. .NET 5, .NET 6, or higher installed on your system.
  3. Basic familiarity with C# and .NET projects.

1. Set Up OpenCvSharp in Your .NET Project

To use OpenCV in .NET, we'll install the OpenCvSharp NuGet package. This provides high-level bindings to OpenCV's functionality within a .NET application.

Steps to Install OpenCvSharp

  1. Create a New .NET Project: Create a new console application named OpenCVExample.
  2. Install the OpenCvSharp NuGet Packages: Run the following in your terminal or Package Manager Console in Visual Studio.
    dotnet add package OpenCvSharp4
dotnet add package OpenCvSharp4.runtime.win  # For runtime support on Windows

2. Load an Image and Convert It to Grayscale

Now that OpenCvSharp is installed, let’s write a simple program that.

  1. Loads an image.
  2. Converts the image to grayscale.
  3. Displays the original and grayscale images.

Here’s the complete example.

Program Code

using System;
using OpenCvSharp;

class Program
{
    static void Main(string[] args)
    {
        // Path to the image file (change this to the path of your image file)
        string imagePath = "sample.jpg";
        // Step 1: Load the image
        Mat inputImage = Cv2.ImRead(imagePath, ImreadModes.Color);
        if (inputImage.Empty())
        {
            Console.WriteLine("Failed to load the image. Check the file path.");
            return;
        }
        Console.WriteLine("Image loaded successfully!");
        // Step 2: Convert the image to grayscale
        Mat grayImage = new Mat();  // Create a new matrix to store the grayscale image
        Cv2.CvtColor(inputImage, grayImage, ColorConversionCodes.BGR2GRAY);
        Console.WriteLine("Image converted to grayscale.");
        // Step 3: Display both images (original and grayscale)
        Cv2.ImShow("Original Image", inputImage);
        Cv2.ImShow("Grayscale Image", grayImage);
        // Wait for a key press before closing the image display windows
        Console.WriteLine("Press any key to close the image windows.");
        Cv2.WaitKey();
        Cv2.DestroyAllWindows();
    }
}

3. Run the Application

Steps

  1. Add the Image File: Place the image (sample.jpg) in the bin\Debug\net8.0 project folder, or specify the absolute path to your image file.
  2. Build and Run the Code: Press Ctrl + F5 in Visual Studio or run from the terminal.
  3. Result
    • Two separate windows will open.
      • One shows the original image.
      • One shows the grayscale version.
    • The console will display messages about the image processing status.

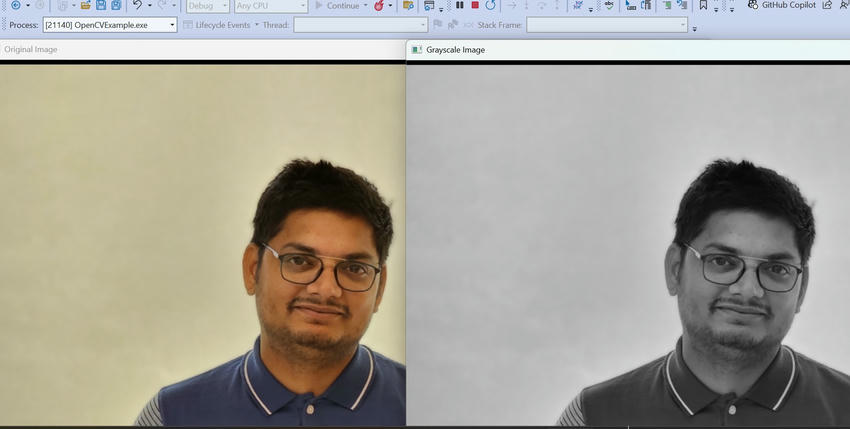

Output Samples

Output samples

4. Key Methods and Concepts

Let’s break down some essential parts of the code.

(i) CV2.ImRead(): Load an Image

  • Loads the image from the path specified.
  • The second parameter specifies the color mode.
    • ImreadModes.Color (default): Loads in color (BGR format).
    • ImreadModes.Grayscale: Directly loads the image as grayscale.

(ii) Cv2.CvtColor(): Color Conversion

  • Converts an image from one format to another.
  • In our example, we convert the original image (in BGR format) to grayscale.
    Cv2.CvtColor(inputImage, grayImage, ColorConversionCodes.BGR2GRAY);

(iii) CV2.ImShow(): Display an Image

  • Creates a window and displays the image.
  • Parameters
    • Window Name: Unique name for the display window.
    • Image: The Mat object (photo) to display.

(iv) CV2.WaitKey() and Cv2.DestroyAllWindows()

  • Cv2.WaitKey() pauses the execution and keeps the image windows open until a key is pressed.
  • Cv2.DestroyAllWindows() closes all image display windows once you're done.

5. Next Steps

Now that you've successfully loaded and processed your first image with OpenCV in .NET, the possibilities are endless! Here are some recommended next steps.

Step 1. Try with Other Image Processing Functions.

Explore methods such as blurring, edge detection, and thresholding. Examples include,

  • Cv2.GaussianBlur(): Apply a Gaussian blur to an image.
  • Cv2.Canny(): Perform edge detection.

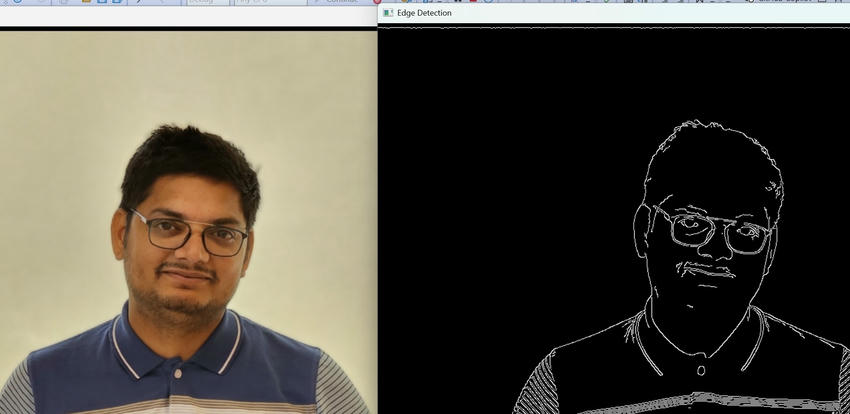

Example of detecting edges in a grayscale image.

Mat edges = new Mat();
// Edge detection with thresholds
Cv2.Canny(grayImage, edges, 100, 200);
Cv2.ImShow("Edge Detection", edges);

OpenCV

Step 2. Handle Videos.

Use VideoCapture from OpenCV to process video files or webcam streams.

Step 3. Explore Image Manipulations.

  • Cropping
  • Rotating
  • Resizing images

Step 4. Utilize Object Detection Filters.

Explore advanced topics such as object detection, face recognition, or feature extraction.

Conclusion

Congratulations! You’ve taken your first steps in using OpenCV with .NET through OpenCvSharp. Loading an image and converting it to grayscale is a foundational exercise, setting the stage for more advanced operations, such as image enhancements, object detection, or deep learning integrations.

By adding OpenCV to your software development toolkit, you unlock a world of possibilities for building applications in image processing, computer vision, and beyond. So, keep experimenting and take your application development to the next level!
