Getting Started With Reactive Extensions

In this article, we will continue from the previous article and see a few examples around the UI side. Let us suppose the following snippet, wherein I have simply created one windows form and attached a textbox to it.

using System;
using System.Reactive.Linq;
using System.Windows.Forms;
namespace ReactiveExtensions
{
internal class Program
{
private static void Main(string[] args)
{
// ObservableGetValue();
var textbox = new TextBox();
var form = new Form
{
Controls = {textbox}
};
Application.Run(form);
}
private static void ObservableGetValue()
{
IObservable<string> obj = Observable.Generate(
0, //Sets the initial value like for loop
_ => true, //Don't stop till i say so, infinite loop
i => i + 1, //Increment the counter by 1 everytime
i => new string('#', i), //Append #
i => TimeSelector(i)); //delegated this to private method which just calculates time
//Subscribe here
using (obj.Subscribe(Console.WriteLine))
{
Console.WriteLine("Press any key to exit!!!");
Console.ReadLine();
}
}
//Returns TimeSelector
private static TimeSpan TimeSelector(int i)
{
return TimeSpan.FromSeconds(i);
}
}
}

Now, with the above change in place, it will simply give me one window form with one text-box in it.

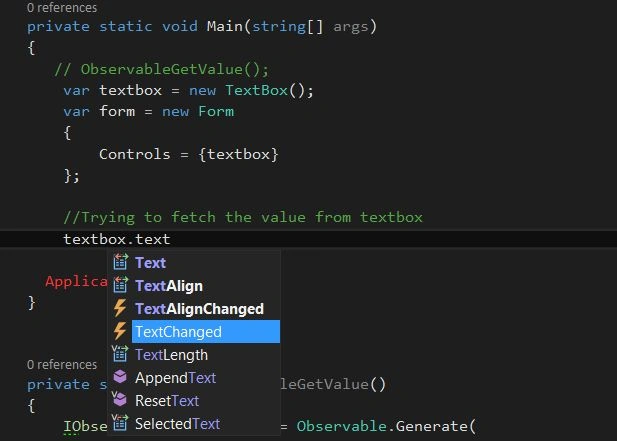

Now, I would like to listen to text changed event. So, what I would do? I will simply go ahead and attach the text changed handler as in the following code snippet.

Therefore, it has created the following sample event code.

using System;
using System.Reactive.Linq;
using System.Windows.Forms;
namespace ReactiveExtensions
{
internal class Program
{
private static void Main(string[] args)
{
// ObservableGetValue();
var textbox = new TextBox();
var form = new Form
{
Controls = {textbox}
};
//Trying to fetch the value from textbox
textbox.TextChanged += textbox_TextChanged;
Application.Run(form);
}
static void textbox_TextChanged(object sender, EventArgs e)
{
throw new NotImplementedException();
}
private static void ObservableGetValue()
{
IObservable<string> obj = Observable.Generate(
0, //Sets the initial value like for loop
_ => true, //Don't stop till i say so, infinite loop
i => i + 1, //Increment the counter by 1 everytime
i => new string('#', i), //Append #
i => TimeSelector(i)); //delegated this to private method which just calculates time
//Subscribe here
using (obj.Subscribe(Console.WriteLine))
{
Console.WriteLine("Press any key to exit!!!");
Console.ReadLine();
}
}
//Returns TimeSelector
private static TimeSpan TimeSelector(int i)
{
return TimeSpan.FromSeconds(i);
}
}
}

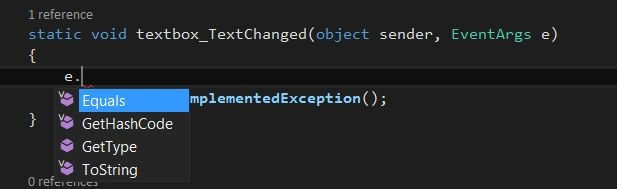

But, if you look at the following screenshot, textchanged is not available.

Hence, this won't be helpful to me. Rather than that, I would prefer to have a reactive extension and subscribe the same as shown below.

private static void Main(string[] args)
{
// ObservableGetValue();
var textbox = new TextBox();
var form = new Form
{
Controls = {textbox}
};
//Using Rx, to get the textchanged
var textChanged = Observable.FromEventPattern<EventArgs>(textbox, "TextChanged");
//then, I will subscribe the same
Application.Run(form);
}

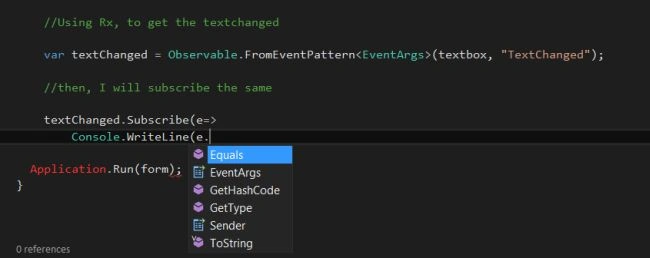

Now, if you see the following screenshot, it gave me EventArgs.

Here, in order to get changed text, I need to make use of LINQ on the top of Rx. Hence, below is the finished code for the same. I have done a little bit of refactoring as well, just to keep the code more readable and clean.

using System;
using System.Reactive.Linq;
using System.Windows.Forms;
namespace ReactiveExtensions
{
internal class Program
{
private static void Main(string[] args)
{
// ObservableGetValue();
GetTextBoxValue();
}
private static void GetTextBoxValue()
{
var textbox = new TextBox();
var form = new Form
{
Controls = {textbox}
};
//Using Rx, to get the textchanged
var textChanged = Observable.FromEventPattern<EventArgs>(textbox, "TextChanged");
//then, I will subscribe the same using LINQ Projection
var query = from e in textChanged
select ((TextBox) e.Sender).Text;
//Hence, if the application quits, i want to unsubscribe
using (query.Subscribe(Console.WriteLine))
{
Application.Run(form);
}
}
private static void ObservableGetValue()
{
IObservable<string> obj = Observable.Generate(
0, //Sets the initial value like for loop
_ => true, //Don't stop till i say so, infinite loop
i => i + 1, //Increment the counter by 1 everytime
i => new string('#', i), //Append #
i => TimeSelector(i)); //delegated this to private method which just calculates time
//Subscribe here
using (obj.Subscribe(Console.WriteLine))
{
Console.WriteLine("Press any key to exit!!!");
Console.ReadLine();
}
}
//Returns TimeSelector
private static TimeSpan TimeSelector(int i)
{
return TimeSpan.FromSeconds(i);
}
}
}

Hence, with the above change in place, when I run the app, it will give us the following output.

You can also download the source code from here.

With this, I would like to wrap this session here. Thanks for joining me.
